Commercial
Non-Insulated
Terminals

Filter
10-526-2-095
10-526-2-095
10-526-2-095
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.094" 1/16 0.206 Brass Hot Solder Dip NO
10-544-1-095
10-544-1-095
10-544-1-095
0.303" - Turret/Turret Swage Mount 0.062" 1/32 0.094 Brass Hot Solder Dip NO
10-562-2-095
10-562-2-095
10-562-2-095
0.573" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.159 Brass Hot Solder Dip NO
10-606-2-04
10-606-2-04
10-606-2-04
0.421" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES

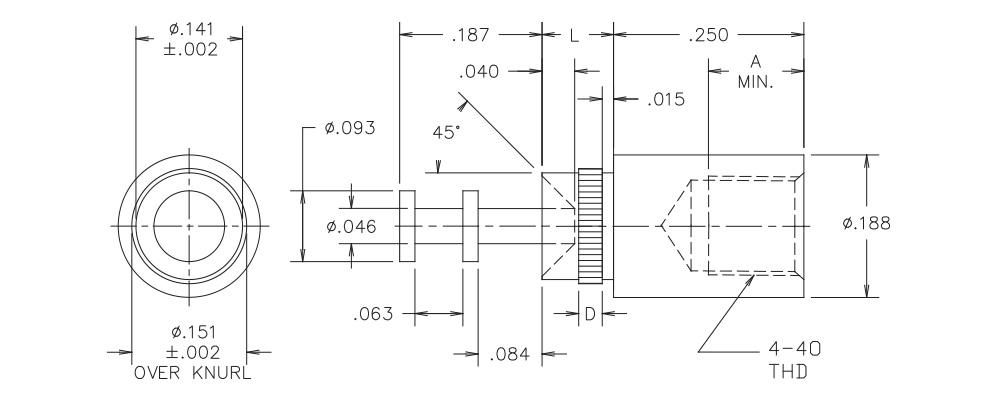

10-710-8-04
10-710-8-04
10-710-8-04
0.722" - DOUBLE TURRET/THREAD Swage Mount 0.285" 1/4 0.144 Brass Electro-Tin YES
10-8015-1-04
10-8015-1-04
10-8015-1-04
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro-Tin YES
10-8025-1-03
10-8025-1-03
10-8025-1-03
0.348" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Gold YES
10-808-1-035
10-808-1-035
10-808-1-035
0.549" - - Swage Mount 0.078" 1/32 0.094 Brass Gold YES
10-815-1-01
10-815-1-01
10-815-1-01
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Silver YES

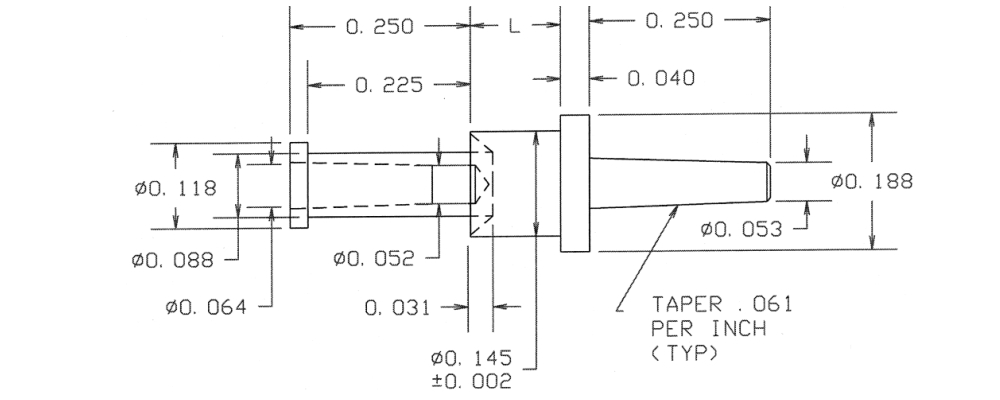

10-824-6-04
10-824-6-04
10-824-6-04
0.759" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.219" 3/16 0.147 Brass Electro-Tin YES

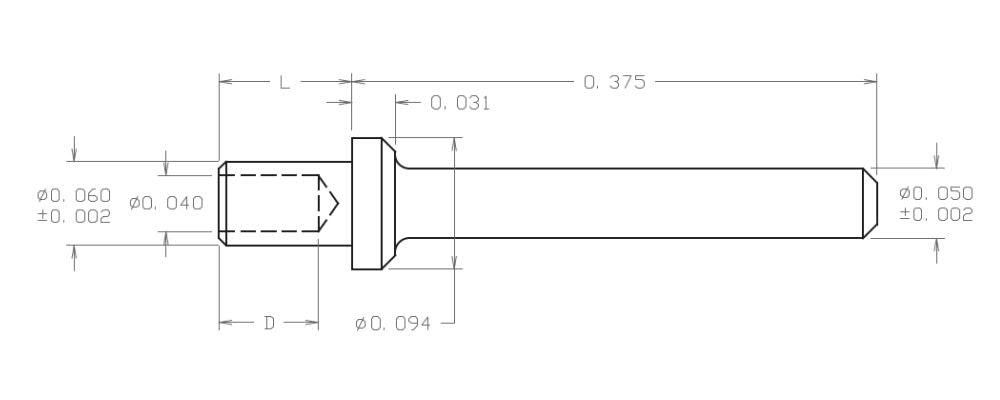

10-834-6-035
10-834-6-035
10-834-6-035
0.594" 0.050 - Swage Mount 0.219" 3/16 0.064 Brass Gold YES

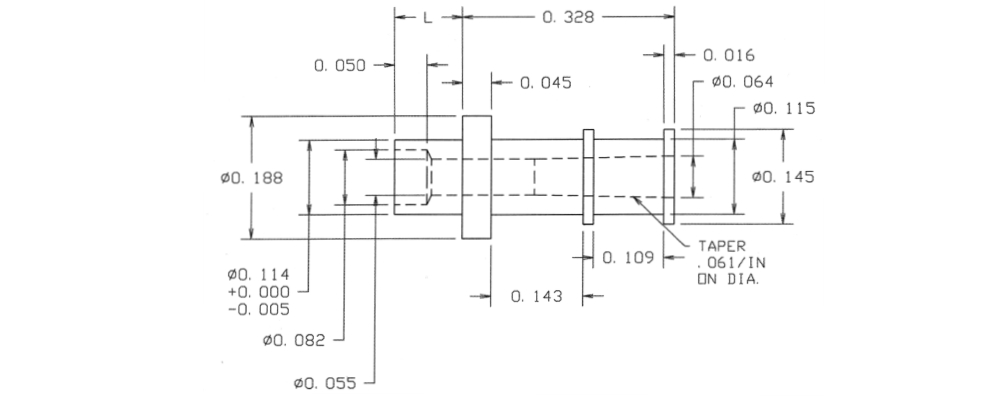

10-845-6-088
10-845-6-088
10-845-6-088
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Bright Tin-Lead NO

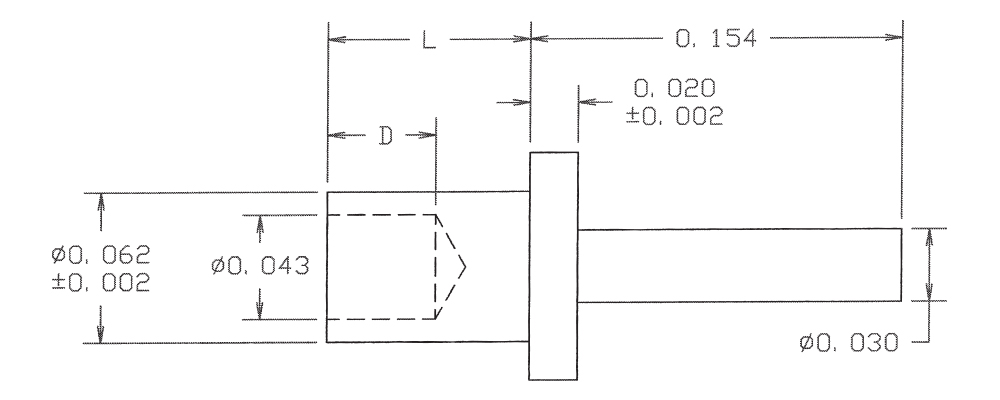

10-867-4-04
10-867-4-04
10-867-4-04
0.301" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Electro-Tin YES

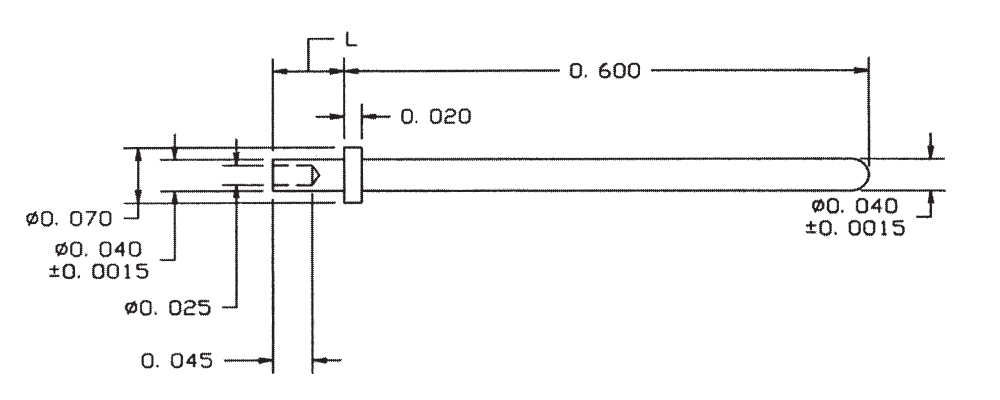

10-892-1-03
10-892-1-03
10-892-1-03
0.651" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

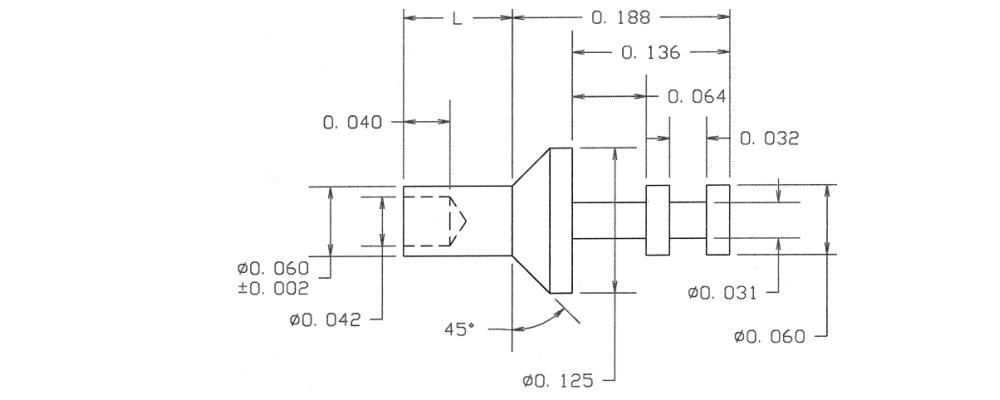

10-905-3-03
10-905-3-03
10-905-3-03
0.313" - - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
10-920-2-088
10-920-2-088
10-920-2-088
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

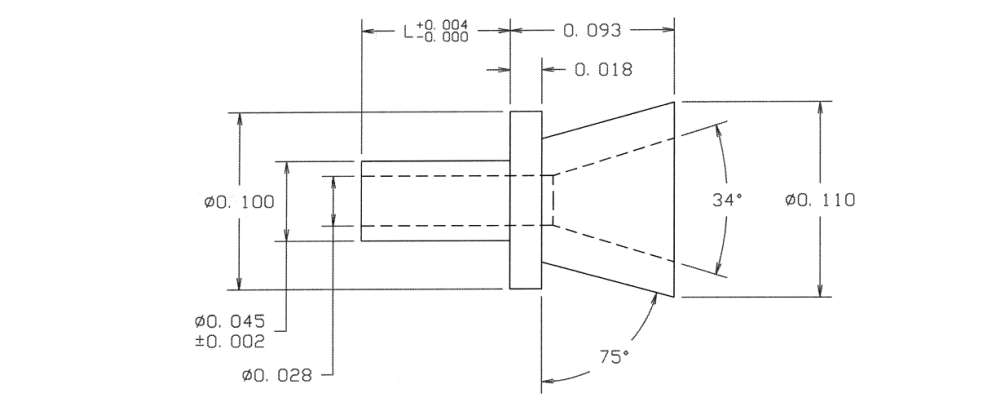

10-936-2-035
10-936-2-035
10-936-2-035
0.177" - - Swage Mount 0.084" 1/16 0.052 Brass Gold YES
14-345-3-04
14-345-3-04
14-345-3-04
0.462" - - Swage Mount 0.135" 3/32 0.116 LEADED Red Brass Electro-Tin YES

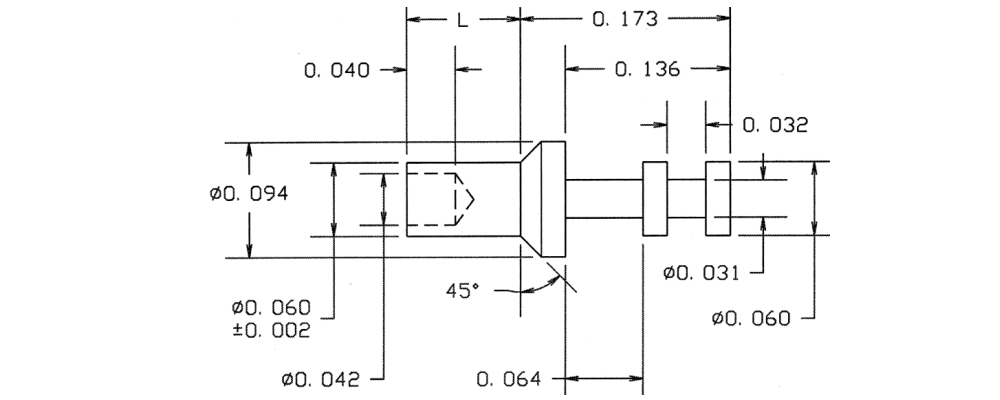

14-947-4-095
14-947-4-095
14-947-4-095
0.329" - - Swage Mount 0.156" 1/8 0.063 LEADED Red Brass Hot Solder Dip NO
10-408-2-01
10-408-2-01
10-408-2-01
0.417" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
