Commercial
Non-Insulated
Terminals

Filter

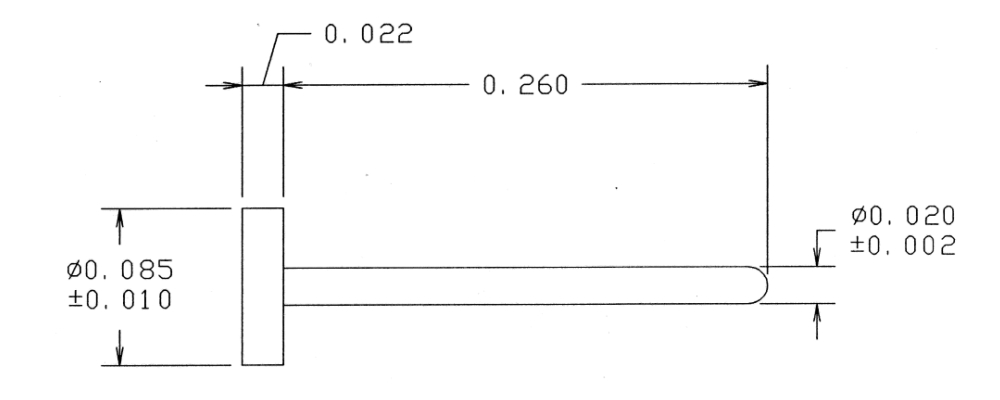

09-8563-1-035
09-8563-1-035
09-8563-1-035
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Gold YES

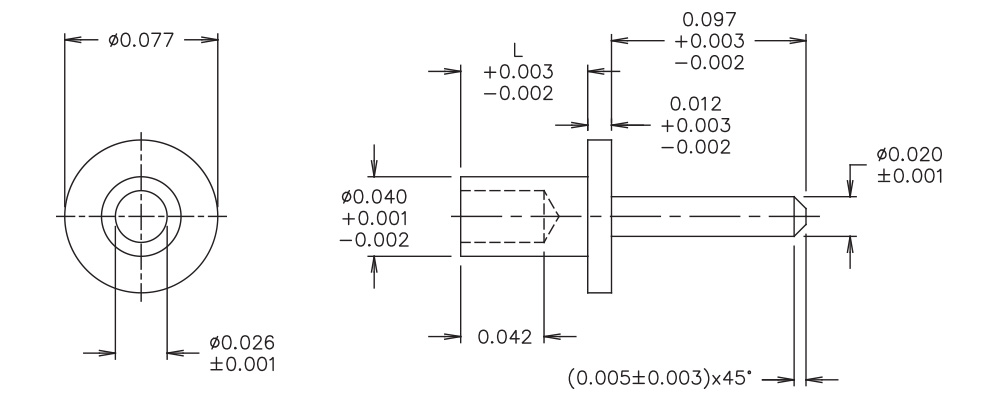

09-8689-1-088
09-8689-1-088
09-8689-1-088
0.174" 0.020 - Swage Mount 0.064" 1/32 0.043 Brass Bright Tin-Lead NO

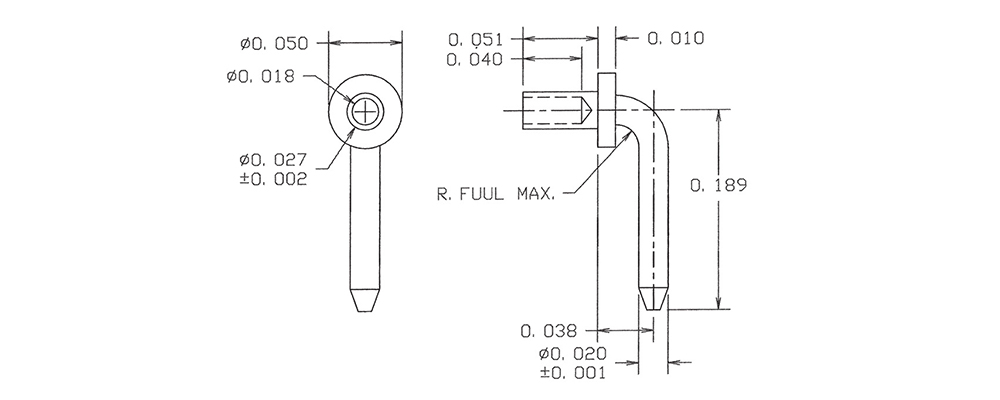

09-8795-1-05
09-8795-1-05
09-8795-1-05
0.214" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Electro Solder NO

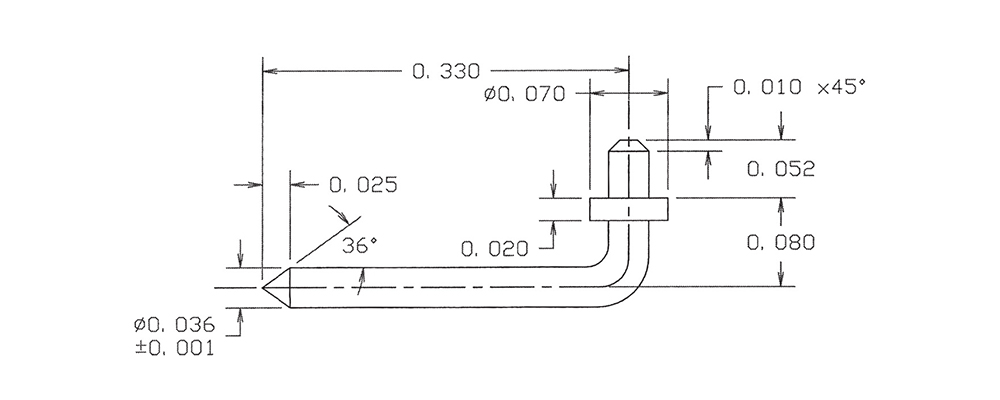

09-8861-1-01
09-8861-1-01
09-8861-1-01
0.365" 0.036 - Solder 0.052" 1/64 TO 1/32 0.039 Brass Silver YES
10-104-1-095
10-104-1-095
10-104-1-095
0.145" - - Swage Mount 0.051" 1/32 0.052 Brass Hot Solder Dip NO
10-111-1-095
10-111-1-095
10-111-1-095
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO

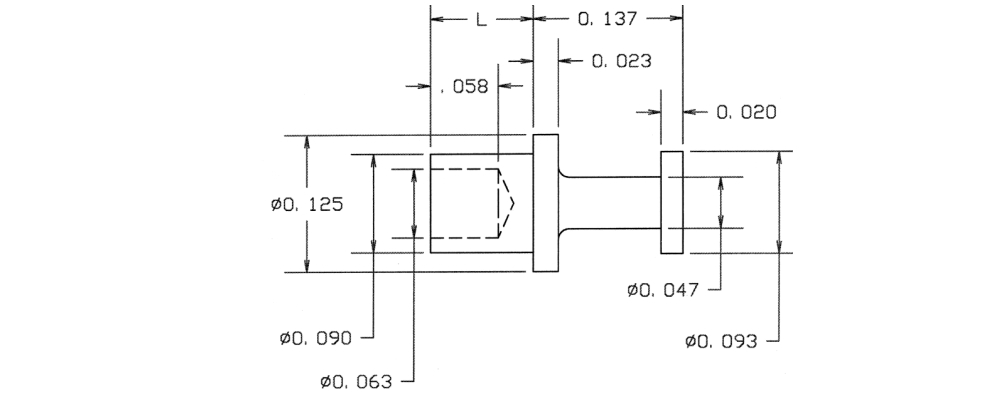

10-130-4-03
10-130-4-03
10-130-4-03
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Gold YES

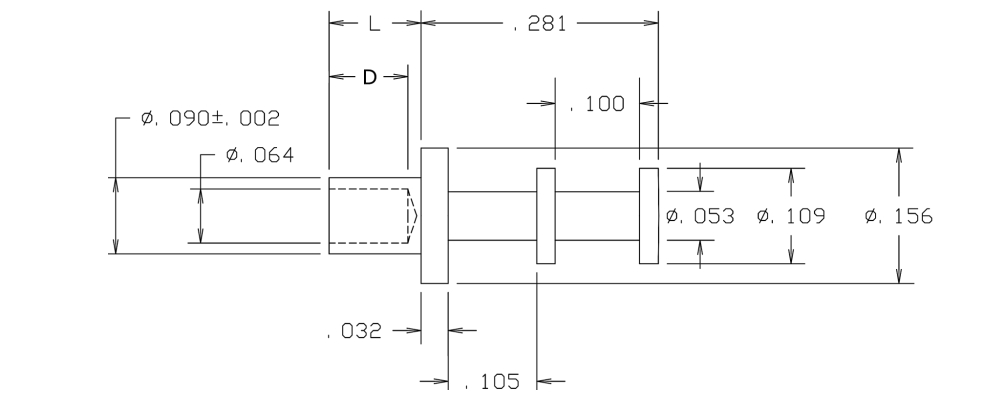

10-203-3-095
10-203-3-095
10-203-3-095
0.422" - - Swage Mount 0.141" 3/32 0.094 Brass Hot Solder Dip NO
10-211-2-03
10-211-2-03
10-211-2-03
0.609" - - Swage Mount 0.109" 1/16 0.266 Brass Gold YES

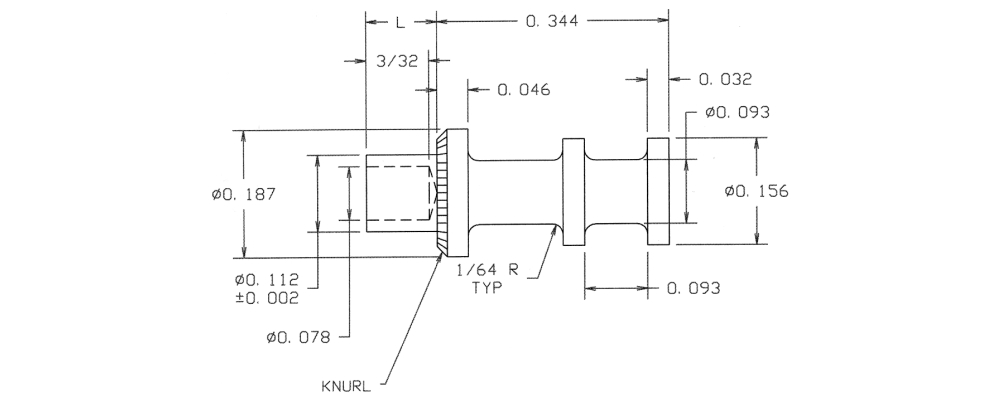

10-217-4-01
10-217-4-01
10-217-4-01
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES

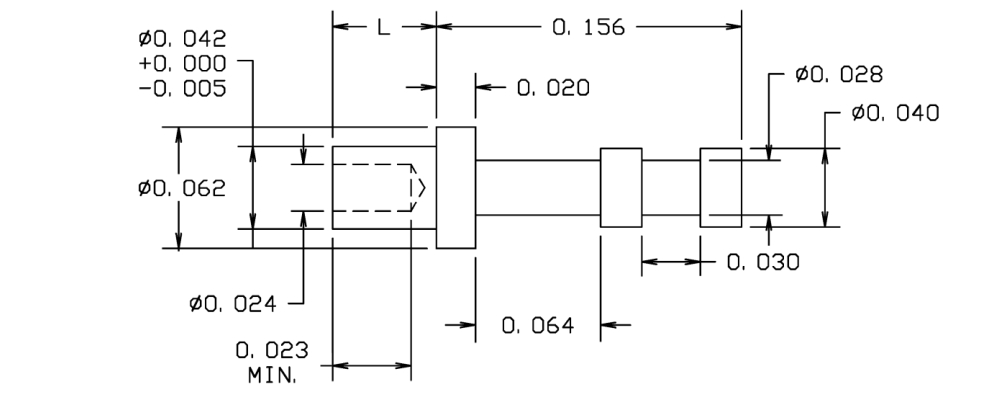

10-227-3-095
10-227-3-095
10-227-3-095
0.271" - - Swage Mount 0.115" 3/32 0.043 Brass Hot Solder Dip NO

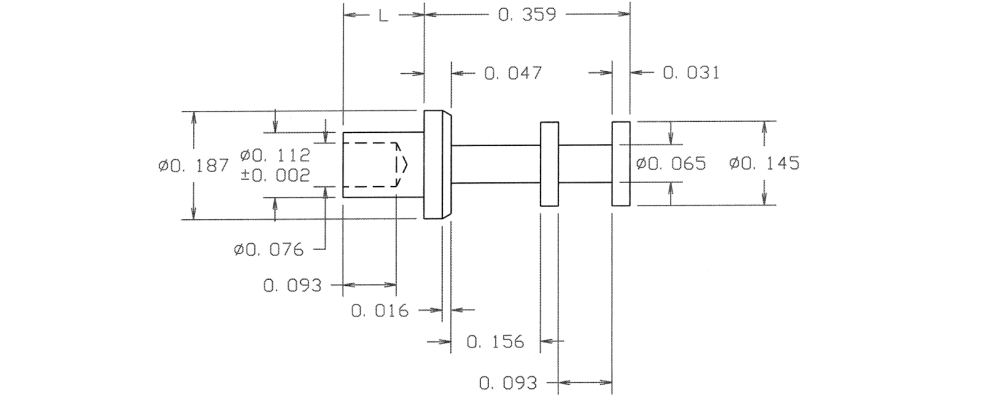

10-247-4-044
10-247-4-044
10-247-4-044
0.531" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES
10-304-3-01
10-304-3-01
10-304-3-01
0.453" - - Swage Mount 0.141" 3/32 0.1405 Brass Silver YES

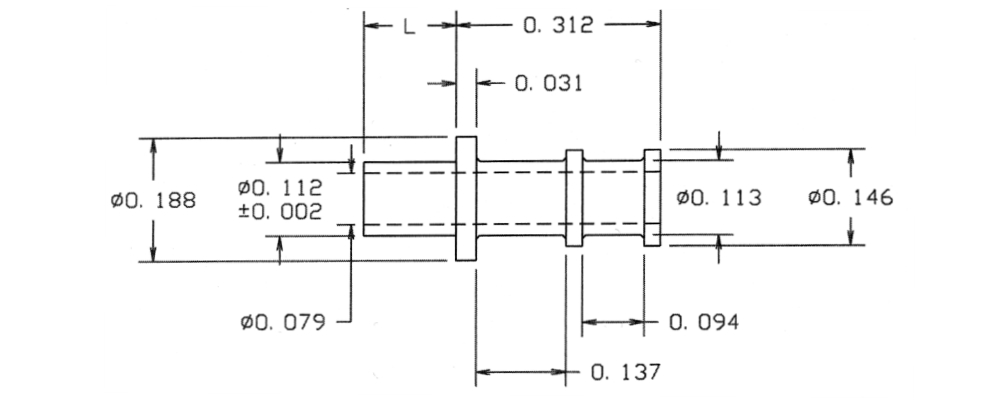

10-311-8-03
10-311-8-03
10-311-8-03
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES
10-323-11-05
10-323-11-05
10-323-11-05
0.193" - - Swage Mount 0.037" 1/64 0.076 Brass Electro Solder NO

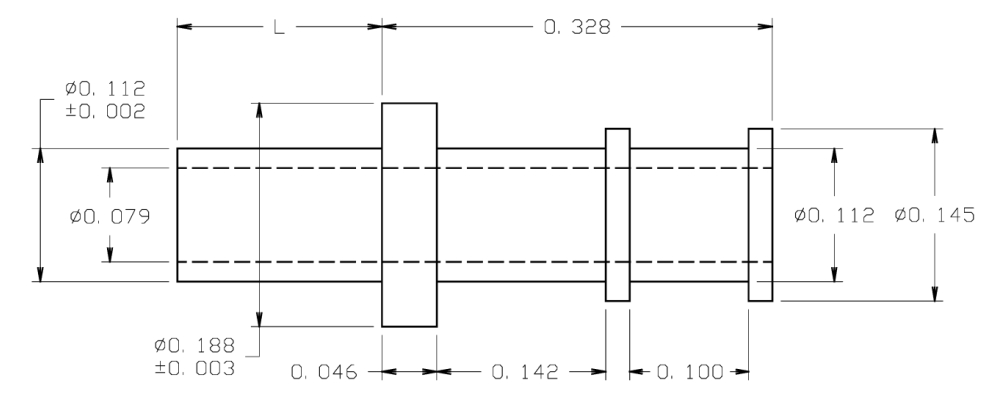

10-349-4-035
10-349-4-035
10-349-4-035
0.500" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES
10-417-2-05
10-417-2-05
10-417-2-05
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder NO
10-426-1-01
10-426-1-01
10-426-1-01
0.294" - - Swage Mount 0.075" 1/32 0.094 Brass Silver YES
10-443-6-01
10-443-6-01
10-443-6-01
0.474" - SLOTTED/TURRET Swage Mount 0.219" 3/16 0.125 Brass Silver YES

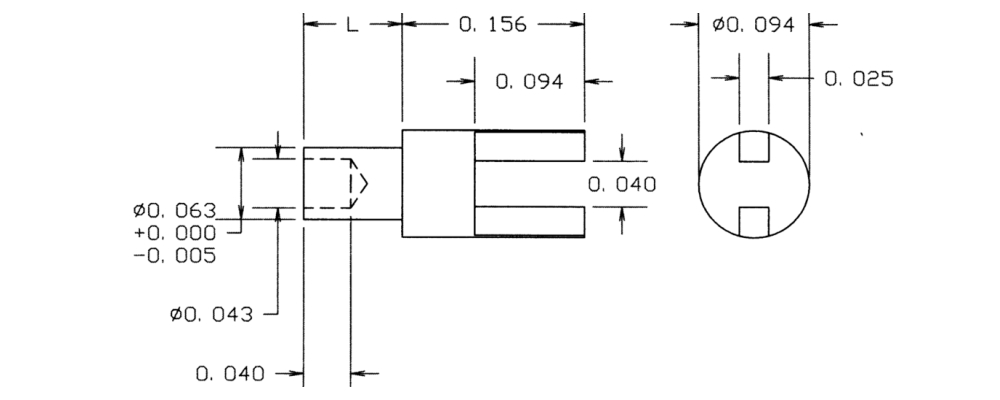

10-459-5-088
10-459-5-088
10-459-5-088
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Bright Tin-Lead NO
