Commercial
Non-Insulated
Terminals

Filter
10-414-3-044
10-414-3-044
10-414-3-044
0.269" - - Swage Mount 0.113" 3/32 0.052 Brass Bright Tin YES
09-8059-2-04
09-8059-2-04
09-8059-2-04
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
10-861-3-03
10-861-3-03
10-861-3-03
0.297" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-875-1-04
10-875-1-04
10-875-1-04
0.151" 0.025 - Swage Mount 0.051" 1/32 0.052 Brass Electro-Tin YES
10-405-3-03
10-405-3-03
10-405-3-03
0.458" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES
10-318-3-05
10-318-3-05
10-318-3-05
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
09-7168-1-01
09-7168-1-01
09-7168-1-01
0.438" 0.04005 - RIVET MOUNT 0.088" 1/16 0.044 Brass Silver YES
09-7167-2-044
09-7167-2-044
09-7167-2-044
0.558" 0.125 - RIVET MOUNT 0.110" 1/16 0.090 Brass Bright Tin YES
09-7118-1-04
09-7118-1-04
09-7118-1-04
0.306" 0.030 - RIVET MOUNT 0.052" 1/32 0.035 Brass Electro-Tin YES
09-7148-3-05
09-7148-3-05
09-7148-3-05
0.453" 0.040 - RIVET MOUNT 0.152" 3/32 0.048 Brass Electro Solder NO
10-472-2-05
10-472-2-05
10-472-2-05
0.449" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
10-821-3-095
10-821-3-095
10-821-3-095
0.468" 0.040 Pin/Pin Swage Mount 0.135" 3/32 0.094 Brass Hot Solder Dip NO
10-509-4-088
10-509-4-088
10-509-4-088
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Bright Tin-Lead NO
10-554-1-05
10-554-1-05
10-554-1-05
0.397" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-490-6-01
10-490-6-01
10-490-6-01
0.634" - TURRET/SLOTTED Swage Mount 0.228" 3/16 0.120 Brass Silver YES
10-915-2A-088
10-915-2A-088
10-915-2A-088
0.244" 0.025 - Swage Mount 0.094" 1/16 0.043 Brass Bright Tin-Lead NO
10-489-3-095
10-489-3-095
10-489-3-095
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Hot Solder Dip NO

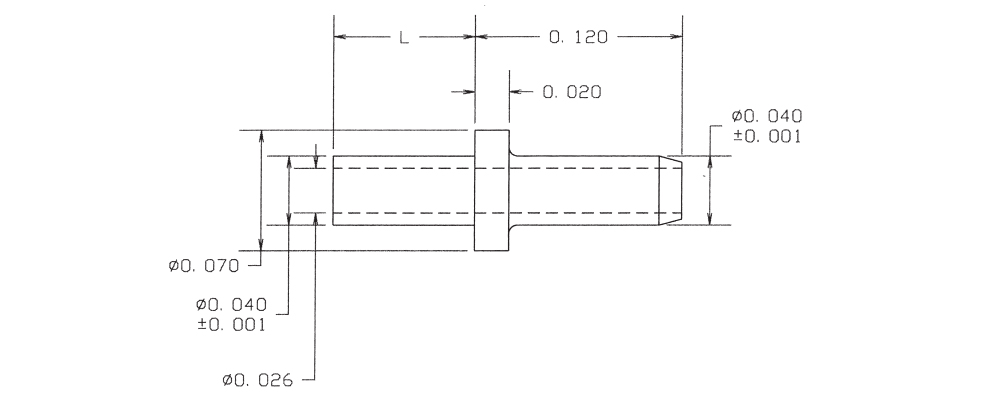

10-920-2-035
10-920-2-035
10-920-2-035
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
10-922-1-04
10-922-1-04
10-922-1-04
0.302" 0.045 - Swage Mount 0.062" 1/32 0.064 Brass Electro-Tin YES
09-0028-2-05
09-0028-2-05
09-0028-2-05
0.437" - - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder NO
