Commercial
Non-Insulated
Terminals

Filter

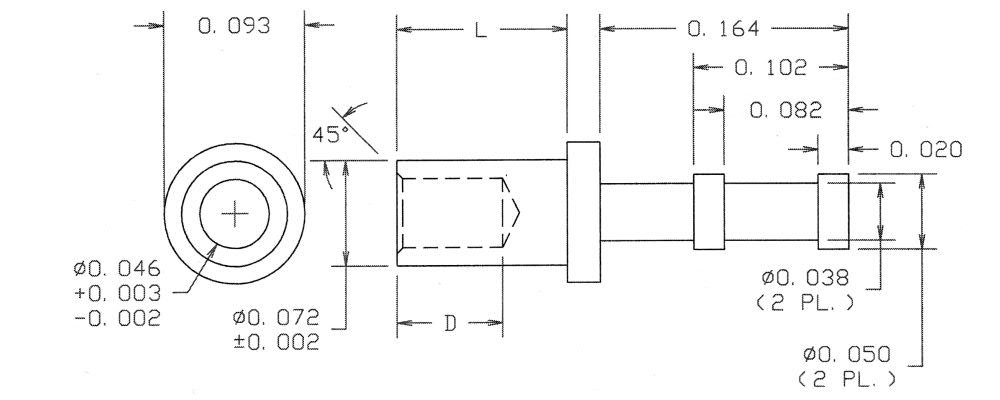

09-0067-4-088
09-0067-4-088
09-0067-4-088
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO

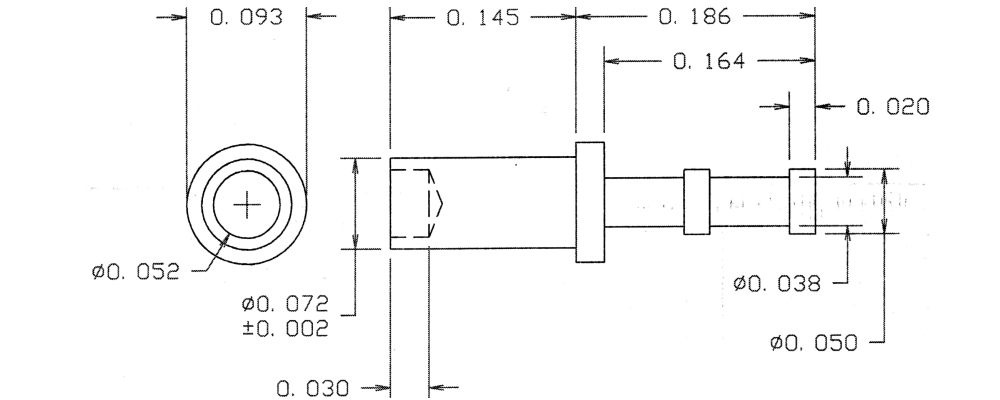

09-0155-4-01
09-0155-4-01
09-0155-4-01
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Silver YES

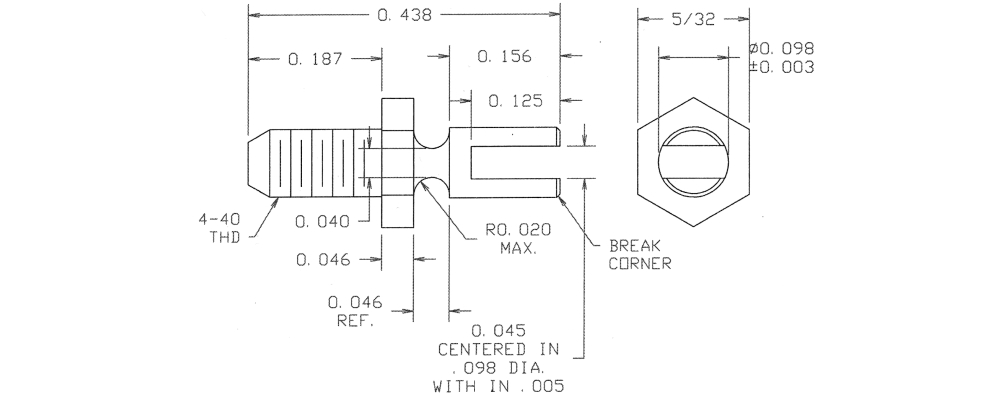

09-0185-1-05
09-0185-1-05
09-0185-1-05
0.438" - - 4-40 - - 4-40 THREAD Brass Electro Solder NO

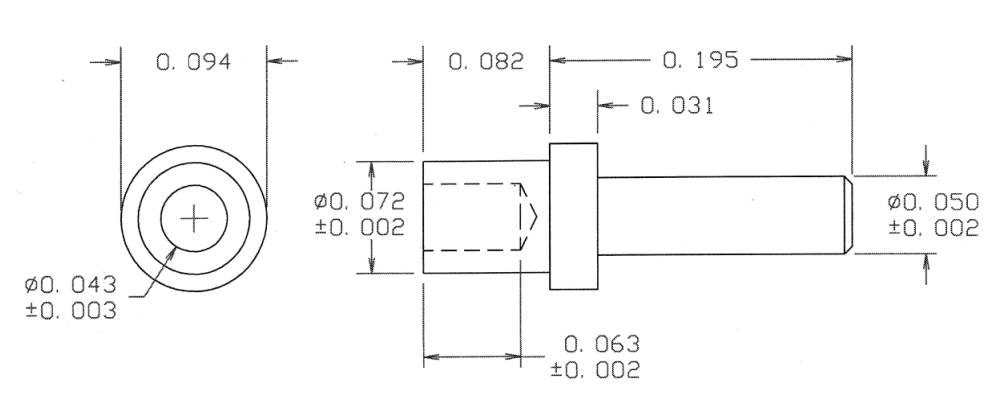

09-0233-2-044
09-0233-2-044
09-0233-2-044
0.277" 0.050 - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES

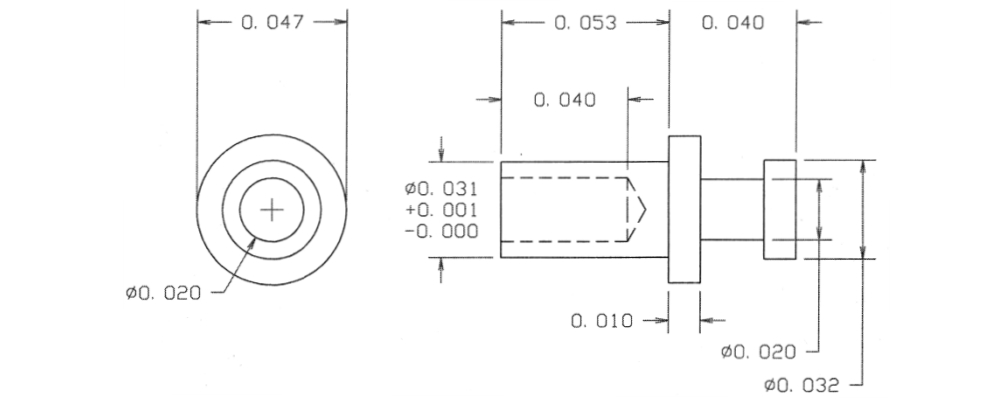

09-0274-1-035
09-0274-1-035
09-0274-1-035
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Gold YES

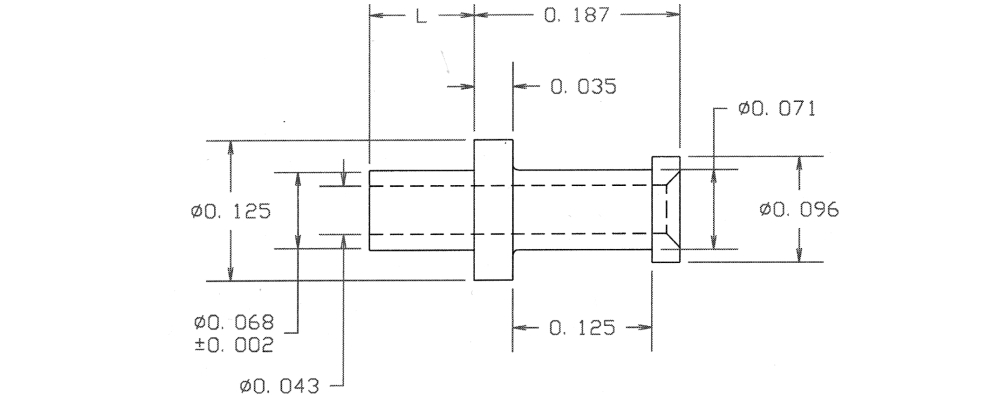

09-0342-2-03
09-0342-2-03
09-0342-2-03
0.281" - - Swage Mount 0.094" 1/16 0.073 Brass Gold YES

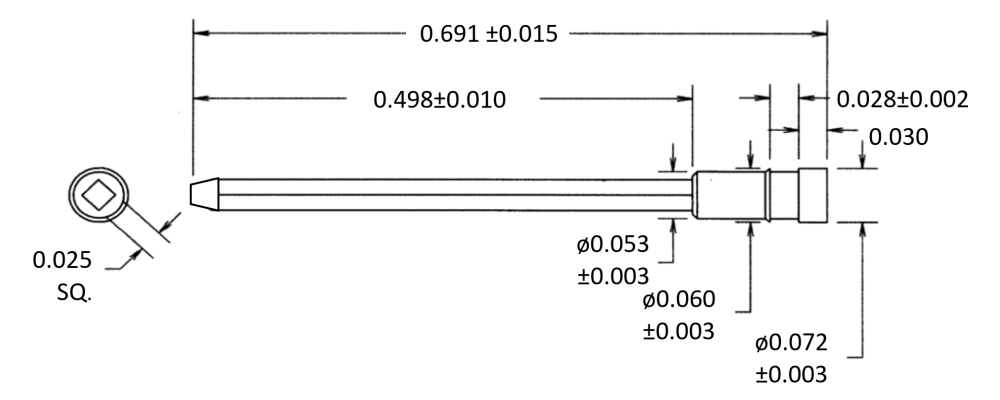

09-6032-1-044
09-6032-1-044
09-6032-1-044
0.691" 0.025 SQ. - Press Fit/Solder 0.163" 3/32 0.052 Brass Bright Tin YES

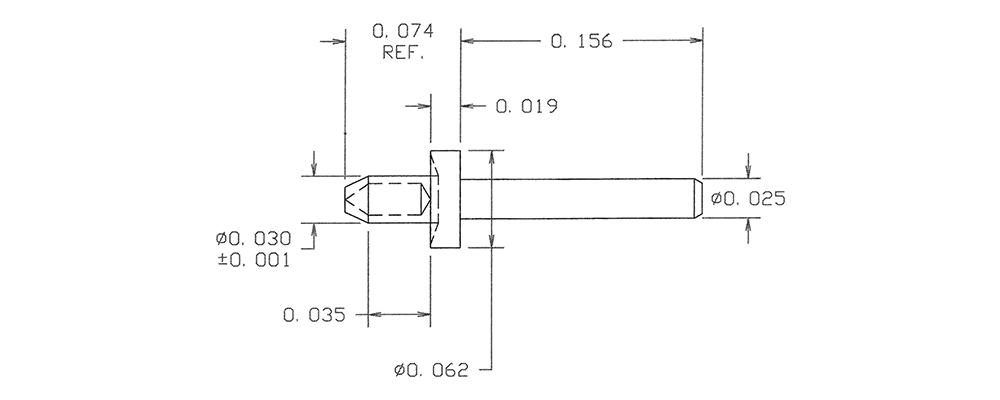

09-7107-1A-01
09-7107-1A-01
09-7107-1A-01
0.230" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Silver YES

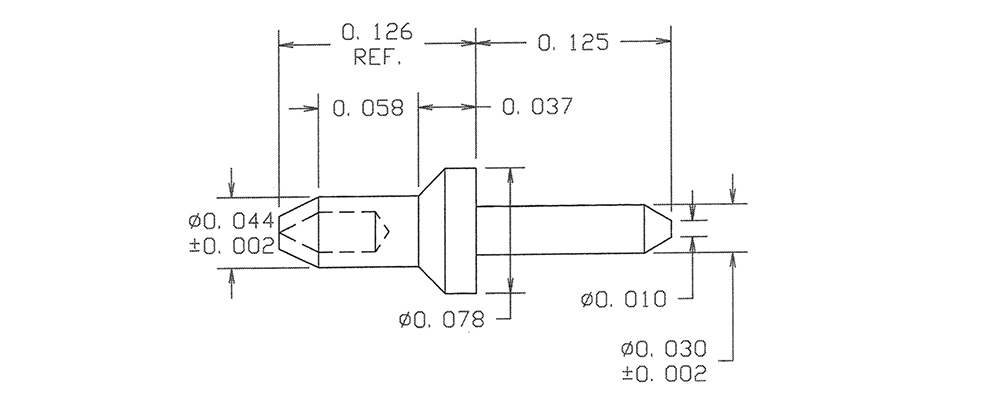

09-7145-1-044
09-7145-1-044
09-7145-1-044
0.251" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Bright Tin YES

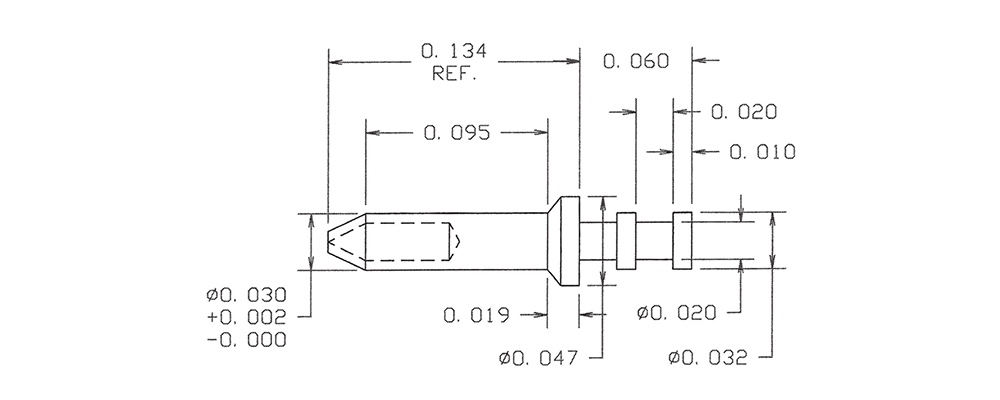

09-7170-2B-03
09-7170-2B-03
09-7170-2B-03
0.194" - - RIVET MOUNT 0.095" 19/256 0.035 Brass Gold YES

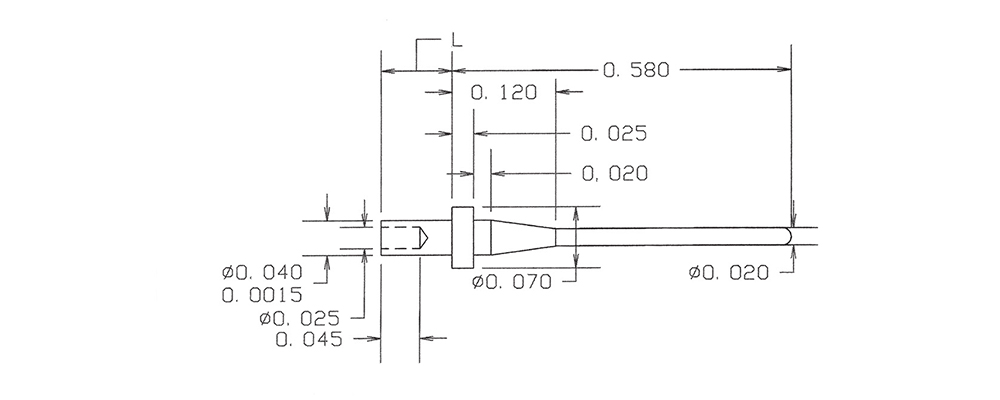

09-8012-1-05
09-8012-1-05
09-8012-1-05
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8048-1-035
09-8048-1-035
09-8048-1-035
0.597" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

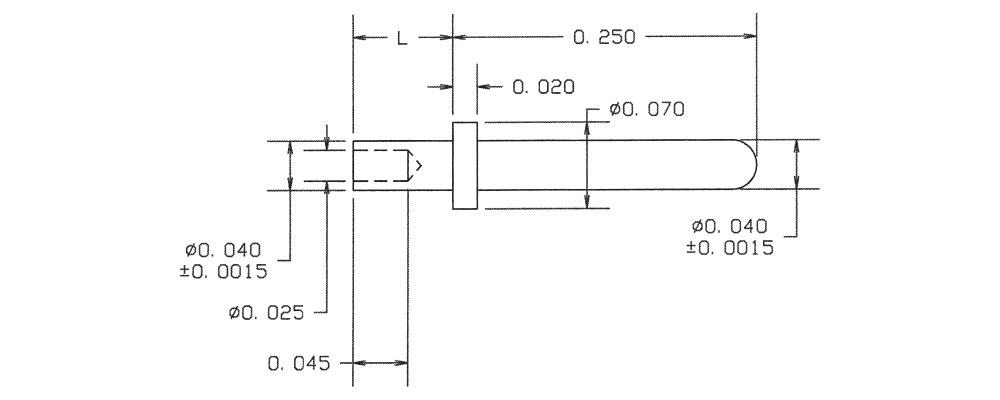

09-8084-2-05
09-8084-2-05
09-8084-2-05
0.332" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

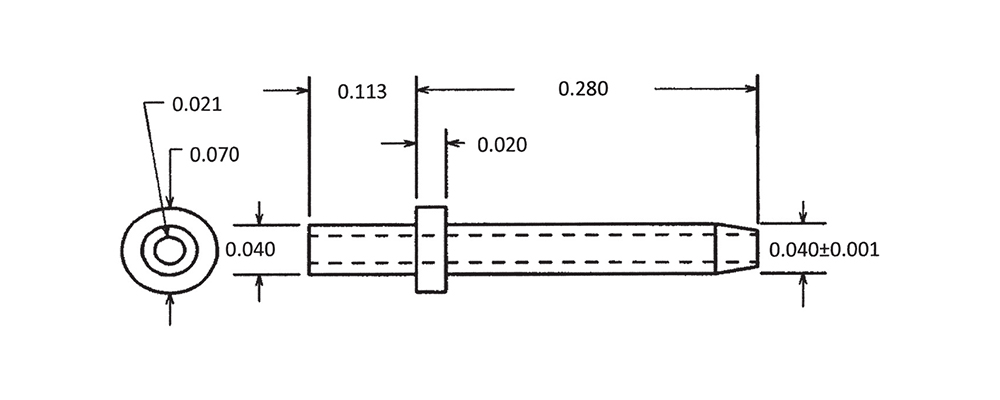

09-8144-3-035
09-8144-3-035
09-8144-3-035
0.393" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES

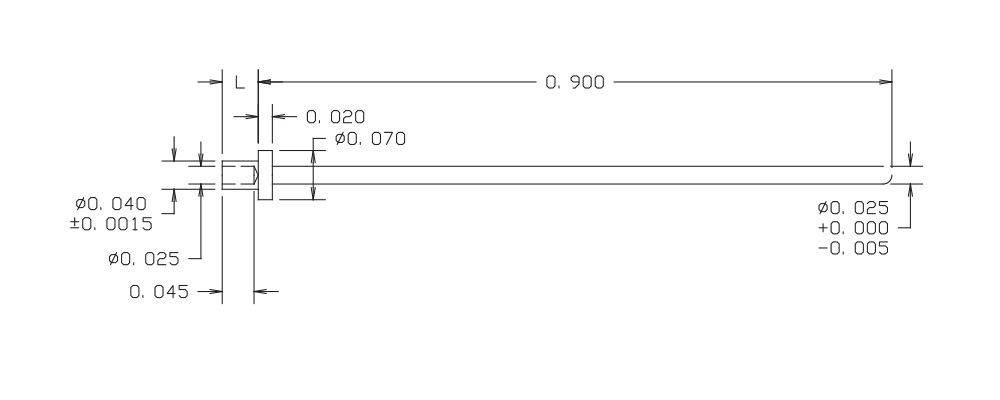

09-8174-11-088
09-8174-11-088
09-8174-11-088
0.935" 0.025 (+0.000/-0.005) - Swage Mount 0.035" 1/64 0.043 Brass Bright Tin-Lead NO

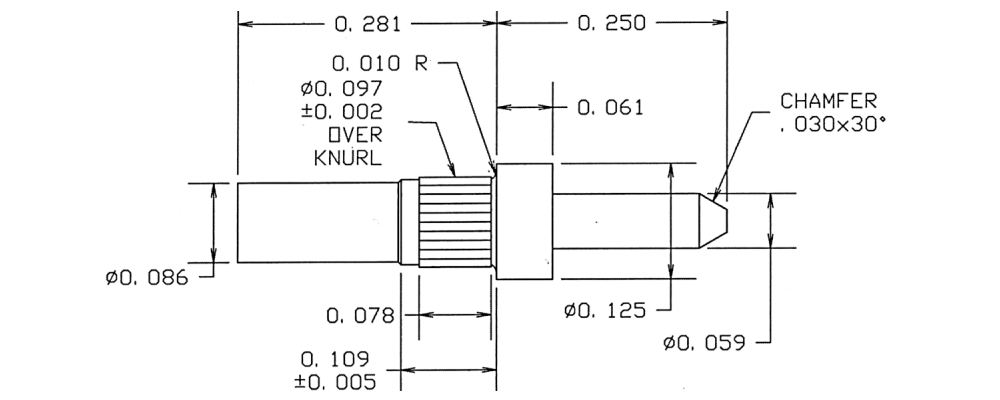

09-8305-2-088
09-8305-2-088
09-8305-2-088
0.531" - - Press Fit/Solder 0.109" 1/16 0.094 Brass Bright Tin-Lead NO

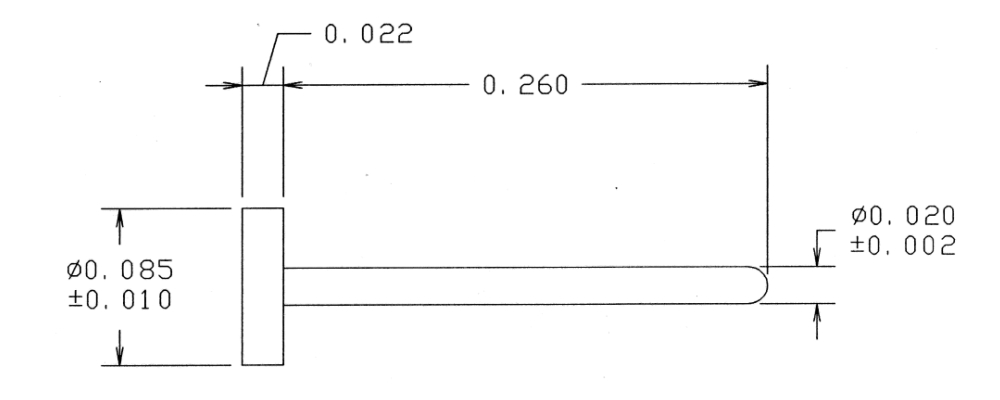

09-8563-1-03
09-8563-1-03
09-8563-1-03
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Gold YES

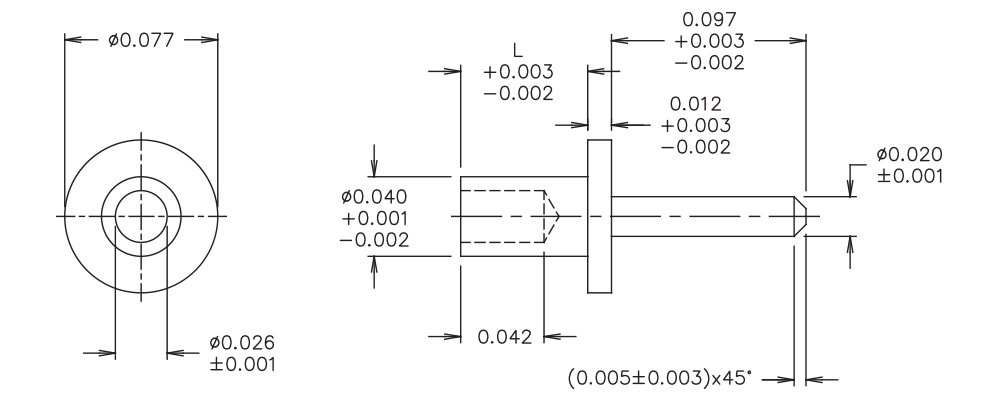

09-8689-1-05
09-8689-1-05
09-8689-1-05
0.174" 0.020 - Swage Mount 0.064" 1/32 0.043 Brass Electro Solder NO

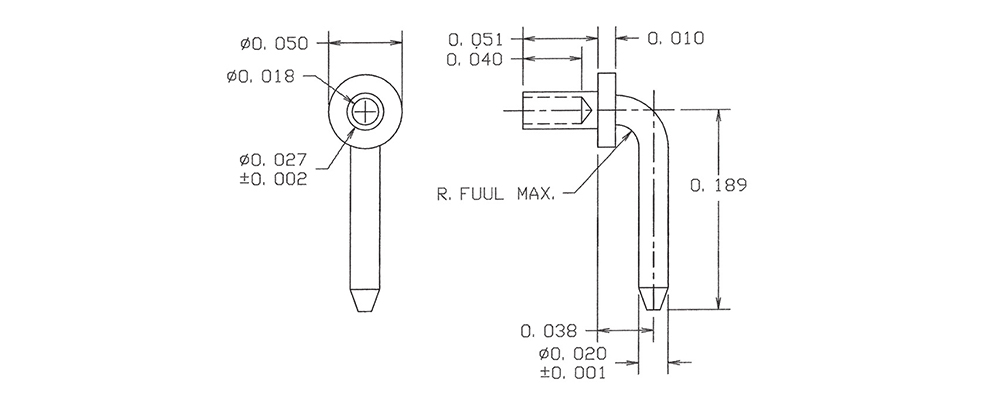

09-8795-1-044
09-8795-1-044
09-8795-1-044
0.214" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin YES

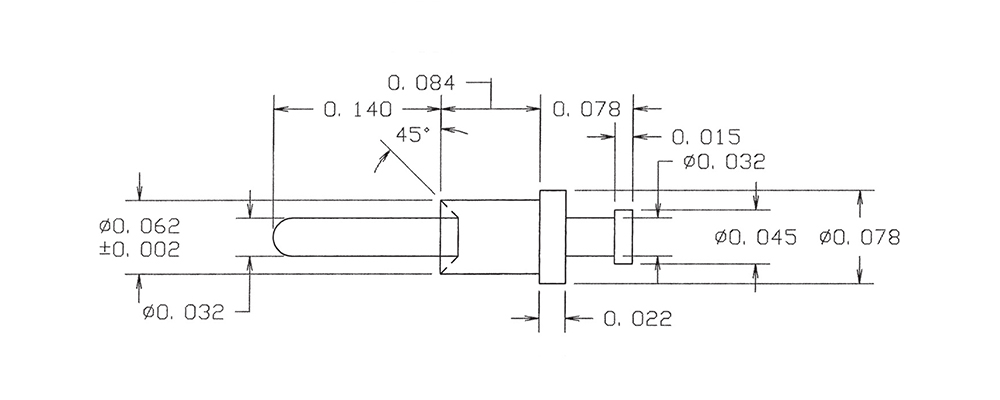

09-8860-2-088
09-8860-2-088
09-8860-2-088
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Beryllium Copper Bright Tin-Lead NO
