Commercial
Non-Insulated
Terminals

Filter

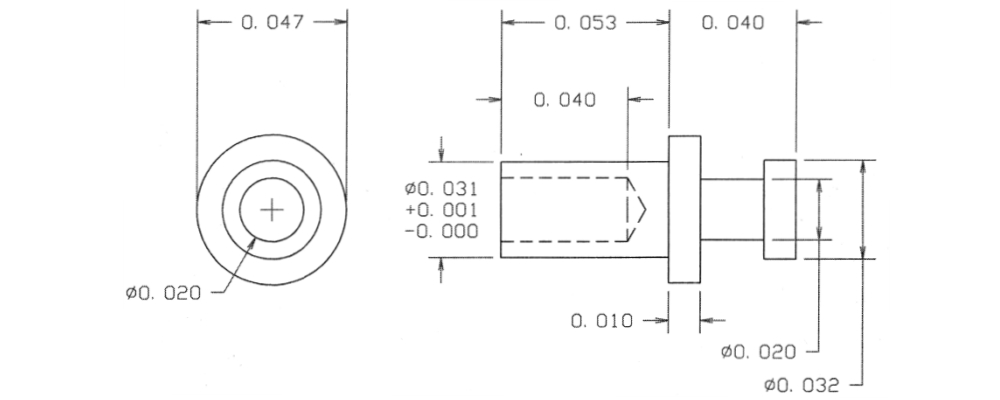

09-0274-1-03
09-0274-1-03
09-0274-1-03
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Gold YES

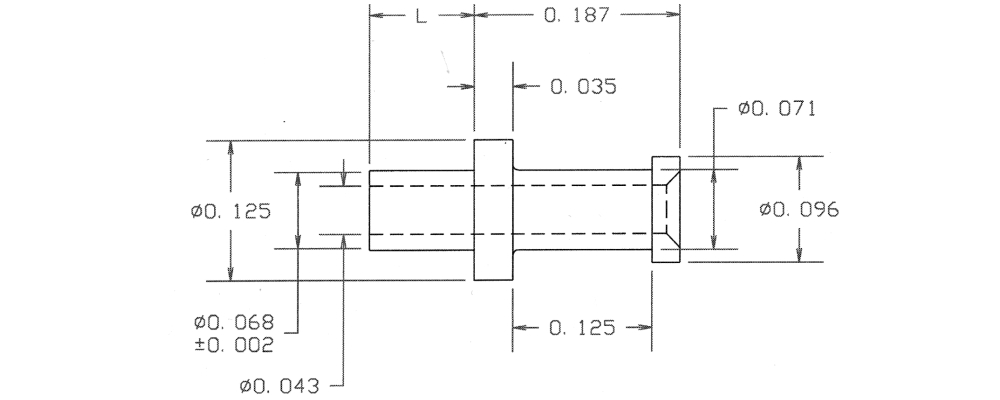

09-0342-2-01
09-0342-2-01
09-0342-2-01
0.281" - - Swage Mount 0.094" 1/16 0.073 Brass Silver YES

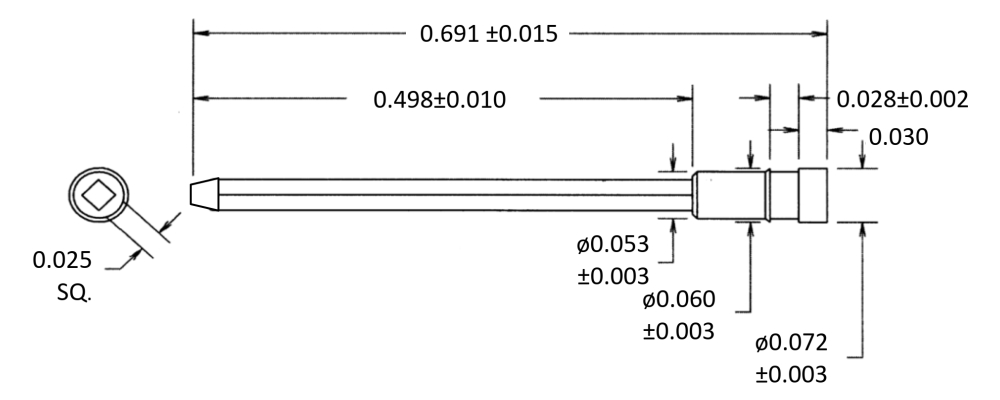

09-6032-1-04
09-6032-1-04
09-6032-1-04
0.691" 0.025 SQ. - Press Fit/Solder 0.163" 3/32 0.052 Brass Electro-Tin YES

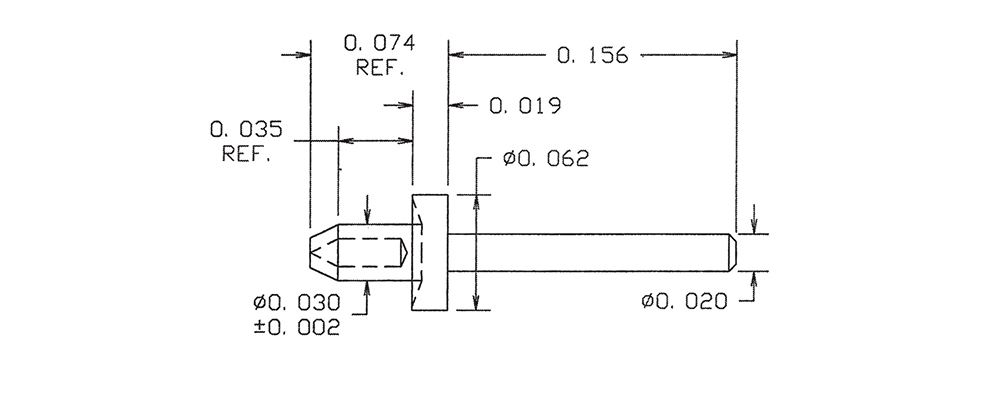

09-7106-1A-088
09-7106-1A-088
09-7106-1A-088
0.230" 0.020 - RIVET MOUNT 0.035" 1/100 0.035 Brass Bright Tin-Lead NO

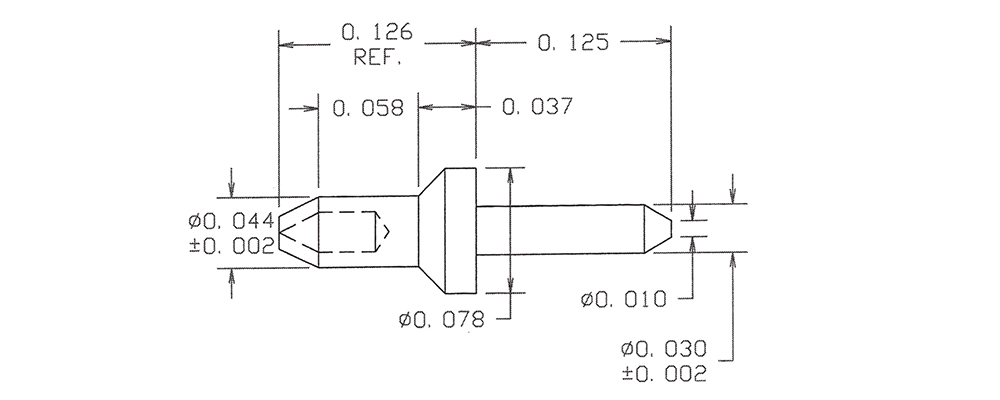

09-7145-1-04
09-7145-1-04
09-7145-1-04
0.251" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Electro-Tin YES

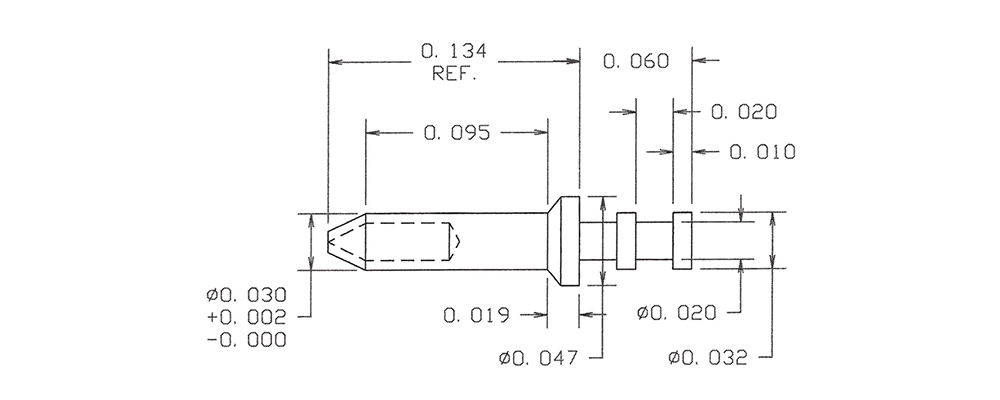

09-7170-2B-01
09-7170-2B-01
09-7170-2B-01
0.194" - - RIVET MOUNT 0.095" 19/256 0.035 Brass Silver YES

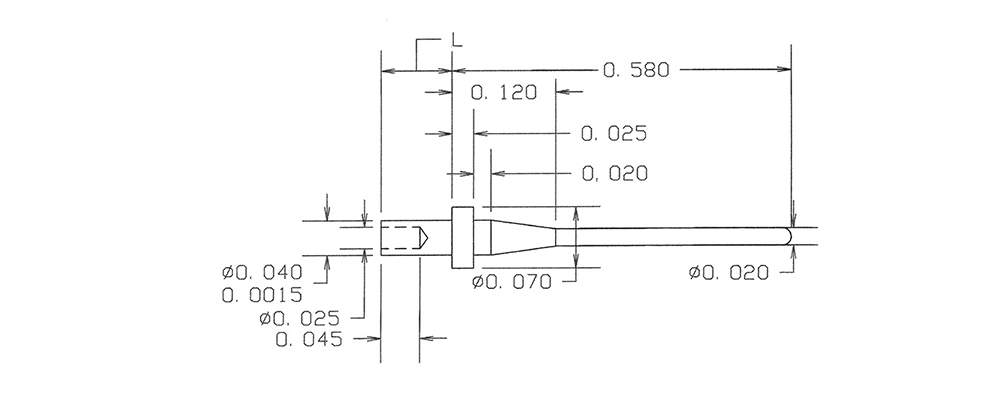

09-8012-1-044
09-8012-1-044
09-8012-1-044
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

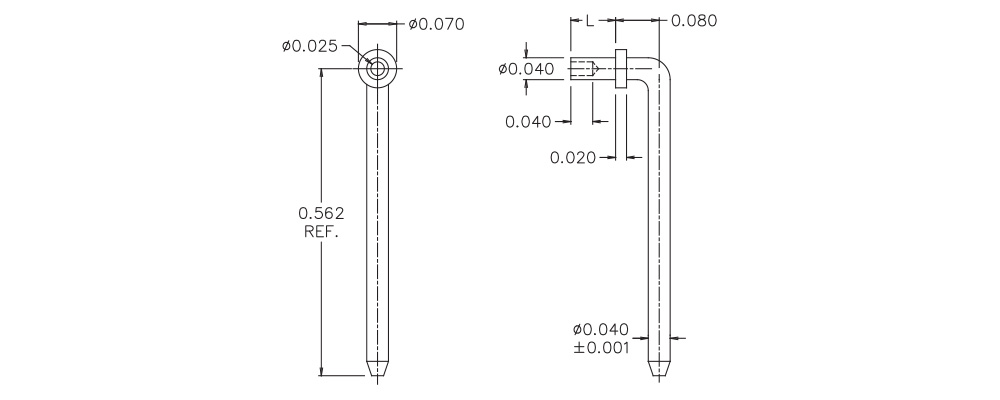

09-8048-1-03
09-8048-1-03
09-8048-1-03
0.597" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

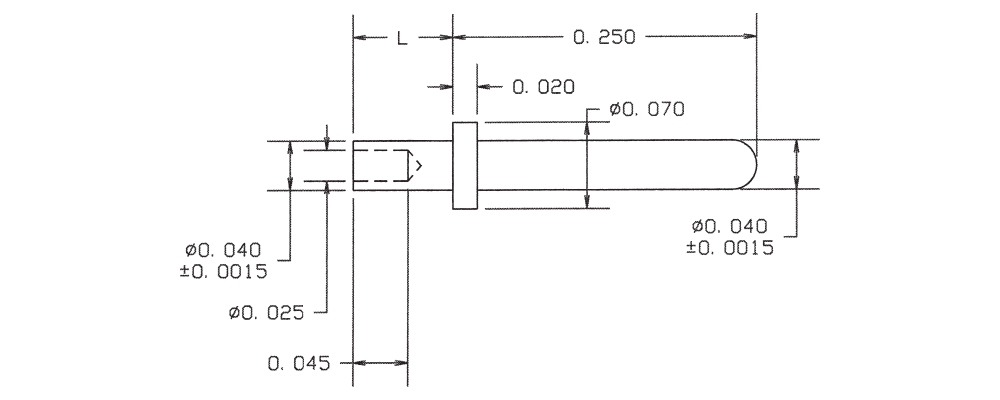

09-8084-2-044
09-8084-2-044
09-8084-2-044
0.332" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

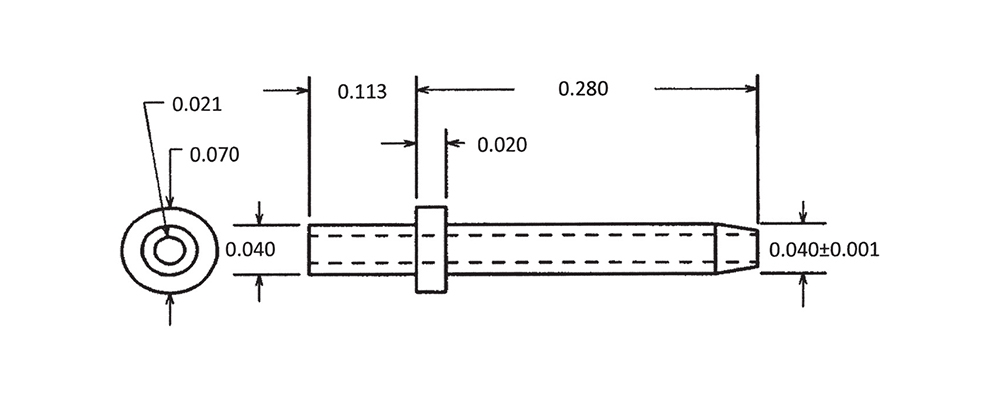

09-8144-3-03
09-8144-3-03
09-8144-3-03
0.393" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES

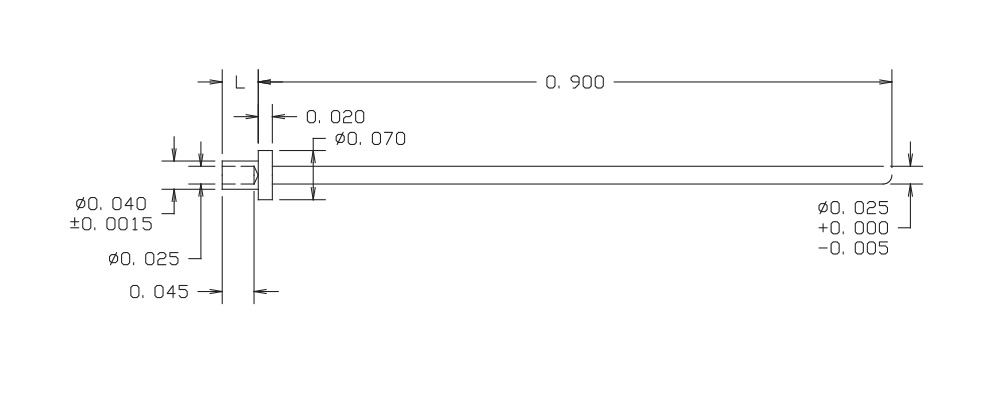

09-8174-11-05
09-8174-11-05
09-8174-11-05
0.935" 0.025 (+0.000/-0.005) - Swage Mount 0.035" 1/64 0.043 Brass Electro Solder NO

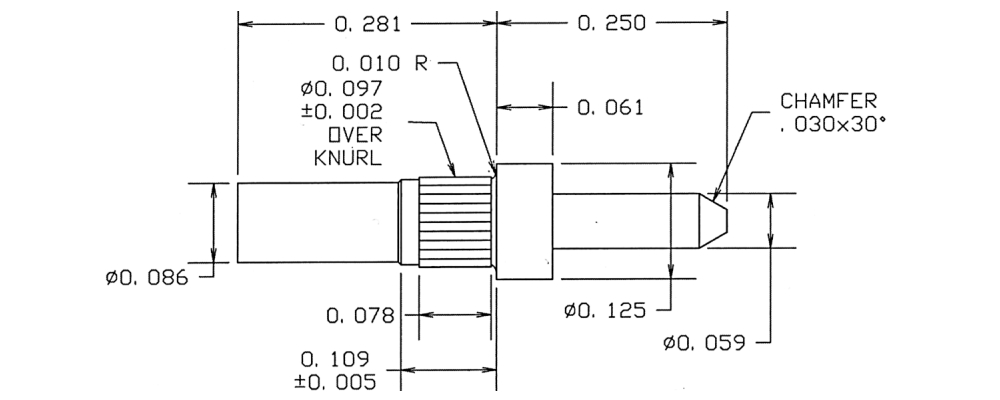

09-8305-2-05
09-8305-2-05
09-8305-2-05
0.531" - - Press Fit/Solder 0.109" 1/16 0.094 Brass Electro Solder NO
09-8563-1-01
09-8563-1-01
09-8563-1-01
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Silver YES

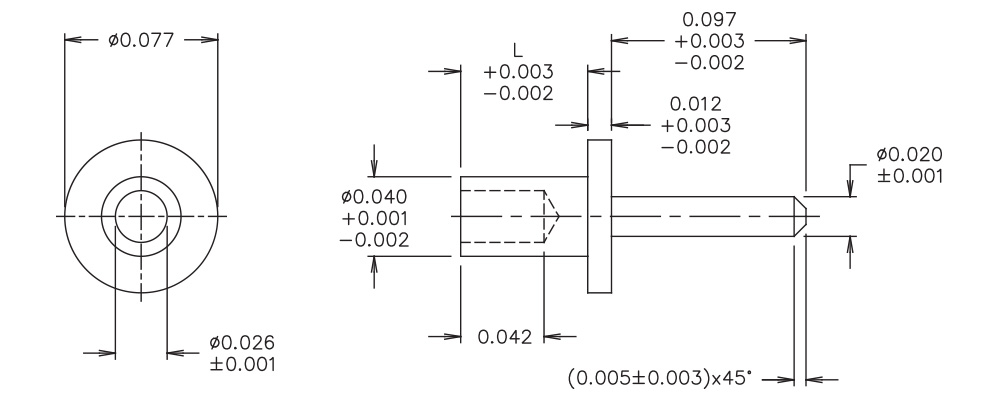

09-8689-1-044
09-8689-1-044
09-8689-1-044
0.174" 0.020 - Swage Mount 0.064" 1/32 0.043 Brass Bright Tin YES

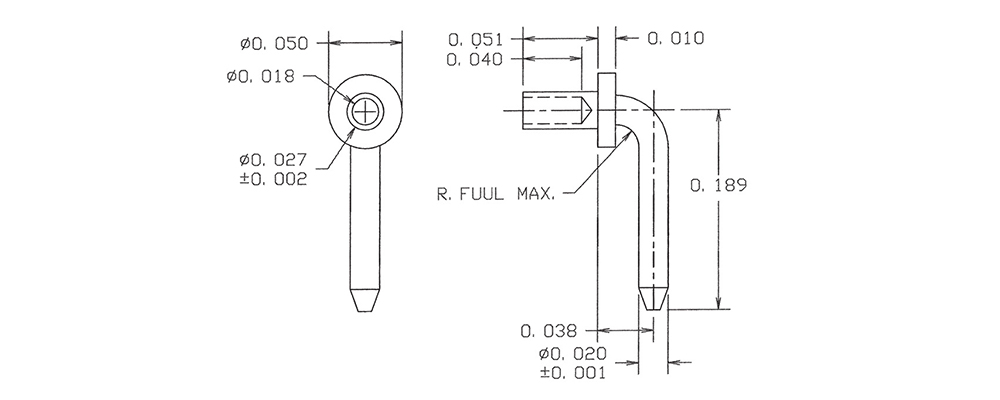

09-8795-1-04
09-8795-1-04
09-8795-1-04
0.214" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Electro-Tin YES

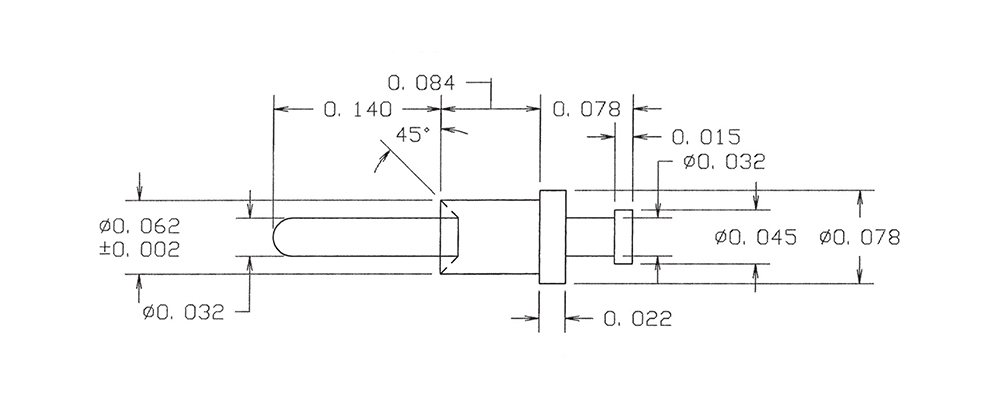

09-8860-2-05
09-8860-2-05
09-8860-2-05
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Beryllium Copper Electro Solder NO

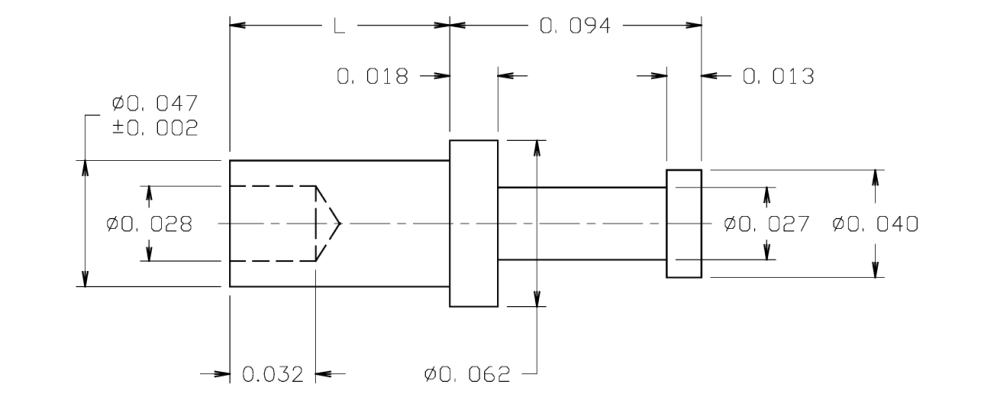

10-104-1-05
10-104-1-05
10-104-1-05
0.145" - - Swage Mount 0.051" 1/32 0.052 Brass Electro Solder NO

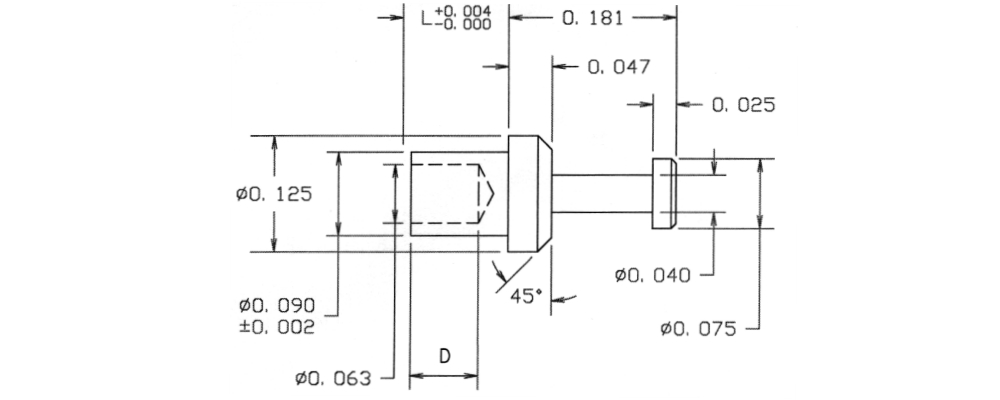

10-111-1-05
10-111-1-05
10-111-1-05
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO

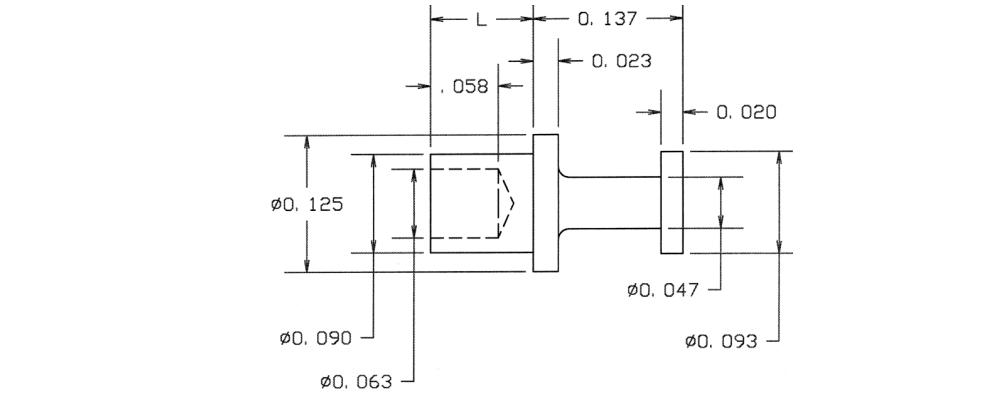

10-130-2-095
10-130-2-095
10-130-2-095
0.231" - - Swage Mount 0.094" 1/16 0.094 Brass Hot Solder Dip NO

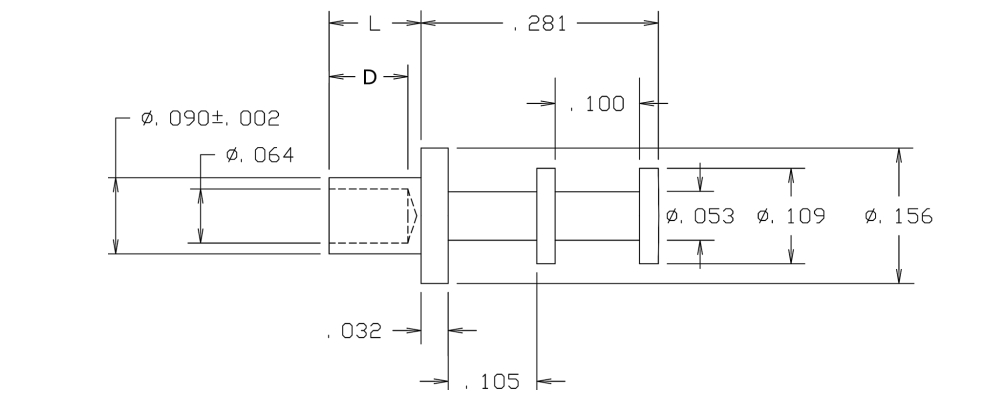

10-203-3-05
10-203-3-05
10-203-3-05
0.422" - - Swage Mount 0.141" 3/32 0.094 Brass Electro Solder NO
