Non-Insulated
PC Jacks

Filter

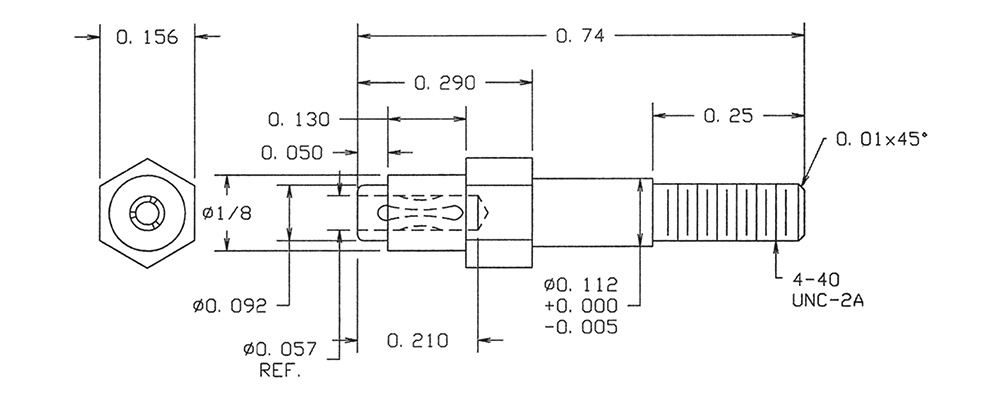

09-9282-1-063
09-9282-1-063
09-9282-1-063
0.040 0.210 " 0.740" Jack/Threaded 4-40 Nut 0.450" 13/64 - 1/4 0.120 Brass Bright Tin-Lead Vertical

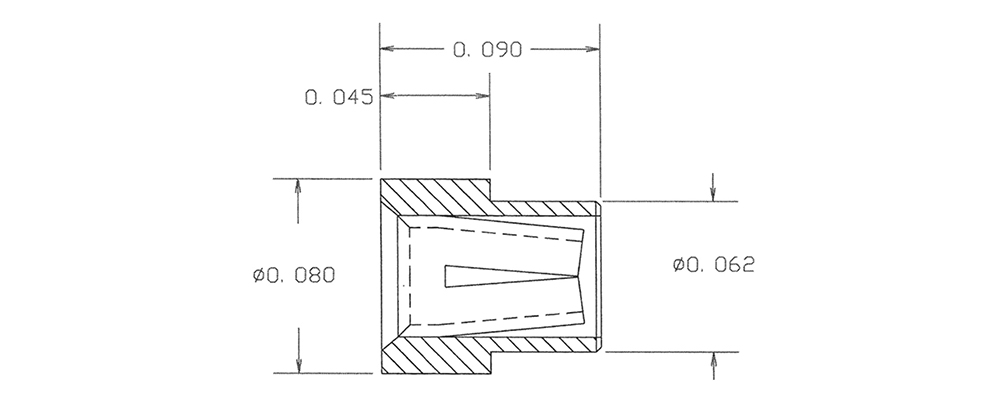

09-9623-1-04
09-9623-1-04
09-9623-1-04
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Electro-Tin Vertical

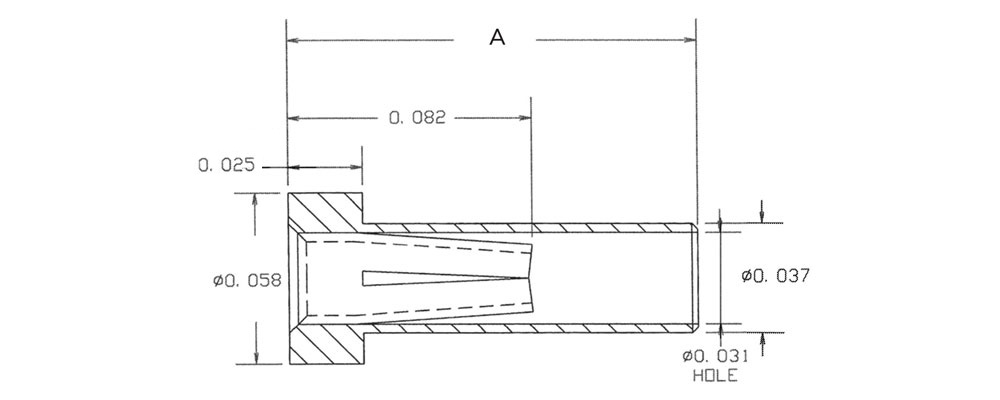

09-9662-1-03
09-9662-1-03
09-9662-1-03
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Gold Vertical

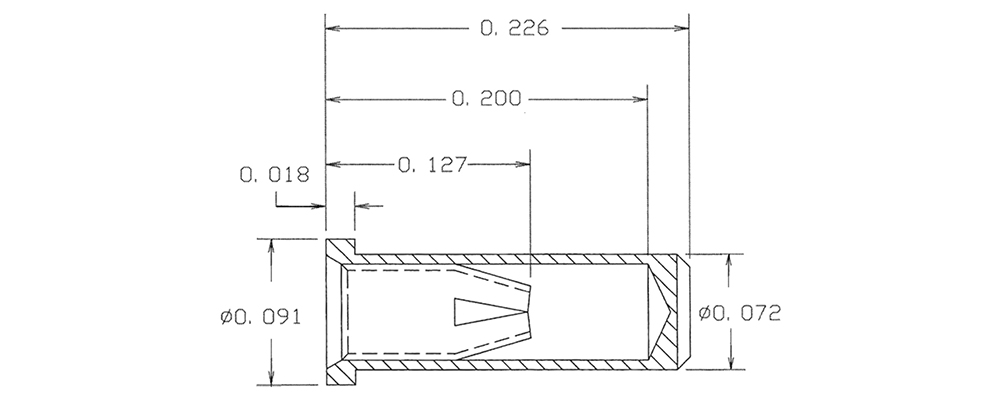

09-9726-1-063
09-9726-1-063
09-9726-1-063
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Bright Tin-Lead Vertical

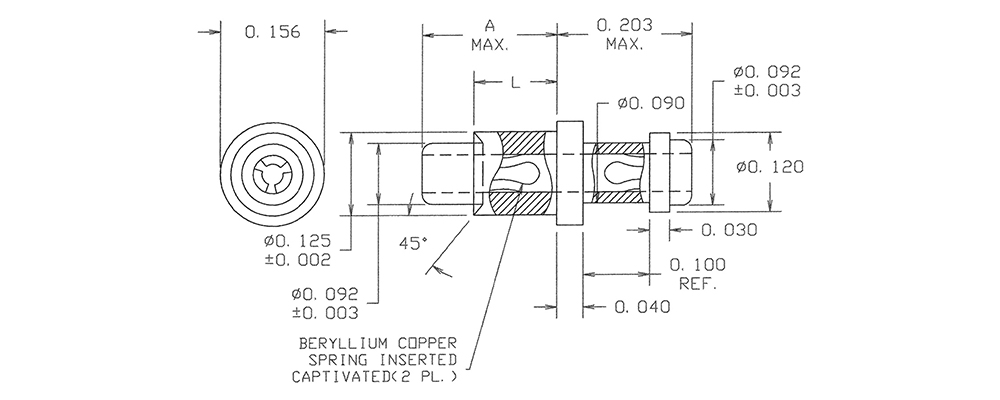

09-9007-6-06
09-9007-6-06
09-9007-6-06
0.040 0.362 " 0.453" Jack/Jack Swage Mount 0.219" 3/16 0.129 Brass Electro-Tin Vertical

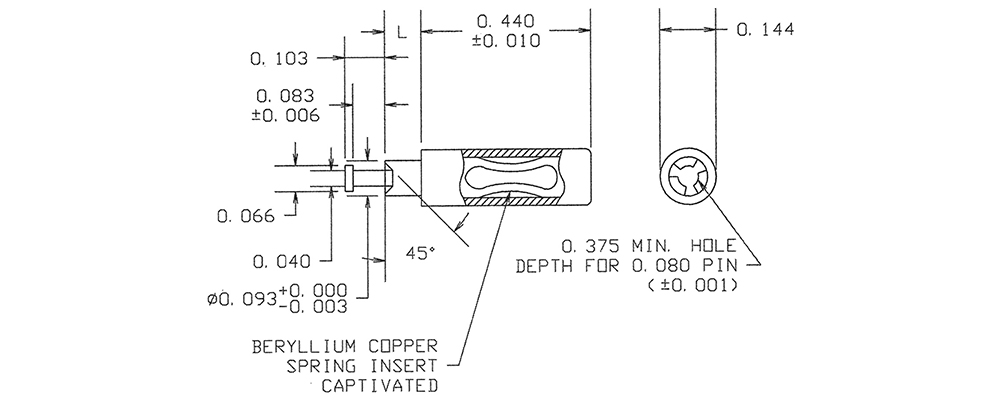

09-9042-1-035
09-9042-1-035
09-9042-1-035
0.080 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Gold Vertical

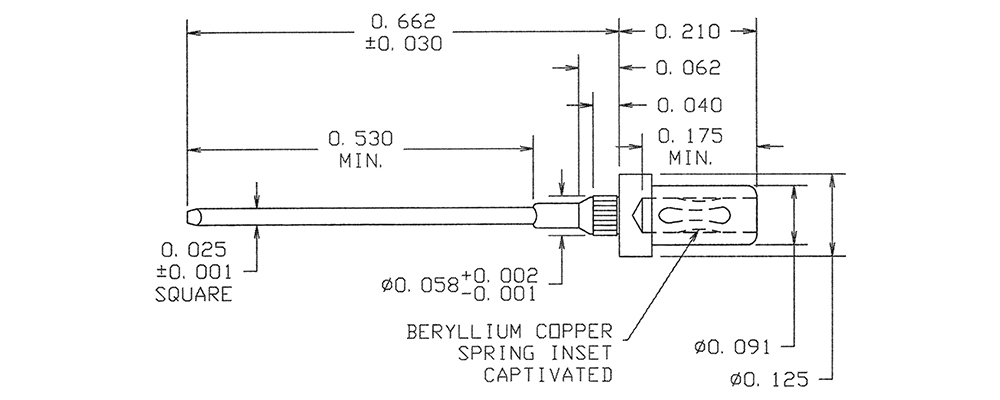

09-9095-1-088
09-9095-1-088
09-9095-1-088
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Bright Tin-Lead Vertical
09-9282-1-088
09-9282-1-088
09-9282-1-088
0.040 0.210 " 0.740" Jack/Threaded 4-40 Nut 0.450" 13/64 - 1/4 0.120 Brass Bright Tin-Lead Vertical
09-9623-1-06
09-9623-1-06
09-9623-1-06
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Electro-Tin Vertical
09-9662-1-035
09-9662-1-035
09-9662-1-035
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Gold Vertical
09-9726-1-088
09-9726-1-088
09-9726-1-088
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Bright Tin-Lead Vertical
09-9007-6-063
09-9007-6-063
09-9007-6-063
0.040 0.362 " 0.453" Jack/Jack Swage Mount 0.219" 3/16 0.129 Brass Bright Tin-Lead Vertical
09-9042-1-04
09-9042-1-04
09-9042-1-04
0.080 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

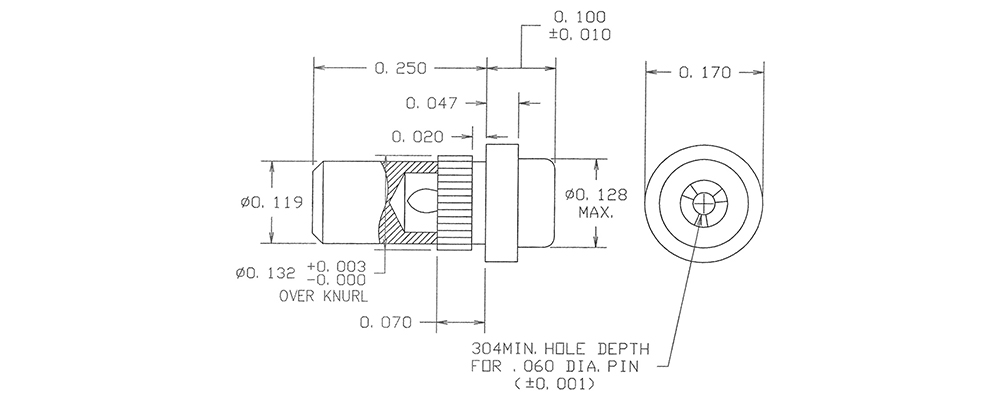

09-9096-1-03
09-9096-1-03
09-9096-1-03
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical

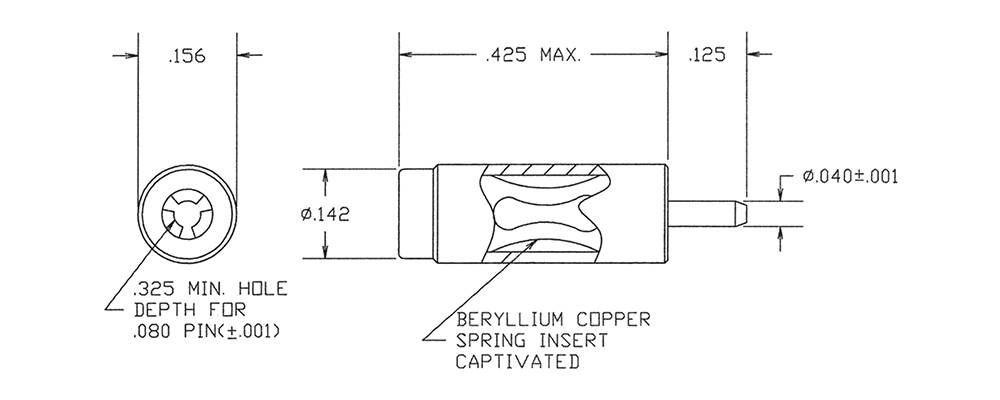

09-9283-1-03
09-9283-1-03
09-9283-1-03
0.080 0.325 " 0.550" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Gold Vertical
09-9623-1-063
09-9623-1-063
09-9623-1-063
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9662-1-04
09-9662-1-04
09-9662-1-04
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Electro-Tin Vertical

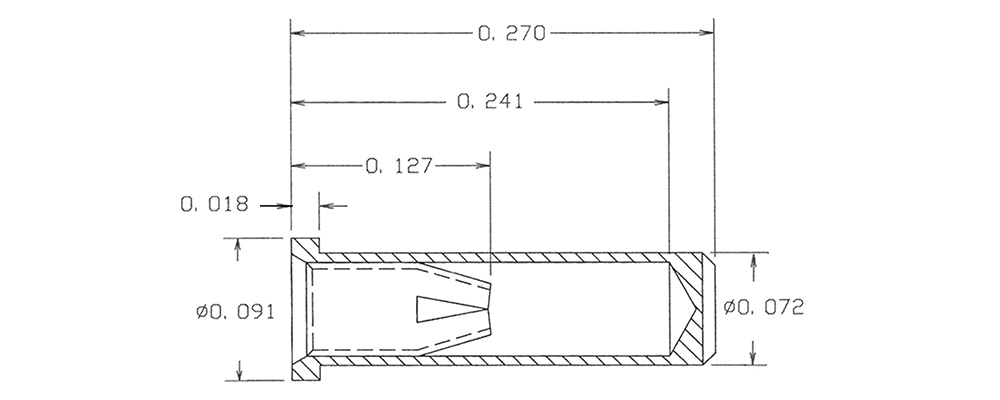

09-9727-1-03
09-9727-1-03
09-9727-1-03
0.032 - 0.046 0.241 " 0.270" - Solder - 1/32 - 3/16 0.075 Brass Gold Vertical
09-9007-6-088
09-9007-6-088
09-9007-6-088
0.040 0.362 " 0.453" Jack/Jack Swage Mount 0.219" 3/16 0.129 Brass Bright Tin-Lead Vertical
09-9042-1-06
09-9042-1-06
09-9042-1-06
0.080 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
