Non-Insulated
PC Jacks

Filter
09-9067-6-063
09-9067-6-063
09-9067-6-063
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9067-2-035
09-9067-2-035
09-9067-2-035
0.060 - 0.062 0.204 " 0.444" Jack/Turret Swage Mount 0.089" 1/16 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9067-1-06
09-9067-1-06
09-9067-1-06
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9067-1-04
09-9067-1-04
09-9067-1-04
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9610-1-04
09-9610-1-04
09-9610-1-04
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Electro-Tin Vertical
09-9699-1-035
09-9699-1-035
09-9699-1-035
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Gold Vertical
09-9603-2-03
09-9603-2-03
09-9603-2-03
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9603-2-035
09-9603-2-035
09-9603-2-035
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9685-1-063
09-9685-1-063
09-9685-1-063
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Bright Tin-Lead Vertical
09-9654-1-04
09-9654-1-04
09-9654-1-04
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9079-1-063
09-9079-1-063
09-9079-1-063
0.040 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Bright Tin-Lead Vertical
09-9681-1-088
09-9681-1-088
09-9681-1-088
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 3/32 0.078 Brass Bright Tin-Lead Vertical
09-9079-1-088
09-9079-1-088
09-9079-1-088
0.040 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Bright Tin-Lead Vertical

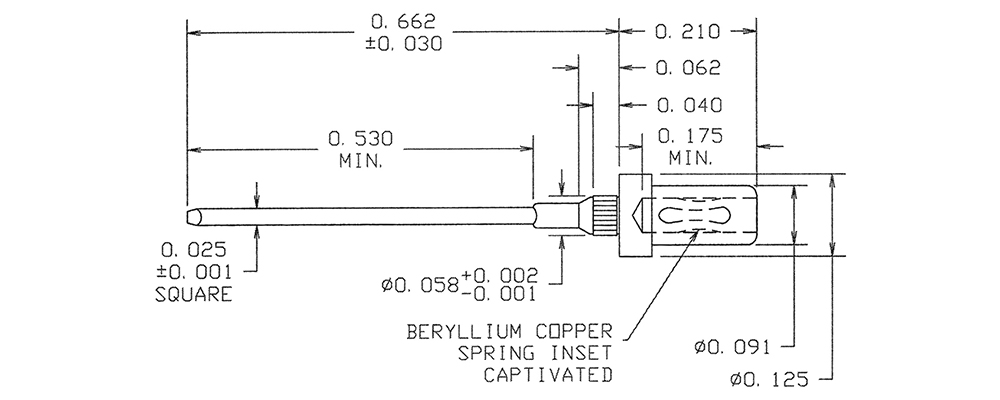

09-9095-1-04
09-9095-1-04
09-9095-1-04
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Electro-Tin Vertical
09-9613-1-03
09-9613-1-03
09-9613-1-03
0.015 - 0.025 0.148 " 0.173" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9095-1-088
09-9095-1-088
09-9095-1-088
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Bright Tin-Lead Vertical
09-9248-1-06
09-9248-1-06
09-9248-1-06
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9617-1-04
09-9617-1-04
09-9617-1-04
0.022 - 0.034 0.140 " 0.210" - Press Fit/Solder - 1/16 - 5/32 0.078 Brass Electro-Tin Vertical
09-9108-1-03
09-9108-1-03
09-9108-1-03
0.040 0.210 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
