Non-Insulated
PC Jacks

Filter
09-9642-1-035
09-9642-1-035
09-9642-1-035
0.065 - 0.082 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.096 Brass Gold Vertical
09-6010-1-06
09-6010-1-06
09-6010-1-06
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-6010-1-088
09-6010-1-088
09-6010-1-088
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-6010-1-03
09-6010-1-03
09-6010-1-03
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-9628-3-063
09-9628-3-063
09-9628-3-063
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Bright Tin-Lead Vertical
09-9628-3-088
09-9628-3-088
09-9628-3-088
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Bright Tin-Lead Vertical
09-9628-3-06
09-9628-3-06
09-9628-3-06
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Electro-Tin Vertical
09-9045-2-04
09-9045-2-04
09-9045-2-04
0.025 0.141 " 0.303" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9628-2-063
09-9628-2-063
09-9628-2-063
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9728-1-03
09-9728-1-03
09-9728-1-03
0.032 - 0.046 0.137 " 0.206" - Solder - 1/32 - 5/32 0.076 Brass Gold Vertical
09-9628-2-04
09-9628-2-04
09-9628-2-04
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical
09-9051-1-063
09-9051-1-063
09-9051-1-063
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.041" 1/32 0.076 Brass Bright Tin-Lead Vertical
09-9034-1-088
09-9034-1-088
09-9034-1-088
0.030 - 0.032 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9628-2-088
09-9628-2-088
09-9628-2-088
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9628-1-088
09-9628-1-088
09-9628-1-088
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9628-1-06
09-9628-1-06
09-9628-1-06
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical
09-9628-1-03
09-9628-1-03
09-9628-1-03
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Gold Vertical
09-9628-1-04
09-9628-1-04
09-9628-1-04
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical
09-9606-1-035
09-9606-1-035
09-9606-1-035
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical

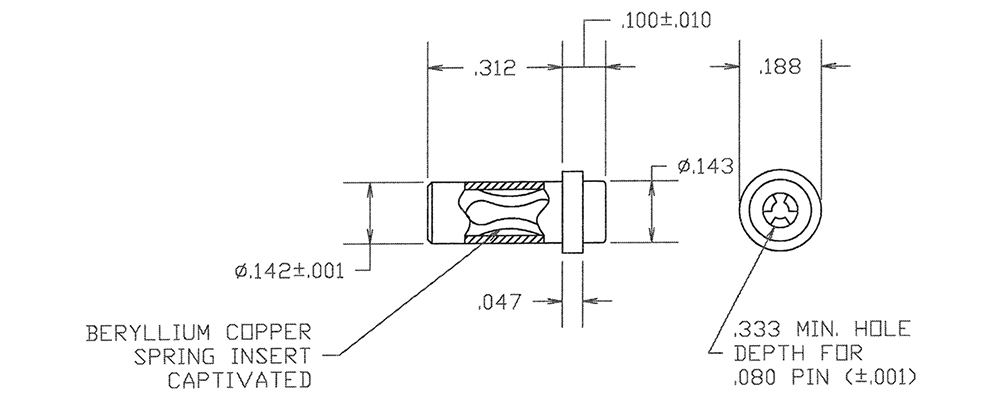

09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
