Non-Insulated
PC Jacks

Filter
09-9015-1-063
09-9015-1-063
09-9015-1-063
0.025 0.150 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Bright Tin-Lead Vertical
09-9006-1-04
09-9006-1-04
09-9006-1-04
0.040 0.185 " 0.220" - Solder - 1/32 - 1/8 0.076 Brass Electro-Tin Vertical
09-9017-1-04
09-9017-1-04
09-9017-1-04
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Electro-Tin Vertical
09-9639-1-03
09-9639-1-03
09-9639-1-03
0.065 - 0.082 0.340 " 0.412" - Solder - 1/32 - 1/4 0.147 Brass Gold Vertical
09-9662-1-088
09-9662-1-088
09-9662-1-088
0.015 - 0.021 0.055 " 0.083" - Solder - 1/32 0.041 Brass Bright Tin-Lead Vertical
09-9601-1-04
09-9601-1-04
09-9601-1-04
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Electro-Tin Vertical
09-9264-1-063
09-9264-1-063
09-9264-1-063
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Bright Tin-Lead Vertical
09-9654-1-063
09-9654-1-063
09-9654-1-063
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9018-1-063
09-9018-1-063
09-9018-1-063
0.040 0.190 " 0.236" - Solder - 1/32 - 5/32 0.089 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9005-3-088
09-9005-3-088
09-9005-3-088
0.040 0.190 " 0.512" Jack/Pin Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9005-4-03
09-9005-4-03
09-9005-4-03
0.040 0.190 " 0.543" Jack/Pin Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-4-063
09-9037-4-063
09-9037-4-063
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9037-6-03
09-9037-6-03
09-9037-6-03
0.030 - 0.032 0.183 " 0.515" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-6-035
09-9037-6-035
09-9037-6-035
0.030 - 0.032 0.183 " 0.515" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9065-1-04
09-9065-1-04
09-9065-1-04
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Electro-Tin Horizontal
09-9290-1-03
09-9290-1-03
09-9290-1-03
0.030 0.180 " 0.300" Jack/Pin Solder - 1/32 0.028 Brass Gold Vertical
09-9722-1-088
09-9722-1-088
09-9722-1-088
0.032 - 0.047 0.180 " 0.206" - Press Fit/Solder - 1/16 - 5/32 0.076 Brass Bright Tin-Lead Vertical

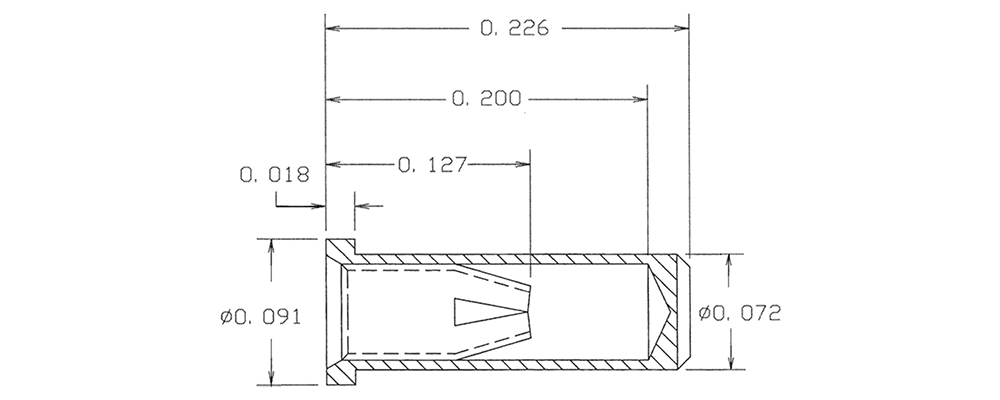

09-9726-1-035
09-9726-1-035
09-9726-1-035
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Gold Vertical
09-9602-1-04
09-9602-1-04
09-9602-1-04
0.032 - 0.046 0.157 " 0.236" - Solder - 1/32 - 5/32 0.087 Brass Electro-Tin Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
