Non-Insulated
PC Jacks

Filter
09-9644-1-03
09-9644-1-03
09-9644-1-03
0.040 - 0.060 0.205 " 0.270" - Press Fit/Solder - 3/32 - 3/16 0.106 Brass Gold Vertical
09-9256-1-06
09-9256-1-06
09-9256-1-06
0.030 0.165 " 0.200" - Solder - 1/32 - 1/16 0.076 Brass Electro-Tin Vertical
09-9256-1-088
09-9256-1-088
09-9256-1-088
0.030 0.165 " 0.200" - Solder - 1/32 - 1/16 0.076 Brass Bright Tin-Lead Vertical
09-9670-3-03
09-9670-3-03
09-9670-3-03
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Gold Vertical
09-9627-1-088
09-9627-1-088
09-9627-1-088
0.025 - 0.037 0.250 " 0.537" Jack/Pin Solder - 1/32 - 1/4 0.044 Brass Bright Tin-Lead Vertical
09-9651-1-088
09-9651-1-088
09-9651-1-088
0.015 - 0.021 0.093 " 0.156" Jack/Pin Press Fit/Solder - 1/32 - 1/16 0.043 Phosphor Bronze Bright Tin-Lead Vertical
09-9656-1-063
09-9656-1-063
09-9656-1-063
0.032 - 0.046 0.200 " 0.530" - - - - - Brass Bright Tin-Lead -
09-9603-4-03
09-9603-4-03
09-9603-4-03
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Gold Vertical
09-9656-1-088
09-9656-1-088
09-9656-1-088
0.032 - 0.046 0.200 " 0.530" - - - - - Brass Bright Tin-Lead -
09-9066-1-03
09-9066-1-03
09-9066-1-03
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Gold Vertical
09-9652-1-088
09-9652-1-088
09-9652-1-088
0.015 - 0.022 0.110 " 0.257" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9620-3-063
09-9620-3-063
09-9620-3-063
0.032 - 0.046 0.200 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin-Lead Vertical
09-9131-1-035
09-9131-1-035
09-9131-1-035
0.030 - 0.032 0.205 " 0.206" - Solder - 1/32 - 1/8 0.076 (+0.002/-0.001) Brass Gold Vertical
09-9676-1-063
09-9676-1-063
09-9676-1-063
0.015 - 0.025 0.106 " 0.126" - Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9077-1-088
09-9077-1-088
09-9077-1-088
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Bright Tin-Lead Vertical
09-9603-4-06
09-9603-4-06
09-9603-4-06
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Electro-Tin Vertical
09-9674-1-088
09-9674-1-088
09-9674-1-088
0.015 - 0.025 0.120 " 0.203" - Solder - 1/32 - 3/32 0.056 Brass Bright Tin-Lead Vertical
09-9067-3-035
09-9067-3-035
09-9067-3-035
0.060 - 0.062 0.204 " 0.475" Jack/Turret Swage Mount 0.120" 3/32 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9674-1-063
09-9674-1-063
09-9674-1-063
0.015 - 0.025 0.120 " 0.203" - Solder - 1/32 - 3/32 0.056 Brass Bright Tin-Lead Vertical

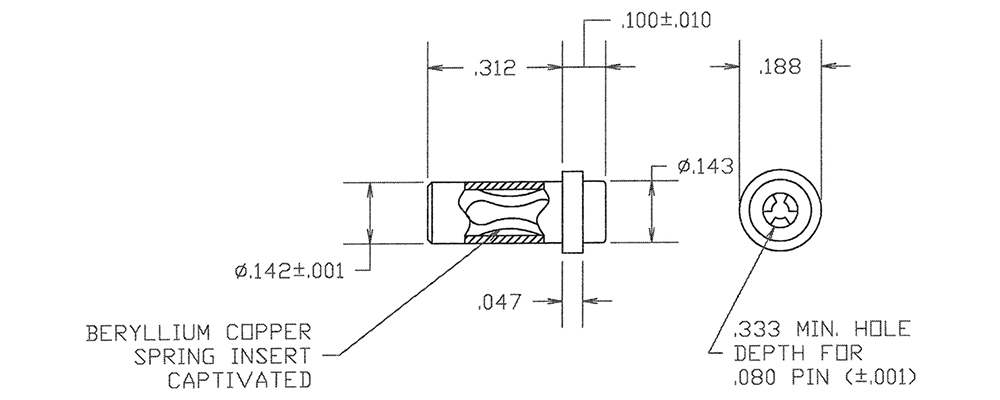

09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
