Non-Insulated
PC Jacks

Filter

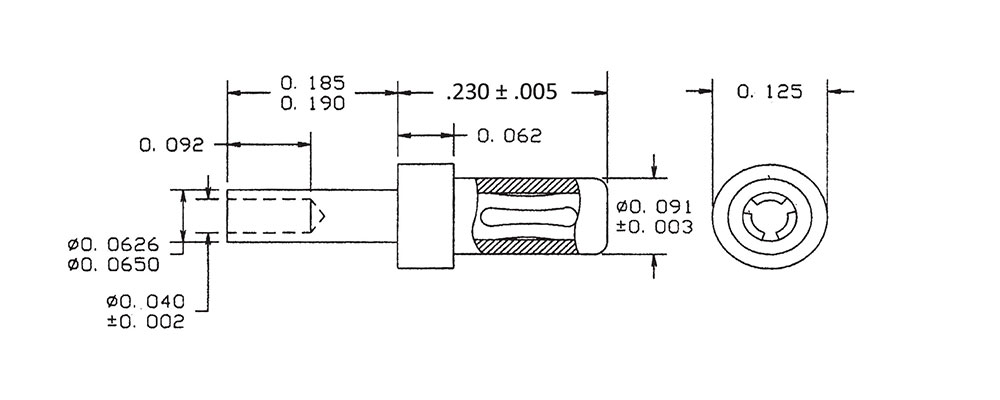

09-9285-5-088
09-9285-5-088
09-9285-5-088
0.040 0.200 " 0.415" - Swage Mount 0.187" 5/32 0.067 Brass Bright Tin-Lead Vertical

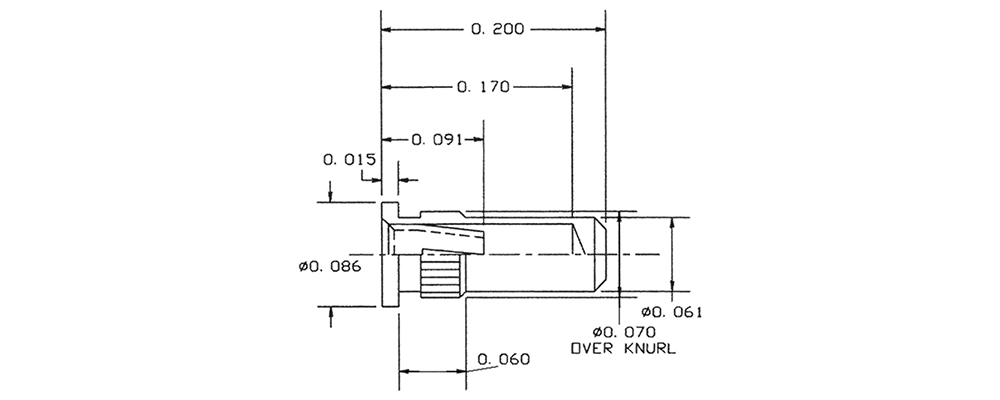

09-9625-1-03
09-9625-1-03
09-9625-1-03
0.022 - 0.034 0.170 " 0.200" - Press Fit/Solder - 1/16 - 5/32 0.067 Brass Gold Vertical
09-9625-1-04
09-9625-1-04
09-9625-1-04
0.022 - 0.034 0.170 " 0.200" - Press Fit/Solder - 1/16 - 5/32 0.067 Brass Electro-Tin Vertical
09-9625-1-088
09-9625-1-088
09-9625-1-088
0.022 - 0.034 0.170 " 0.200" - Press Fit/Solder - 1/16 - 5/32 0.067 Brass Bright Tin-Lead Vertical
09-9631-1-04
09-9631-1-04
09-9631-1-04
0.065 - 0.082 0.375 " 0.565" Jack/Pin Solder - 1/32 - 1/16 0.067 Brass Electro-Tin Vertical
09-9037-4-04
09-9037-4-04
09-9037-4-04
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9711-1-063
09-9711-1-063
09-9711-1-063
0.016 - 0.020 0.126 " 0.138" - Solder - 1/32 - 3/32 0.043 Brass Bright Tin-Lead Vertical
09-9230-2-03
09-9230-2-03
09-9230-2-03
0.040 0.185 " 0.277" - Swage Mount 0.084" 1/16 0.076 Brass Gold Vertical
09-9257-1-03
09-9257-1-03
09-9257-1-03
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Gold Vertical
09-9178-1-06
09-9178-1-06
09-9178-1-06
0.040 0.187 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Electro-Tin Vertical
09-9667-1-063
09-9667-1-063
09-9667-1-063
0.015 - 0.025 0.100 " 0.125" - Solder - 1/32 - 1/16 0.0635 Brass Bright Tin-Lead Vertical
09-9601-1-063
09-9601-1-063
09-9601-1-063
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Bright Tin-Lead Vertical
09-9172-1-03
09-9172-1-03
09-9172-1-03
0.014 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 3/32 - 3/16 0.055 Brass Gold Vertical
09-9613-1-035
09-9613-1-035
09-9613-1-035
0.015 - 0.025 0.148 " 0.173" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9088-1-035
09-9088-1-035
09-9088-1-035
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Gold Horizontal
09-9065-1-035
09-9065-1-035
09-9065-1-035
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Gold Horizontal
09-9733-1-06
09-9733-1-06
09-9733-1-06
0.032 - 0.046 0.170 " 0.255" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical
09-9744-1-04
09-9744-1-04
09-9744-1-04
0.032 - 0.046 0.300 " 0.800" Jack/Pin Solder - 1/32 - 3/8 0.082 Brass Electro-Tin Vertical
09-9031-1-063
09-9031-1-063
09-9031-1-063
0.030 - 0.032 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Bright Tin-Lead Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
