Non-Insulated
PC Jacks

Filter

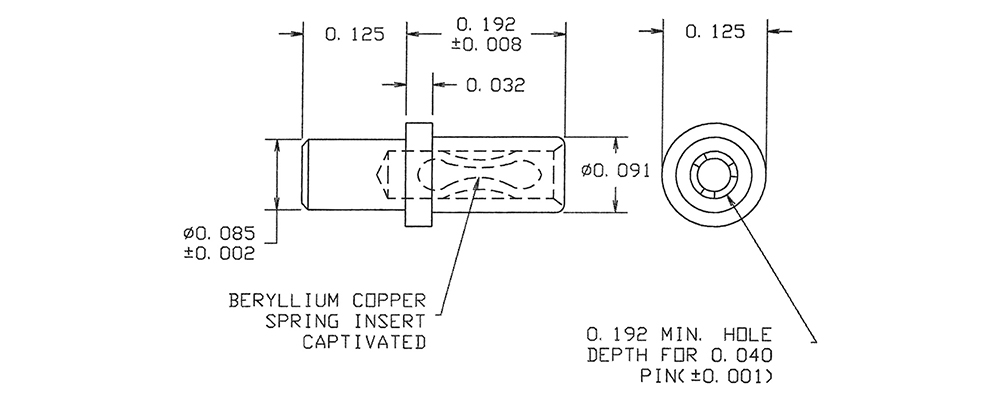

09-9008-1-088
09-9008-1-088
09-9008-1-088
0.040 0.192 " 0.317" - Solder - 1/32 - 3/32 0.089 Brass Bright Tin-Lead Vertical

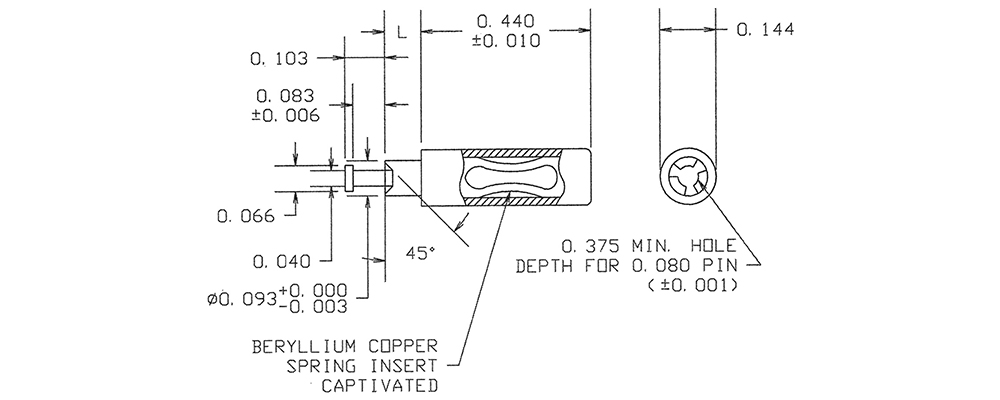

09-9042-2-06
09-9042-2-06
09-9042-2-06
0.080 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

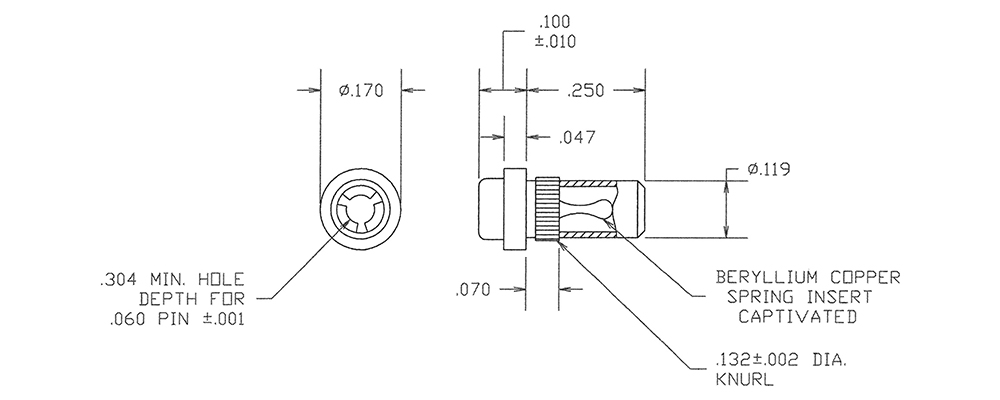

09-9100-1-035
09-9100-1-035
09-9100-1-035
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical

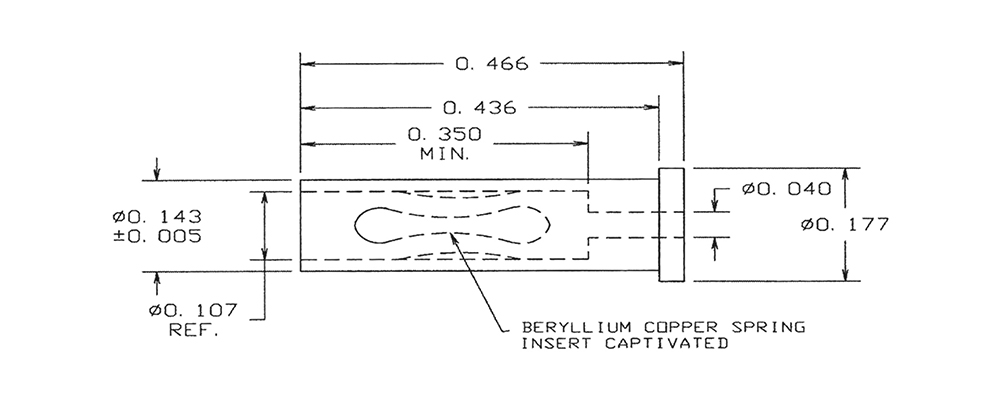

09-9284-1-035
09-9284-1-035
09-9284-1-035
0.080 0.350 " 0.466" - - - - - Brass Gold -

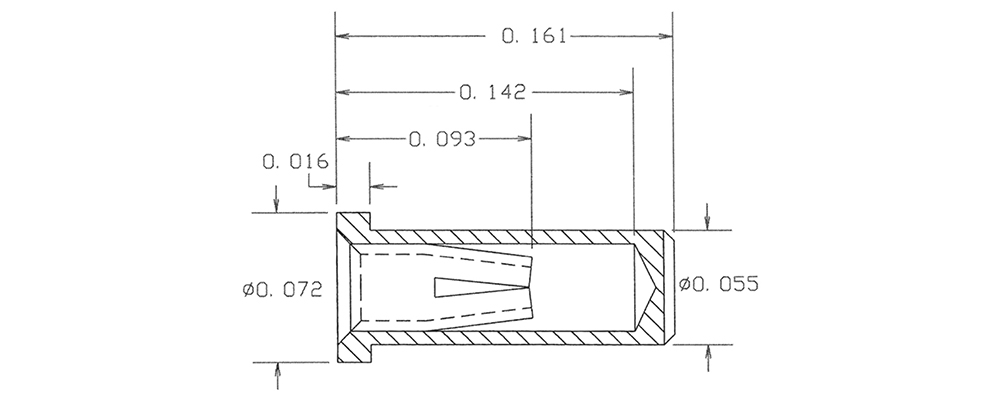

09-9624-1-088
09-9624-1-088
09-9624-1-088
0.015 - 0.025 0.142 " 0.161" - Solder - 1/32 - 3/32 0.059 Brass Bright Tin-Lead Vertical

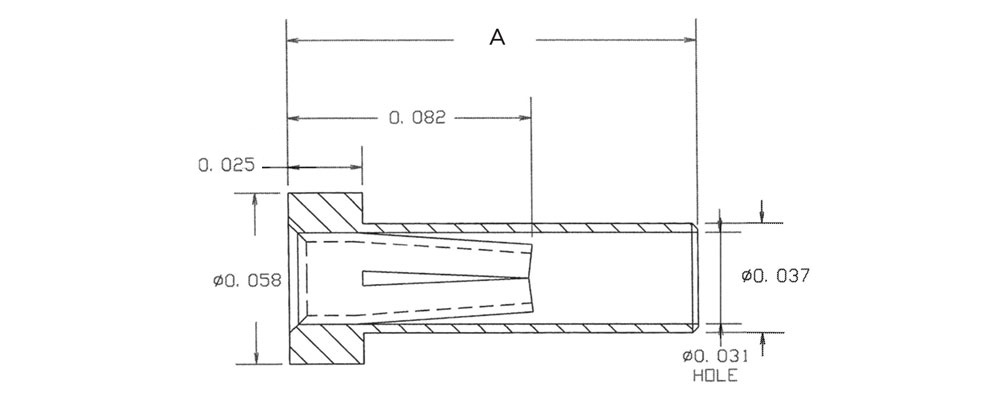

09-9662-2-06
09-9662-2-06
09-9662-2-06
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Electro-Tin Vertical

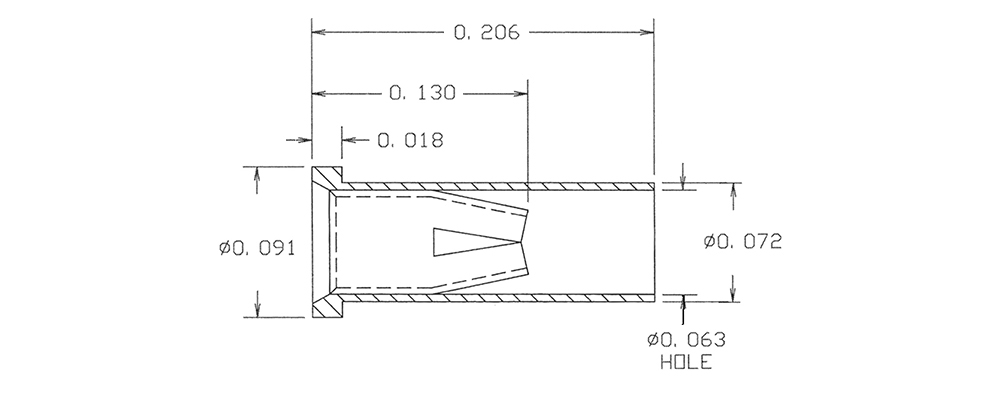

09-9728-1-035
09-9728-1-035
09-9728-1-035
0.032 - 0.046 0.137 " 0.206" - Solder - 1/32 - 5/32 0.076 Brass Gold Vertical

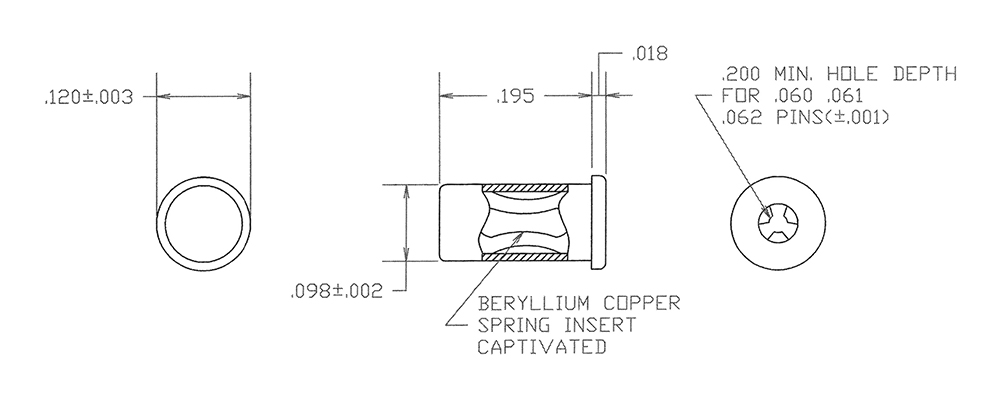

09-9013-1-03
09-9013-1-03
09-9013-1-03
0.060 - 0.062 0.200 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Gold Vertical
09-9042-2-063
09-9042-2-063
09-9042-2-063
0.080 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9100-1-04
09-9100-1-04
09-9100-1-04
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Electro-Tin Vertical
09-9284-1-04
09-9284-1-04
09-9284-1-04
0.080 0.350 " 0.466" - - - - - Brass Electro-Tin -

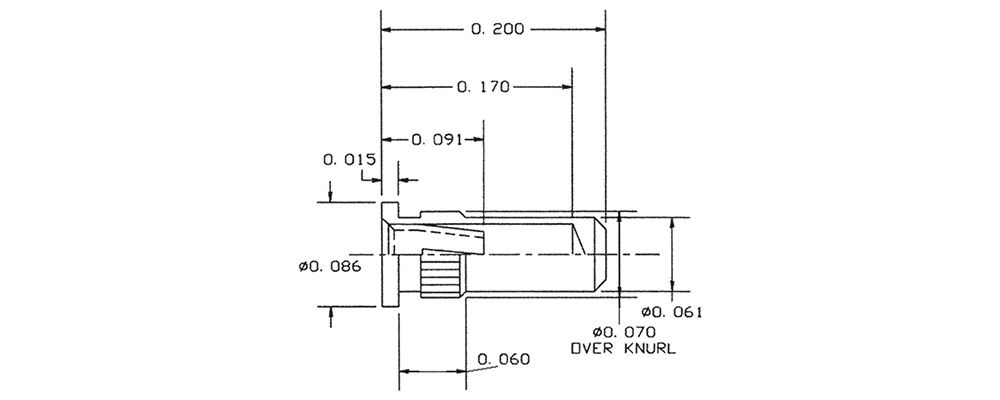

09-9625-1-03
09-9625-1-03
09-9625-1-03
0.022 - 0.034 0.170 " 0.200" - Press Fit/Solder - 1/16 - 5/32 0.067 Brass Gold Vertical
09-9662-2-063
09-9662-2-063
09-9662-2-063
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Bright Tin-Lead Vertical
09-9728-1-04
09-9728-1-04
09-9728-1-04
0.032 - 0.046 0.137 " 0.206" - Solder - 1/32 - 5/32 0.076 Brass Electro-Tin Vertical
09-9013-1-035
09-9013-1-035
09-9013-1-035
0.060 - 0.062 0.200 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Gold Vertical
09-9042-2-088
09-9042-2-088
09-9042-2-088
0.080 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9100-1-06
09-9100-1-06
09-9100-1-06
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Electro-Tin Vertical
09-9284-1-06
09-9284-1-06
09-9284-1-06
0.080 0.350 " 0.466" - - - - - Brass Electro-Tin -
09-9625-1-035
09-9625-1-035
09-9625-1-035
0.022 - 0.034 0.170 " 0.200" - Press Fit/Solder - 1/16 - 5/32 0.067 Brass Gold Vertical
09-9662-2-088
09-9662-2-088
09-9662-2-088
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Bright Tin-Lead Vertical
