Non-Insulated
PC Jacks

Filter
09-9604-4-06
09-9604-4-06
09-9604-4-06
0.032 - 0.046 0.200 " 0.454" Jack/Turret Swage Mount 0.156" 1/8 0.094 Brass Electro-Tin Vertical
09-9045-6-088
09-9045-6-088
09-9045-6-088
0.025 0.141 " 0.397" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9638-1-04
09-9638-1-04
09-9638-1-04
0.025 - 0.037 0.230 " 0.490" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.062 Brass Electro-Tin Vertical
09-9019-2-035
09-9019-2-035
09-9019-2-035
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9726-1-03
09-9726-1-03
09-9726-1-03
0.032 - 0.046 0.200 " 0.226" - Solder - 1/32 - 3/16 0.076 Brass Gold Vertical
09-9670-1-04
09-9670-1-04
09-9670-1-04
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Electro-Tin Vertical
09-9686-1-035
09-9686-1-035
09-9686-1-035
0.025 - 0.037 0.240 " 0.394" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Gold Vertical
09-9686-1-06
09-9686-1-06
09-9686-1-06
0.025 - 0.037 0.240 " 0.394" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Electro-Tin Vertical
09-9602-1-063
09-9602-1-063
09-9602-1-063
0.032 - 0.046 0.157 " 0.236" - Solder - 1/32 - 5/32 0.087 Brass Bright Tin-Lead Vertical
09-9006-1-088
09-9006-1-088
09-9006-1-088
0.040 0.185 " 0.220" - Solder - 1/32 - 1/8 0.076 Brass Bright Tin-Lead Vertical
09-9067-3-088
09-9067-3-088
09-9067-3-088
0.060 - 0.062 0.204 " 0.475" Jack/Turret Swage Mount 0.120" 3/32 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9737-1-035
09-9737-1-035
09-9737-1-035
0.032 - 0.046 0.323 " 0.353" - Solder - 1/32 - 3/16 0.076 Brass Gold Vertical
09-9064-1-088
09-9064-1-088
09-9064-1-088
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.047 Brass Bright Tin-Lead Horizontal
09-9668-1-04
09-9668-1-04
09-9668-1-04
0.015 - 0.025 0.113 " 0.135" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical
09-9670-3-06
09-9670-3-06
09-9670-3-06
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Electro-Tin Vertical
09-9644-1-04
09-9644-1-04
09-9644-1-04
0.040 - 0.060 0.205 " 0.270" - Press Fit/Solder - 3/32 - 3/16 0.106 Brass Electro-Tin Vertical
09-9001-1-088
09-9001-1-088
09-9001-1-088
0.040 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9670-4-03
09-9670-4-03
09-9670-4-03
0.015 - 0.025 0.187 " 0.281" - Swage Mount 0.146" 1/8 0.049 Brass Gold Vertical
09-9670-2-06
09-9670-2-06
09-9670-2-06
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Electro-Tin Vertical

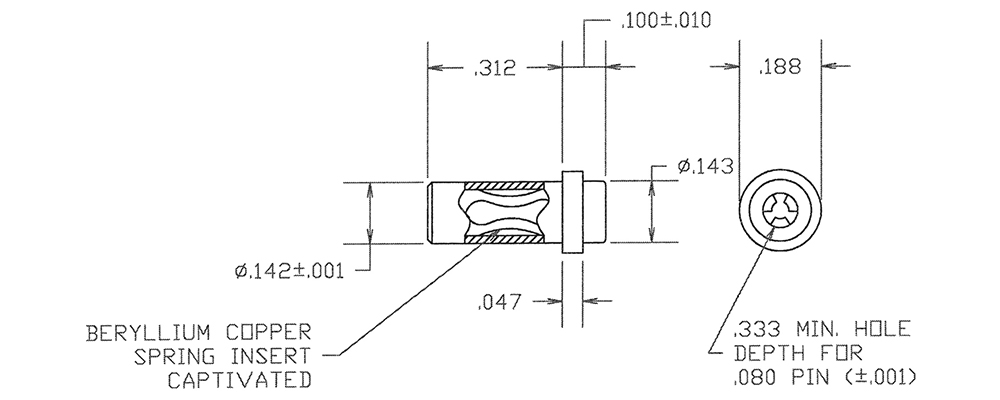

09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
