Non-Insulated
PC Jacks

Filter
09-9014-1-04
09-9014-1-04
09-9014-1-04
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9039-1-06
09-9039-1-06
09-9039-1-06
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
09-9017-1-06
09-9017-1-06
09-9017-1-06
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Electro-Tin Vertical
09-9051-2-035
09-9051-2-035
09-9051-2-035
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.072" 1/16 0.076 Brass Gold Vertical
09-9650-1-03
09-9650-1-03
09-9650-1-03
0.015 - 0.025 0.205 " 0.248" Jack/Pin Solder - 1/32 - 5/32 0.052 Brass Gold Vertical
09-9248-1-063
09-9248-1-063
09-9248-1-063
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9650-1-04
09-9650-1-04
09-9650-1-04
0.015 - 0.025 0.205 " 0.248" Jack/Pin Solder - 1/32 - 5/32 0.052 Brass Electro-Tin Vertical
09-9650-1-06
09-9650-1-06
09-9650-1-06
0.015 - 0.025 0.205 " 0.248" Jack/Pin Solder - 1/32 - 5/32 0.052 Brass Electro-Tin Vertical

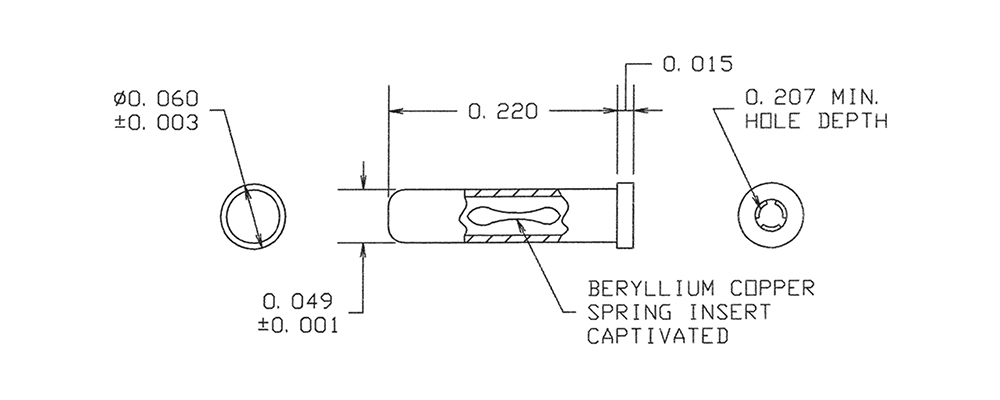

09-9093-1-088
09-9093-1-088
09-9093-1-088
0.022 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9247-1-063
09-9247-1-063
09-9247-1-063
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-6010-3-035
09-6010-3-035
09-6010-3-035
0.015 - 0.025 0.140 " 0.693" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-6010-3-03
09-6010-3-03
09-6010-3-03
0.015 - 0.025 0.140 " 0.693" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-6010-3-04
09-6010-3-04
09-6010-3-04
0.015 - 0.025 0.140 " 0.693" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9677-1-03
09-9677-1-03
09-9677-1-03
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-6010-2-04
09-6010-2-04
09-6010-2-04
0.015 - 0.025 0.140 " 0.563" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-6010-2-03
09-6010-2-03
09-6010-2-03
0.015 - 0.025 0.140 " 0.563" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-9289-1-03
09-9289-1-03
09-9289-1-03
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.046 Brass Gold Horizontal
09-6010-1-04
09-6010-1-04
09-6010-1-04
0.015 - 0.025 0.140 " 0.433" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9642-1-063
09-9642-1-063
09-9642-1-063
0.065 - 0.082 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.096 Brass Bright Tin-Lead Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
