Non-Insulated
PC Jacks

Filter

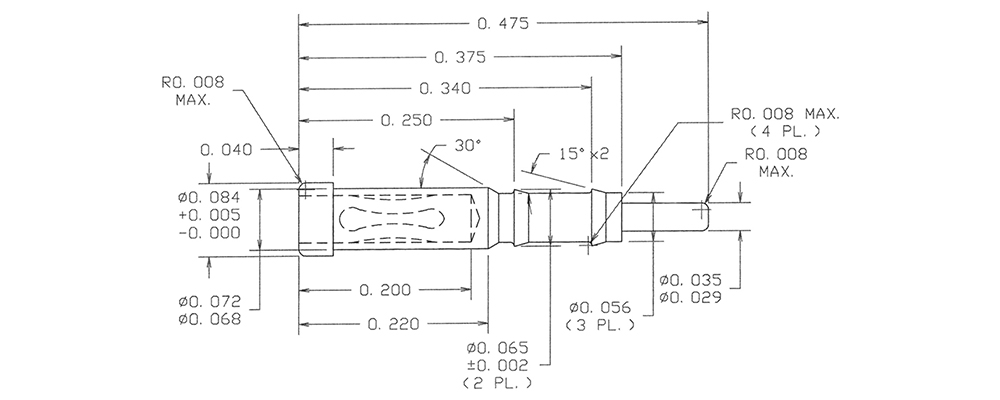

09-9279-1-04
09-9279-1-04
09-9279-1-04
0.040 0.200 " 0.475" Jack/Turret Press Fit/Solder - 1/16 - 1/8 0.062 Brass Electro-Tin Vertical

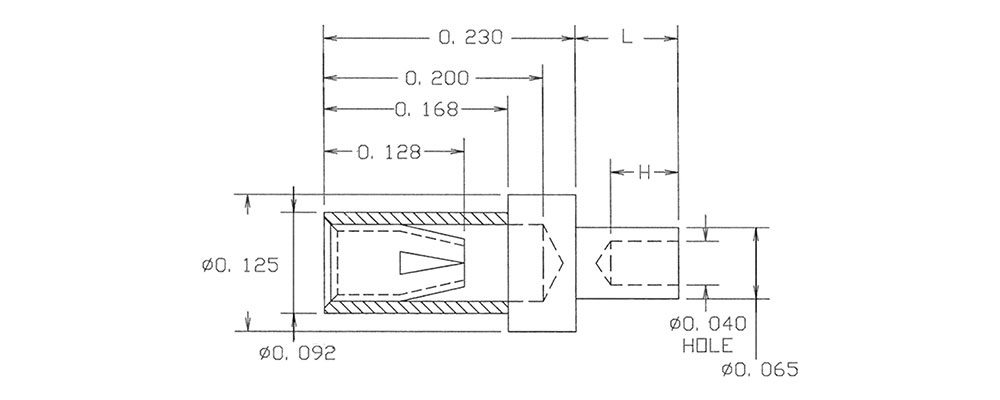

09-9620-3-03
09-9620-3-03
09-9620-3-03
0.032 - 0.046 0.200 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Gold Vertical

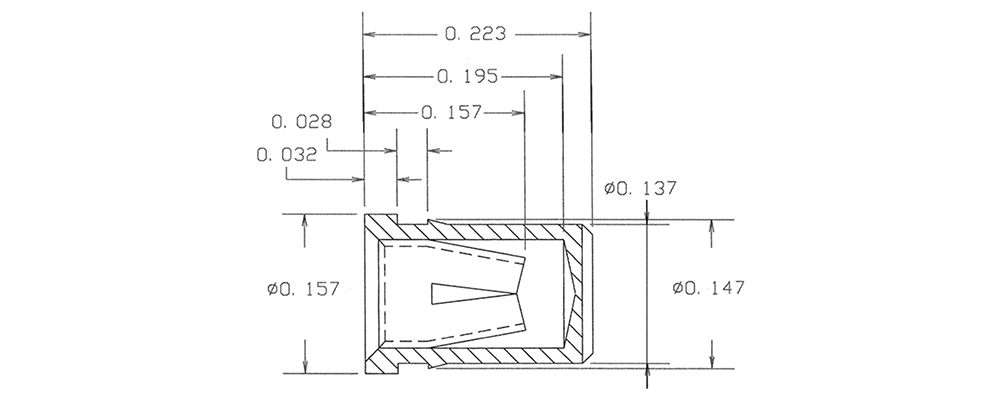

09-9657-1-063
09-9657-1-063
09-9657-1-063
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical

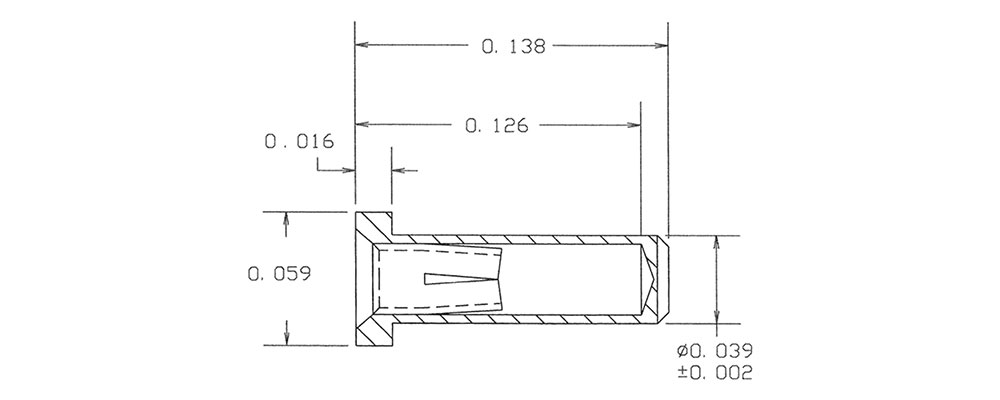

09-9711-1-04
09-9711-1-04
09-9711-1-04
0.016 - 0.020 0.126 " 0.138" - Solder - 1/32 - 3/32 0.043 Brass Electro-Tin Vertical

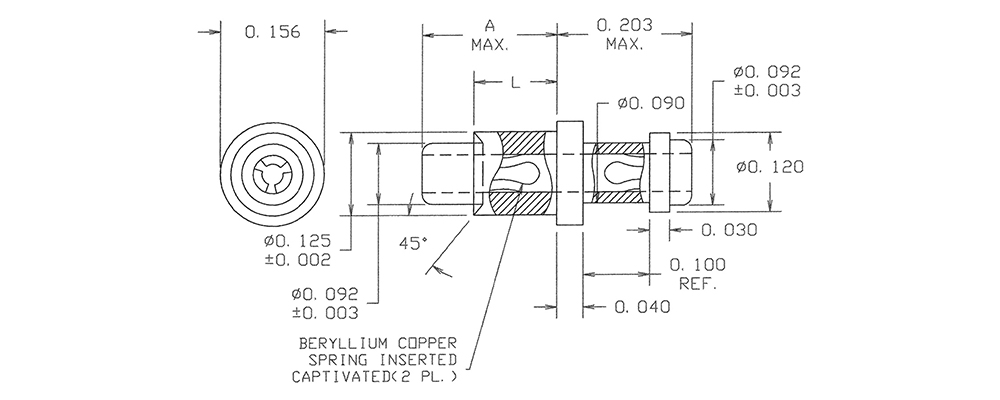

09-9007-2-035
09-9007-2-035
09-9007-2-035
0.040 0.325 " 0.406" Jack/Jack Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical

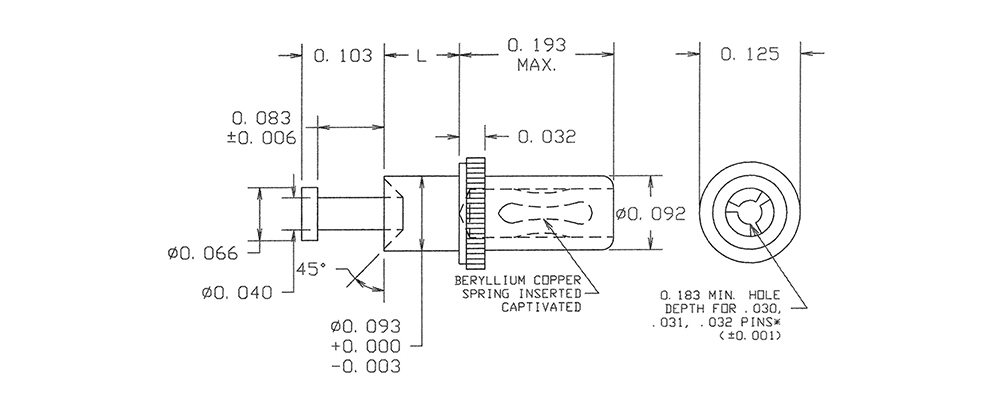

09-9037-6-088
09-9037-6-088
09-9037-6-088
0.030 - 0.032 0.183 " 0.515" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

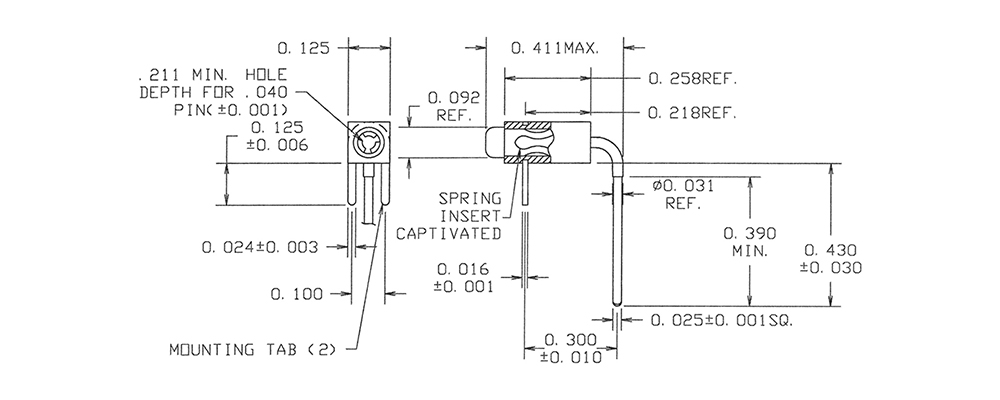

09-9088-1-06
09-9088-1-06
09-9088-1-06
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Electro-Tin Horizontal
09-9279-1-06
09-9279-1-06
09-9279-1-06
0.040 0.200 " 0.475" Jack/Turret Press Fit/Solder - 1/16 - 1/8 0.062 Brass Electro-Tin Vertical
09-9620-3-035
09-9620-3-035
09-9620-3-035
0.032 - 0.046 0.200 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Gold Vertical
09-9657-1-088
09-9657-1-088
09-9657-1-088
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9711-1-06
09-9711-1-06
09-9711-1-06
0.016 - 0.020 0.126 " 0.138" - Solder - 1/32 - 3/32 0.043 Brass Electro-Tin Vertical
09-9007-2-04
09-9007-2-04
09-9007-2-04
0.040 0.325 " 0.406" Jack/Jack Swage Mount 0.094" 1/16 0.129 Brass Electro-Tin Vertical

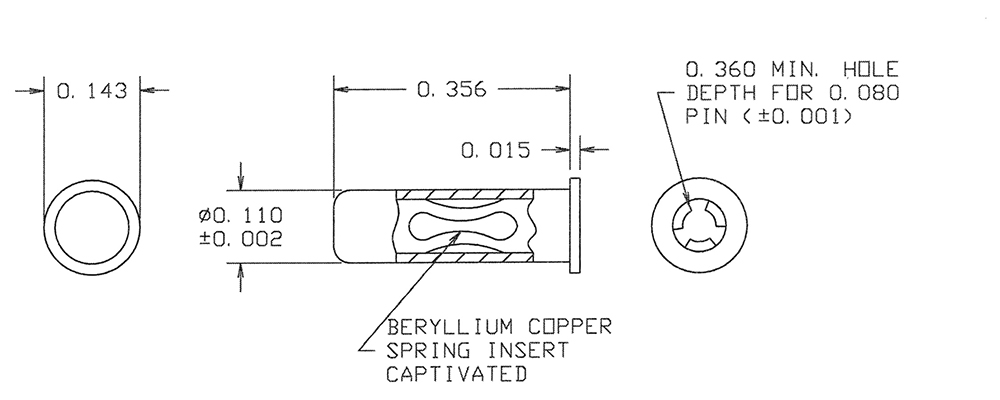

09-9038-1-03
09-9038-1-03
09-9038-1-03
0.080 0.360 " 0.371" - Solder - 1/32 - 5/16 0.116 Brass Gold Vertical
09-9088-1-063
09-9088-1-063
09-9088-1-063
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Bright Tin-Lead Horizontal
09-9279-1-063
09-9279-1-063
09-9279-1-063
0.040 0.200 " 0.475" Jack/Turret Press Fit/Solder - 1/16 - 1/8 0.062 Brass Bright Tin-Lead Vertical
09-9620-3-04
09-9620-3-04
09-9620-3-04
0.032 - 0.046 0.200 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Electro-Tin Vertical

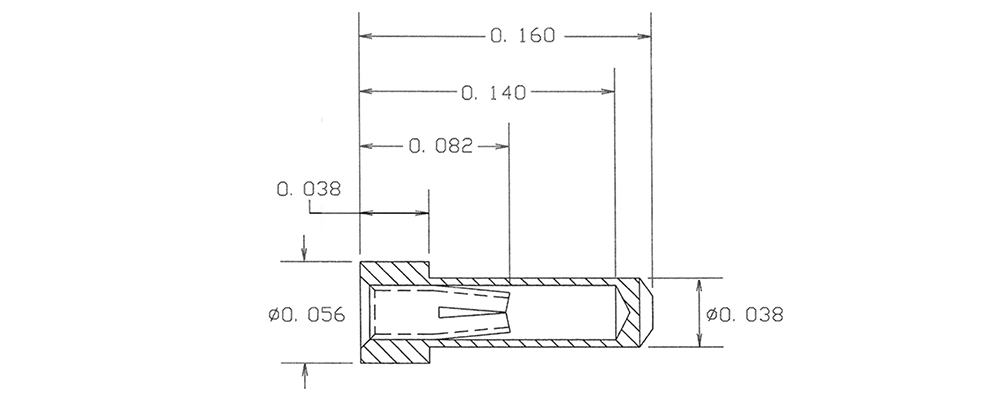

09-9659-1-03
09-9659-1-03
09-9659-1-03
0.015 - 0.021 0.140 " 0.160" - Solder - 1/32 - 3/32 0.042 Brass Gold Vertical
09-9711-1-063
09-9711-1-063
09-9711-1-063
0.016 - 0.020 0.126 " 0.138" - Solder - 1/32 - 3/32 0.043 Brass Bright Tin-Lead Vertical
09-9007-2-06
09-9007-2-06
09-9007-2-06
0.040 0.325 " 0.406" Jack/Jack Swage Mount 0.094" 1/16 0.129 Brass Electro-Tin Vertical
09-9038-1-035
09-9038-1-035
09-9038-1-035
0.080 0.360 " 0.371" - Solder - 1/32 - 5/16 0.116 Brass Gold Vertical
