Non-Insulated
PC Jacks

Filter
09-9005-1-04
09-9005-1-04
09-9005-1-04
0.040 0.190 " 0.449" Jack/Pin Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9005-2-035
09-9005-2-035
09-9005-2-035
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9005-2-04
09-9005-2-04
09-9005-2-04
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9005-2-06
09-9005-2-06
09-9005-2-06
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9005-2-088
09-9005-2-088
09-9005-2-088
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9005-3-03
09-9005-3-03
09-9005-3-03
0.040 0.190 " 0.512" Jack/Pin Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9005-3-04
09-9005-3-04
09-9005-3-04
0.040 0.190 " 0.512" Jack/Pin Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9005-4-035
09-9005-4-035
09-9005-4-035
0.040 0.190 " 0.543" Jack/Pin Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9005-6-04
09-9005-6-04
09-9005-6-04
0.040 0.190 " 0.606" Jack/Pin Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9005-6-088
09-9005-6-088
09-9005-6-088
0.040 0.190 " 0.606" Jack/Pin Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

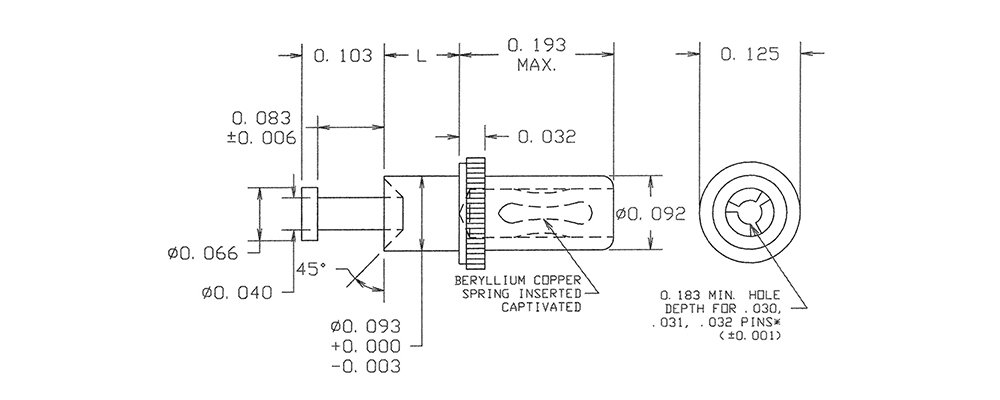

09-9037-1-03
09-9037-1-03
09-9037-1-03
0.030 - 0.032 0.183 " 0.358" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-1-035
09-9037-1-035
09-9037-1-035
0.030 - 0.032 0.183 " 0.358" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-1-04
09-9037-1-04
09-9037-1-04
0.030 - 0.032 0.183 " 0.358" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9037-2-03
09-9037-2-03
09-9037-2-03
0.030 - 0.032 0.183 " 0.390" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-2-035
09-9037-2-035
09-9037-2-035
0.030 - 0.032 0.183 " 0.390" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-2-088
09-9037-2-088
09-9037-2-088
0.030 - 0.032 0.183 " 0.390" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9037-3-035
09-9037-3-035
09-9037-3-035
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-3-04
09-9037-3-04
09-9037-3-04
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9037-3-06
09-9037-3-06
09-9037-3-06
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
