Non-Insulated
PC Jacks

Filter
09-9698-1-088
09-9698-1-088
09-9698-1-088
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical

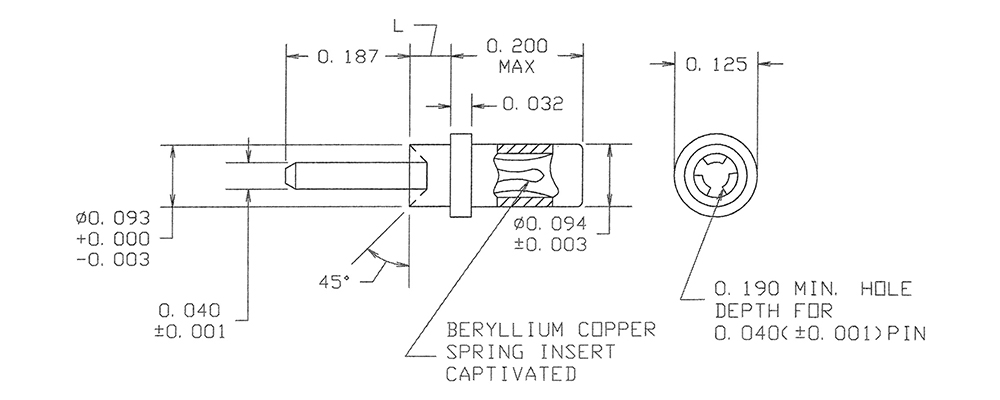

09-9005-6-063
09-9005-6-063
09-9005-6-063
0.040 0.190 " 0.606" Jack/Pin Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

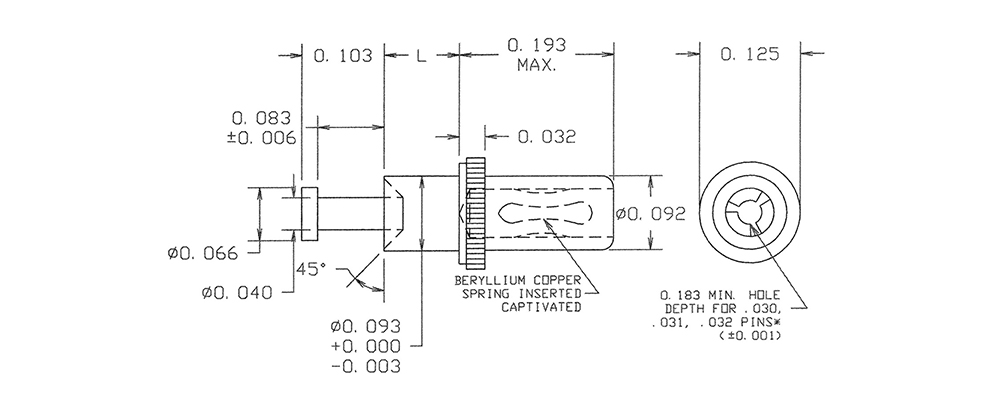

09-9037-4-04
09-9037-4-04
09-9037-4-04
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

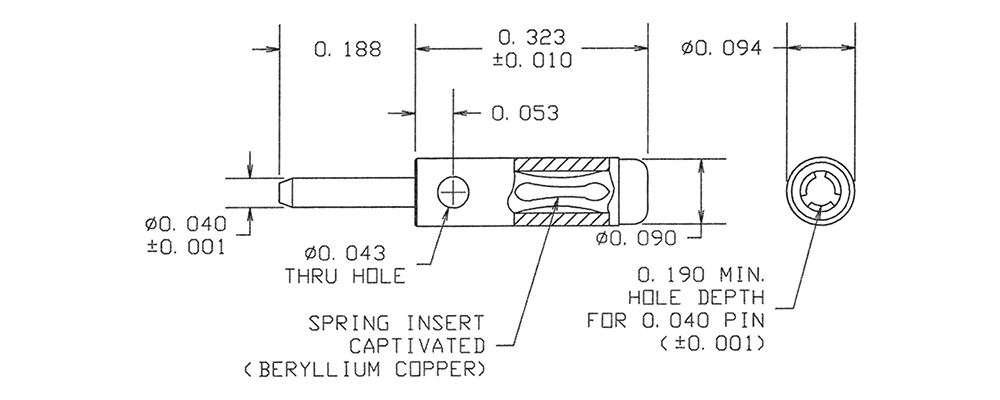

09-9082-1-03
09-9082-1-03
09-9082-1-03
0.040 0.190 " 0.511" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Gold Vertical

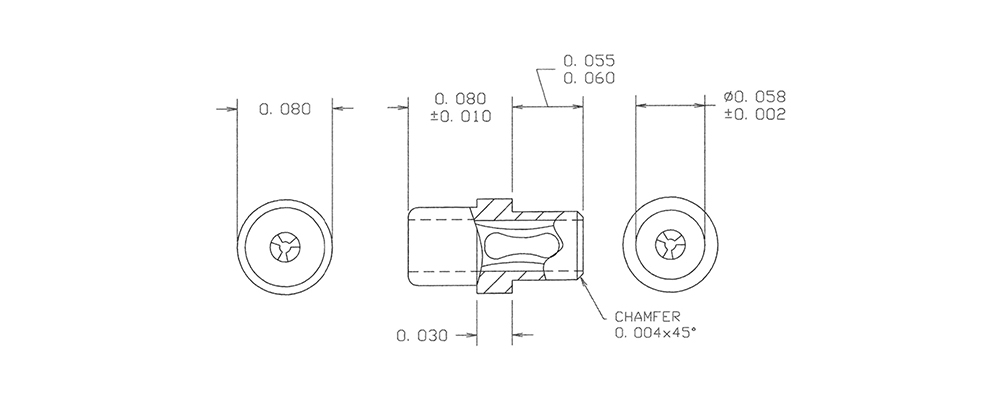

09-9278-1-03
09-9278-1-03
09-9278-1-03
0.025 0.093 " 0.140" - Solder - 1/32 0.062 Brass Gold Vertical

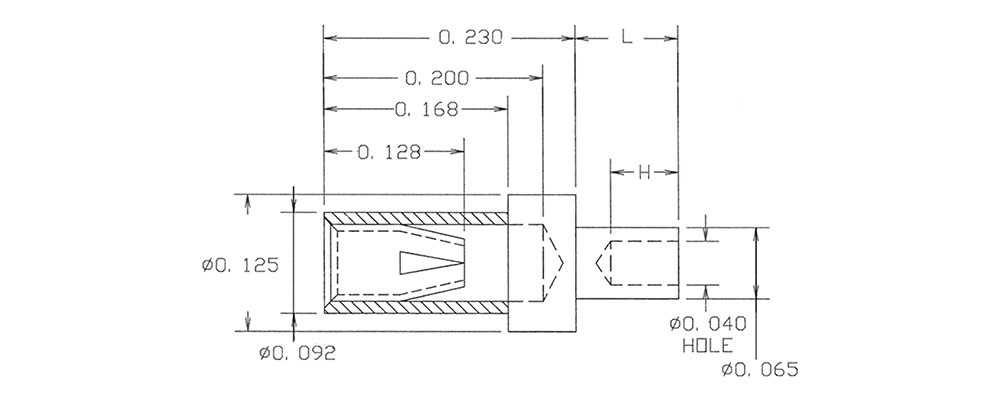

09-9620-1-063
09-9620-1-063
09-9620-1-063
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Bright Tin-Lead Vertical

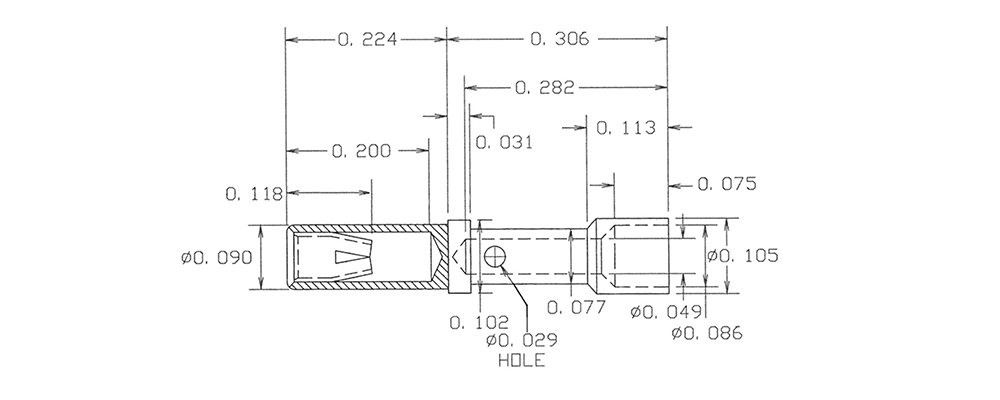

09-9656-1-04
09-9656-1-04
09-9656-1-04
0.032 - 0.046 0.200 " 0.530" - - - - - Brass Electro-Tin -

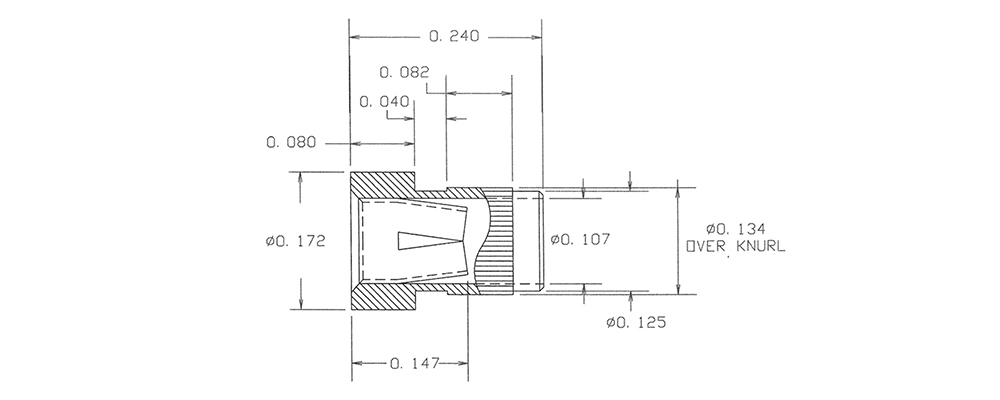

09-9699-1-03
09-9699-1-03
09-9699-1-03
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Gold Vertical
09-9005-6-088
09-9005-6-088
09-9005-6-088
0.040 0.190 " 0.606" Jack/Pin Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9037-4-06
09-9037-4-06
09-9037-4-06
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9082-1-035
09-9082-1-035
09-9082-1-035
0.040 0.190 " 0.511" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Gold Vertical
09-9278-1-035
09-9278-1-035
09-9278-1-035
0.025 0.093 " 0.140" - Solder - 1/32 0.062 Brass Gold Vertical
09-9620-1-088
09-9620-1-088
09-9620-1-088
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9656-1-06
09-9656-1-06
09-9656-1-06
0.032 - 0.046 0.200 " 0.530" - - - - - Brass Electro-Tin -
09-9699-1-035
09-9699-1-035
09-9699-1-035
0.065 - 0.082 0.160 " 0.240" - Press Fit/Solder - 1/16 - 1/8 0.130 Brass Gold Vertical

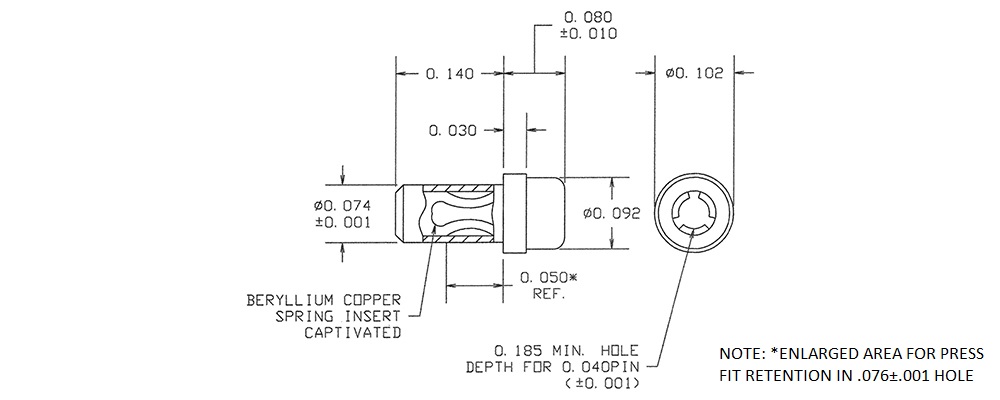

09-9006-1-03
09-9006-1-03
09-9006-1-03
0.040 0.185 " 0.220" - Solder - 1/32 - 1/8 0.076 Brass Gold Vertical
09-9037-4-063
09-9037-4-063
09-9037-4-063
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9082-1-04
09-9082-1-04
09-9082-1-04
0.040 0.190 " 0.511" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Electro-Tin Vertical
09-9278-1-04
09-9278-1-04
09-9278-1-04
0.025 0.093 " 0.140" - Solder - 1/32 0.062 Brass Electro-Tin Vertical
09-9620-2-03
09-9620-2-03
09-9620-2-03
0.032 - 0.046 0.200 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Gold Vertical
