Non-Insulated
PC Jacks

Filter
09-9653-1-04
09-9653-1-04
09-9653-1-04
0.032 - 0.046 0.190 " 0.343" Jack/Turret Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical

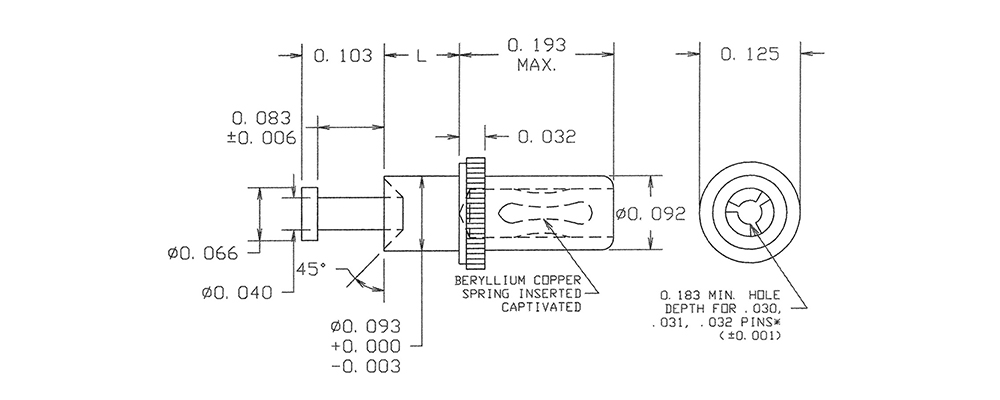

09-9037-4-06
09-9037-4-06
09-9037-4-06
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9131-1-04
09-9131-1-04
09-9131-1-04
0.030 - 0.032 0.205 " 0.206" - Solder - 1/32 - 1/8 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9606-1-06
09-9606-1-06
09-9606-1-06
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Electro-Tin Vertical
09-9003-2-06
09-9003-2-06
09-9003-2-06
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Electro-Tin Vertical
09-9659-1-088
09-9659-1-088
09-9659-1-088
0.015 - 0.021 0.140 " 0.160" - Solder - 1/32 - 3/32 0.042 Brass Bright Tin-Lead Vertical
09-9079-1-04
09-9079-1-04
09-9079-1-04
0.040 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Electro-Tin Vertical
09-9004-1-04
09-9004-1-04
09-9004-1-04
0.040 0.183 " 0.365" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

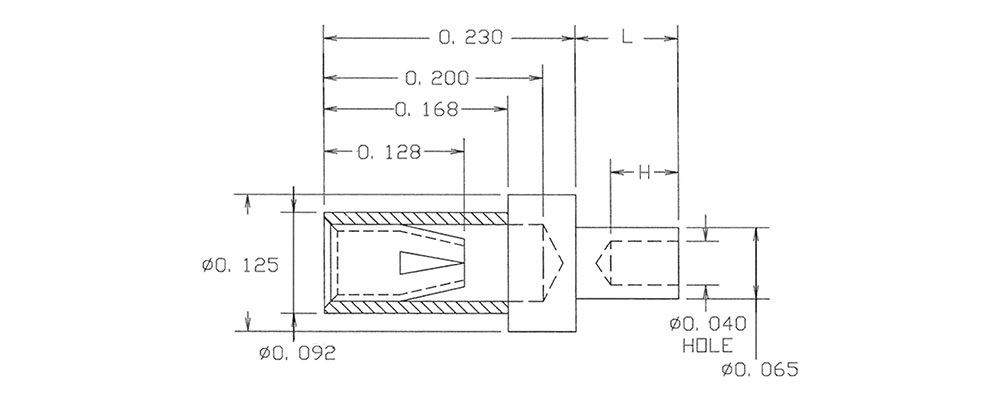

09-9620-2-04
09-9620-2-04
09-9620-2-04
0.032 - 0.046 0.200 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Electro-Tin Vertical
09-9022-4-04
09-9022-4-04
09-9022-4-04
0.025 0.336 " 0.374" Jack/Jack Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9022-3-03
09-9022-3-03
09-9022-3-03
0.025 0.308 " 0.343" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9081-1-035
09-9081-1-035
09-9081-1-035
0.040 0.190 " 0.511" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical

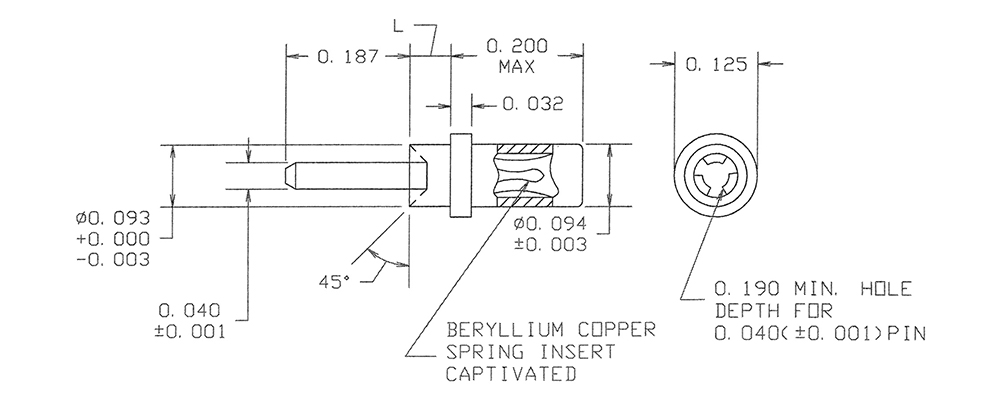

09-9005-4-06
09-9005-4-06
09-9005-4-06
0.040 0.190 " 0.543" Jack/Pin Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9609-1-035
09-9609-1-035
09-9609-1-035
0.015 - 0.025 0.150 " 0.343" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9628-2-035
09-9628-2-035
09-9628-2-035
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Gold Vertical
09-9095-1-03
09-9095-1-03
09-9095-1-03
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Gold Vertical
09-9610-1-035
09-9610-1-035
09-9610-1-035
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9640-1-063
09-9640-1-063
09-9640-1-063
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Bright Tin-Lead Vertical
09-9007-3-035
09-9007-3-035
09-9007-3-035
0.040 0.325 " 0.406" Jack/Jack Swage Mount 0.125" 3/32 0.129 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
