Non-Insulated
PC Jacks

Filter

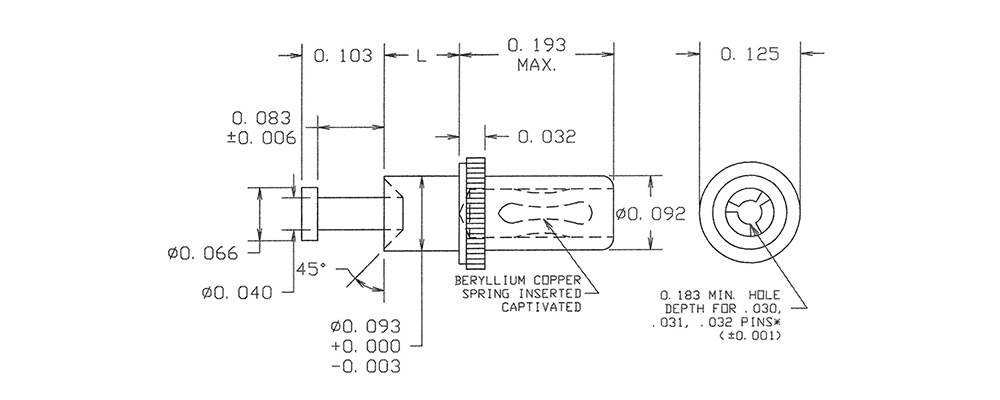

09-9037-3-04
09-9037-3-04
09-9037-3-04
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

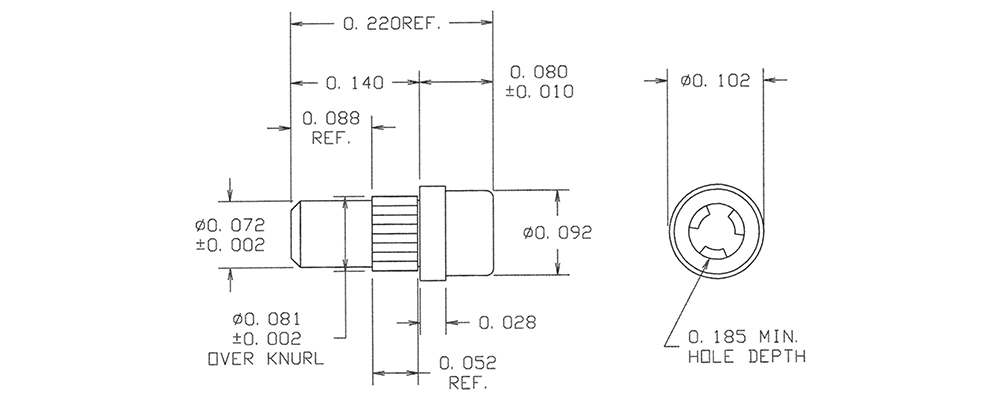

09-9081-1-03
09-9081-1-03
09-9081-1-03
0.040 0.190 " 0.511" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical

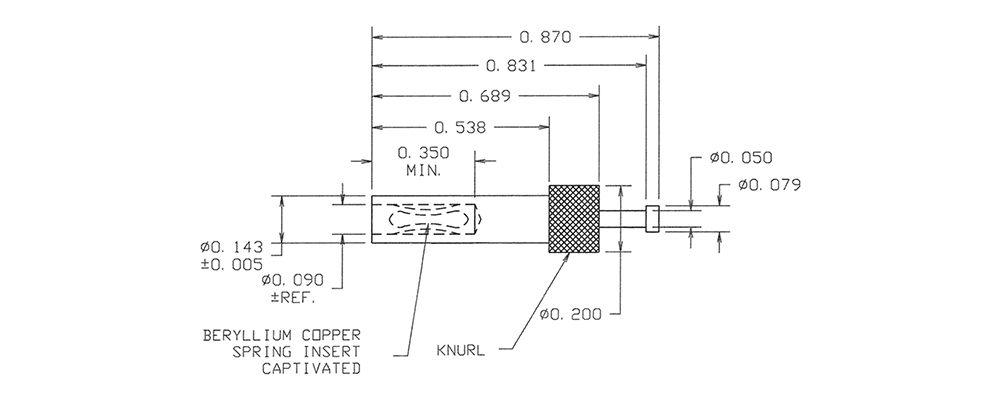

09-9277-1-03
09-9277-1-03
09-9277-1-03
0.080 0.350 " 0.870" Jack/Turret - - - - Brass Gold -

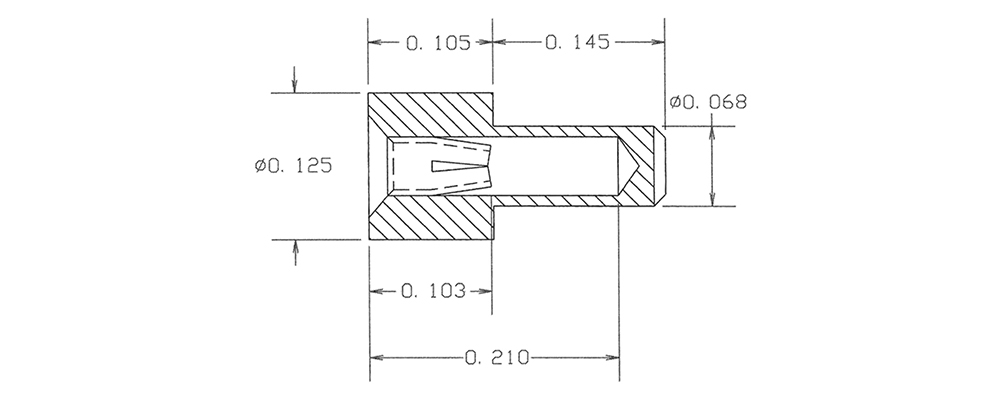

09-9619-1-063
09-9619-1-063
09-9619-1-063
0.022 - 0.034 0.210 " 0.250" - Solder - 1/32 - 3/32 0.072 Brass Bright Tin-Lead Vertical

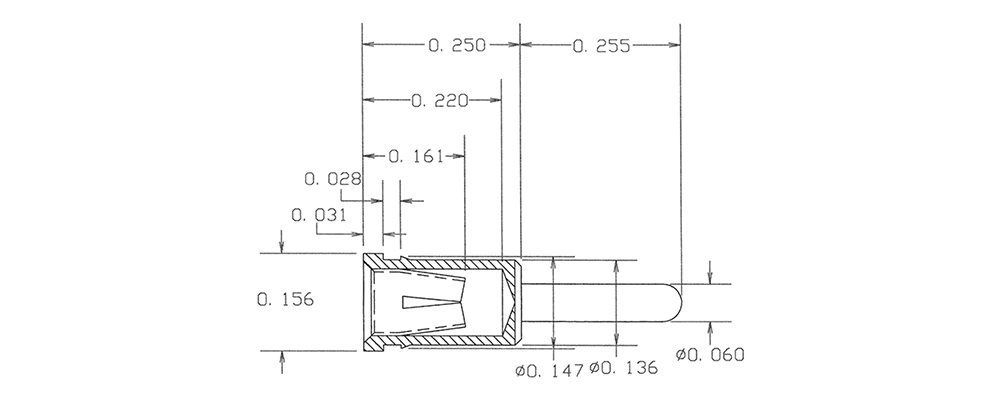

09-9655-1-04
09-9655-1-04
09-9655-1-04
0.065 - 0.082 0.220 " 0.505" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.142 Brass Electro-Tin Vertical

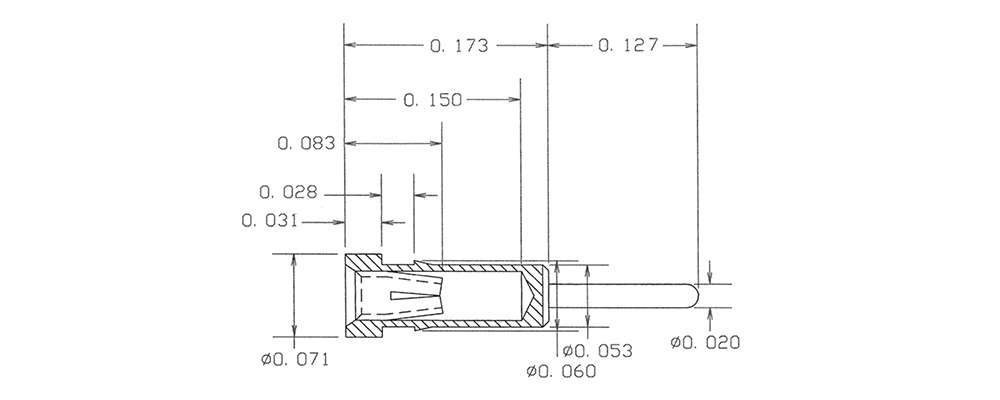

09-9698-1-03
09-9698-1-03
09-9698-1-03
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical

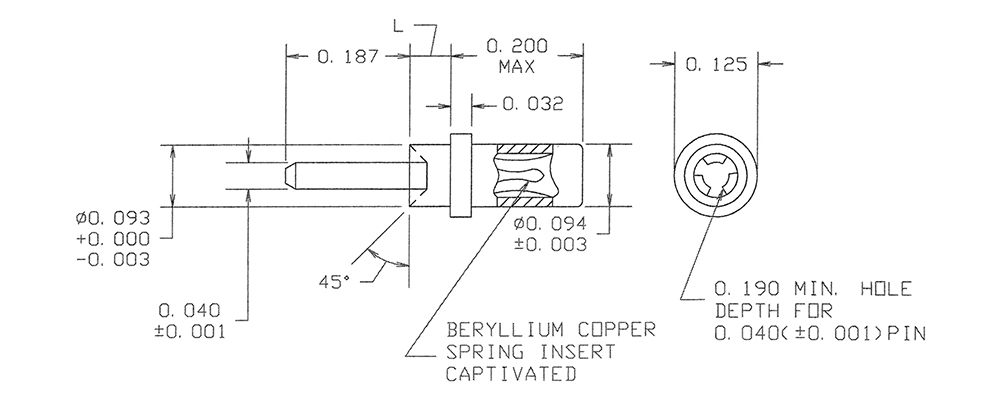

09-9005-4-088
09-9005-4-088
09-9005-4-088
0.040 0.190 " 0.543" Jack/Pin Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9037-3-06
09-9037-3-06
09-9037-3-06
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9081-1-035
09-9081-1-035
09-9081-1-035
0.040 0.190 " 0.511" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical
09-9277-1-035
09-9277-1-035
09-9277-1-035
0.080 0.350 " 0.870" Jack/Turret - - - - Brass Gold -
09-9619-1-088
09-9619-1-088
09-9619-1-088
0.022 - 0.034 0.210 " 0.250" - Solder - 1/32 - 3/32 0.072 Brass Bright Tin-Lead Vertical
09-9655-1-06
09-9655-1-06
09-9655-1-06
0.065 - 0.082 0.220 " 0.505" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.142 Brass Electro-Tin Vertical
09-9698-1-035
09-9698-1-035
09-9698-1-035
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Gold Vertical
09-9005-6-03
09-9005-6-03
09-9005-6-03
0.040 0.190 " 0.606" Jack/Pin Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9037-3-063
09-9037-3-063
09-9037-3-063
0.030 - 0.032 0.183 " 0.421" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9081-1-04
09-9081-1-04
09-9081-1-04
0.040 0.190 " 0.511" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.076 Brass Electro-Tin Vertical
09-9277-1-04
09-9277-1-04
09-9277-1-04
0.080 0.350 " 0.870" Jack/Turret - - - - Brass Electro-Tin -
09-9620-1-03
09-9620-1-03
09-9620-1-03
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Gold Vertical
09-9655-1-063
09-9655-1-063
09-9655-1-063
0.065 - 0.082 0.220 " 0.505" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9698-1-04
09-9698-1-04
09-9698-1-04
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
