Non-Insulated
PC Jacks

Filter
09-6027-1-035
09-6027-1-035
09-6027-1-035
0.015 - 0.025 0.140 " 0.293" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Gold Vertical
09-9743-1-03
09-9743-1-03
09-9743-1-03
0.032 - 0.046 0.210 " 0.260" - Press Fit/Solder - 1/16 - 5/32 0.073 Brass Gold Vertical
09-6019-1-04
09-6019-1-04
09-6019-1-04
0.015 - 0.025 0.140 " 0.553" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Electro-Tin Vertical
09-9743-1-035
09-9743-1-035
09-9743-1-035
0.032 - 0.046 0.210 " 0.260" - Press Fit/Solder - 1/16 - 5/32 0.073 Brass Gold Vertical
09-9651-1-035
09-9651-1-035
09-9651-1-035
0.015 - 0.021 0.093 " 0.156" Jack/Pin Press Fit/Solder - 1/32 - 1/16 0.043 Phosphor Bronze Gold Vertical
09-9649-1-088
09-9649-1-088
09-9649-1-088
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Bright Tin-Lead Vertical
09-9657-1-063
09-9657-1-063
09-9657-1-063
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9036-1-088
09-9036-1-088
09-9036-1-088
0.030 - 0.032 0.182 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Bright Tin-Lead Vertical
09-9064-1-03
09-9064-1-03
09-9064-1-03
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.047 Brass Gold Horizontal
09-9637-1-088
09-9637-1-088
09-9637-1-088
0.065 - 0.082 0.357 " 0.400" - Solder - 1/32 - 5/16 0.125 Brass Bright Tin-Lead Vertical

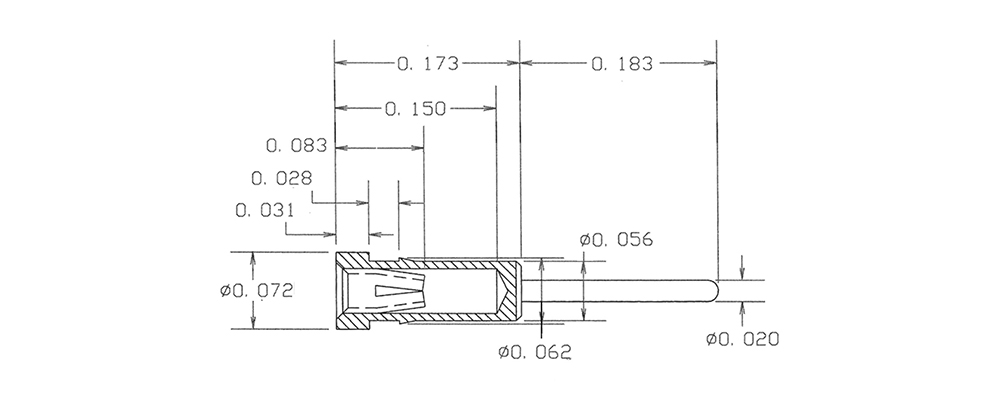

09-9697-1-063
09-9697-1-063
09-9697-1-063
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Bright Tin-Lead Vertical
09-9697-1-04
09-9697-1-04
09-9697-1-04
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Electro-Tin Vertical
09-9697-1-035
09-9697-1-035
09-9697-1-035
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Gold Vertical
09-9624-1-088
09-9624-1-088
09-9624-1-088
0.015 - 0.025 0.142 " 0.161" - Solder - 1/32 - 3/32 0.059 Brass Bright Tin-Lead Vertical
09-9734-1-088
09-9734-1-088
09-9734-1-088
0.032 - 0.046 0.250 " 0.288" - Solder - 1/32 - 3/32 0.125 Brass Bright Tin-Lead Vertical
09-9624-1-04
09-9624-1-04
09-9624-1-04
0.015 - 0.025 0.142 " 0.161" - Solder - 1/32 - 3/32 0.059 Brass Electro-Tin Vertical
09-9611-1-063
09-9611-1-063
09-9611-1-063
0.015 - 0.025 0.150 " 0.474" Jack/Pin Press Fit/Solder - 1/16 - 1/4 0.059 Brass Bright Tin-Lead Vertical
09-9611-1-03
09-9611-1-03
09-9611-1-03
0.015 - 0.025 0.150 " 0.474" Jack/Pin Press Fit/Solder - 1/16 - 1/4 0.059 Brass Gold Vertical
09-9620-3-06
09-9620-3-06
09-9620-3-06
0.032 - 0.046 0.200 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Electro-Tin Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
