Non-Insulated
PC Jacks

Filter
09-9016-4-04
09-9016-4-04
09-9016-4-04
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Electro-Tin Vertical
09-9016-4-06
09-9016-4-06
09-9016-4-06
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Electro-Tin Vertical
09-9657-1-04
09-9657-1-04
09-9657-1-04
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Electro-Tin Vertical
09-9688-1-088
09-9688-1-088
09-9688-1-088
0.025 - 0.037 0.228 " 0.675" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Bright Tin-Lead Vertical
09-9016-4-088
09-9016-4-088
09-9016-4-088
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Bright Tin-Lead Vertical
09-9688-1-03
09-9688-1-03
09-9688-1-03
0.025 - 0.037 0.228 " 0.675" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Gold Vertical
09-9687-1-06
09-9687-1-06
09-9687-1-06
0.025 - 0.037 0.228 " 0.486" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Electro-Tin Vertical
09-9094-1-06
09-9094-1-06
09-9094-1-06
0.080 0.325 " 0.537" Jack/Pin Solder - 1/32 - 3/32 0.062 Brass Electro-Tin Horizontal
09-9016-2-06
09-9016-2-06
09-9016-2-06
0.025 0.144 " 0.387" Jack/Pin Swage Mount 0.082" 1/16 0.062 Brass Electro-Tin Vertical
09-9016-2-088
09-9016-2-088
09-9016-2-088
0.025 0.144 " 0.387" Jack/Pin Swage Mount 0.082" 1/16 0.062 Brass Bright Tin-Lead Vertical
09-9016-2-04
09-9016-2-04
09-9016-2-04
0.025 0.144 " 0.387" Jack/Pin Swage Mount 0.082" 1/16 0.062 Brass Electro-Tin Vertical
09-9657-1-088
09-9657-1-088
09-9657-1-088
0.065 - 0.082 0.195 " 0.223" - Press Fit/Solder - 1/16 - 5/32 0.142 Brass Bright Tin-Lead Vertical
09-9629-1-088
09-9629-1-088
09-9629-1-088
0.025 - 0.037 0.250 " 0.700" Jack/Pin Solder - 1/32 - 9/16 0.044 Brass Bright Tin-Lead Vertical

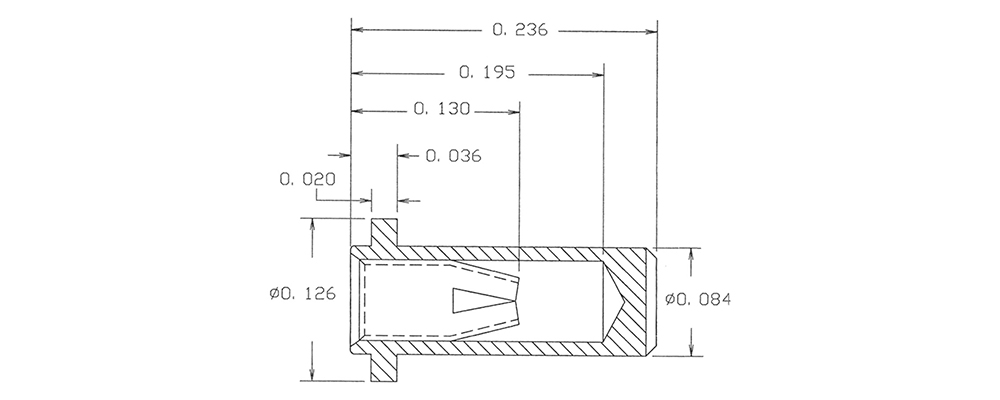

09-9618-1-04
09-9618-1-04
09-9618-1-04
0.032 - 0.046 0.195 " 0.236" - Solder - 1/16 - 5/32 0.089 Brass Electro-Tin Vertical
09-9649-1-03
09-9649-1-03
09-9649-1-03
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Gold Vertical
09-9649-1-035
09-9649-1-035
09-9649-1-035
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Gold Vertical
09-6019-1-063
09-6019-1-063
09-6019-1-063
0.015 - 0.025 0.140 " 0.553" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Bright Tin-Lead Vertical
09-9649-1-06
09-9649-1-06
09-9649-1-06
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Electro-Tin Vertical
09-9629-1-04
09-9629-1-04
09-9629-1-04
0.025 - 0.037 0.250 " 0.700" Jack/Pin Solder - 1/32 - 9/16 0.044 Brass Electro-Tin Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
