Non-Insulated
PC Jacks

Filter
09-9096-1-088
09-9096-1-088
09-9096-1-088
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Bright Tin-Lead Vertical
09-9067-2-06
09-9067-2-06
09-9067-2-06
0.060 - 0.062 0.204 " 0.444" Jack/Turret Swage Mount 0.089" 1/16 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9610-1-088
09-9610-1-088
09-9610-1-088
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-9676-1-088
09-9676-1-088
09-9676-1-088
0.015 - 0.025 0.106 " 0.126" - Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9079-1-035
09-9079-1-035
09-9079-1-035
0.040 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Gold Vertical
09-9230-4-035
09-9230-4-035
09-9230-4-035
0.040 0.185 " 0.340" - Swage Mount 0.147" 1/8 0.076 Brass Gold Vertical
09-9728-1-035
09-9728-1-035
09-9728-1-035
0.032 - 0.046 0.137 " 0.206" - Solder - 1/32 - 5/32 0.076 Brass Gold Vertical
09-9096-1-035
09-9096-1-035
09-9096-1-035
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical
09-9282-1-088
09-9282-1-088
09-9282-1-088
0.040 0.210 " 0.740" Jack/Threaded 4-40 Nut 0.450" 13/64 - 1/4 0.120 Brass Bright Tin-Lead Vertical
09-9667-1-04
09-9667-1-04
09-9667-1-04
0.015 - 0.025 0.100 " 0.125" - Solder - 1/32 - 1/16 0.0635 Brass Electro-Tin Vertical
09-9667-1-06
09-9667-1-06
09-9667-1-06
0.015 - 0.025 0.100 " 0.125" - Solder - 1/32 - 1/16 0.0635 Brass Electro-Tin Vertical
09-9100-1-063
09-9100-1-063
09-9100-1-063
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Bright Tin-Lead Vertical

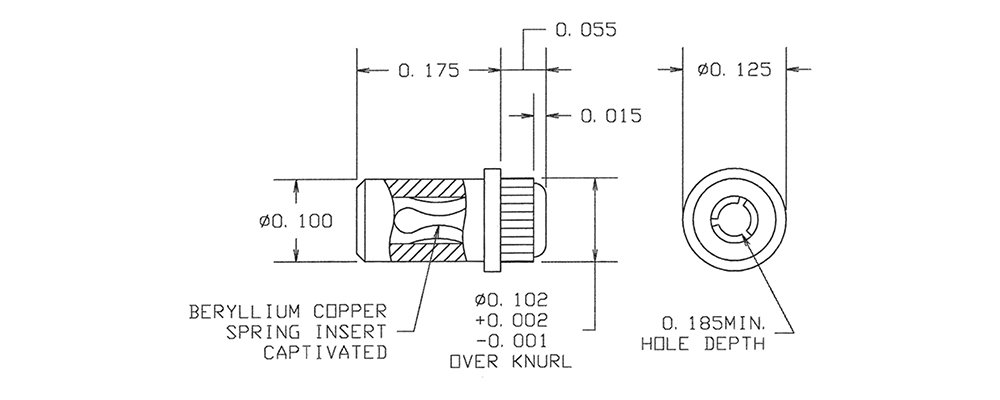

09-9078-1-088
09-9078-1-088
09-9078-1-088
0.040 0.185 " 0.230" - Press Fit/Solder - 1/32 - 1/16 0.0995 (+0.001/-0.003) Brass Bright Tin-Lead Vertical
09-9628-3-03
09-9628-3-03
09-9628-3-03
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Gold Vertical
09-9293-1-03
09-9293-1-03
09-9293-1-03
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical
09-9672-1-088
09-9672-1-088
09-9672-1-088
0.015 - 0.025 0.173 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-9672-1-04
09-9672-1-04
09-9672-1-04
0.015 - 0.025 0.173 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Electro-Tin Vertical
09-9049-1-04
09-9049-1-04
09-9049-1-04
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9672-1-035
09-9672-1-035
09-9672-1-035
0.015 - 0.025 0.173 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
