Non-Insulated
PC Jacks

Filter

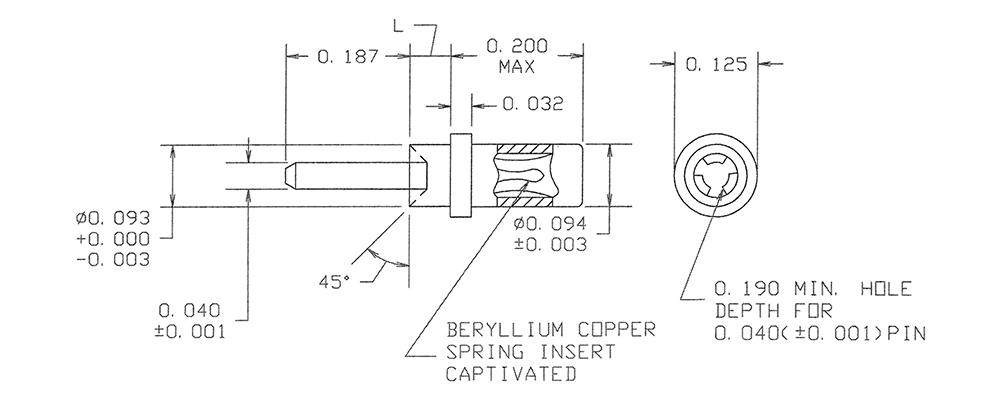

09-9005-1-088
09-9005-1-088
09-9005-1-088
0.040 0.190 " 0.449" Jack/Pin Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

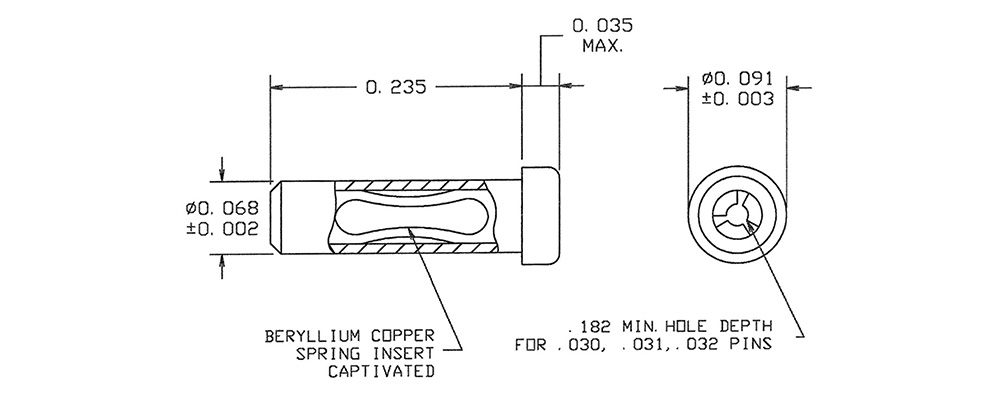

09-9036-1-06
09-9036-1-06
09-9036-1-06
0.030 - 0.032 0.182 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Electro-Tin Vertical

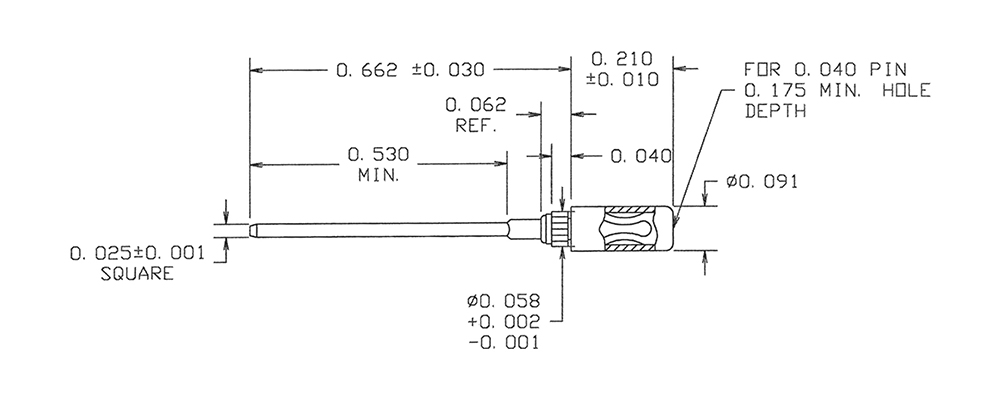

09-9077-1-035
09-9077-1-035
09-9077-1-035
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Gold Vertical

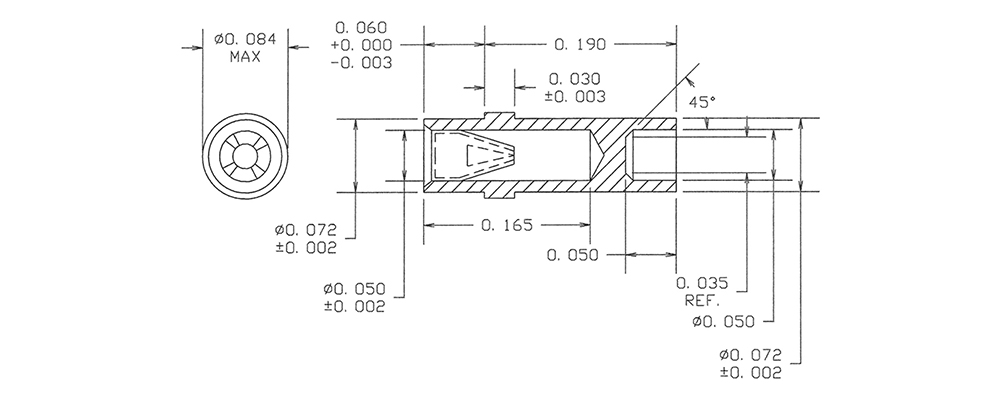

09-9273-1-0355
09-9273-1-0355
09-9273-1-0355
0.030 0.165 " 0.250" - Solder - 1/32 - 1/8 0.076 Brass Gold Vertical

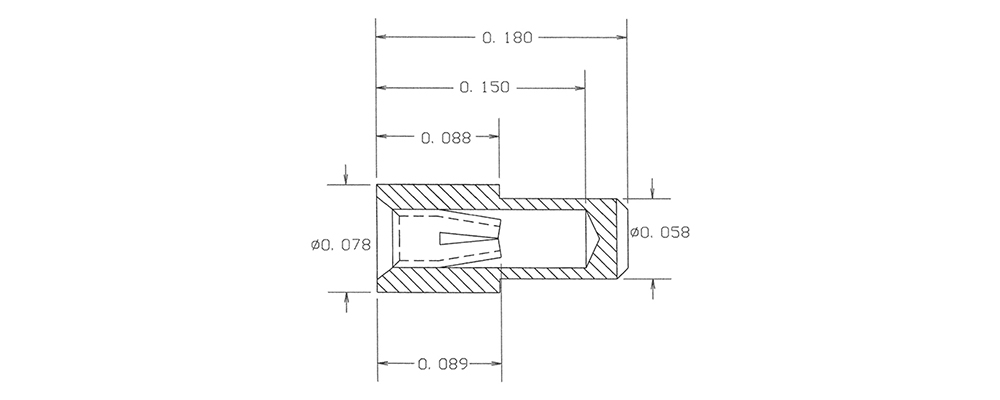

09-9615-1-088
09-9615-1-088
09-9615-1-088
0.015 - 0.025 0.150 " 0.180" - Solder - 1/32 - 1/16 0.0635 Brass Bright Tin-Lead Vertical

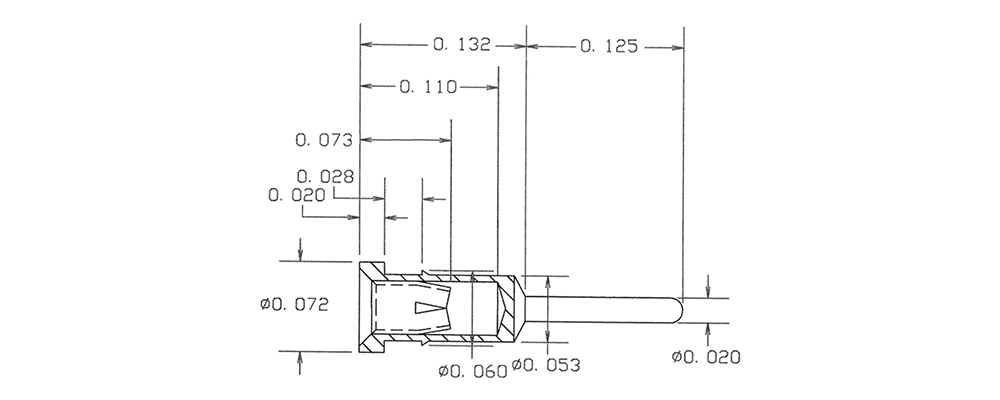

09-9652-1-06
09-9652-1-06
09-9652-1-06
0.015 - 0.022 0.110 " 0.257" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Electro-Tin Vertical

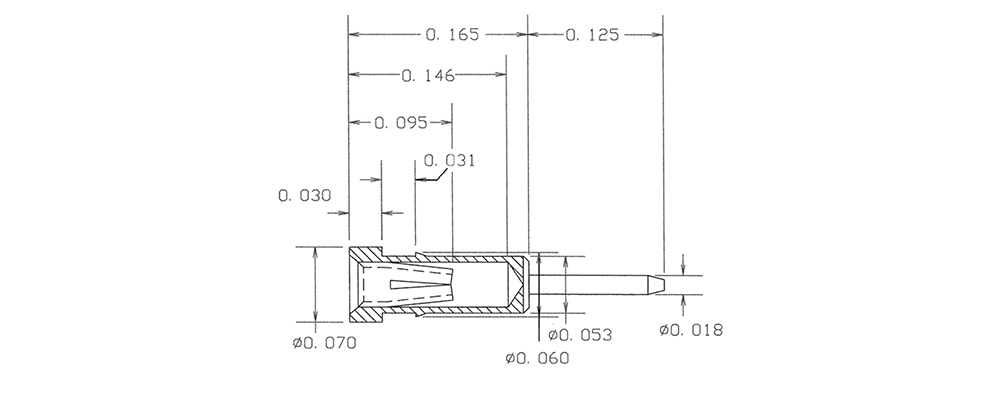

09-9694-1-035
09-9694-1-035
09-9694-1-035
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Phosphor Bronze Gold Vertical
09-9005-2-03
09-9005-2-03
09-9005-2-03
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9036-1-063
09-9036-1-063
09-9036-1-063
0.030 - 0.032 0.182 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Bright Tin-Lead Vertical
09-9077-1-04
09-9077-1-04
09-9077-1-04
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Electro-Tin Vertical
09-9273-1-04
09-9273-1-04
09-9273-1-04
0.030 0.165 " 0.250" - Solder - 1/32 - 1/8 0.076 Brass Electro-Tin Vertical
09-9617-1-03
09-9617-1-03
09-9617-1-03
0.022 - 0.034 0.140 " 0.210" - Press Fit/Solder - 1/16 - 5/32 0.078 Brass Gold Vertical
09-9652-1-063
09-9652-1-063
09-9652-1-063
0.015 - 0.022 0.110 " 0.257" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9694-1-04
09-9694-1-04
09-9694-1-04
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Phosphor Bronze Electro-Tin Vertical
09-9005-2-035
09-9005-2-035
09-9005-2-035
0.040 0.190 " 0.481" Jack/Pin Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9036-1-088
09-9036-1-088
09-9036-1-088
0.030 - 0.032 0.182 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Bright Tin-Lead Vertical
09-9077-1-06
09-9077-1-06
09-9077-1-06
0.040 0.175 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Electro-Tin Vertical
09-9273-1-06
09-9273-1-06
09-9273-1-06
0.030 0.165 " 0.250" - Solder - 1/32 - 1/8 0.076 Brass Electro-Tin Vertical
09-9617-1-035
09-9617-1-035
09-9617-1-035
0.022 - 0.034 0.140 " 0.210" - Press Fit/Solder - 1/16 - 5/32 0.078 Brass Gold Vertical
09-9652-1-088
09-9652-1-088
09-9652-1-088
0.015 - 0.022 0.110 " 0.257" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
