Non-Insulated
PC Jacks

Filter
09-9035-2-063
09-9035-2-063
09-9035-2-063
0.040 0.175 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin-Lead Vertical

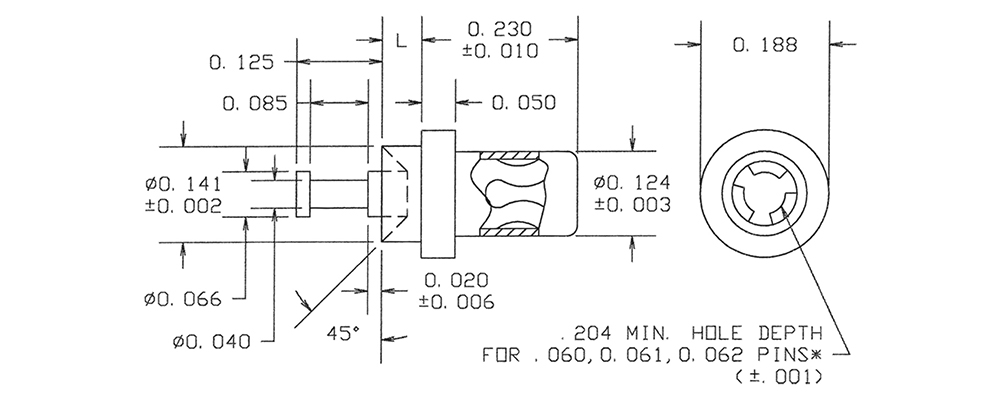

09-9067-6-04
09-9067-6-04
09-9067-6-04
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical

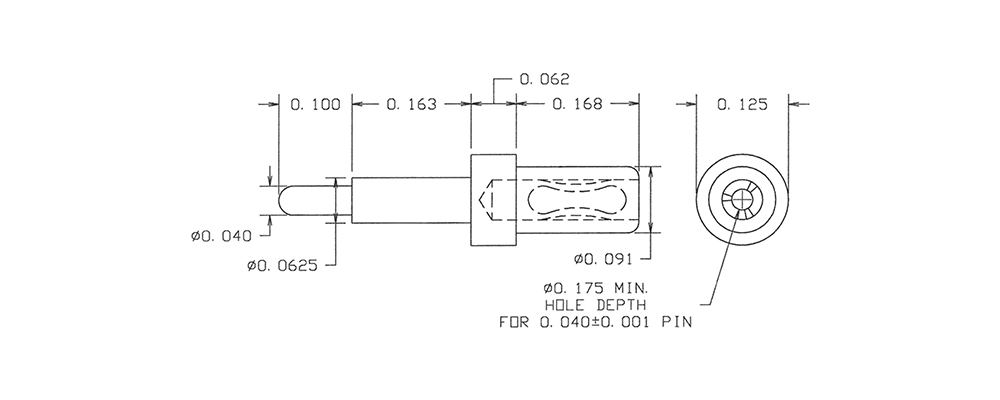

09-9264-1-06
09-9264-1-06
09-9264-1-06
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Electro-Tin Vertical

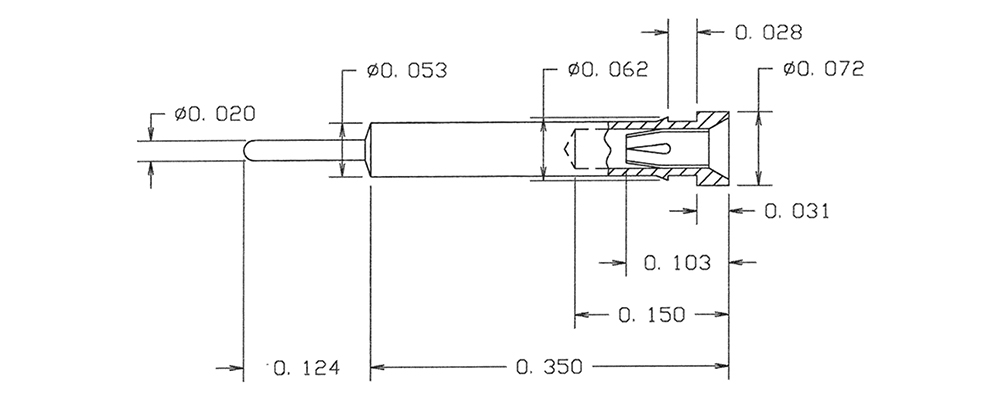

09-9611-1-03
09-9611-1-03
09-9611-1-03
0.015 - 0.025 0.150 " 0.474" Jack/Pin Press Fit/Solder - 1/16 - 1/4 0.059 Brass Gold Vertical

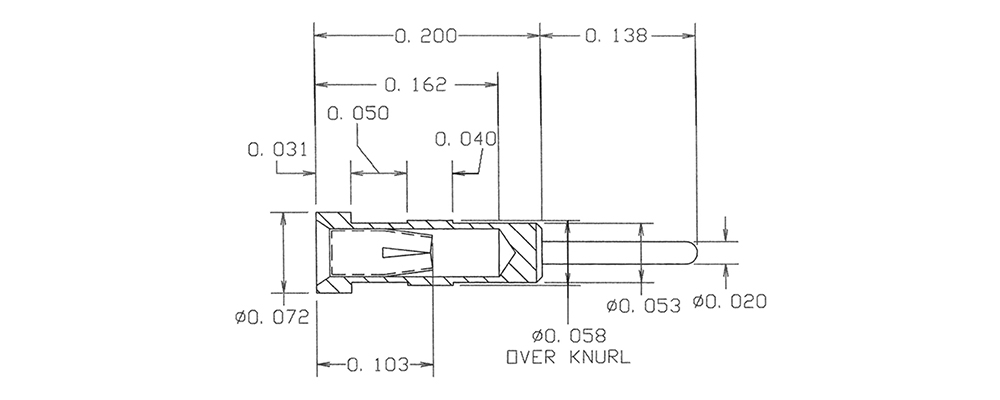

09-9648-1-063
09-9648-1-063
09-9648-1-063
0.015 - 0.025 0.162 " 0.338" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.056 Brass Bright Tin-Lead Vertical

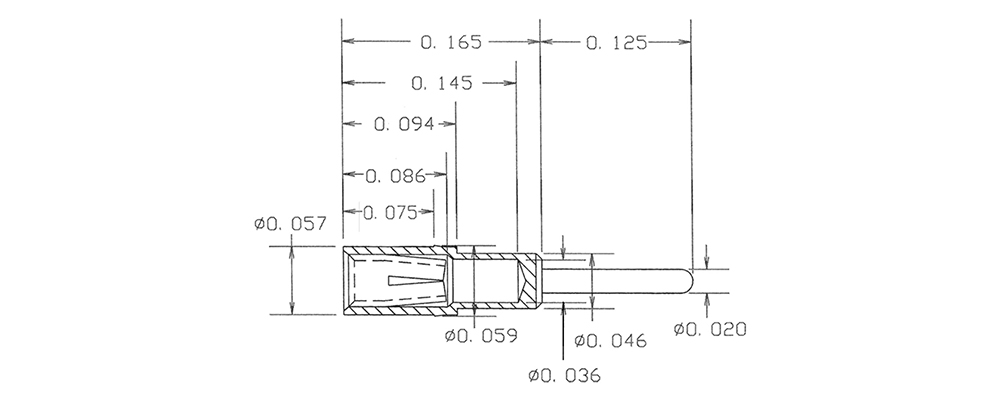

09-9690-1-04
09-9690-1-04
09-9690-1-04
0.015 - 0.025 0.145 " 0.290" Jack/Pin Press Fit/Solder - 3/32 - 1/8 0.057 Brass Electro-Tin Vertical

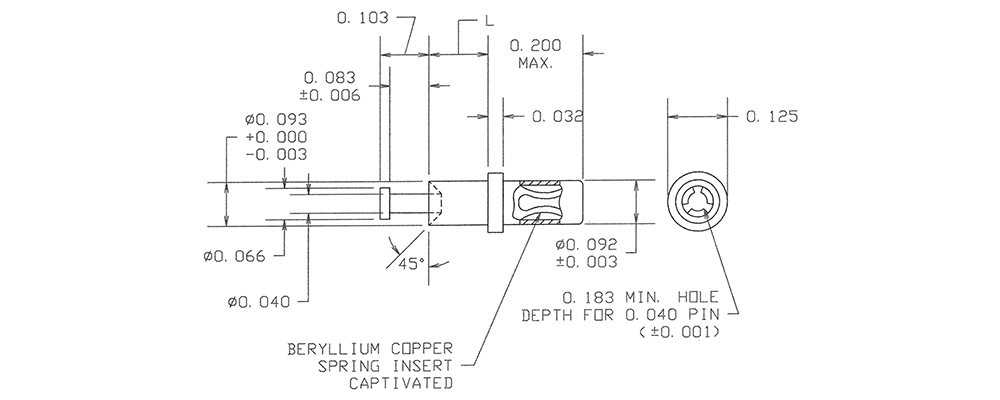

09-9004-3-035
09-9004-3-035
09-9004-3-035
0.040 0.183 " 0.428" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9035-2-088
09-9035-2-088
09-9035-2-088
0.040 0.175 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin-Lead Vertical
09-9067-6-06
09-9067-6-06
09-9067-6-06
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9264-1-063
09-9264-1-063
09-9264-1-063
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Bright Tin-Lead Vertical
09-9611-1-035
09-9611-1-035
09-9611-1-035
0.015 - 0.025 0.150 " 0.474" Jack/Pin Press Fit/Solder - 1/16 - 1/4 0.059 Brass Gold Vertical
09-9648-1-088
09-9648-1-088
09-9648-1-088
0.015 - 0.025 0.162 " 0.338" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.056 Brass Bright Tin-Lead Vertical
09-9690-1-06
09-9690-1-06
09-9690-1-06
0.015 - 0.025 0.145 " 0.290" Jack/Pin Press Fit/Solder - 3/32 - 1/8 0.057 Brass Electro-Tin Vertical
09-9004-3-04
09-9004-3-04
09-9004-3-04
0.040 0.183 " 0.428" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9035-3-03
09-9035-3-03
09-9035-3-03
0.040 0.175 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Gold Vertical
09-9067-6-063
09-9067-6-063
09-9067-6-063
0.060 - 0.062 0.204 " 0.569" Jack/Turret Swage Mount 0.214" 3/16 0.144 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9264-1-088
09-9264-1-088
09-9264-1-088
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Bright Tin-Lead Vertical
09-9611-1-04
09-9611-1-04
09-9611-1-04
0.015 - 0.025 0.150 " 0.474" Jack/Pin Press Fit/Solder - 1/16 - 1/4 0.059 Brass Electro-Tin Vertical
09-9649-1-03
09-9649-1-03
09-9649-1-03
0.015 - 0.021 0.150 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.043 Brass Gold Vertical
09-9690-1-063
09-9690-1-063
09-9690-1-063
0.015 - 0.025 0.145 " 0.290" Jack/Pin Press Fit/Solder - 3/32 - 1/8 0.057 Brass Bright Tin-Lead Vertical
