Non-Insulated
PC Jacks

Filter

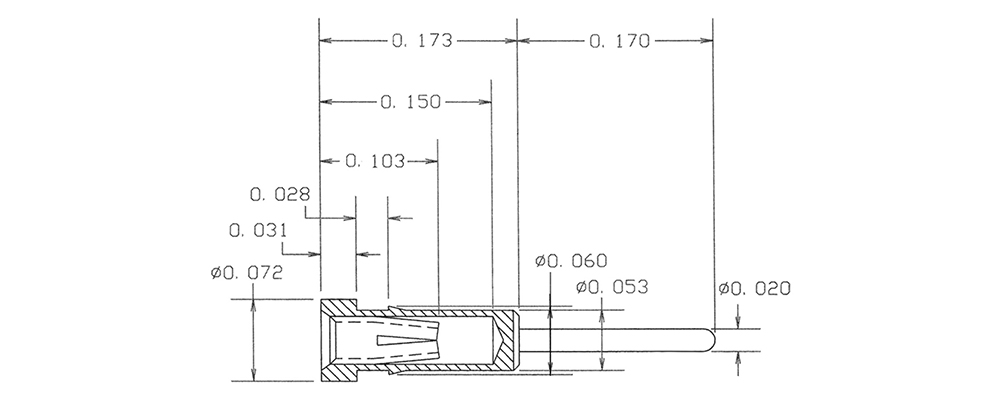

09-9609-1-06
09-9609-1-06
09-9609-1-06
0.015 - 0.025 0.150 " 0.343" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Electro-Tin Vertical

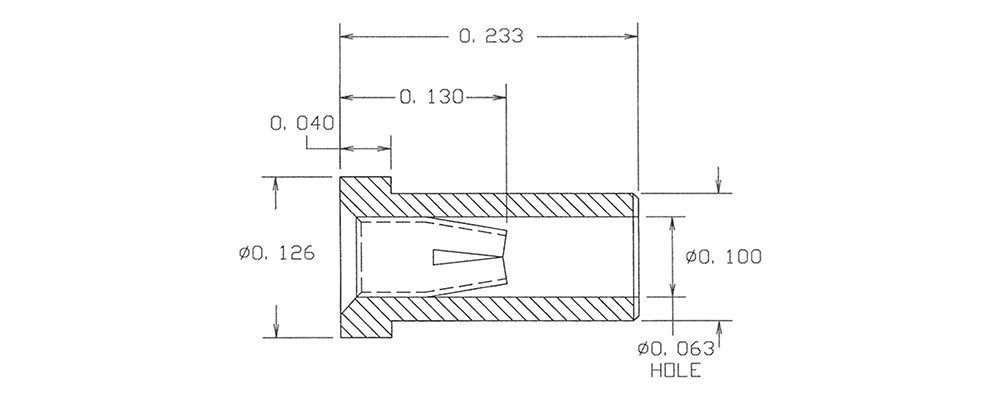

09-9647-1-035
09-9647-1-035
09-9647-1-035
0.032 - 0.046 0.155 " 0.233" - Solder - 1/32 - 5/32 0.104 Brass Gold Vertical

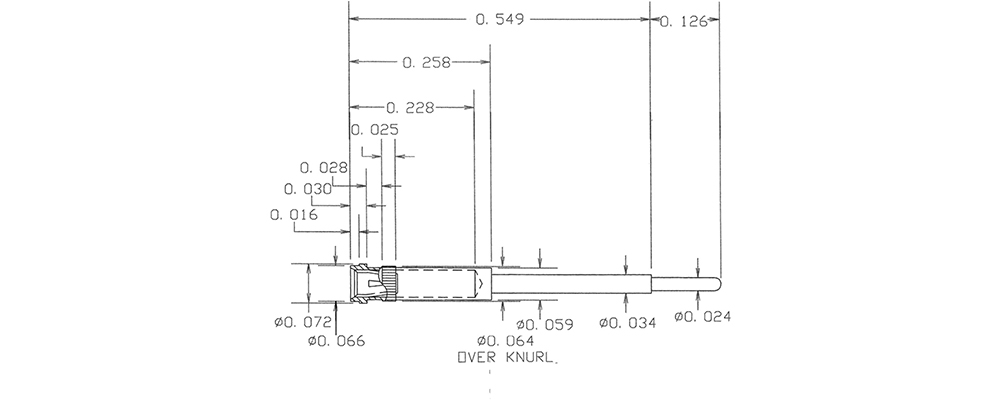

09-9688-1-088
09-9688-1-088
09-9688-1-088
0.025 - 0.037 0.228 " 0.675" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Bright Tin-Lead Vertical

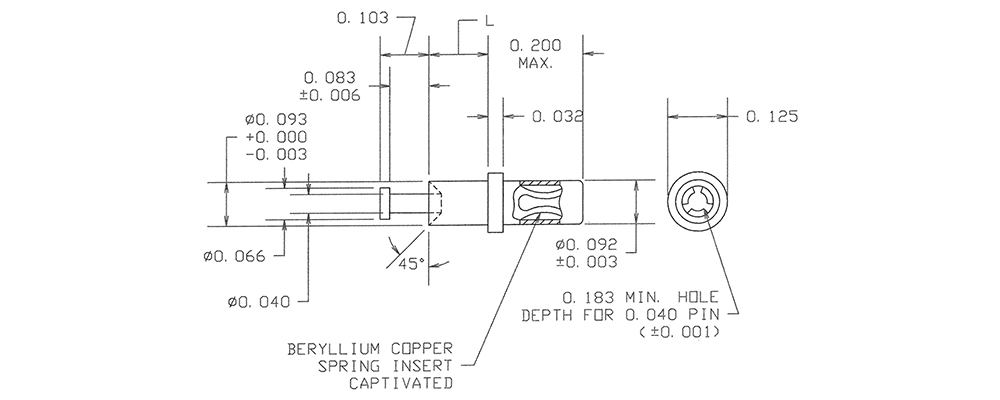

09-9004-1-063
09-9004-1-063
09-9004-1-063
0.040 0.183 " 0.365" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

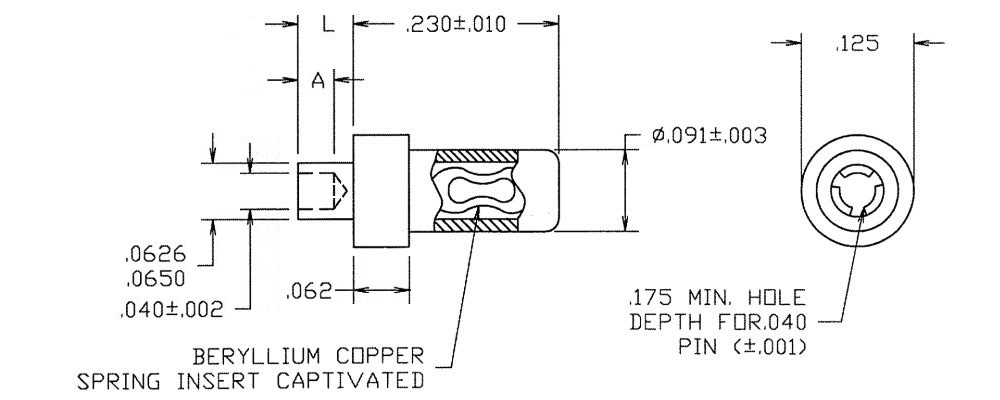

09-9035-1-04
09-9035-1-04
09-9035-1-04
0.040 0.175 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Electro-Tin Vertical

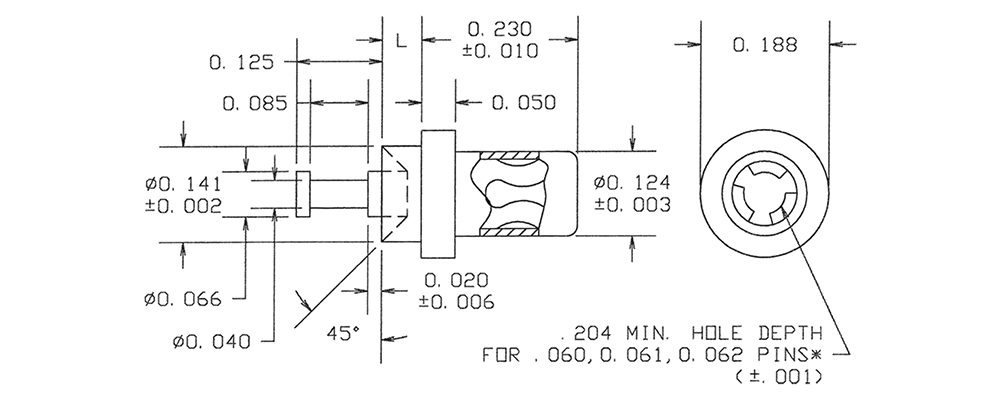

09-9067-4-03
09-9067-4-03
09-9067-4-03
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Gold Vertical

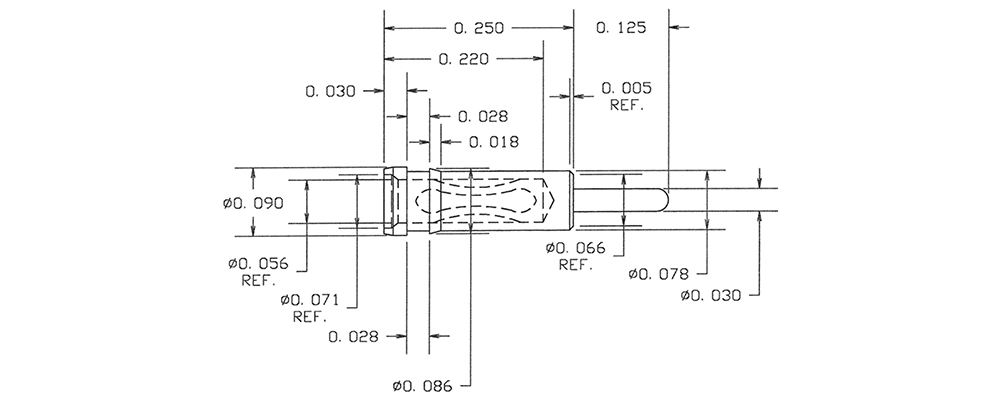

09-9262-1-035
09-9262-1-035
09-9262-1-035
0.040 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.083 Brass Gold Vertical
09-9609-1-063
09-9609-1-063
09-9609-1-063
0.015 - 0.025 0.150 " 0.343" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-9647-1-04
09-9647-1-04
09-9647-1-04
0.032 - 0.046 0.155 " 0.233" - Solder - 1/32 - 5/32 0.104 Brass Electro-Tin Vertical

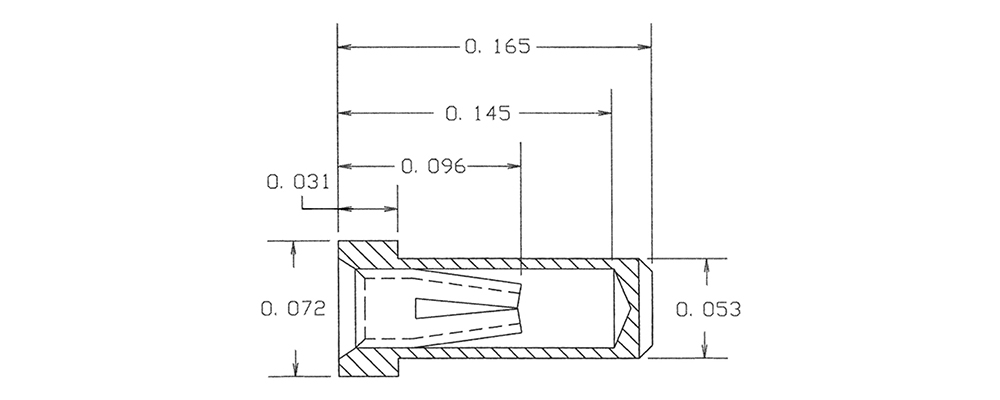

09-9689-1-03
09-9689-1-03
09-9689-1-03
0.015 - 0.025 0.145 " 0.165" - Solder - 1/32 - 3/32 0.056 Brass Gold Vertical
09-9004-1-088
09-9004-1-088
09-9004-1-088
0.040 0.183 " 0.365" Jack/Turret Swage Mount 0.062" 1/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9035-1-06
09-9035-1-06
09-9035-1-06
0.040 0.175 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Electro-Tin Vertical
09-9067-4-035
09-9067-4-035
09-9067-4-035
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Gold Vertical
09-9262-1-04
09-9262-1-04
09-9262-1-04
0.040 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.083 Brass Electro-Tin Vertical
09-9609-1-088
09-9609-1-088
09-9609-1-088
0.015 - 0.025 0.150 " 0.343" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-9647-1-06
09-9647-1-06
09-9647-1-06
0.032 - 0.046 0.155 " 0.233" - Solder - 1/32 - 5/32 0.104 Brass Electro-Tin Vertical
09-9689-1-035
09-9689-1-035
09-9689-1-035
0.015 - 0.025 0.145 " 0.165" - Solder - 1/32 - 3/32 0.056 Brass Gold Vertical
09-9004-2-03
09-9004-2-03
09-9004-2-03
0.040 0.183 " 0.397" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9035-1-063
09-9035-1-063
09-9035-1-063
0.040 0.175 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9067-4-04
09-9067-4-04
09-9067-4-04
0.060 - 0.062 0.204 " 0.506" Jack/Turret Swage Mount 0.151" 1/8 0.144 (+0.002/-0.001) Brass Electro-Tin Vertical
