Non-Insulated
PC Jacks

Filter

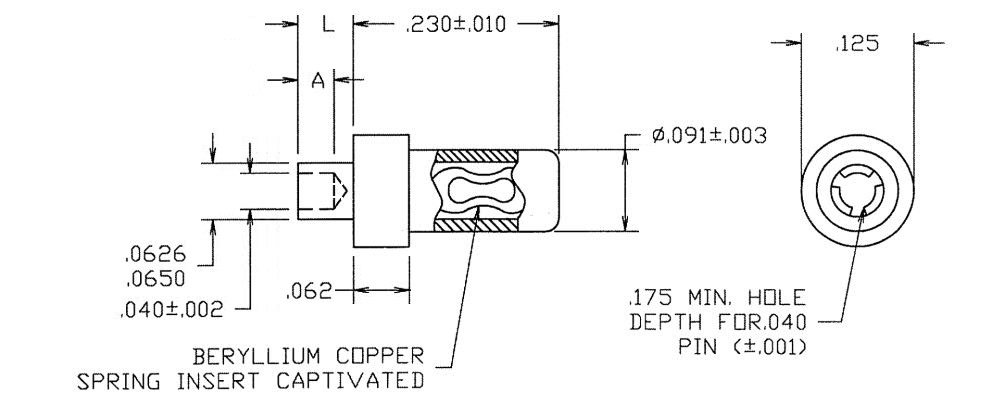

09-9035-2A-035
09-9035-2A-035
09-9035-2A-035
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Gold Vertical
09-9035-3-03
09-9035-3-03
09-9035-3-03
0.040 0.175 " 0.355" - Swage Mount 0.125" 3/32 0.067 Brass Gold Vertical
09-9642-1-088
09-9642-1-088
09-9642-1-088
0.065 - 0.082 0.375 " 0.605" Jack/Turret Swage Mount 0.062" 1/32 0.096 Brass Bright Tin-Lead Vertical
09-9620-4-063
09-9620-4-063
09-9620-4-063
0.032 - 0.046 0.200 " 0.386" - Swage Mount 0.156" 1/8 0.067 Brass Bright Tin-Lead Vertical
09-9620-2-03
09-9620-2-03
09-9620-2-03
0.032 - 0.046 0.200 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Gold Vertical
09-9035-2-06
09-9035-2-06
09-9035-2-06
0.040 0.175 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Electro-Tin Vertical
09-9035-2-035
09-9035-2-035
09-9035-2-035
0.040 0.175 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Gold Vertical
09-9035-2A-06
09-9035-2A-06
09-9035-2A-06
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Electro-Tin Vertical
09-9035-2A-088
09-9035-2A-088
09-9035-2A-088
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Bright Tin-Lead Vertical
09-9035-4-06
09-9035-4-06
09-9035-4-06
0.040 0.175 " 0.386" - Swage Mount 0.156" 1/8 0.067 Brass Electro-Tin Vertical
09-9020-4-088
09-9020-4-088
09-9020-4-088
0.025 0.141 " 0.356" - Swage Mount 0.156" 1/8 0.062 Brass Bright Tin-Lead Vertical
09-9020-3-063
09-9020-3-063
09-9020-3-063
0.025 0.141 " 0.325" - Swage Mount 0.125" 3/32 0.062 Brass Bright Tin-Lead Vertical
09-9020-3-035
09-9020-3-035
09-9020-3-035
0.025 0.141 " 0.325" - Swage Mount 0.125" 3/32 0.062 Brass Gold Vertical
09-9020-2-04
09-9020-2-04
09-9020-2-04
0.025 0.141 " 0.294" - Swage Mount 0.094" 1/16 0.062 Brass Electro-Tin Vertical
09-9020-3-088
09-9020-3-088
09-9020-3-088
0.025 0.141 " 0.325" - Swage Mount 0.125" 3/32 0.062 Brass Bright Tin-Lead Vertical
09-9620-2-06
09-9620-2-06
09-9620-2-06
0.032 - 0.046 0.200 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Electro-Tin Vertical
09-9620-1-04
09-9620-1-04
09-9620-1-04
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Electro-Tin Vertical
09-9620-1-06
09-9620-1-06
09-9620-1-06
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Electro-Tin Vertical
09-9620-1-088
09-9620-1-088
09-9620-1-088
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
