Non-Insulated
PC Jacks

Filter
09-9698-1-04
09-9698-1-04
09-9698-1-04
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9725-2-063
09-9725-2-063
09-9725-2-063
0.025 0.141 " 0.294" - Swage Mount 0.094" 1/16 0.058 Brass Bright Tin-Lead Vertical
09-9051-1-035
09-9051-1-035
09-9051-1-035
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.041" 1/32 0.076 Brass Gold Vertical
09-9051-1-06
09-9051-1-06
09-9051-1-06
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.041" 1/32 0.076 Brass Electro-Tin Vertical
09-9623-1-06
09-9623-1-06
09-9623-1-06
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Electro-Tin Vertical
09-9285-5-03
09-9285-5-03
09-9285-5-03
0.040 0.200 " 0.415" - Swage Mount 0.187" 5/32 0.067 Brass Gold Vertical
09-9014-1-063
09-9014-1-063
09-9014-1-063
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Bright Tin-Lead Vertical
09-9630-1-035
09-9630-1-035
09-9630-1-035
0.015 - 0.025 0.133 " 0.200" - Solder - 1/32 - 1/8 0.076 Brass Gold Vertical
09-9620-1-035
09-9620-1-035
09-9620-1-035
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Gold Vertical
09-9729-1-04
09-9729-1-04
09-9729-1-04
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Electro-Tin Vertical
09-9732-1-04
09-9732-1-04
09-9732-1-04
0.032 - 0.046 0.166 " 0.250" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical
09-9687-1-035
09-9687-1-035
09-9687-1-035
0.025 - 0.037 0.228 " 0.486" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Gold Vertical

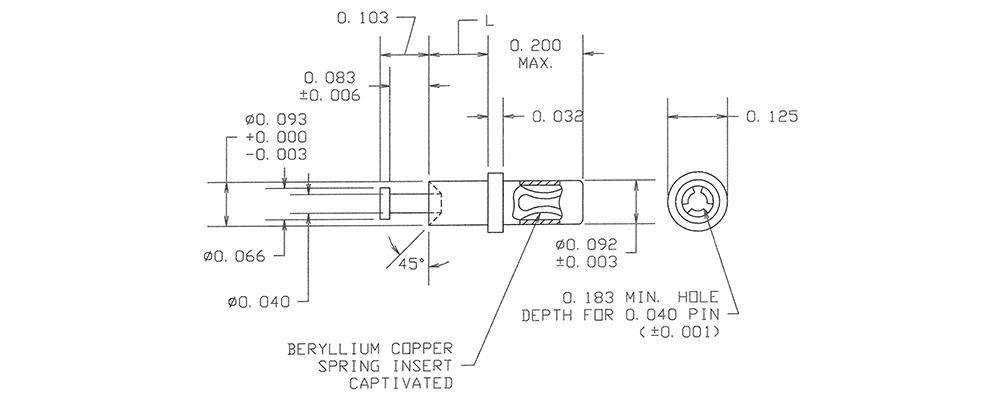

09-9004-6-063
09-9004-6-063
09-9004-6-063
0.040 0.183 " 0.522" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9037-4-088
09-9037-4-088
09-9037-4-088
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9604-2-088
09-9604-2-088
09-9604-2-088
0.032 - 0.046 0.200 " 0.392" Jack/Turret Swage Mount 0.094" 1/16 0.094 Brass Bright Tin-Lead Vertical
09-9605-3-04
09-9605-3-04
09-9605-3-04
0.032 - 0.046 0.195 " 0.508" Jack/Pin Swage Mount 0.125" 3/32 0.094 Brass Electro-Tin Vertical
09-9035-2-03
09-9035-2-03
09-9035-2-03
0.040 0.175 " 0.324" - Swage Mount 0.094" 1/16 0.067 Brass Gold Vertical
09-9647-1-088
09-9647-1-088
09-9647-1-088
0.032 - 0.046 0.155 " 0.233" - Solder - 1/32 - 5/32 0.104 Brass Bright Tin-Lead Vertical
09-9632-1-035
09-9632-1-035
09-9632-1-035
0.032 - 0.046 0.190 " 0.250" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
