Non-Insulated
PC Jacks

Filter
09-9661-1-088
09-9661-1-088
09-9661-1-088
0.015 - 0.025 0.120 " 0.180" - Solder - 1/32 - 1/16 0.0635 Brass Bright Tin-Lead Vertical
09-9641-1-088
09-9641-1-088
09-9641-1-088
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Bright Tin-Lead Vertical
09-9641-1-04
09-9641-1-04
09-9641-1-04
0.022 - 0.034 0.220 " 0.700" Jack/Pin Press Fit/Solder - 1/16 - 7/16 0.065 Brass Electro-Tin Vertical
09-9640-1-035
09-9640-1-035
09-9640-1-035
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Gold Vertical
09-9623-1-063
09-9623-1-063
09-9623-1-063
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9615-1-088
09-9615-1-088
09-9615-1-088
0.015 - 0.025 0.150 " 0.180" - Solder - 1/32 - 1/16 0.0635 Brass Bright Tin-Lead Vertical

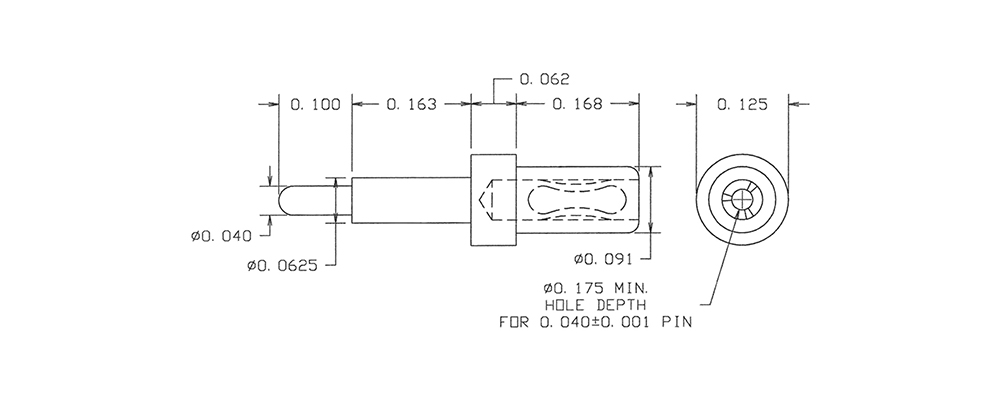

09-9264-1-04
09-9264-1-04
09-9264-1-04
0.040 0.175 " 0.493" Jack/Pin Solder - 1/32 - 3/32 0.066 Brass Electro-Tin Vertical
09-9166-1-088
09-9166-1-088
09-9166-1-088
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Bright Tin-Lead Horizontal
09-9738-1-035
09-9738-1-035
09-9738-1-035
0.032 - 0.046 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.086 Brass Gold Vertical
09-9740-1-03
09-9740-1-03
09-9740-1-03
0.032 - 0.046 0.150 " 0.280" Jack/Pin Solder - 1/32 - 3/32 0.086 Brass Gold Vertical
09-9069-1-063
09-9069-1-063
09-9069-1-063
0.040 0.188 " 0.505" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Bright Tin-Lead Horizontal
09-9730-1-088
09-9730-1-088
09-9730-1-088
0.032 - 0.046 0.200 " 0.240" - Solder - 1/32 - 3/16 0.089 Brass Bright Tin-Lead Vertical
09-9069-1-03
09-9069-1-03
09-9069-1-03
0.040 0.188 " 0.505" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Gold Horizontal
09-9733-1-035
09-9733-1-035
09-9733-1-035
0.032 - 0.046 0.170 " 0.255" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Gold Vertical
09-9260-1-04
09-9260-1-04
09-9260-1-04
0.060 - 0.062 0.142 " 0.213" - Press Fit/Solder - 1/16 - 3/32 0.102 Brass Electro-Tin Vertical
09-9061-1-088
09-9061-1-088
09-9061-1-088
0.050 0.200 " 0.213" - Solder - 1/32 - 5/32 0.102 Brass Bright Tin-Lead Vertical
09-9032-1-03
09-9032-1-03
09-9032-1-03
0.040 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Gold Vertical
09-9193-1-04
09-9193-1-04
09-9193-1-04
0.060 - 0.062 0.200 " 0.213" - Press Fit/Solder - 1/16 - 5/32 0.102 Brass Electro-Tin Vertical
09-9061-1-03
09-9061-1-03
09-9061-1-03
0.050 0.200 " 0.213" - Solder - 1/32 - 5/32 0.102 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
