Non-Insulated
PC Jacks

Filter

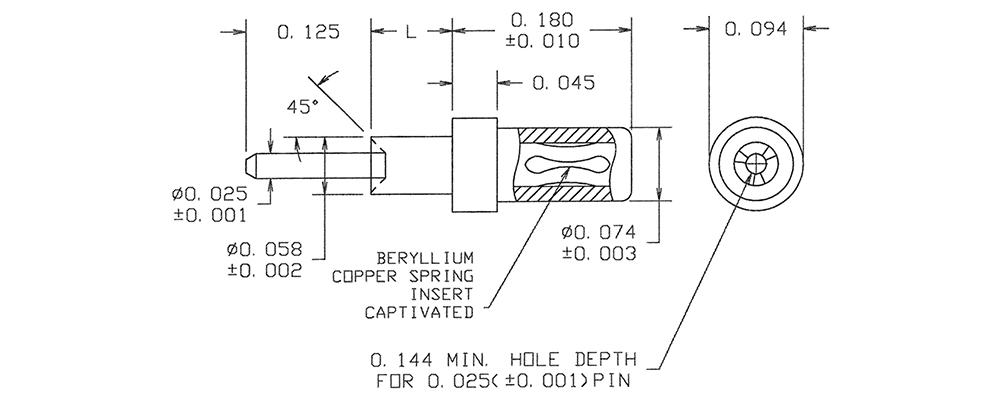

09-9016-4-06
09-9016-4-06
09-9016-4-06
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Electro-Tin Vertical

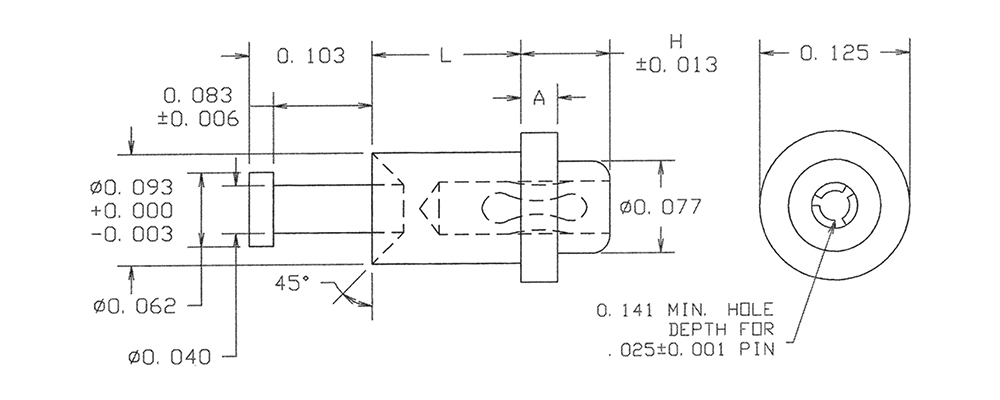

09-9045-4-035
09-9045-4-035
09-9045-4-035
0.025 0.141 " 0.334" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical

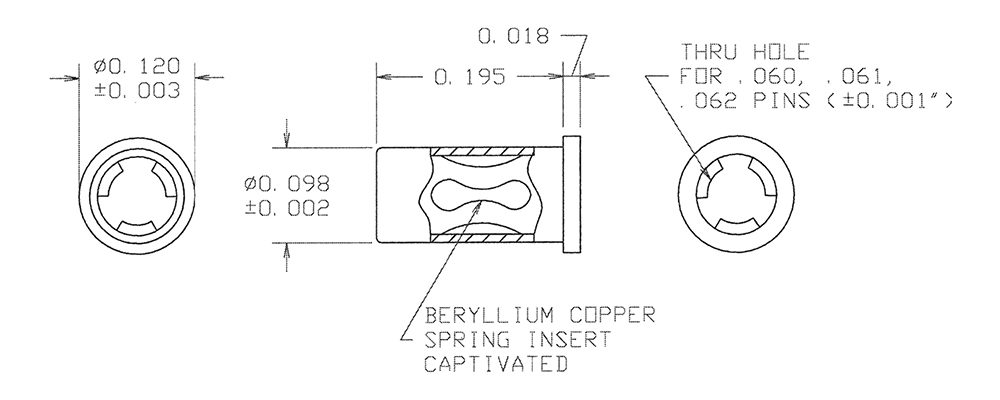

09-9159-1-088
09-9159-1-088
09-9159-1-088
0.060 - 0.062 0.190 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Bright Tin-Lead Vertical

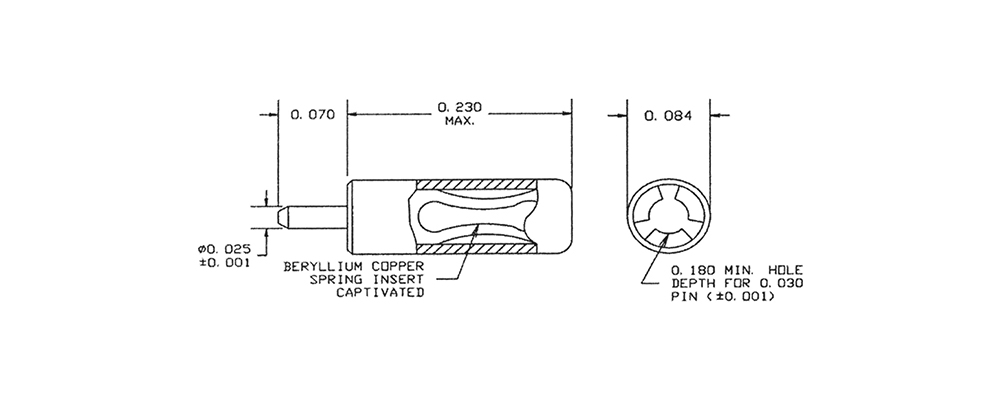

09-9290-1-088
09-9290-1-088
09-9290-1-088
0.030 0.180 " 0.300" Jack/Pin Solder - 1/32 0.028 Brass Bright Tin-Lead Vertical

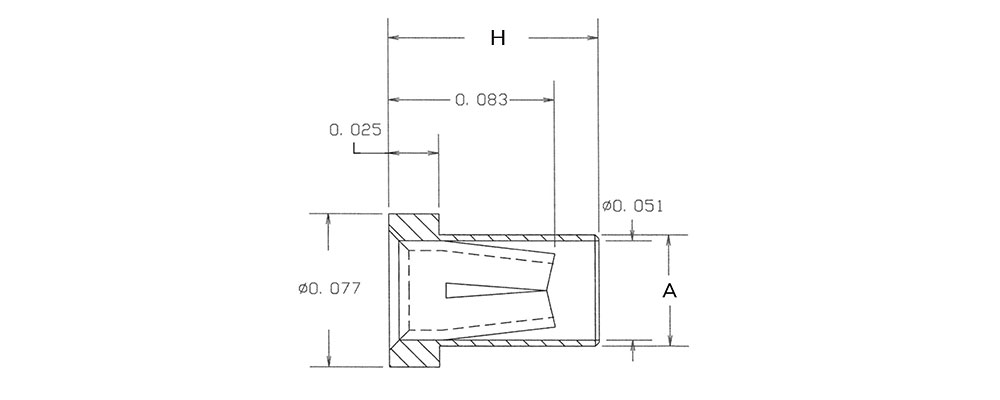

09-9628-2-06
09-9628-2-06
09-9628-2-06
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical

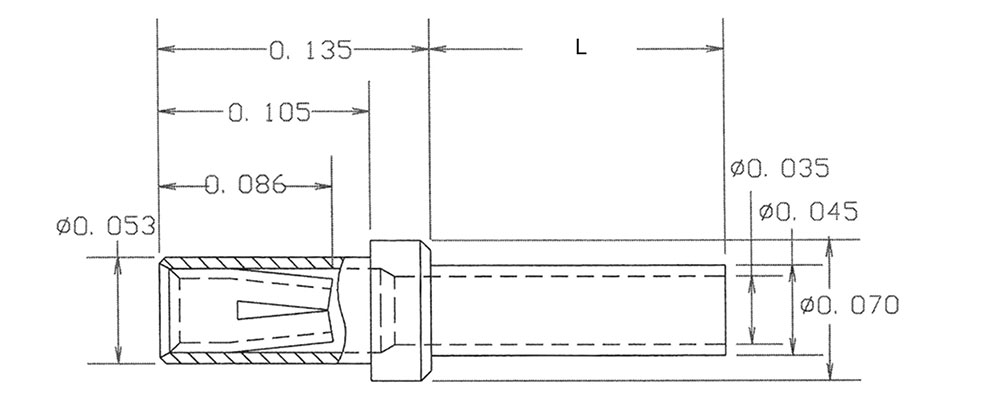

09-9670-1-035
09-9670-1-035
09-9670-1-035
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Gold Vertical

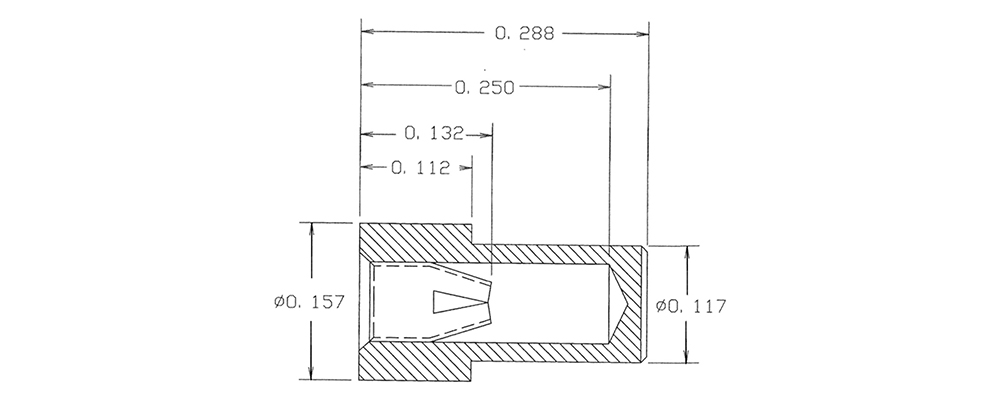

09-9734-1-088
09-9734-1-088
09-9734-1-088
0.032 - 0.046 0.250 " 0.288" - Solder - 1/32 - 3/32 0.125 Brass Bright Tin-Lead Vertical
09-9016-4-063
09-9016-4-063
09-9016-4-063
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Bright Tin-Lead Vertical
09-9045-4-04
09-9045-4-04
09-9045-4-04
0.025 0.141 " 0.334" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

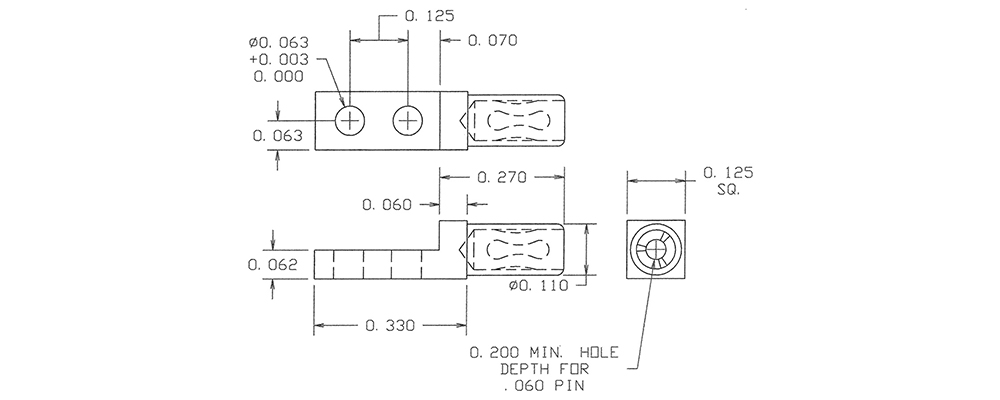

09-9166-1-03
09-9166-1-03
09-9166-1-03
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Gold Horizontal

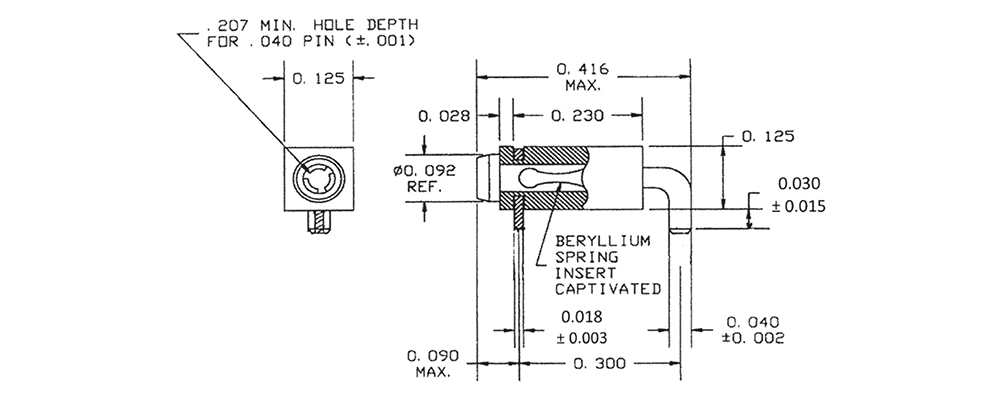

09-9291-1-03
09-9291-1-03
09-9291-1-03
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Gold Horizontal
09-9628-2-063
09-9628-2-063
09-9628-2-063
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9670-1-04
09-9670-1-04
09-9670-1-04
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Electro-Tin Vertical
09-9735-1-03
09-9735-1-03
09-9735-1-03
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Gold Vertical
09-9016-4-088
09-9016-4-088
09-9016-4-088
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Bright Tin-Lead Vertical
09-9045-4-06
09-9045-4-06
09-9045-4-06
0.025 0.141 " 0.334" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9166-1-035
09-9166-1-035
09-9166-1-035
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Gold Horizontal
09-9291-1-035
09-9291-1-035
09-9291-1-035
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Gold Horizontal
09-9628-2-088
09-9628-2-088
09-9628-2-088
0.025 - 0.037 0.070 " 0.105" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9670-1-06
09-9670-1-06
09-9670-1-06
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Electro-Tin Vertical
