Non-Insulated
PC Jacks

Filter
09-9270-1-06
09-9270-1-06
09-9270-1-06
0.040 0.350 " 0.374" - Solder - 1/32 - 5/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9270-1-035
09-9270-1-035
09-9270-1-035
0.040 0.350 " 0.374" - Solder - 1/32 - 5/16 0.076 (+0.002/-0.001) Brass Gold Vertical
09-9727-1-06
09-9727-1-06
09-9727-1-06
0.032 - 0.046 0.241 " 0.270" - Solder - 1/32 - 3/16 0.075 Brass Electro-Tin Vertical
09-9727-1-04
09-9727-1-04
09-9727-1-04
0.032 - 0.046 0.241 " 0.270" - Solder - 1/32 - 3/16 0.075 Brass Electro-Tin Vertical
09-9008-1-035
09-9008-1-035
09-9008-1-035
0.040 0.192 " 0.317" - Solder - 1/32 - 3/32 0.089 Brass Gold Vertical
09-9037-4-03
09-9037-4-03
09-9037-4-03
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9256-1-035
09-9256-1-035
09-9256-1-035
0.030 0.165 " 0.200" - Solder - 1/32 - 1/16 0.076 Brass Gold Vertical
09-9037-4-035
09-9037-4-035
09-9037-4-035
0.030 - 0.032 0.183 " 0.452" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9256-1-03
09-9256-1-03
09-9256-1-03
0.030 0.165 " 0.200" - Solder - 1/32 - 1/16 0.076 Brass Gold Vertical
09-9627-1-06
09-9627-1-06
09-9627-1-06
0.025 - 0.037 0.250 " 0.537" Jack/Pin Solder - 1/32 - 1/4 0.044 Brass Electro-Tin Vertical
09-9627-1-063
09-9627-1-063
09-9627-1-063
0.025 - 0.037 0.250 " 0.537" Jack/Pin Solder - 1/32 - 1/4 0.044 Brass Bright Tin-Lead Vertical
09-9631-1-03
09-9631-1-03
09-9631-1-03
0.065 - 0.082 0.375 " 0.565" Jack/Pin Solder - 1/32 - 1/16 0.067 Brass Gold Vertical
09-9054-1-06
09-9054-1-06
09-9054-1-06
0.025 0.145 " 0.431" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9623-1-088
09-9623-1-088
09-9623-1-088
0.022 - 0.034 0.060 " 0.090" - Solder - 1/32 0.067 Brass Bright Tin-Lead Vertical
09-9640-1-03
09-9640-1-03
09-9640-1-03
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Gold Vertical
09-9640-1-04
09-9640-1-04
09-9640-1-04
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Electro-Tin Vertical
09-9640-1-06
09-9640-1-06
09-9640-1-06
0.025 - 0.037 0.230 " 0.600" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.064 Brass Electro-Tin Vertical
09-9019-4-06
09-9019-4-06
09-9019-4-06
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9019-4-04
09-9019-4-04
09-9019-4-04
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

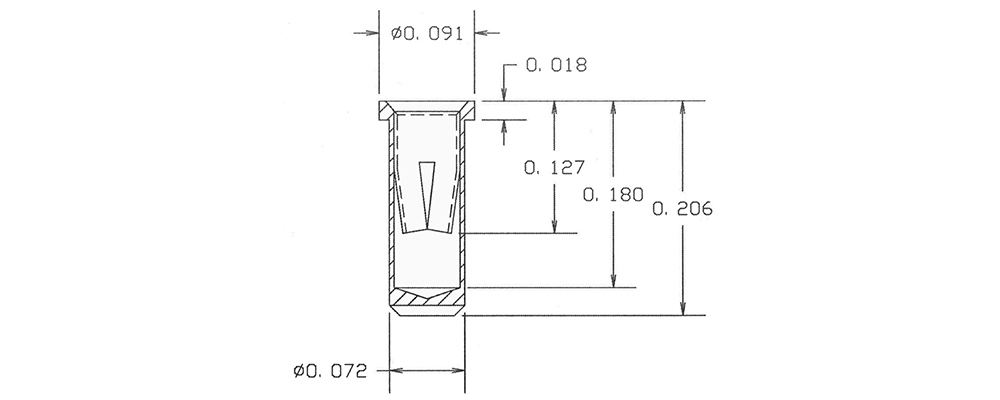

09-9601-1-03
09-9601-1-03
09-9601-1-03
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Gold Vertical
