Non-Insulated
PC Jacks

Filter
09-9738-1-03
09-9738-1-03
09-9738-1-03
0.032 - 0.046 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.086 Brass Gold Vertical
09-9660-1-063
09-9660-1-063
09-9660-1-063
0.015 - 0.025 0.147 " 0.296" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Bright Tin-Lead Vertical
09-9049-1-063
09-9049-1-063
09-9049-1-063
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9049-1-03
09-9049-1-03
09-9049-1-03
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Gold Vertical
09-9257-1-06
09-9257-1-06
09-9257-1-06
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Electro-Tin Vertical
09-9257-1-035
09-9257-1-035
09-9257-1-035
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Gold Vertical
09-9680-1-06
09-9680-1-06
09-9680-1-06
0.015 - 0.025 0.162 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Electro-Tin Vertical
09-9633-1-088
09-9633-1-088
09-9633-1-088
0.065 - 0.082 0.260 " 0.309" - Solder - 1/32 - 1/4 0.159 Brass Bright Tin-Lead Vertical
09-9644-1-035
09-9644-1-035
09-9644-1-035
0.040 - 0.060 0.205 " 0.270" - Press Fit/Solder - 3/32 - 3/16 0.106 Brass Gold Vertical
09-9288-1-03
09-9288-1-03
09-9288-1-03
0.030 0.175 " 0.385" - - - - - Brass Gold -
09-9653-1-063
09-9653-1-063
09-9653-1-063
0.032 - 0.046 0.190 " 0.343" Jack/Turret Press Fit/Solder - 1/16 - 5/32 0.090 Brass Bright Tin-Lead Vertical

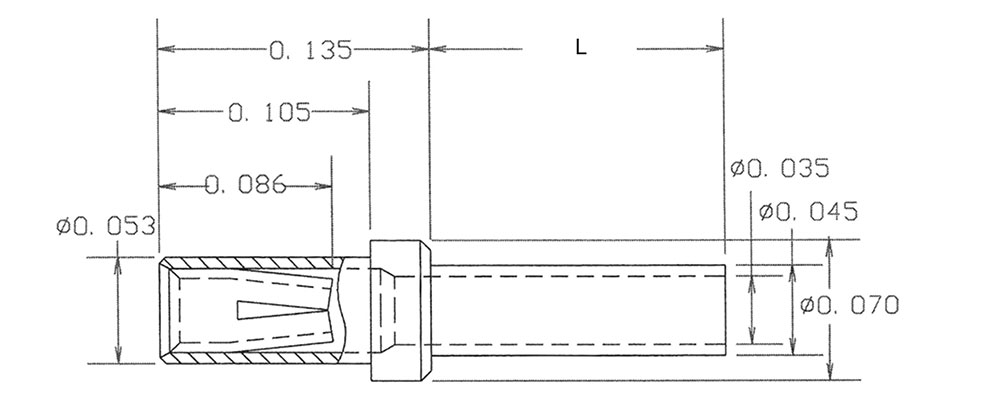

09-9670-4-04
09-9670-4-04
09-9670-4-04
0.015 - 0.025 0.187 " 0.281" - Swage Mount 0.146" 1/8 0.049 Brass Electro-Tin Vertical
09-9670-3-088
09-9670-3-088
09-9670-3-088
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Bright Tin-Lead Vertical
09-9670-3-063
09-9670-3-063
09-9670-3-063
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Bright Tin-Lead Vertical
09-9670-2-088
09-9670-2-088
09-9670-2-088
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Bright Tin-Lead Vertical
09-9670-2-063
09-9670-2-063
09-9670-2-063
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Bright Tin-Lead Vertical
09-9670-2-04
09-9670-2-04
09-9670-2-04
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Electro-Tin Vertical
09-9670-1-063
09-9670-1-063
09-9670-1-063
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Bright Tin-Lead Vertical
09-9670-1-06
09-9670-1-06
09-9670-1-06
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Electro-Tin Vertical
09-9670-1-035
09-9670-1-035
09-9670-1-035
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Gold Vertical
