Non-Insulated
PC Jacks

Filter

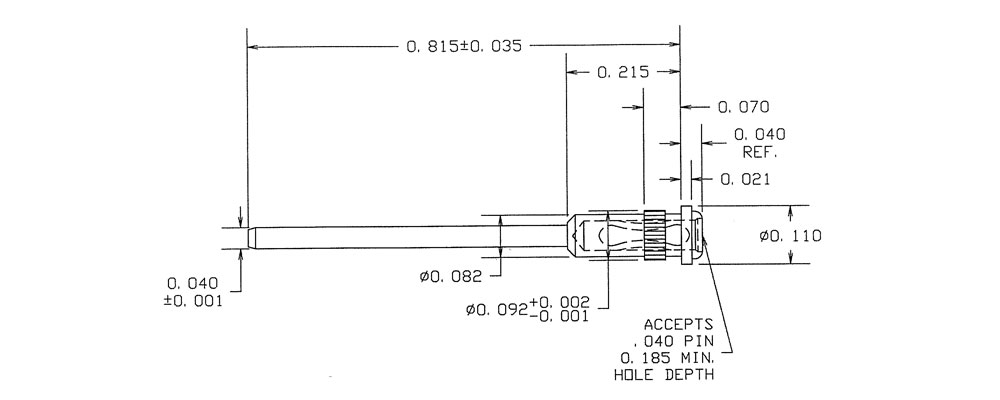

09-9139-1-088
09-9139-1-088
09-9139-1-088
0.040 0.185 " 0.855" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.089 Brass Bright Tin-Lead Vertical

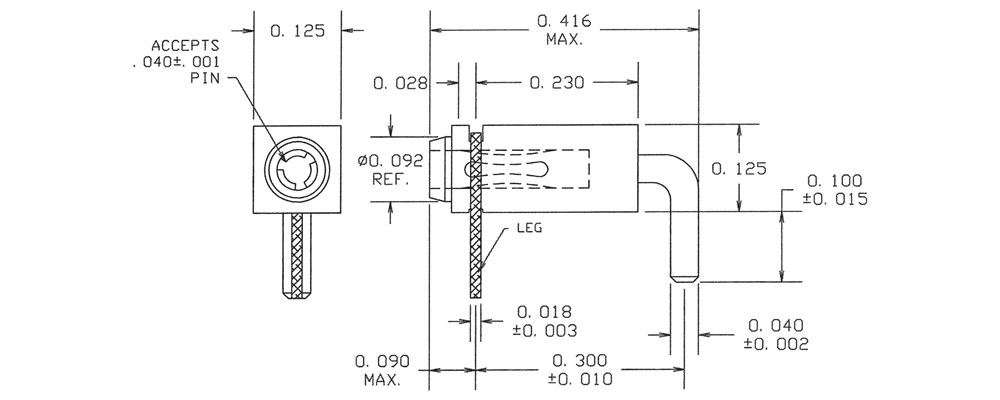

09-9289-1-088
09-9289-1-088
09-9289-1-088
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.046 Brass Bright Tin-Lead Horizontal

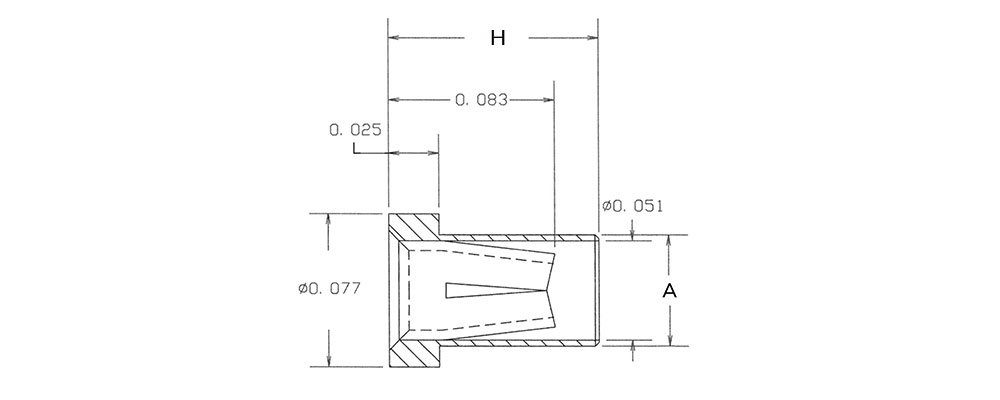

09-9628-1-06
09-9628-1-06
09-9628-1-06
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Electro-Tin Vertical

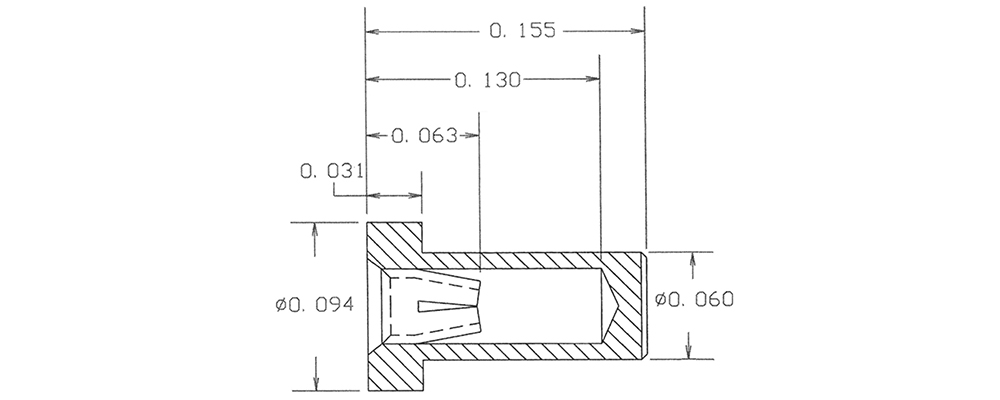

09-9669-1-035
09-9669-1-035
09-9669-1-035
0.015 - 0.022 0.130 " 0.155" - Solder - 1/32 - 3/32 0.067 Brass Gold Vertical

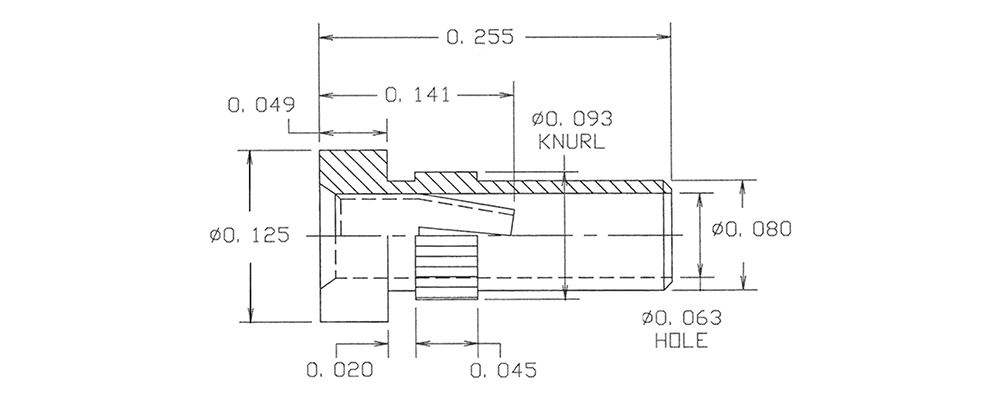

09-9733-1-088
09-9733-1-088
09-9733-1-088
0.032 - 0.046 0.170 " 0.255" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Bright Tin-Lead Vertical

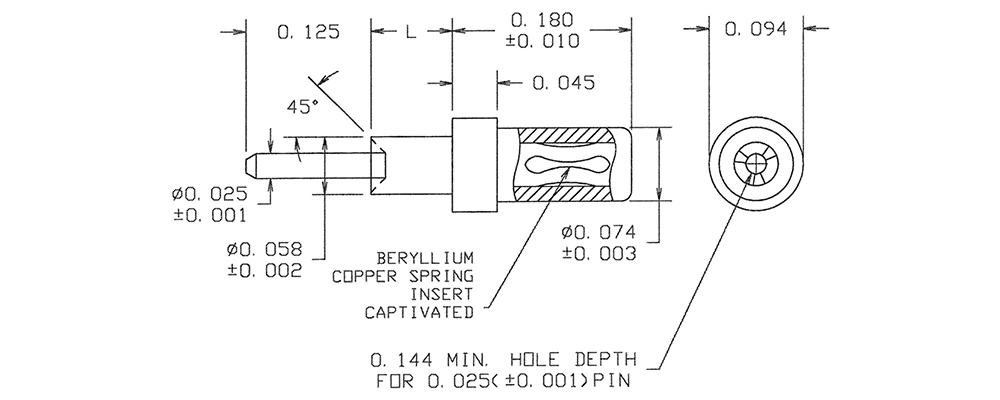

09-9016-3-063
09-9016-3-063
09-9016-3-063
0.025 0.144 " 0.418" Jack/Pin Swage Mount 0.113" 3/32 0.062 Brass Bright Tin-Lead Vertical

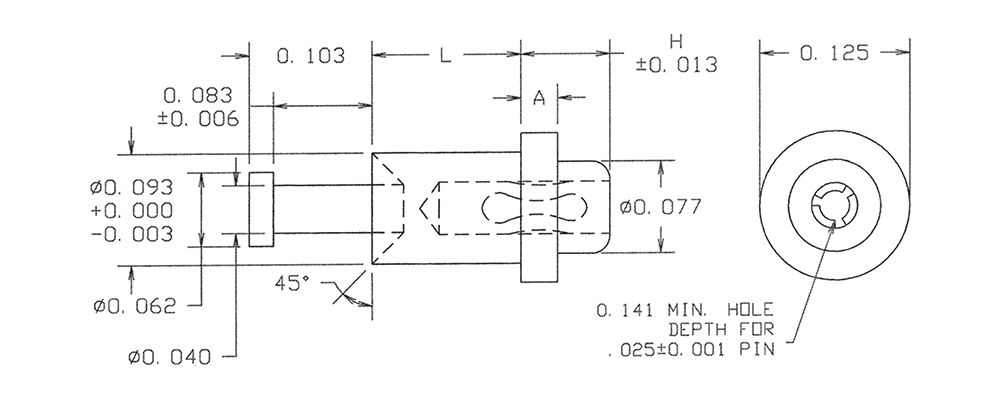

09-9045-3-04
09-9045-3-04
09-9045-3-04
0.025 0.141 " 0.303" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

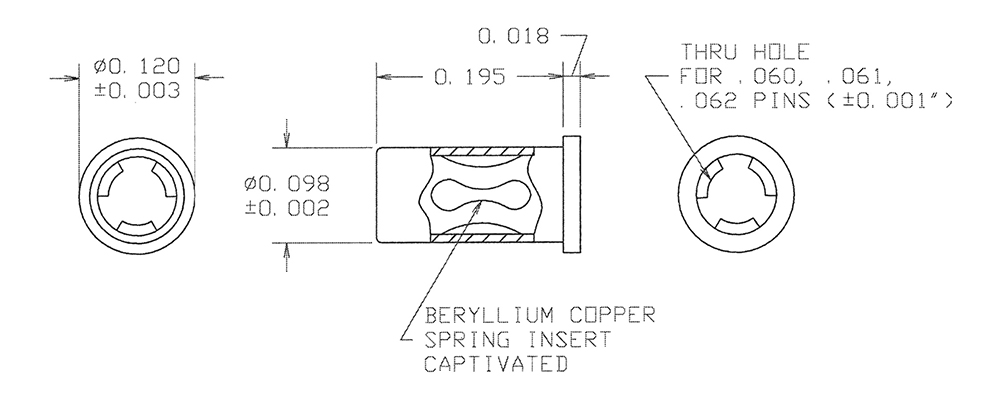

09-9159-1-03
09-9159-1-03
09-9159-1-03
0.060 - 0.062 0.190 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Gold Vertical

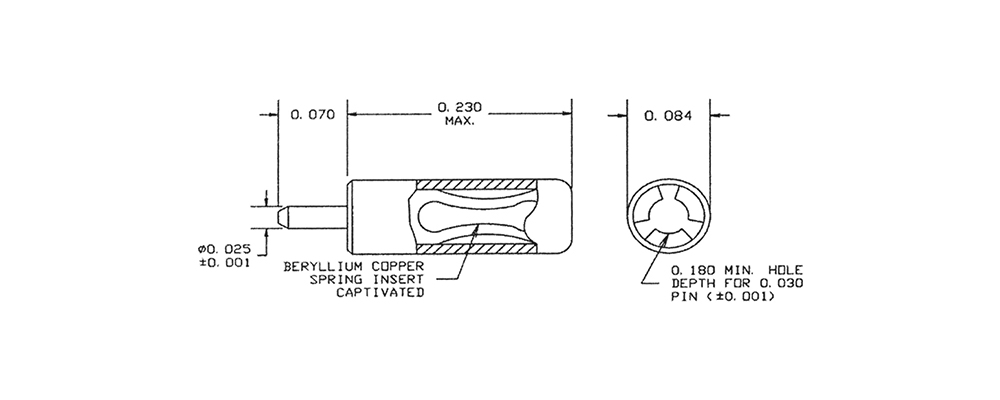

09-9290-1-03
09-9290-1-03
09-9290-1-03
0.030 0.180 " 0.300" Jack/Pin Solder - 1/32 0.028 Brass Gold Vertical
09-9628-1-063
09-9628-1-063
09-9628-1-063
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9669-1-04
09-9669-1-04
09-9669-1-04
0.015 - 0.022 0.130 " 0.155" - Solder - 1/32 - 3/32 0.067 Brass Electro-Tin Vertical

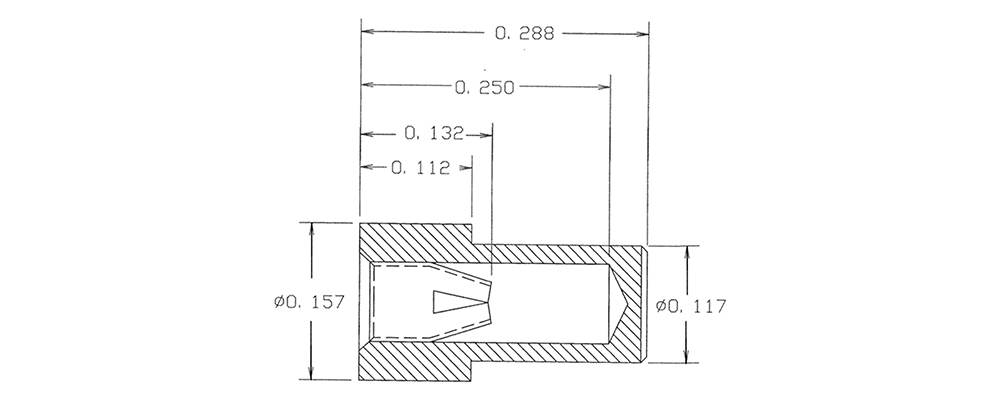

09-9734-1-03
09-9734-1-03
09-9734-1-03
0.032 - 0.046 0.250 " 0.288" - Solder - 1/32 - 3/32 0.125 Brass Gold Vertical
09-9016-3-088
09-9016-3-088
09-9016-3-088
0.025 0.144 " 0.418" Jack/Pin Swage Mount 0.113" 3/32 0.062 Brass Bright Tin-Lead Vertical
09-9045-3-06
09-9045-3-06
09-9045-3-06
0.025 0.141 " 0.303" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9159-1-035
09-9159-1-035
09-9159-1-035
0.060 - 0.062 0.190 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Gold Vertical
09-9290-1-035
09-9290-1-035
09-9290-1-035
0.030 0.180 " 0.300" Jack/Pin Solder - 1/32 0.028 Brass Gold Vertical
09-9628-1-088
09-9628-1-088
09-9628-1-088
0.025 - 0.037 0.063 " 0.095" - Solder - 1/32 - 1/16 0.0625 Brass Bright Tin-Lead Vertical
09-9669-1-06
09-9669-1-06
09-9669-1-06
0.015 - 0.022 0.130 " 0.155" - Solder - 1/32 - 3/32 0.067 Brass Electro-Tin Vertical
09-9734-1-035
09-9734-1-035
09-9734-1-035
0.032 - 0.046 0.250 " 0.288" - Solder - 1/32 - 3/32 0.125 Brass Gold Vertical
09-9016-4-03
09-9016-4-03
09-9016-4-03
0.025 0.144 " 0.450" Jack/Pin Swage Mount 0.145" 1/8 0.062 Brass Gold Vertical
