Non-Insulated
PC Jacks

Filter

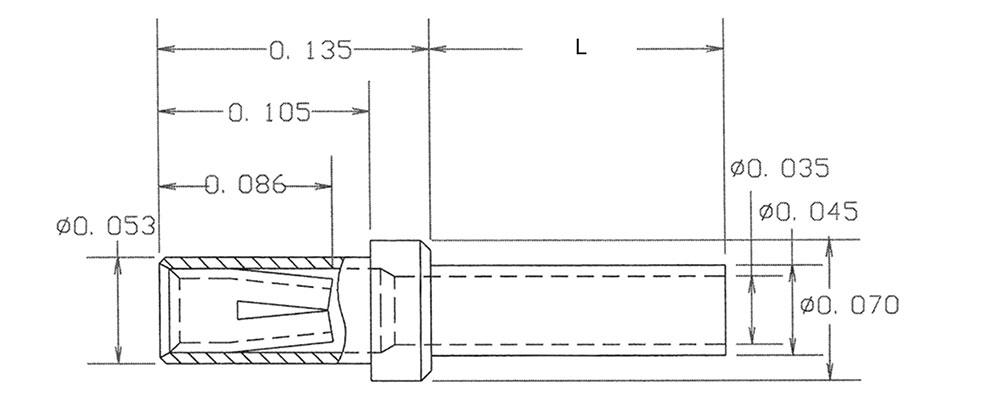

09-9670-2-03
09-9670-2-03
09-9670-2-03
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Gold Vertical

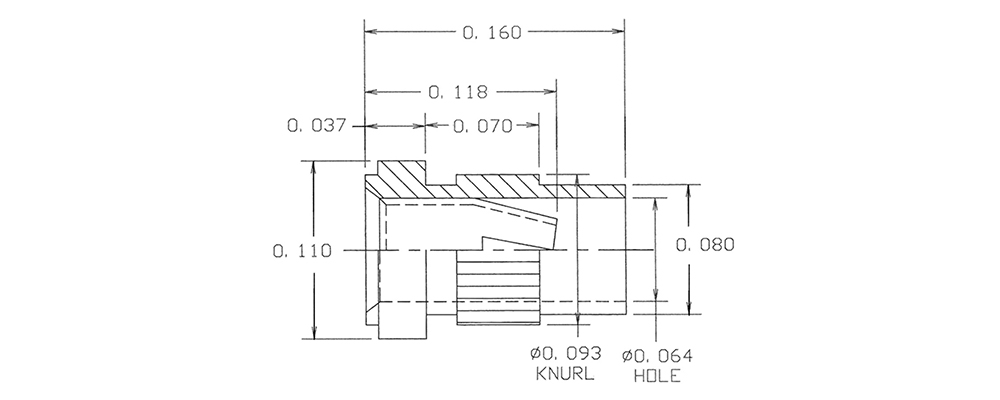

09-9735-1-063
09-9735-1-063
09-9735-1-063
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Bright Tin-Lead Vertical

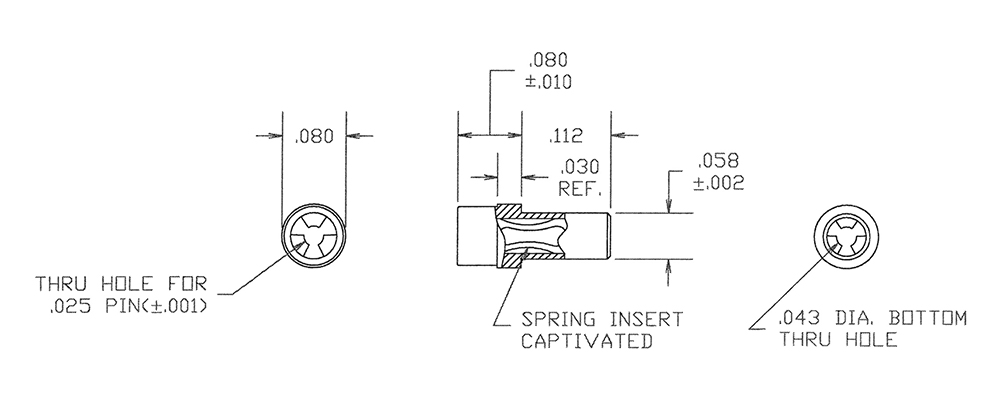

09-9017-1-06
09-9017-1-06
09-9017-1-06
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Electro-Tin Vertical

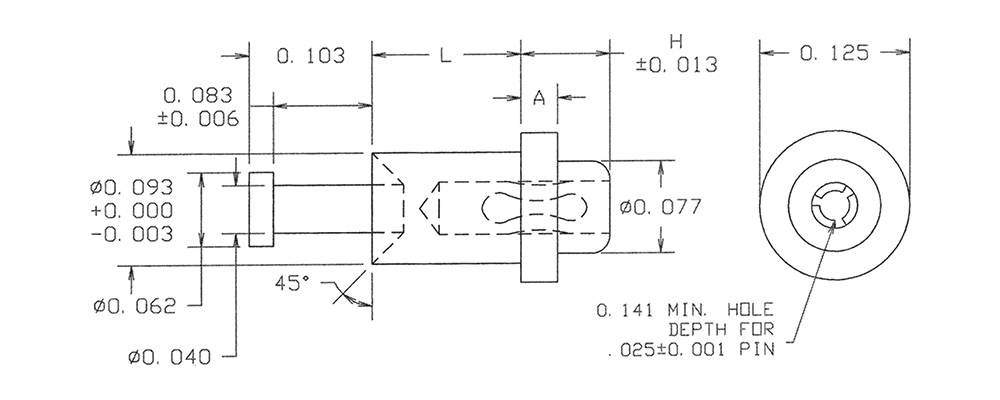

09-9045-6-035
09-9045-6-035
09-9045-6-035
0.025 0.141 " 0.397" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical

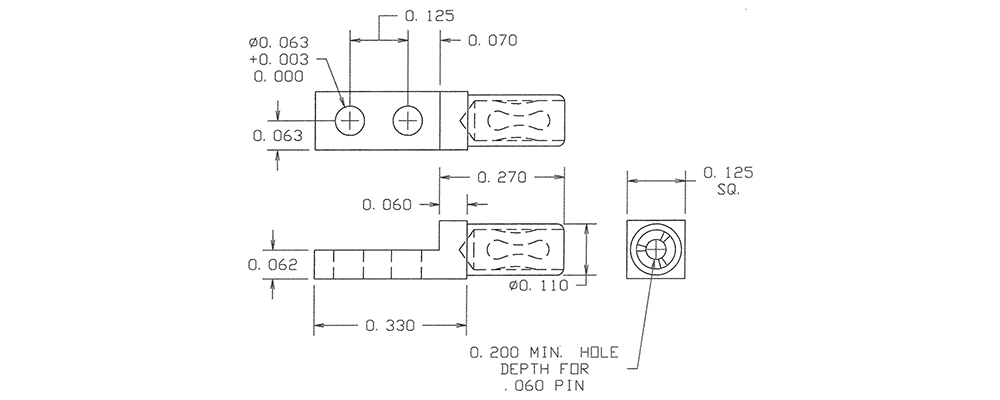

09-9166-1-063
09-9166-1-063
09-9166-1-063
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Bright Tin-Lead Horizontal

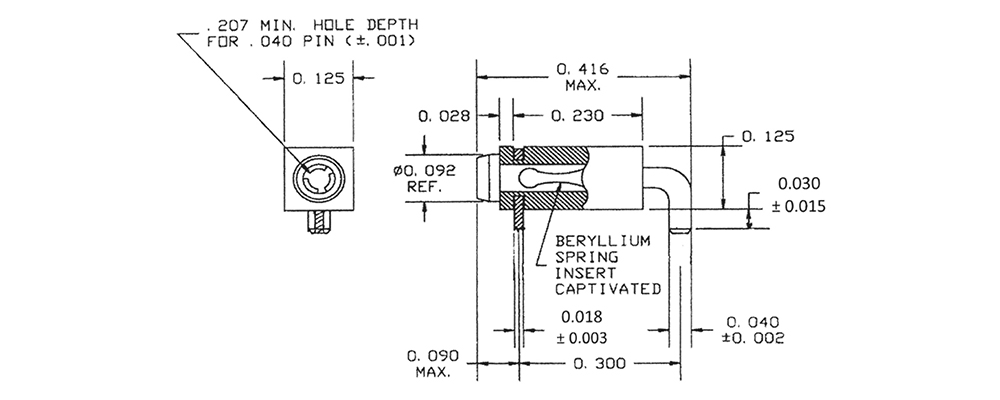

09-9291-1-088
09-9291-1-088
09-9291-1-088
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Bright Tin-Lead Horizontal

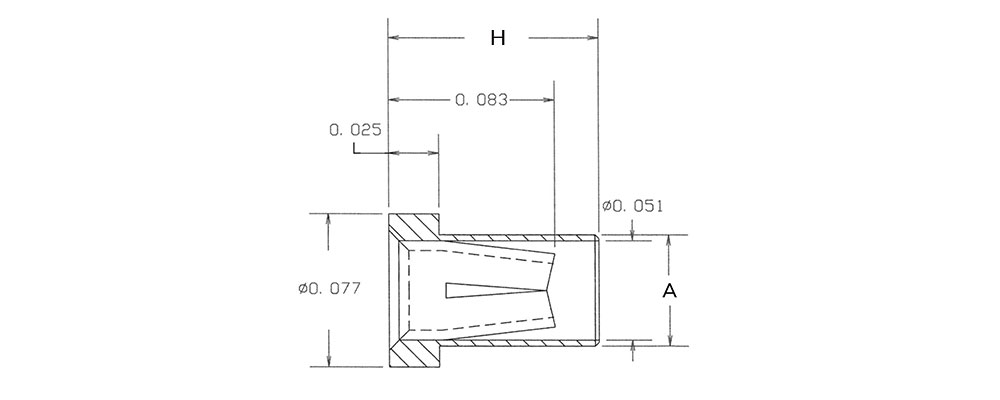

09-9628-3-06
09-9628-3-06
09-9628-3-06
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Electro-Tin Vertical
09-9670-2-035
09-9670-2-035
09-9670-2-035
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Gold Vertical
09-9735-1-088
09-9735-1-088
09-9735-1-088
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Bright Tin-Lead Vertical
09-9017-1-063
09-9017-1-063
09-9017-1-063
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Bright Tin-Lead Vertical
09-9045-6-04
09-9045-6-04
09-9045-6-04
0.025 0.141 " 0.397" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9166-1-088
09-9166-1-088
09-9166-1-088
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Bright Tin-Lead Horizontal

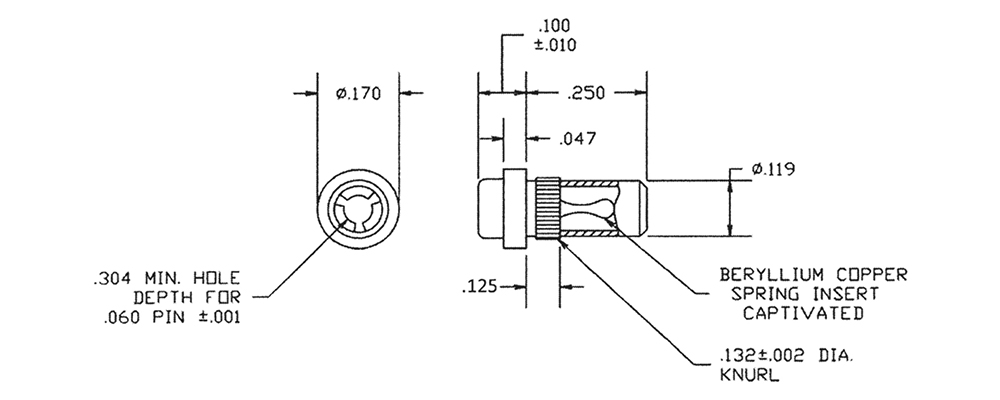

09-9293-1-03
09-9293-1-03
09-9293-1-03
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical
09-9628-3-063
09-9628-3-063
09-9628-3-063
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Bright Tin-Lead Vertical
09-9670-2-04
09-9670-2-04
09-9670-2-04
0.015 - 0.025 0.146 " 0.219" - Swage Mount 0.084" 1/16 0.049 Brass Electro-Tin Vertical

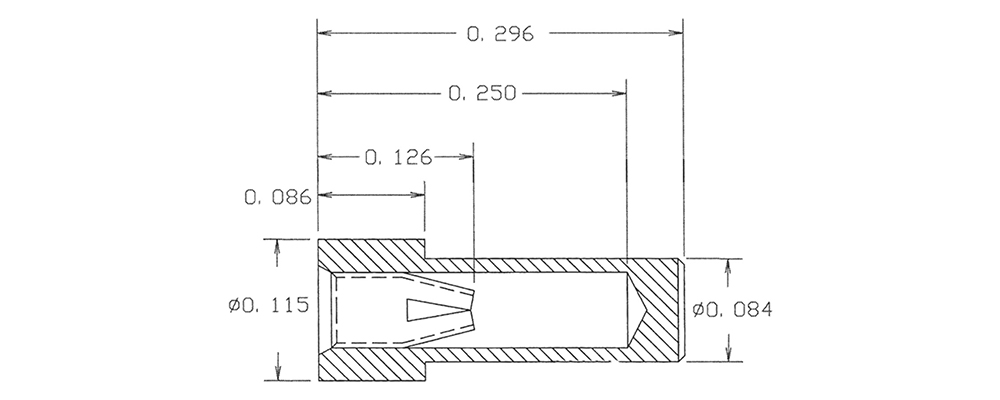

09-9736-1-03
09-9736-1-03
09-9736-1-03
0.032 - 0.046 0.250 " 0.296" - Solder - 1/32 - 5/32 0.089 Brass Gold Vertical
09-9017-1-088
09-9017-1-088
09-9017-1-088
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Bright Tin-Lead Vertical
09-9045-6-06
09-9045-6-06
09-9045-6-06
0.025 0.141 " 0.397" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

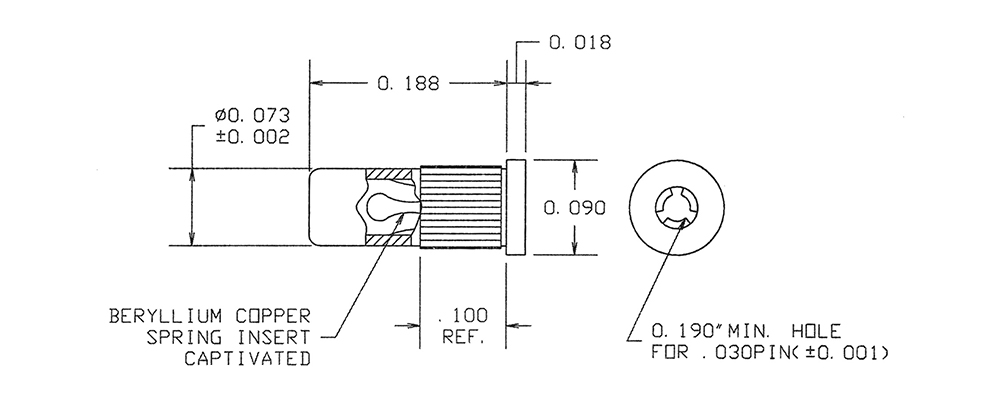

09-9169-1-03
09-9169-1-03
09-9169-1-03
0.030 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Gold Vertical
09-9293-1-035
09-9293-1-035
09-9293-1-035
0.060 0.304 " 0.350" - Press Fit/Solder - 1/16 - 3/16 0.128 (+0.001/-0.002) Brass Gold Vertical
