Non-Insulated
PC Jacks

Filter

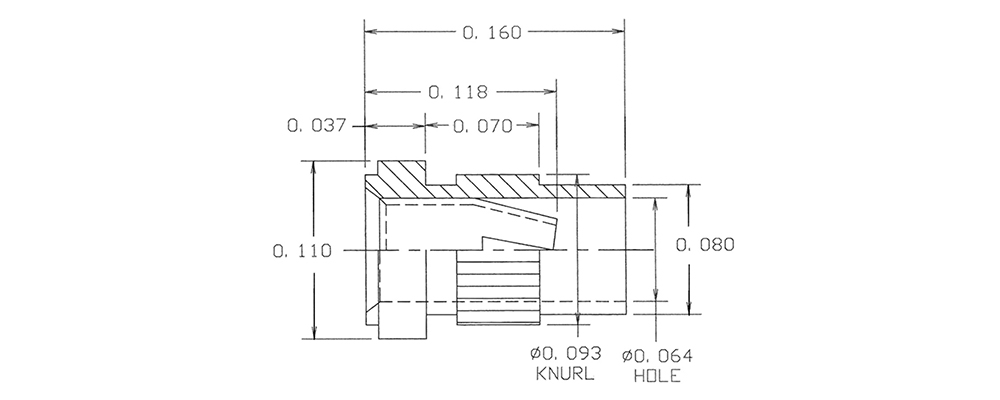

09-9735-1-035
09-9735-1-035
09-9735-1-035
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Gold Vertical

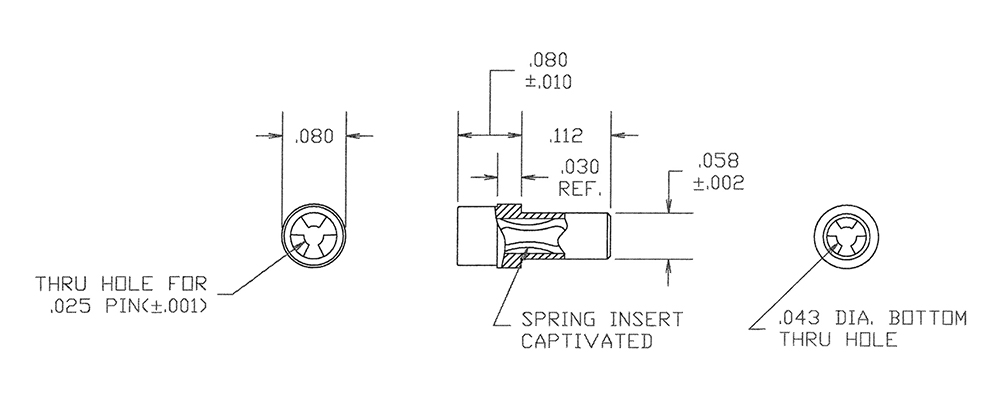

09-9017-1-03
09-9017-1-03
09-9017-1-03
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Gold Vertical

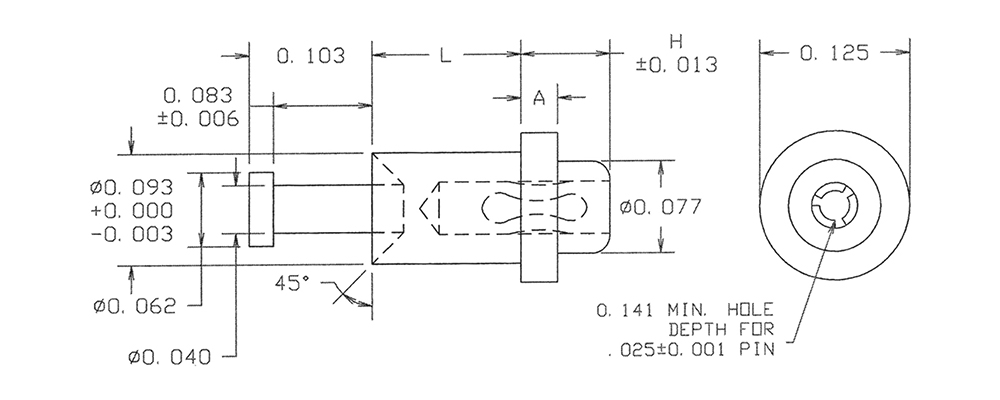

09-9045-4-063
09-9045-4-063
09-9045-4-063
0.025 0.141 " 0.334" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

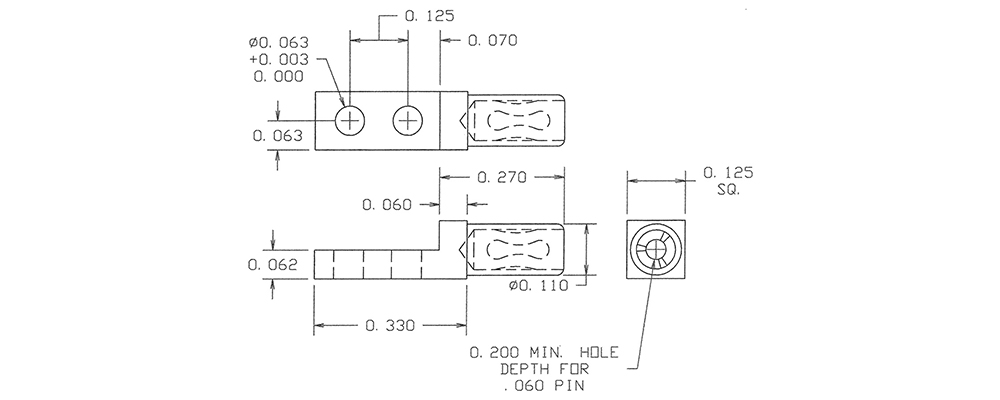

09-9166-1-0355
09-9166-1-0355
09-9166-1-0355
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Gold Horizontal

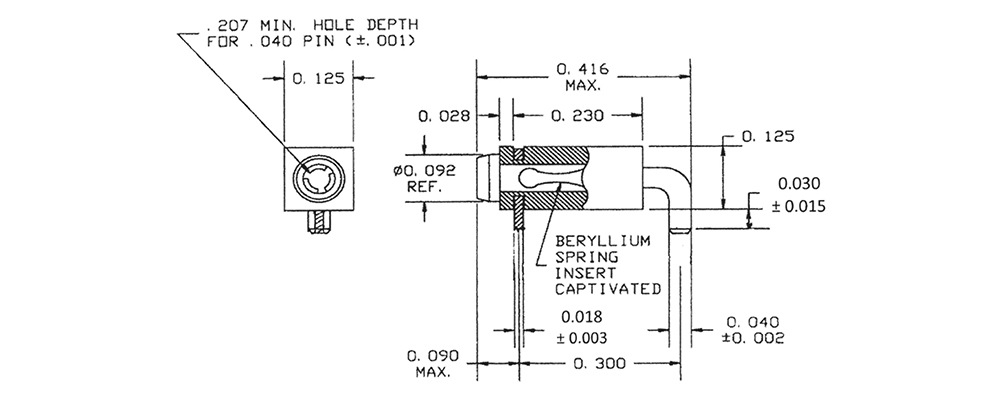

09-9291-1-04
09-9291-1-04
09-9291-1-04
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Electro-Tin Horizontal

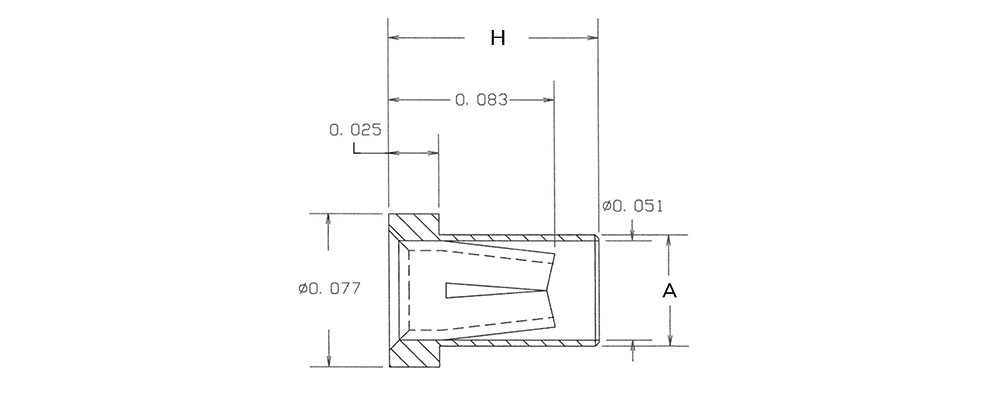

09-9628-3-03
09-9628-3-03
09-9628-3-03
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Gold Vertical

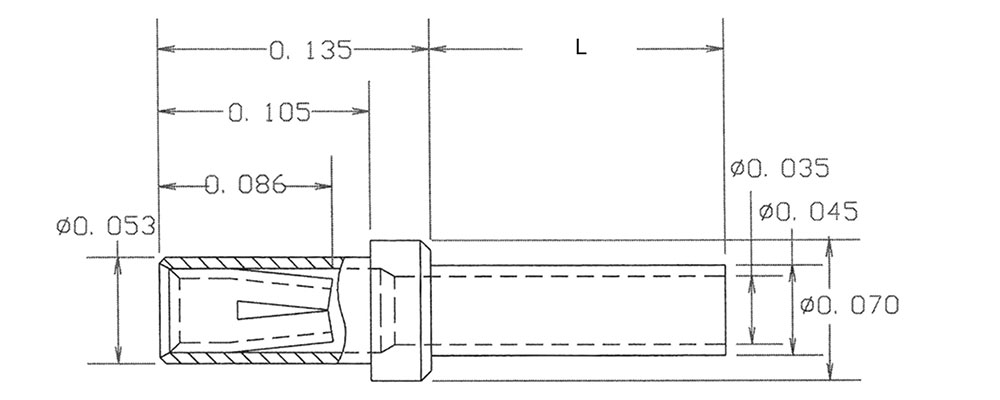

09-9670-1-063
09-9670-1-063
09-9670-1-063
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Bright Tin-Lead Vertical
09-9735-1-04
09-9735-1-04
09-9735-1-04
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Electro-Tin Vertical
09-9017-1-035
09-9017-1-035
09-9017-1-035
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Gold Vertical
09-9045-4-088
09-9045-4-088
09-9045-4-088
0.025 0.141 " 0.334" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9166-1-04
09-9166-1-04
09-9166-1-04
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Electro-Tin Horizontal
09-9291-1-06
09-9291-1-06
09-9291-1-06
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Electro-Tin Horizontal
09-9628-3-035
09-9628-3-035
09-9628-3-035
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Gold Vertical
09-9670-1-088
09-9670-1-088
09-9670-1-088
0.015 - 0.025 0.124 " 0.187" - Swage Mount 0.052" 1/32 0.049 Brass Bright Tin-Lead Vertical
09-9735-1-06
09-9735-1-06
09-9735-1-06
0.032 - 0.046 0.106 " 0.160" - Press Fit/Solder - 1/16 - 3/32 0.090 Brass Electro-Tin Vertical
09-9017-1-04
09-9017-1-04
09-9017-1-04
0.025 0.128 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Electro-Tin Vertical
09-9045-6-03
09-9045-6-03
09-9045-6-03
0.025 0.141 " 0.397" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9166-1-06
09-9166-1-06
09-9166-1-06
0.060 0.200 " 0.540" Jack/Edge Mount Screw Mount - - 0.063 (+0.003/-0.000) Brass Electro-Tin Horizontal
09-9291-1-063
09-9291-1-063
09-9291-1-063
0.040 0.207 " 0.416" Jack/Pin Solder - 1/64 0.046 Brass Bright Tin-Lead Horizontal
09-9628-3-04
09-9628-3-04
09-9628-3-04
0.025 - 0.037 0.116 " 0.155" - Solder - 1/32 - 3/32 0.0625 Brass Electro-Tin Vertical
