Non-Insulated
PC Jacks

Filter

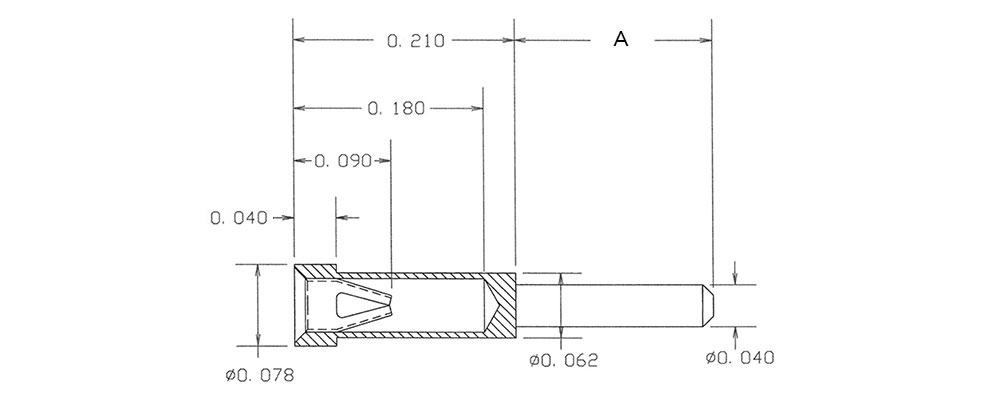

09-9626-1-035
09-9626-1-035
09-9626-1-035
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Gold Vertical

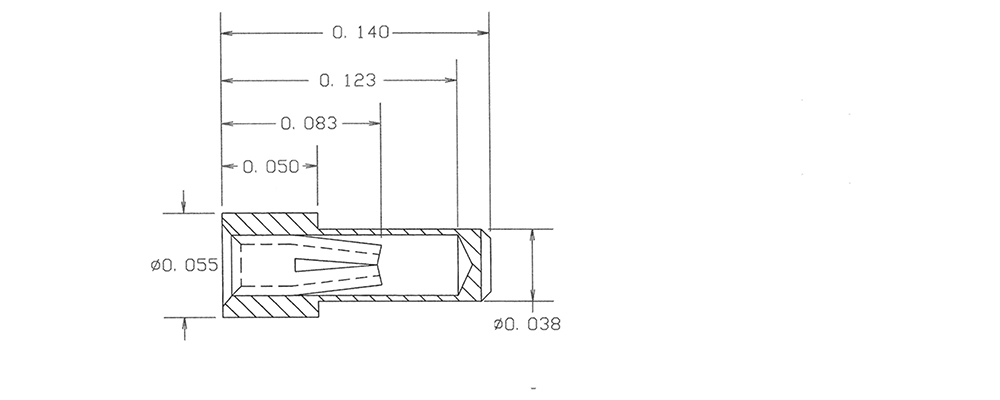

09-9663-1-088
09-9663-1-088
09-9663-1-088
0.015 - 0.021 0.123 " 0.140" - Solder - 1/32 - 1/16 0.042 Brass Bright Tin-Lead Vertical

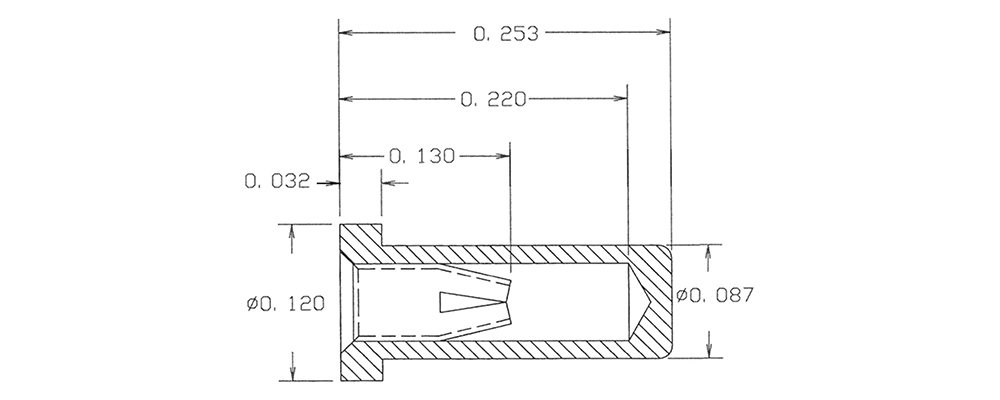

09-9729-1-06
09-9729-1-06
09-9729-1-06
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Electro-Tin Vertical

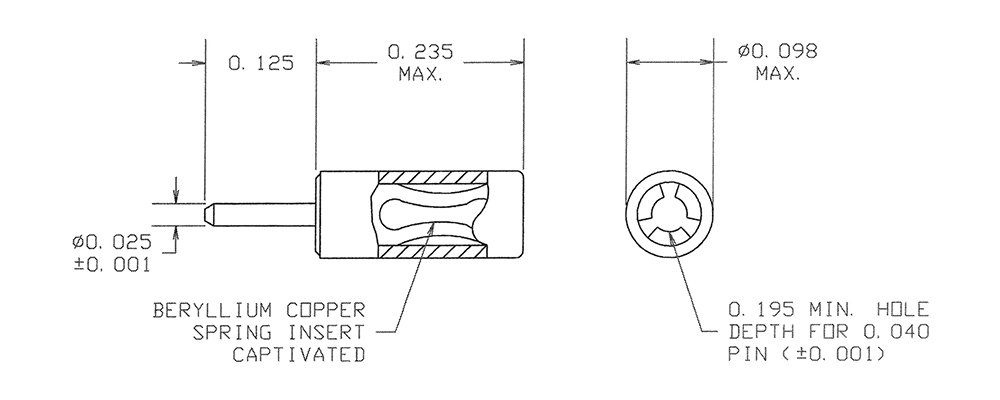

09-9014-1-04
09-9014-1-04
09-9014-1-04
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical

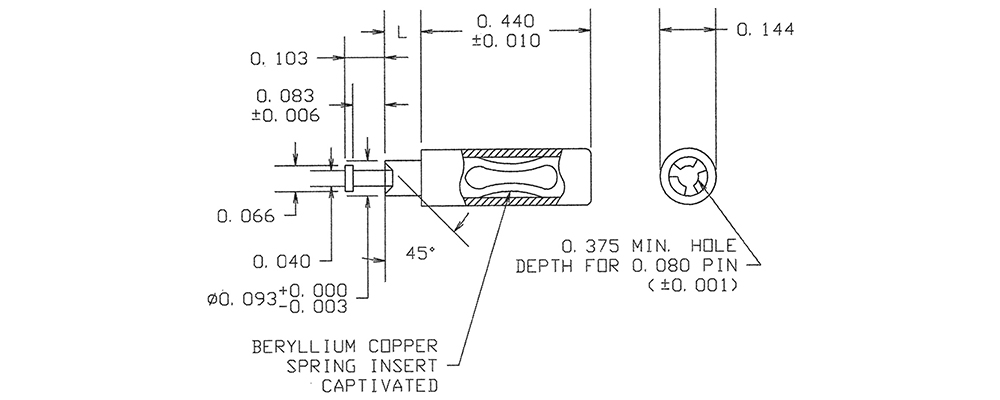

09-9042-4-03
09-9042-4-03
09-9042-4-03
0.080 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical

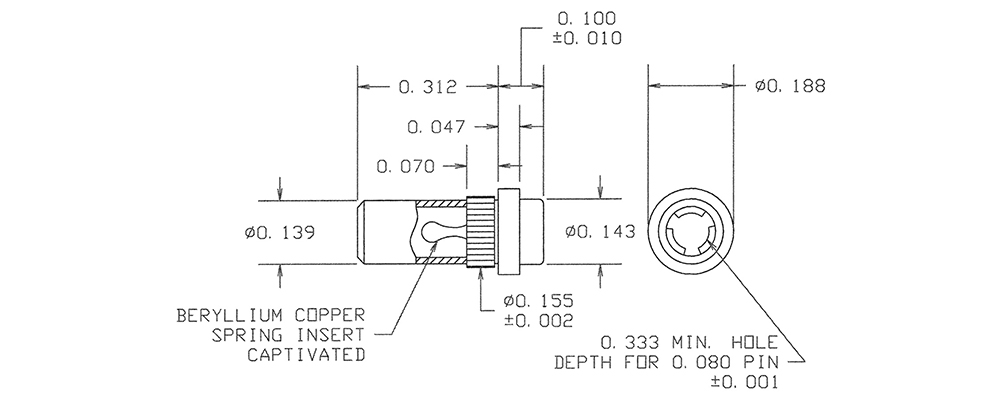

09-9101-1-063
09-9101-1-063
09-9101-1-063
0.080 0.333 " 0.412" - Press Fit/Solder - 1/16 - 1/4 0.151 (+0.001/-0.002) Brass Bright Tin-Lead Vertical

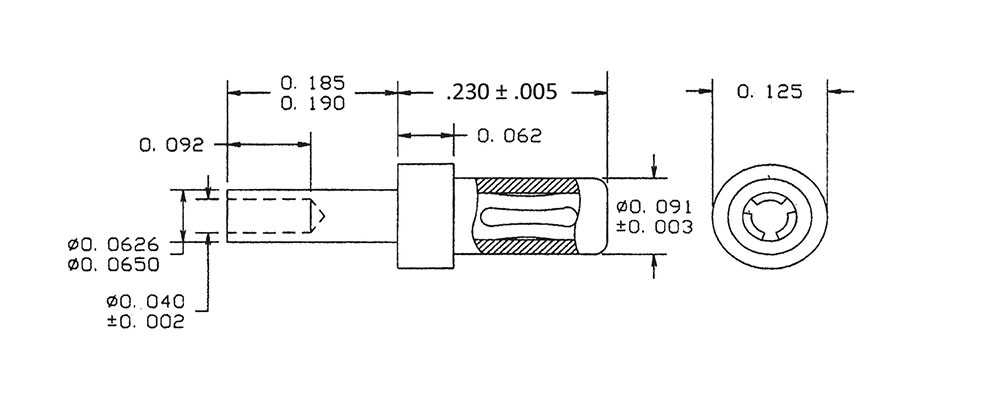

09-9285-5-063
09-9285-5-063
09-9285-5-063
0.040 0.200 " 0.415" - Swage Mount 0.187" 5/32 0.067 Brass Bright Tin-Lead Vertical
09-9626-1-04
09-9626-1-04
09-9626-1-04
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Electro-Tin Vertical

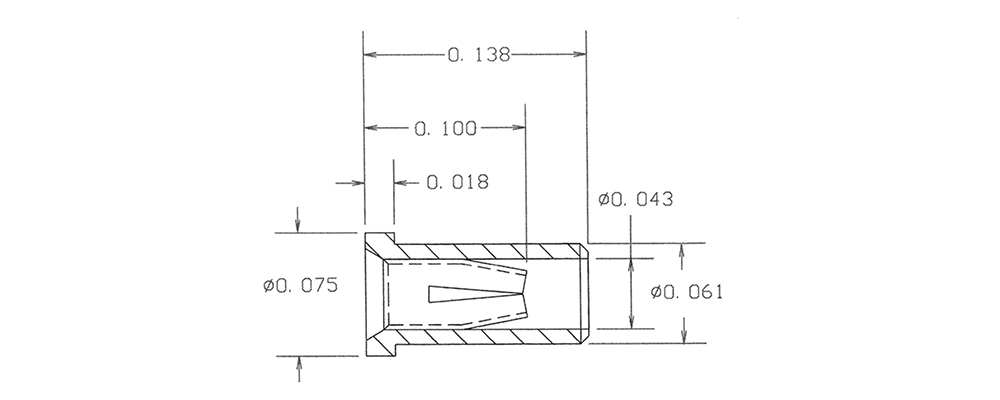

09-9665-1-03
09-9665-1-03
09-9665-1-03
0.015 - 0.025 0.092 " 0.138" - Solder - 1/32 - 3/32 0.067 Brass Gold Vertical
09-9729-1-063
09-9729-1-063
09-9729-1-063
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Bright Tin-Lead Vertical
09-9014-1-06
09-9014-1-06
09-9014-1-06
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9042-4-035
09-9042-4-035
09-9042-4-035
0.080 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9101-1-088
09-9101-1-088
09-9101-1-088
0.080 0.333 " 0.412" - Press Fit/Solder - 1/16 - 1/4 0.151 (+0.001/-0.002) Brass Bright Tin-Lead Vertical
09-9285-5-088
09-9285-5-088
09-9285-5-088
0.040 0.200 " 0.415" - Swage Mount 0.187" 5/32 0.067 Brass Bright Tin-Lead Vertical
09-9626-1-06
09-9626-1-06
09-9626-1-06
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Electro-Tin Vertical
09-9665-1-035
09-9665-1-035
09-9665-1-035
0.015 - 0.025 0.092 " 0.138" - Solder - 1/32 - 3/32 0.067 Brass Gold Vertical
09-9729-1-088
09-9729-1-088
09-9729-1-088
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Bright Tin-Lead Vertical
09-9014-1-063
09-9014-1-063
09-9014-1-063
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Bright Tin-Lead Vertical
09-9042-4-04
09-9042-4-04
09-9042-4-04
0.080 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

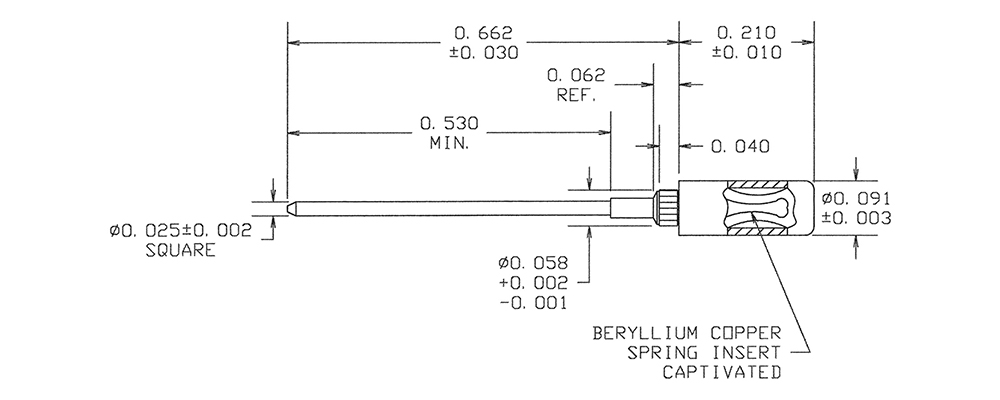

09-9108-1-03
09-9108-1-03
09-9108-1-03
0.040 0.210 " 0.872" Jack/Square Wrap Pin Press Fit/Solder - 1/32 - 1/16 0.055 Brass Gold Vertical
