Non-Insulated
PC Jacks

Filter
09-9687-1-063
09-9687-1-063
09-9687-1-063
0.025 - 0.037 0.228 " 0.486" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.061 Brass Bright Tin-Lead Vertical
09-9094-1-088
09-9094-1-088
09-9094-1-088
0.080 0.325 " 0.537" Jack/Pin Solder - 1/32 - 3/32 0.062 Brass Bright Tin-Lead Horizontal
09-9014-1-06
09-9014-1-06
09-9014-1-06
0.040 0.195 " 0.360" Jack/Pin Solder - 1/32 - 1/16 0.028 Brass Electro-Tin Vertical
09-9022-6-04
09-9022-6-04
09-9022-6-04
0.025 0.393 " 0.437" Jack/Jack Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

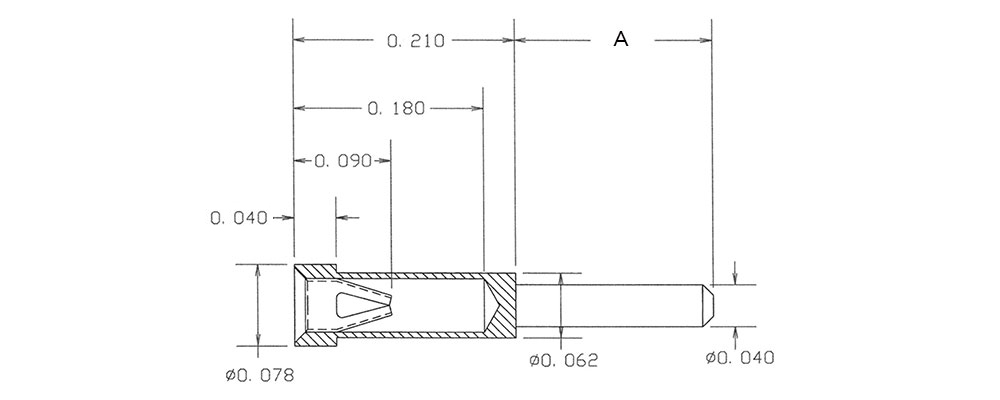

09-9626-3-03
09-9626-3-03
09-9626-3-03
0.025 - 0.037 0.180 " 0.350" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Gold Vertical
09-9169-1-035
09-9169-1-035
09-9169-1-035
0.030 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Gold Vertical
09-9169-1-06
09-9169-1-06
09-9169-1-06
0.030 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Electro-Tin Vertical
09-9230-1-03
09-9230-1-03
09-9230-1-03
0.040 0.185 " 0.246" - Swage Mount 0.053" 1/32 0.076 Brass Gold Vertical
09-9230-1-035
09-9230-1-035
09-9230-1-035
0.040 0.185 " 0.246" - Swage Mount 0.053" 1/32 0.076 Brass Gold Vertical
09-9230-1-04
09-9230-1-04
09-9230-1-04
0.040 0.185 " 0.246" - Swage Mount 0.053" 1/32 0.076 Brass Electro-Tin Vertical
09-9230-1-063
09-9230-1-063
09-9230-1-063
0.040 0.185 " 0.246" - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead Vertical
09-9230-1-088
09-9230-1-088
09-9230-1-088
0.040 0.185 " 0.246" - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead Vertical
09-9654-1-088
09-9654-1-088
09-9654-1-088
0.015 - 0.025 0.150 " 0.300" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9230-2-04
09-9230-2-04
09-9230-2-04
0.040 0.185 " 0.277" - Swage Mount 0.084" 1/16 0.076 Brass Electro-Tin Vertical
09-9230-2-063
09-9230-2-063
09-9230-2-063
0.040 0.185 " 0.277" - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin-Lead Vertical
09-9230-3-03
09-9230-3-03
09-9230-3-03
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Gold Vertical
09-9230-3-035
09-9230-3-035
09-9230-3-035
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Gold Vertical
09-9230-3-06
09-9230-3-06
09-9230-3-06
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Electro-Tin Vertical
09-9230-3-063
09-9230-3-063
09-9230-3-063
0.040 0.185 " 0.308" - Swage Mount 0.115" 3/32 0.076 Brass Bright Tin-Lead Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
