Military
Insulated
Terminals

Filter
1127-06M-09512
1127-06M-09512
1127-06M-09512
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Red M55155/202I03 AA59126/202I03

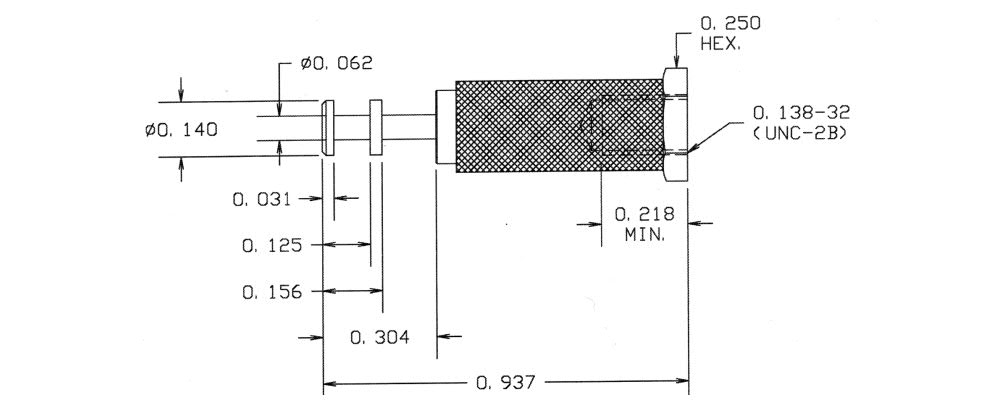

1127-07M-09513
1127-07M-09513
1127-07M-09513
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/203I04 AA59126/203I04
1110-75M-0514
1110-75M-0514
1110-75M-0514
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034H05 AA59126/034H05
1110-05M-0514
1110-05M-0514
1110-05M-0514
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034H04 AA59126/034H04
1169-38M-0510
1169-38M-0510
1169-38M-0510
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Black M55155/090H05 AA59126/090H05
1114-08M-09510
1114-08M-09510
1114-08M-09510
0.310" - Press Fit 3/32 0.108 PTFE Black M55155/050I02 AA59126/050I02
1117-01M-0512Z
1117-01M-0512Z
1117-01M-0512Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Red M55155/022B01 AA59126/022B01
1100-07M-08818Z
1100-07M-08818Z
1100-07M-08818Z
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/088D02 AA59126/088D02

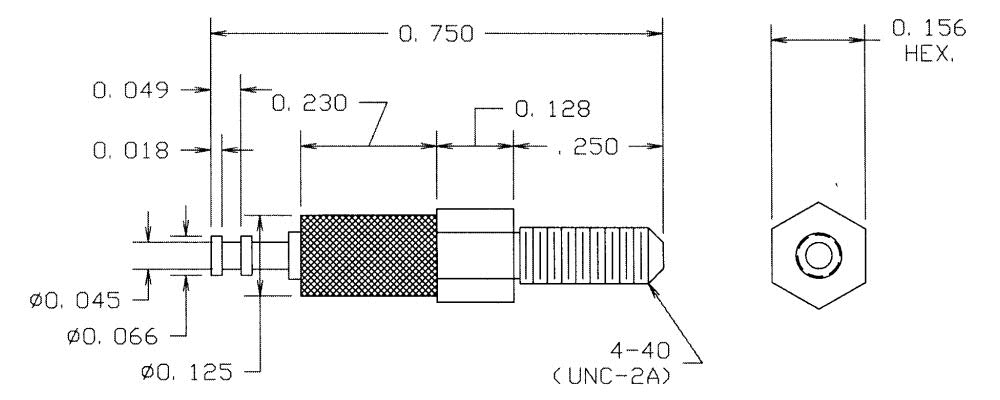

1125-43M-08816
1125-43M-08816
1125-43M-08816
0.750" - 4-40 Nut 1/8 0.120 PTFE Blue M55155/096J01 AA59126/096J01
1169-38M-08819
1169-38M-08819
1169-38M-08819
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE White M55155/099J05 AA59126/099J05
1110-75M-0512Z
1110-75M-0512Z
1110-75M-0512Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032B05 AA59126/032B05
1102-14M-09511Z
1102-14M-09511Z
1102-14M-09511Z
0.359" - Press Fit 1/16 0.136 PTFE Brown M55155/071C01 AA59126/071C01
1102-14M-09512Z
1102-14M-09512Z
1102-14M-09512Z
0.359" - Press Fit 1/16 0.136 PTFE Red M55155/072C01 AA59126/072C01
1102-03M-09513Z
1102-03M-09513Z
1102-03M-09513Z
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073C03 AA59126/073C03
1169-36M-09510Z
1169-36M-09510Z
1169-36M-09510Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Black M55155/090C03 AA59126/090C03
1100-07M-0510Z
1100-07M-0510Z
1100-07M-0510Z
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/080B02 AA59126/080B02
1125-43M-09511Z
1125-43M-09511Z
1125-43M-09511Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Brown M55155/091C01 AA59126/091C01
1133-03M-08812Z
1133-03M-08812Z
1133-03M-08812Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042D03 AA59126/042D03
1100-07M-08814Z
1100-07M-08814Z
1100-07M-08814Z
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/084D02 AA59126/084D02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
