Military
Insulated
Terminals

Filter

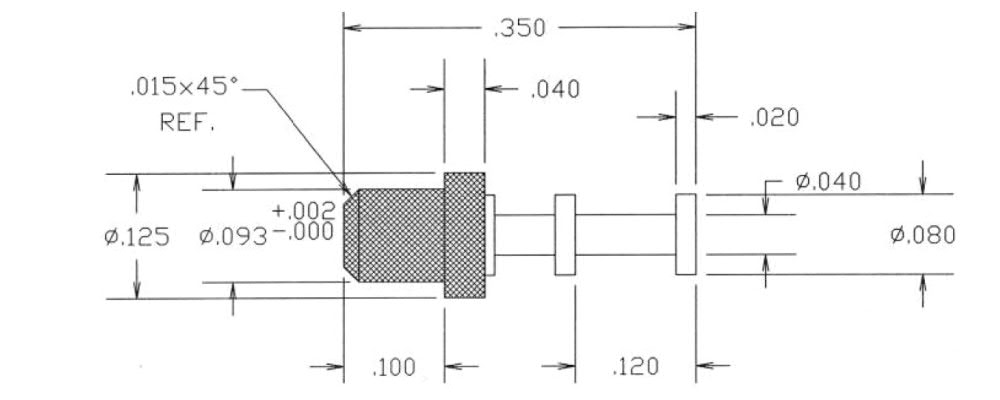

1102-03M-08815
1102-03M-08815
1102-03M-08815
0.350" - Press Fit 1/16 0.086 PTFE Green M55155/075J03 AA59126/075J03

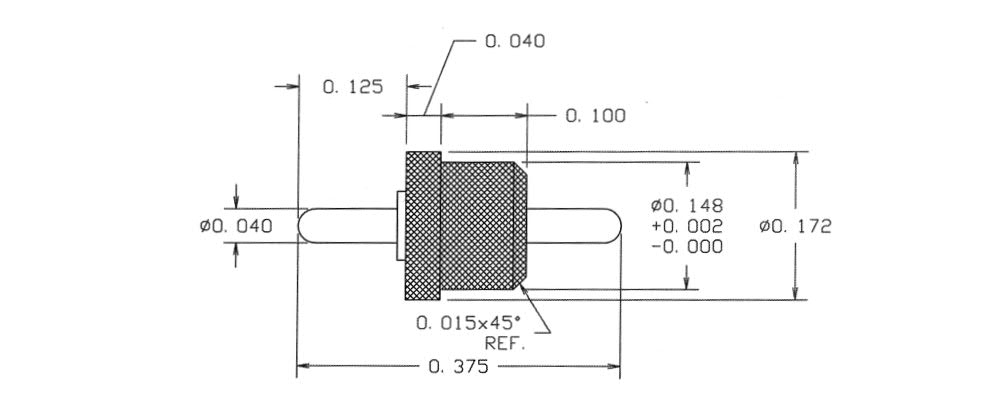

1110-16M-09513
1110-16M-09513
1110-16M-09513
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Orange M55155/033I01 AA59126/033I01

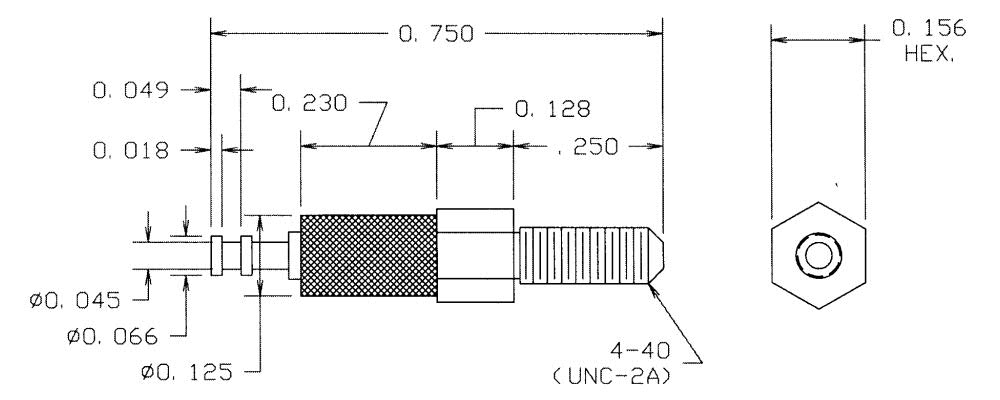

1125-43M-0512
1125-43M-0512
1125-43M-0512
0.750" - 4-40 Nut 1/8 0.120 PTFE Red M55155/092H01 AA59126/092H01

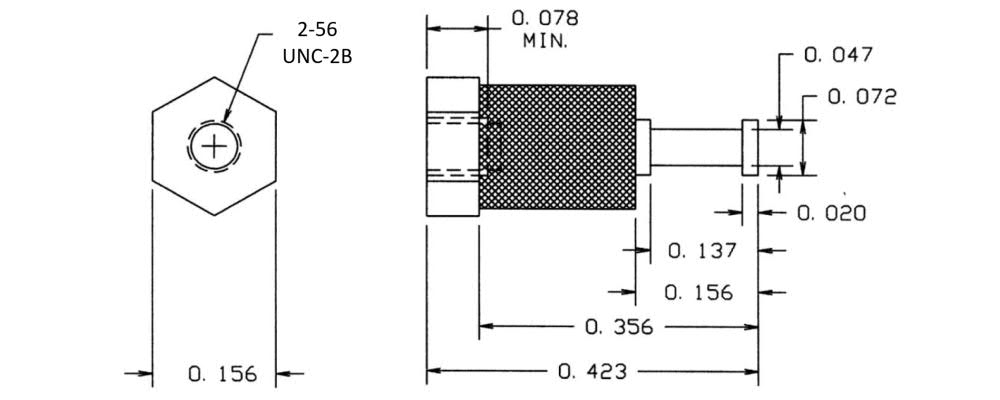

1127-02M-09514
1127-02M-09514
1127-02M-09514
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Yellow M55155/194I02 AA59126/194I02

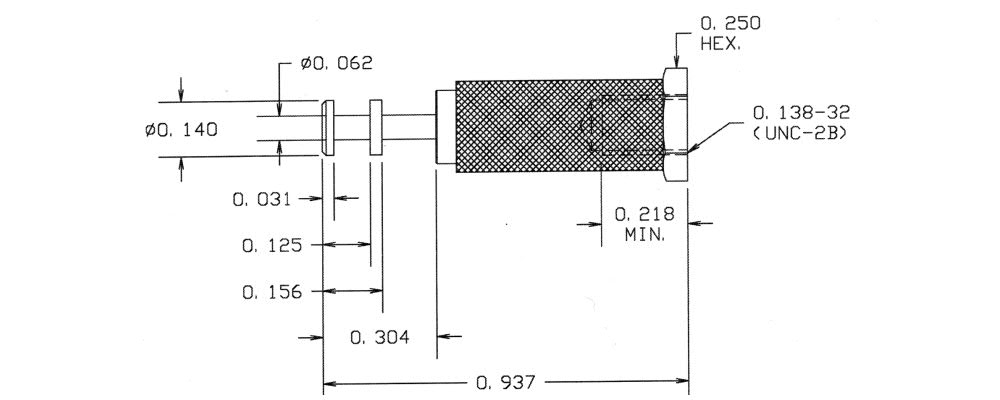

1127-07M-0512
1127-07M-0512
1127-07M-0512
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Red M55155/202H04 AA59126/202H04

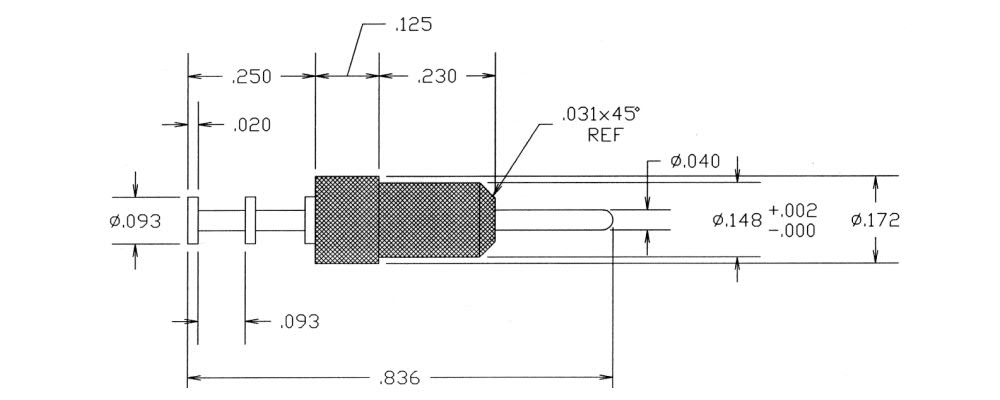

1133-02M-09515
1133-02M-09515
1133-02M-09515
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Green M55155/045I02 AA59126/045I02

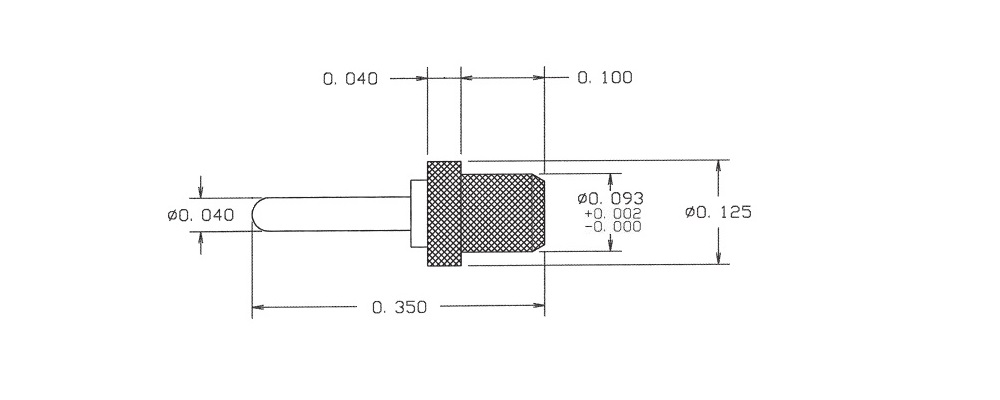

1100-07M-08818
1100-07M-08818
1100-07M-08818
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/088J02 AA59126/088J02

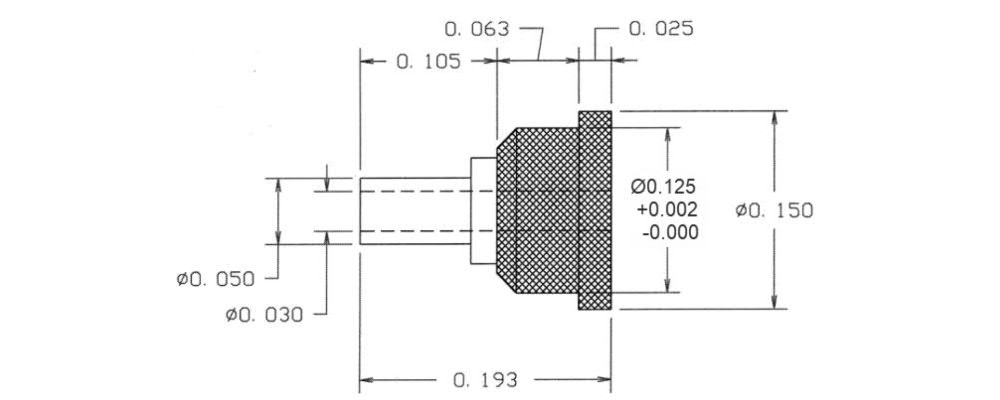

1114R-09M-09516
1114R-09M-09516
1114R-09M-09516
0.193" - Press Fit 1/32 0.113 PTFE Blue M55155/066I01 AA59126/066I01
1102-03M-08815Z
1102-03M-08815Z
1102-03M-08815Z
0.350" - Press Fit 1/16 0.086 PTFE Green M55155/075D03 AA59126/075D03
1110-16M-09513Z
1110-16M-09513Z
1110-16M-09513Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Orange M55155/033C01 AA59126/033C01
1125-43M-0513
1125-43M-0513
1125-43M-0513
0.750" - 4-40 Nut 1/8 0.120 PTFE Orange M55155/093H01 AA59126/093H01
1127-02M-09514Z
1127-02M-09514Z
1127-02M-09514Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Yellow M55155/194C02 AA59126/194C02
1127-07M-0512Z
1127-07M-0512Z
1127-07M-0512Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Red M55155/202B04 AA59126/202B04
1133-02M-09515Z
1133-02M-09515Z
1133-02M-09515Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Green M55155/045C02 AA59126/045C02
1100-07M-08818Z
1100-07M-08818Z
1100-07M-08818Z
0.350" - Press Fit 1/16 0.086 PTFE Gray M55155/088D02 AA59126/088D02
1114R-09M-09516Z
1114R-09M-09516Z
1114R-09M-09516Z
0.193" - Press Fit 1/32 0.113 PTFE Blue M55155/066C01 AA59126/066C01
1102-03M-08816
1102-03M-08816
1102-03M-08816
0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/076J03 AA59126/076J03
1110-16M-09514
1110-16M-09514
1110-16M-09514
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Yellow M55155/034I01 AA59126/034I01
1125-43M-0514
1125-43M-0514
1125-43M-0514
0.750" - 4-40 Nut 1/8 0.120 PTFE Yellow M55155/094H01 AA59126/094H01
1127-02M-09515
1127-02M-09515
1127-02M-09515
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Green M55155/195I02 AA59126/195I02
