Military
Insulated
Terminals

Filter

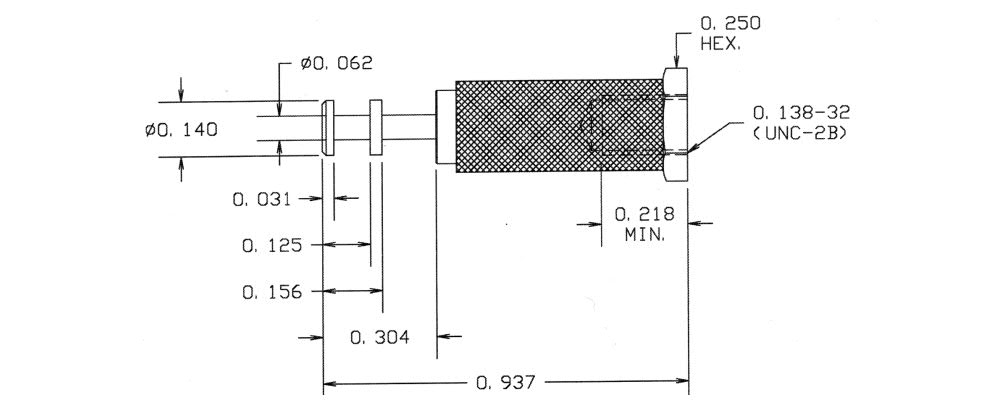

1127-07M-0510Z
1127-07M-0510Z
1127-07M-0510Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/200B04 AA59126/200B04

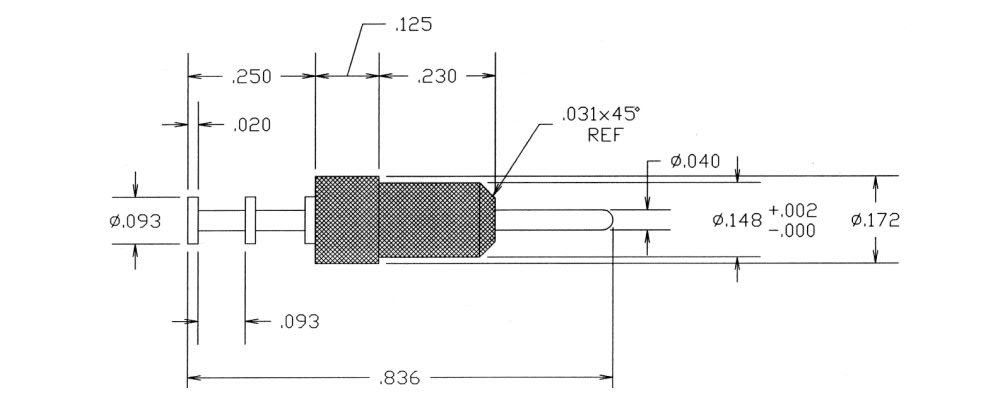

1133-02M-09513Z
1133-02M-09513Z
1133-02M-09513Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043C02 AA59126/043C02

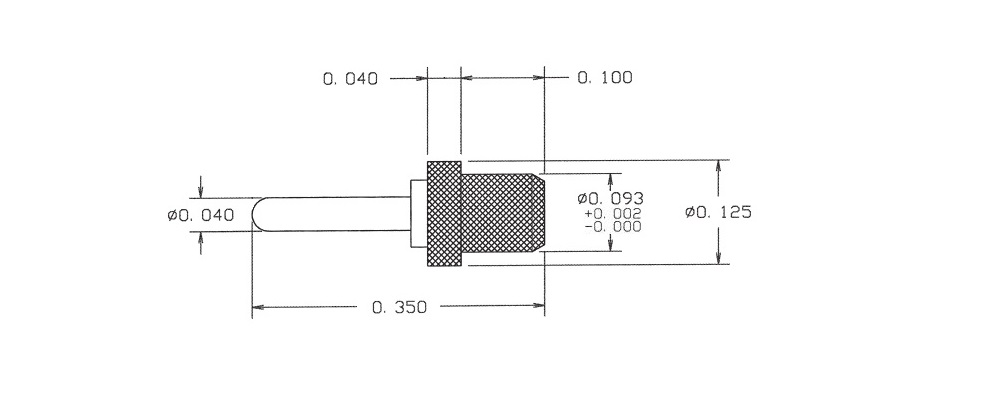

1100-07M-08816Z
1100-07M-08816Z
1100-07M-08816Z
0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/086D02 AA59126/086D02

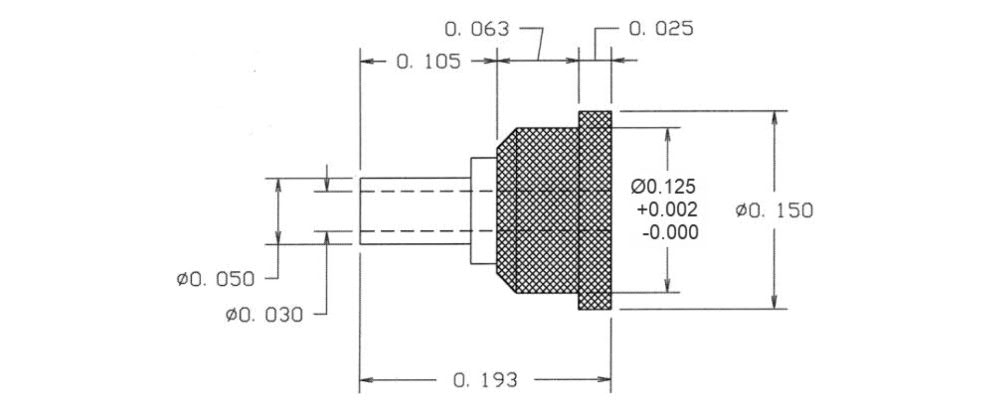

1114R-09M-09514Z
1114R-09M-09514Z
1114R-09M-09514Z
0.193" - Press Fit 1/32 0.113 PTFE Yellow M55155/064C01 AA59126/064C01

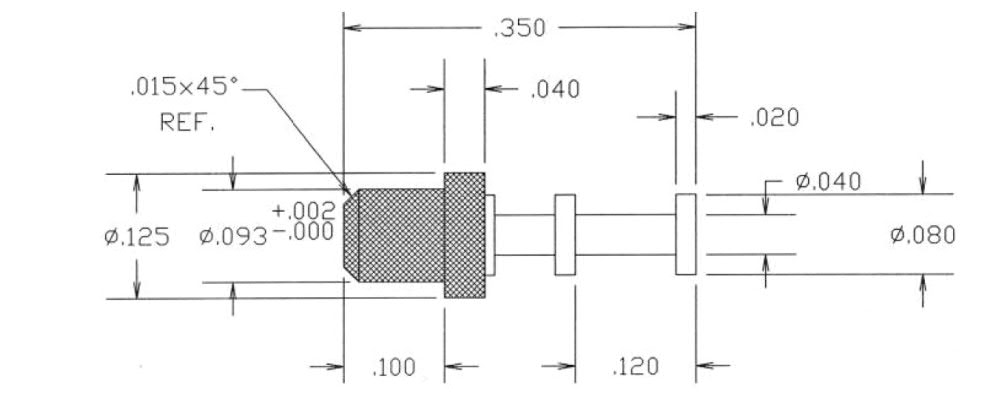

1102-03M-08814
1102-03M-08814
1102-03M-08814
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/074J03 AA59126/074J03

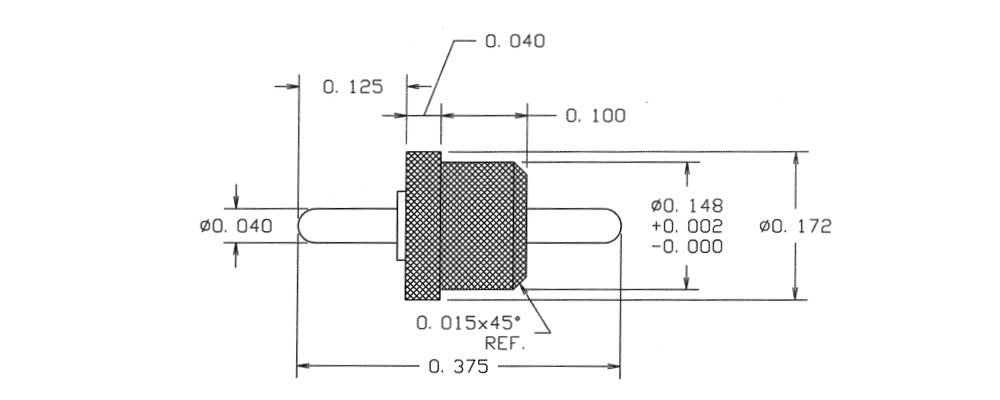

1110-16M-09512
1110-16M-09512
1110-16M-09512
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032I01 AA59126/032I01

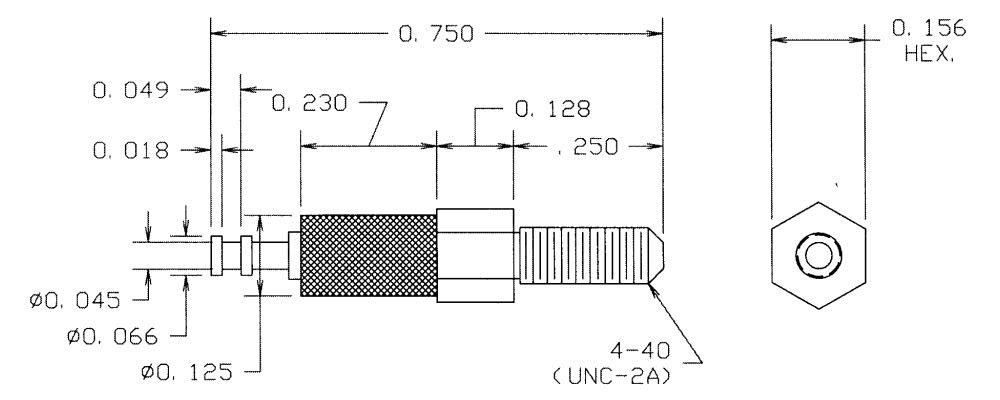

1125-43M-0510
1125-43M-0510
1125-43M-0510
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090H01 AA59126/090H01

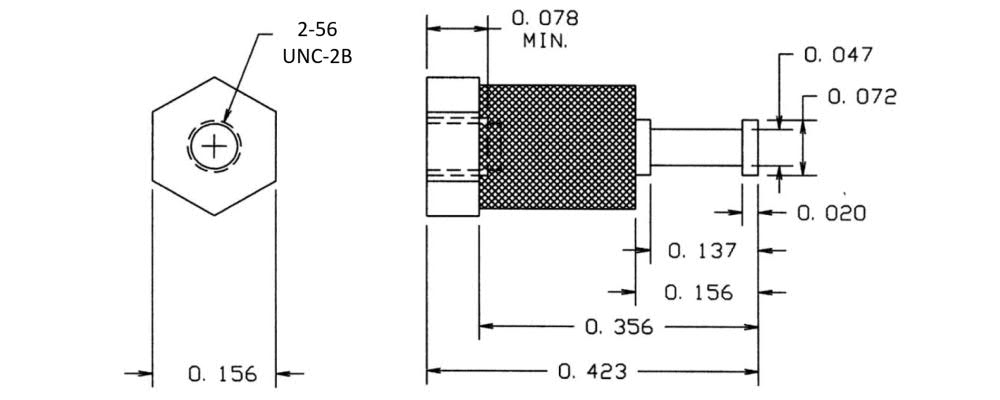

1127-02M-09513
1127-02M-09513
1127-02M-09513
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/193I02 AA59126/193I02
1127-07M-0511
1127-07M-0511
1127-07M-0511
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/201H04 AA59126/201H04
1133-02M-09514
1133-02M-09514
1133-02M-09514
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044I02 AA59126/044I02
1100-07M-08817
1100-07M-08817
1100-07M-08817
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087J02 AA59126/087J02
1114R-09M-09515
1114R-09M-09515
1114R-09M-09515
0.193" - Press Fit 1/32 0.113 PTFE Green M55155/065I01 AA59126/065I01
1102-03M-08814Z
1102-03M-08814Z
1102-03M-08814Z
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/074D03 AA59126/074D03
1110-16M-09512Z
1110-16M-09512Z
1110-16M-09512Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032C01 AA59126/032C01
1125-43M-0511
1125-43M-0511
1125-43M-0511
0.750" - 4-40 Nut 1/8 0.120 PTFE Brown M55155/091H01 AA59126/091H01
1127-02M-09513Z
1127-02M-09513Z
1127-02M-09513Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/193C02 AA59126/193C02
1127-07M-0511Z
1127-07M-0511Z
1127-07M-0511Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/201B04 AA59126/201B04
1133-02M-09514Z
1133-02M-09514Z
1133-02M-09514Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044C02 AA59126/044C02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
1114R-09M-09515Z
1114R-09M-09515Z
1114R-09M-09515Z
0.193" - Press Fit 1/32 0.113 PTFE Green M55155/065C01 AA59126/065C01
