Military
Insulated
Terminals

Filter

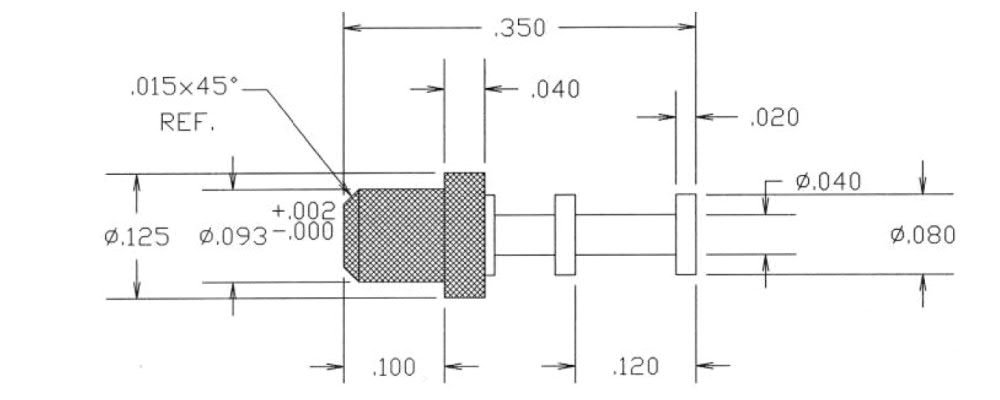

1102-03M-08810
1102-03M-08810
1102-03M-08810
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/070J03 AA59126/070J03

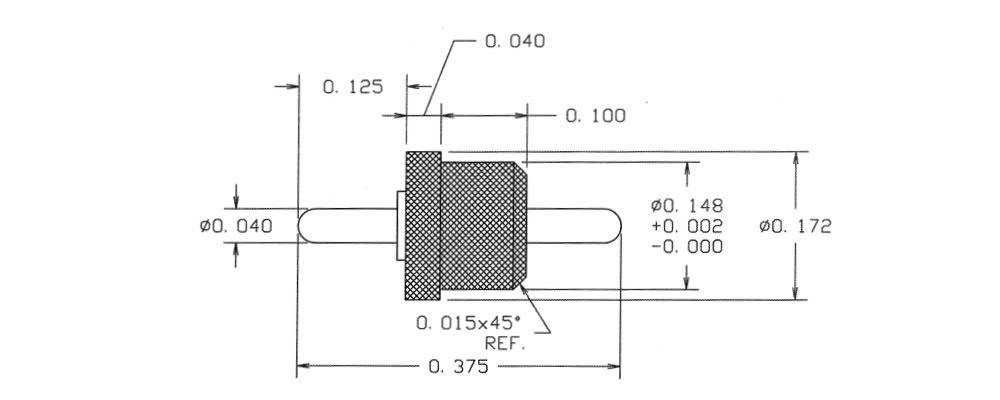

1110-16M-08818
1110-16M-08818
1110-16M-08818
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038J01 AA59126/038J01

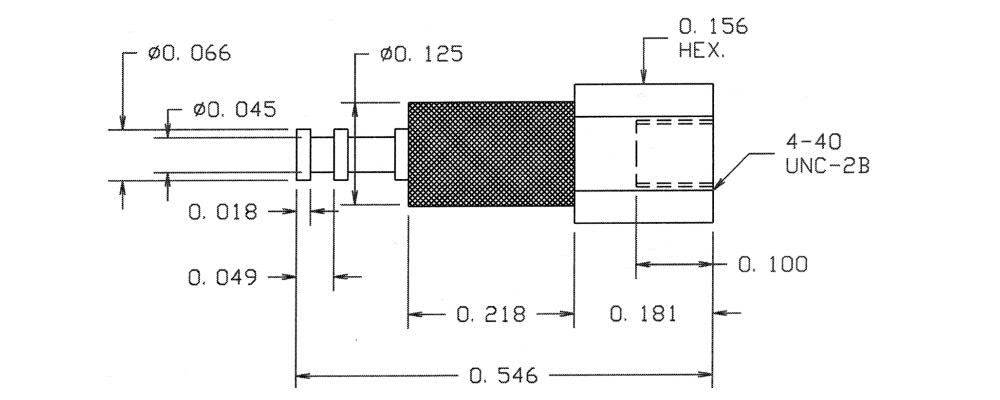

1125-42M-09516
1125-42M-09516
1125-42M-09516
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Blue M55155/106I01 AA59126/106I01

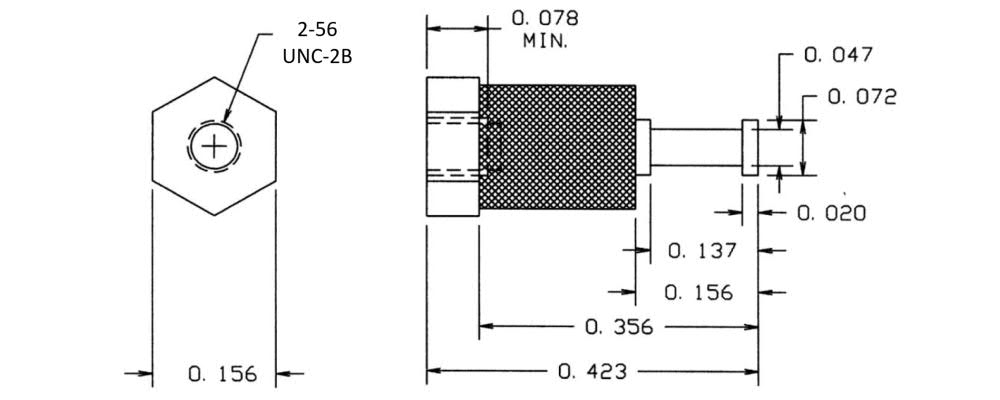

1127-02M-08819
1127-02M-08819
1127-02M-08819
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE White M55155/199J02 AA59126/199J02

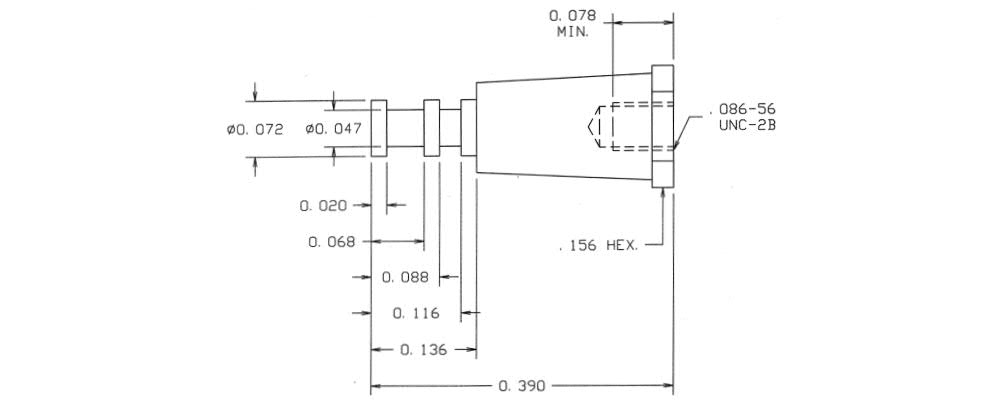

1127-06M-09517
1127-06M-09517
1127-06M-09517
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/207I03 AA59126/207I03

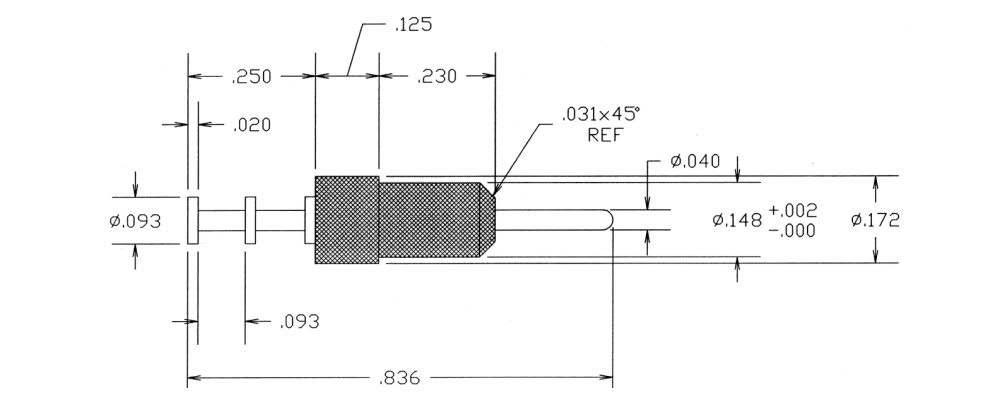

1133-02M-09510
1133-02M-09510
1133-02M-09510
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Black M55155/040I02 AA59126/040I02

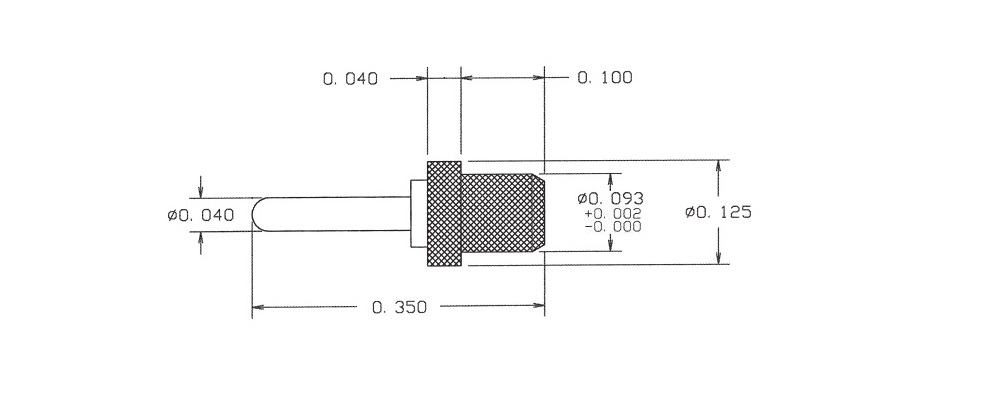

1100-07M-08813
1100-07M-08813
1100-07M-08813
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/083J02 AA59126/083J02

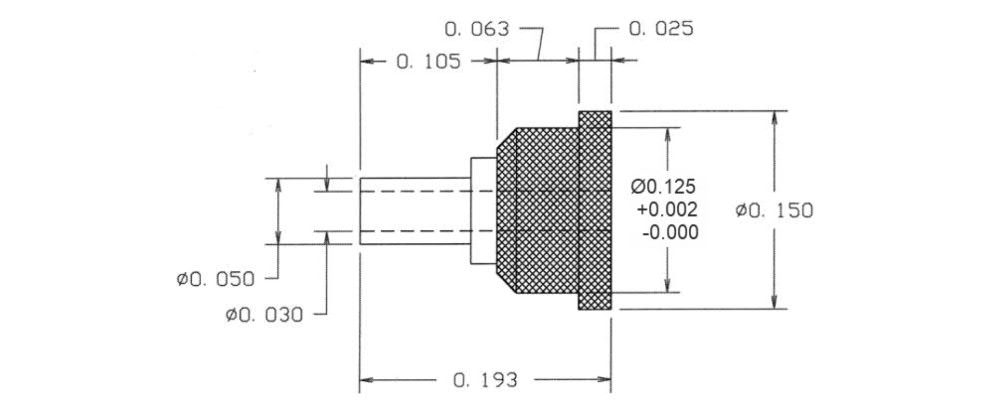

1114R-09M-09511
1114R-09M-09511
1114R-09M-09511
0.193" - Press Fit 1/32 0.113 PTFE Brown M55155/061I01 AA59126/061I01
1102-03M-08810Z
1102-03M-08810Z
1102-03M-08810Z
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/070D03 AA59126/070D03
1110-16M-08818Z
1110-16M-08818Z
1110-16M-08818Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038D01 AA59126/038D01
1125-42M-09516Z
1125-42M-09516Z
1125-42M-09516Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Blue M55155/106C01 AA59126/106C01
1127-02M-08819Z
1127-02M-08819Z
1127-02M-08819Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE White M55155/199D02 AA59126/199D02
1127-06M-09517Z
1127-06M-09517Z
1127-06M-09517Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/207C03 AA59126/207C03
1133-02M-09510Z
1133-02M-09510Z
1133-02M-09510Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Black M55155/040C02 AA59126/040C02
1100-07M-08813Z
1100-07M-08813Z
1100-07M-08813Z
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/083D02 AA59126/083D02
1114R-09M-09511Z
1114R-09M-09511Z
1114R-09M-09511Z
0.193" - Press Fit 1/32 0.113 PTFE Brown M55155/061C01 AA59126/061C01
1102-03M-08811
1102-03M-08811
1102-03M-08811
0.350" - Press Fit 1/16 0.086 PTFE Brown M55155/071J03 AA59126/071J03
1110-16M-08819
1110-16M-08819
1110-16M-08819
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039J01 AA59126/039J01
1125-42M-09517
1125-42M-09517
1125-42M-09517
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Violet M55155/107I01 AA59126/107I01
1127-02M-09510
1127-02M-09510
1127-02M-09510
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Black M55155/190I02 AA59126/190I02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
