Military
Insulated
Terminals

Filter
1102-03M-08812Z
1102-03M-08812Z
1102-03M-08812Z
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/072D03 AA59126/072D03
1110-16M-09510Z
1110-16M-09510Z
1110-16M-09510Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Black M55155/030C01 AA59126/030C01
1125-42M-09518Z
1125-42M-09518Z
1125-42M-09518Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108C01 AA59126/108C01
1127-02M-09511Z
1127-02M-09511Z
1127-02M-09511Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/191C02 AA59126/191C02
1127-06M-09519Z
1127-06M-09519Z
1127-06M-09519Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE White M55155/209C03 AA59126/209C03
1133-02M-09512Z
1133-02M-09512Z
1133-02M-09512Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042C02 AA59126/042C02
1100-07M-08815Z
1100-07M-08815Z
1100-07M-08815Z
0.350" - Press Fit 1/16 0.086 PTFE Green M55155/085D02 AA59126/085D02
1114R-09M-09513Z
1114R-09M-09513Z
1114R-09M-09513Z
0.193" - Press Fit 1/32 0.113 PTFE Orange M55155/063C01 AA59126/063C01
1102-03M-08813
1102-03M-08813
1102-03M-08813
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073J03 AA59126/073J03
1110-16M-09511
1110-16M-09511
1110-16M-09511
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031I01 AA59126/031I01
1125-42M-09519
1125-42M-09519
1125-42M-09519
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE White M55155/109I01 AA59126/109I01
1127-02M-09512
1127-02M-09512
1127-02M-09512
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Red M55155/192I02 AA59126/192I02

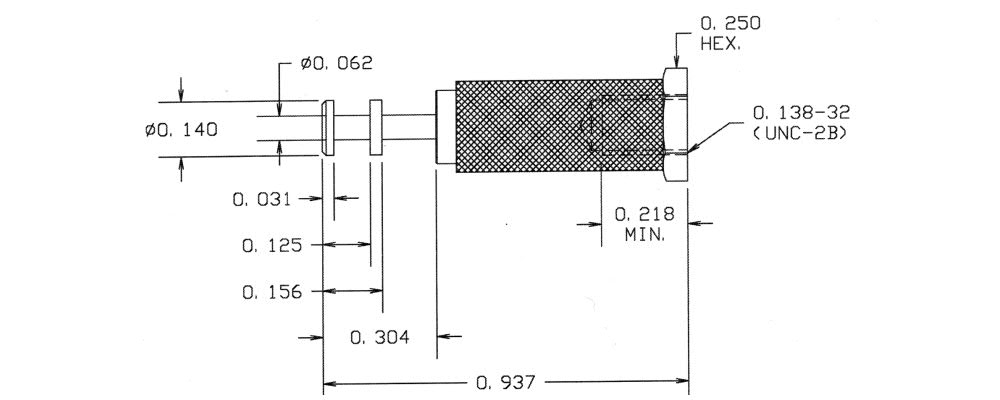

1127-07M-0510
1127-07M-0510
1127-07M-0510
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/200H04 AA59126/200H04
1133-02M-09513
1133-02M-09513
1133-02M-09513
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043I02 AA59126/043I02
1100-07M-08816
1100-07M-08816
1100-07M-08816
0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/086J02 AA59126/086J02
1114R-09M-09514
1114R-09M-09514
1114R-09M-09514
0.193" - Press Fit 1/32 0.113 PTFE Yellow M55155/064I01 AA59126/064I01
1102-03M-08813Z
1102-03M-08813Z
1102-03M-08813Z
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073D03 AA59126/073D03
1110-16M-09511Z
1110-16M-09511Z
1110-16M-09511Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031C01 AA59126/031C01
1125-42M-09519Z
1125-42M-09519Z
1125-42M-09519Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE White M55155/109C01 AA59126/109C01
1127-02M-09512Z
1127-02M-09512Z
1127-02M-09512Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Red M55155/192C02 AA59126/192C02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
