Military
Insulated
Terminals

Filter

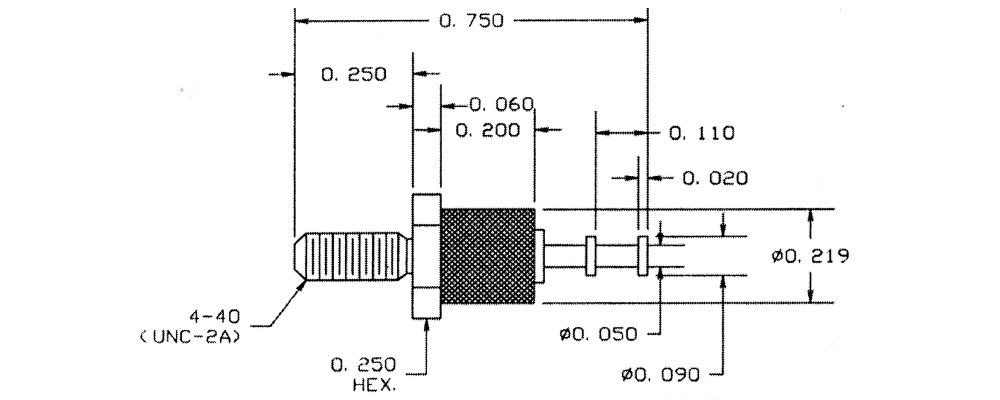

1169-37M-0517
1169-37M-0517
1169-37M-0517
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097H04 AA59126/097H04
1125-43M-08815
1125-43M-08815
1125-43M-08815
0.750" - 4-40 Nut 1/8 0.120 PTFE Green M55155/095J01 AA59126/095J01
1125-43M-0519
1125-43M-0519
1125-43M-0519
0.750" - 4-40 Nut 1/8 0.120 PTFE White M55155/099H01 AA59126/099H01
1169-38M-08818
1169-38M-08818
1169-38M-08818
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Gray M55155/098J05 AA59126/098J05
1169-38M-08814
1169-38M-08814
1169-38M-08814
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Yellow M55155/094J05 AA59126/094J05
1125-43M-08819
1125-43M-08819
1125-43M-08819
0.750" - 4-40 Nut 1/8 0.120 PTFE White M55155/099J01 AA59126/099J01
1125-45M-0514
1125-45M-0514
1125-45M-0514
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094H02 AA59126/094H02
1125-43M-08811
1125-43M-08811
1125-43M-08811
0.750" - 4-40 Nut 1/8 0.120 PTFE Brown M55155/091J01 AA59126/091J01
1125-43M-08810
1125-43M-08810
1125-43M-08810
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090J01 AA59126/090J01
1125-45M-0519
1125-45M-0519
1125-45M-0519
0.890" - 6-32 Nut 1/8 0.144 PTFE White M55155/099H02 AA59126/099H02
1169-36M-09511
1169-36M-09511
1169-36M-09511
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Brown M55155/091I03 AA59126/091I03
1169-36M-09514
1169-36M-09514
1169-36M-09514
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Yellow M55155/094I03 AA59126/094I03
1169-38M-09517Z
1169-38M-09517Z
1169-38M-09517Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Violet M55155/097C05 AA59126/097C05
1169-38M-09518Z
1169-38M-09518Z
1169-38M-09518Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Gray M55155/098C05 AA59126/098C05
1125-45M-08818
1125-45M-08818
1125-45M-08818
0.890" - 6-32 Nut 1/8 0.144 PTFE Gray M55155/098J02 AA59126/098J02
1169-37M-0519
1169-37M-0519
1169-37M-0519
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE White M55155/099H04 AA59126/099H04
1169-38M-09516Z
1169-38M-09516Z
1169-38M-09516Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Blue M55155/096C05 AA59126/096C05
1100-07M-09513
1100-07M-09513
1100-07M-09513
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/083I02 AA59126/083I02
1169-37M-0513
1169-37M-0513
1169-37M-0513
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093H04 AA59126/093H04
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02
