Military
Insulated
Terminals

Filter
1127-05M-09513
1127-05M-09513
1127-05M-09513
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203I02 AA59126/203I02
1133-01M-08816
1133-01M-08816
1133-01M-08816
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046J01 AA59126/046J01
1169-37M-09514
1169-37M-09514
1169-37M-09514
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Yellow M55155/094I04 AA59126/094I04
1114-23M-08817
1114-23M-08817
1114-23M-08817
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/057J03 AA59126/057J03
1127-69M-09510Z
1127-69M-09510Z
1127-69M-09510Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180C02 AA59126/180C02

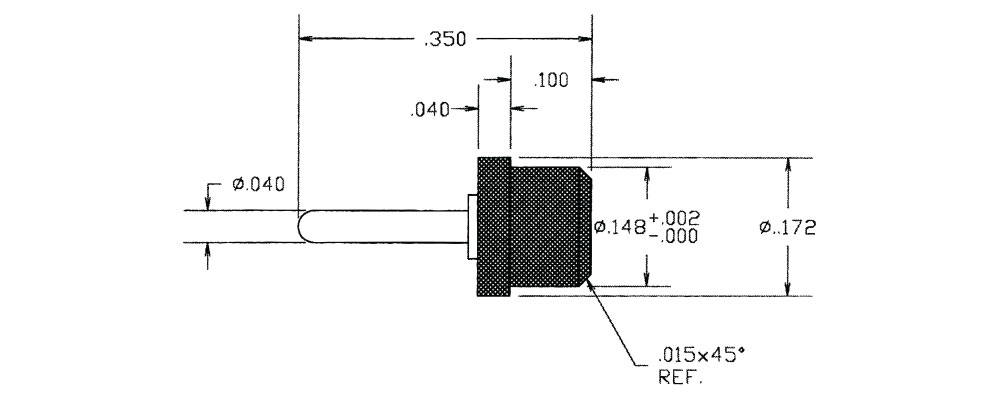

1100-28M-0516Z
1100-28M-0516Z
1100-28M-0516Z
0.350" - Press Fit 1/16 0.136 PTFE Blue M55155/086B01 AA59126/086B01
1110-05M-08814Z
1110-05M-08814Z
1110-05M-08814Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034D04 AA59126/034D04
1110-75M-09512Z
1110-75M-09512Z
1110-75M-09512Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032C05 AA59126/032C05
1127-01M-08815Z
1127-01M-08815Z
1127-01M-08815Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/195D01 AA59126/195D01
1127-05M-09513Z
1127-05M-09513Z
1127-05M-09513Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/203C02 AA59126/203C02
1133-01M-08816Z
1133-01M-08816Z
1133-01M-08816Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046D01 AA59126/046D01
1169-37M-09514Z
1169-37M-09514Z
1169-37M-09514Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Yellow M55155/094C04 AA59126/094C04
1114-23M-08817Z
1114-23M-08817Z
1114-23M-08817Z
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/057D03 AA59126/057D03
1127-69M-09511Z
1127-69M-09511Z
1127-69M-09511Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Brown M55155/181C02 AA59126/181C02
1100-28M-0517
1100-28M-0517
1100-28M-0517
0.350" - Press Fit 1/16 0.136 PTFE Violet M55155/087H01 AA59126/087H01
1110-05M-08815
1110-05M-08815
1110-05M-08815
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035J04 AA59126/035J04
1110-75M-09513
1110-75M-09513
1110-75M-09513
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Orange M55155/033I05 AA59126/033I05
1127-01M-08816
1127-01M-08816
1127-01M-08816
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/196J01 AA59126/196J01
1127-05M-09514
1127-05M-09514
1127-05M-09514
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204I02 AA59126/204I02
1133-01M-08817
1133-01M-08817
1133-01M-08817
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Violet M55155/047J01 AA59126/047J01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
