Military
Insulated
Terminals

Filter
1110-75M-09511
1110-75M-09511
1110-75M-09511
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031I05 AA59126/031I05
1127-01M-08814
1127-01M-08814
1127-01M-08814
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/194J01 AA59126/194J01
1127-05M-09512
1127-05M-09512
1127-05M-09512
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202I02 AA59126/202I02
1133-01M-08815
1133-01M-08815
1133-01M-08815
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045J01 AA59126/045J01
1169-37M-09513
1169-37M-09513
1169-37M-09513
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093I04 AA59126/093I04
1114-23M-08816
1114-23M-08816
1114-23M-08816
0.367" - Press Fit 1/16 0.136 PTFE Blue M55155/056J03 AA59126/056J03
1127-69M-08818Z
1127-69M-08818Z
1127-69M-08818Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188D02 AA59126/188D02
1100-28M-0515Z
1100-28M-0515Z
1100-28M-0515Z

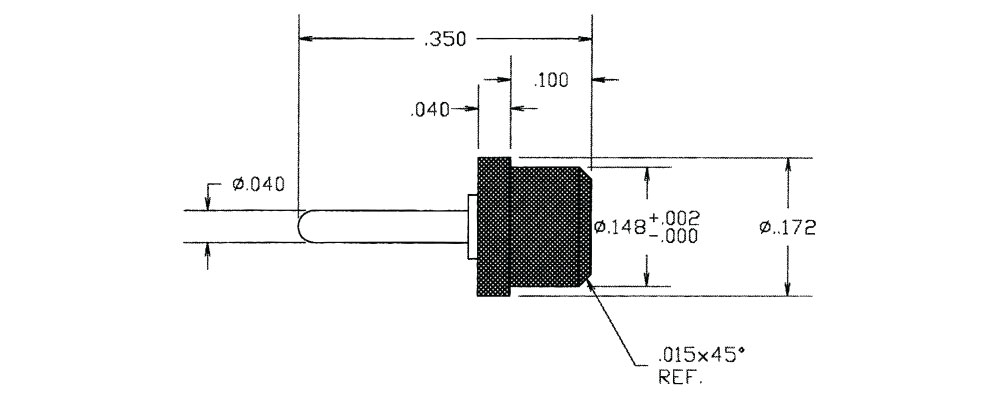

0.350" - Press Fit 1/16 0.136 PTFE Green M55155/085B01 AA59126/085B01
1110-05M-08813Z
1110-05M-08813Z
1110-05M-08813Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Orange M55155/033D04 AA59126/033D04
1110-75M-09511Z
1110-75M-09511Z
1110-75M-09511Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031C05 AA59126/031C05
1127-01M-08814Z
1127-01M-08814Z
1127-01M-08814Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/194D01 AA59126/194D01
1127-05M-09512Z
1127-05M-09512Z
1127-05M-09512Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202C02 AA59126/202C02
1133-01M-08815Z
1133-01M-08815Z
1133-01M-08815Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045D01 AA59126/045D01
1169-37M-09513Z
1169-37M-09513Z
1169-37M-09513Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093C04 AA59126/093C04
1114-23M-08816Z
1114-23M-08816Z
1114-23M-08816Z
0.367" - Press Fit 1/16 0.136 PTFE Blue M55155/056D03 AA59126/056D03
1127-69M-08819Z
1127-69M-08819Z
1127-69M-08819Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189D02 AA59126/189D02
1100-28M-0516
1100-28M-0516
1100-28M-0516
0.350" - Press Fit 1/16 0.136 PTFE Blue M55155/086H01 AA59126/086H01
1110-05M-08814
1110-05M-08814
1110-05M-08814
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034J04 AA59126/034J04
1110-75M-09512
1110-75M-09512
1110-75M-09512
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032I05 AA59126/032I05
1127-01M-08815
1127-01M-08815
1127-01M-08815
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/195J01 AA59126/195J01
