Military
Insulated
Terminals

Filter
1100-28M-0514
1100-28M-0514
1100-28M-0514
0.350" - Press Fit 1/16 0.136 PTFE Yellow M55155/084H01 AA59126/084H01
1110-05M-08812
1110-05M-08812
1110-05M-08812
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032J04 AA59126/032J04

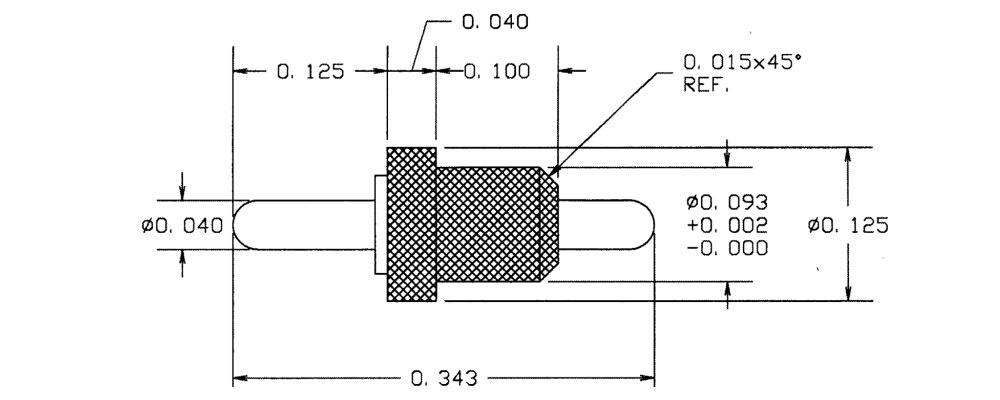

1110-75M-09510
1110-75M-09510
1110-75M-09510
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Black M55155/030I05 AA59126/030I05
1127-01M-08813
1127-01M-08813
1127-01M-08813
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/193J01 AA59126/193J01
1127-05M-09511
1127-05M-09511
1127-05M-09511
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201I02 AA59126/201I02

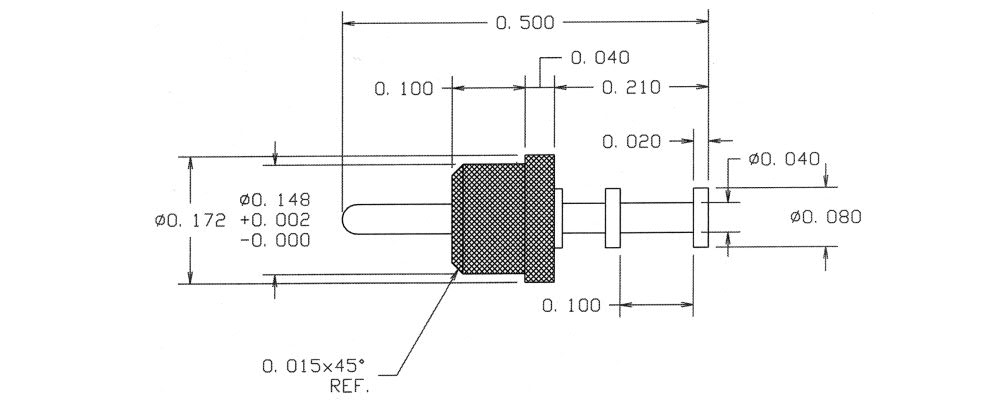

1133-01M-08814
1133-01M-08814
1133-01M-08814
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Yellow M55155/044J01 AA59126/044J01
1169-37M-09512
1169-37M-09512
1169-37M-09512
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092I04 AA59126/092I04
1114-23M-08815
1114-23M-08815
1114-23M-08815
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/055J03 AA59126/055J03
1127-69M-08816Z
1127-69M-08816Z
1127-69M-08816Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186D02 AA59126/186D02
1100-28M-0514Z
1100-28M-0514Z
1100-28M-0514Z
0.350" - Press Fit 1/16 0.136 PTFE Yellow M55155/084B01 AA59126/084B01
1110-05M-08812Z
1110-05M-08812Z
1110-05M-08812Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Red M55155/032D04 AA59126/032D04
1110-75M-09510Z
1110-75M-09510Z
1110-75M-09510Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Black M55155/030C05 AA59126/030C05
1127-01M-08813Z
1127-01M-08813Z
1127-01M-08813Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Orange M55155/193D01 AA59126/193D01
1127-05M-09511Z
1127-05M-09511Z
1127-05M-09511Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201C02 AA59126/201C02
1133-01M-08814Z
1133-01M-08814Z
1133-01M-08814Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Yellow M55155/044D01 AA59126/044D01
1169-37M-09512Z
1169-37M-09512Z
1169-37M-09512Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092C04 AA59126/092C04
1114-23M-08815Z
1114-23M-08815Z
1114-23M-08815Z
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/055D03 AA59126/055D03
1127-69M-08817Z
1127-69M-08817Z
1127-69M-08817Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187D02 AA59126/187D02
1100-28M-0515
1100-28M-0515
1100-28M-0515
0.350" - Press Fit 1/16 0.136 PTFE Green M55155/085H01 AA59126/085H01
1110-05M-08813
1110-05M-08813
1110-05M-08813
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Orange M55155/033J04 AA59126/033J04
