Military
Insulated
Terminals

Filter

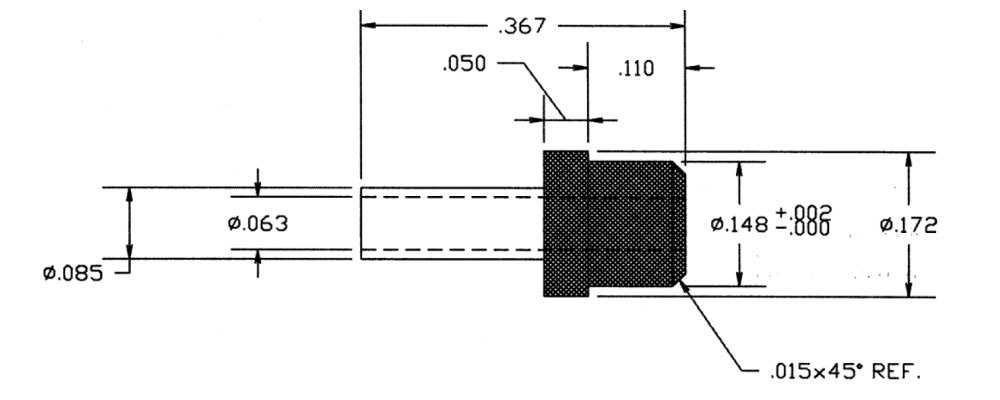

1114-23M-08813Z
1114-23M-08813Z
1114-23M-08813Z
0.367" - Press Fit 1/16 0.136 PTFE Orange M55155/053D03 AA59126/053D03

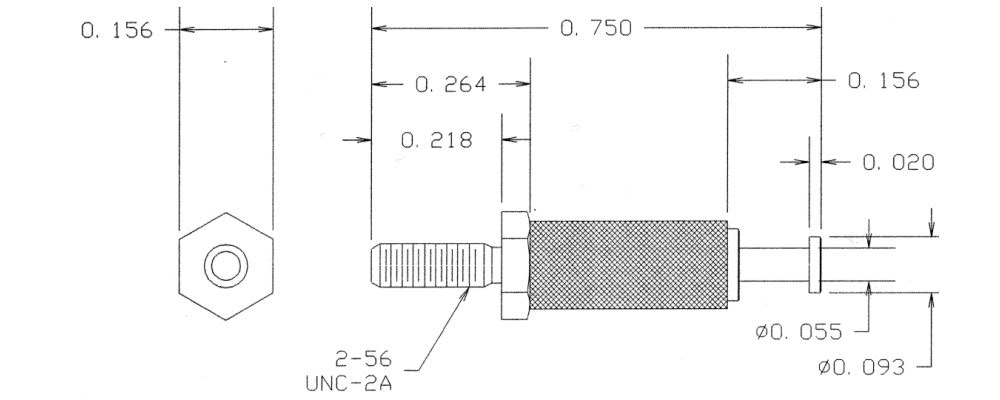

1127-69M-08813Z
1127-69M-08813Z
1127-69M-08813Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Orange M55155/183D02 AA59126/183D02
1100-28M-0513
1100-28M-0513
1100-28M-0513
0.350" - Press Fit 1/16 0.136 PTFE Orange M55155/083H01 AA59126/083H01
1110-05M-08811
1110-05M-08811
1110-05M-08811
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031J04 AA59126/031J04

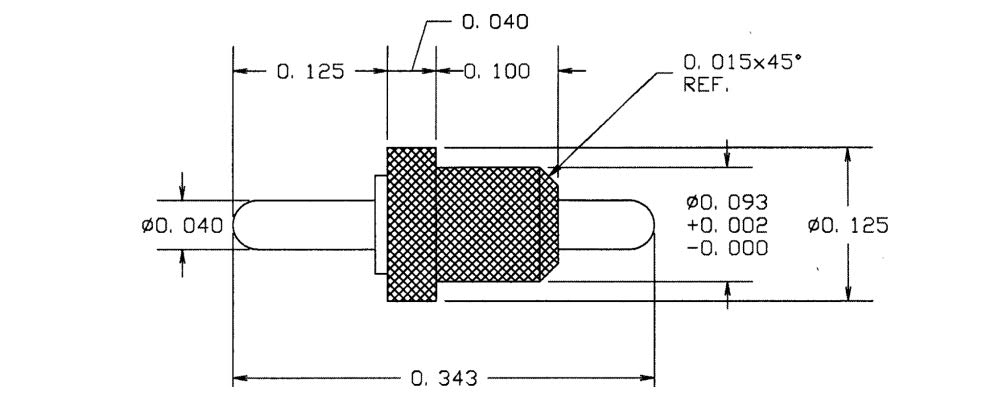

1110-75M-08819
1110-75M-08819
1110-75M-08819
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE White M55155/039J05 AA59126/039J05
1127-01M-08812
1127-01M-08812
1127-01M-08812
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/192J01 AA59126/192J01

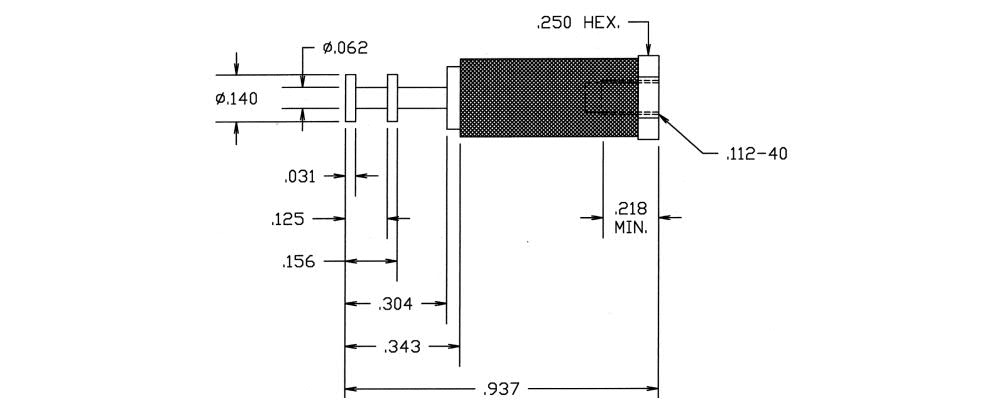

1127-05M-09510
1127-05M-09510
1127-05M-09510
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200I02 AA59126/200I02

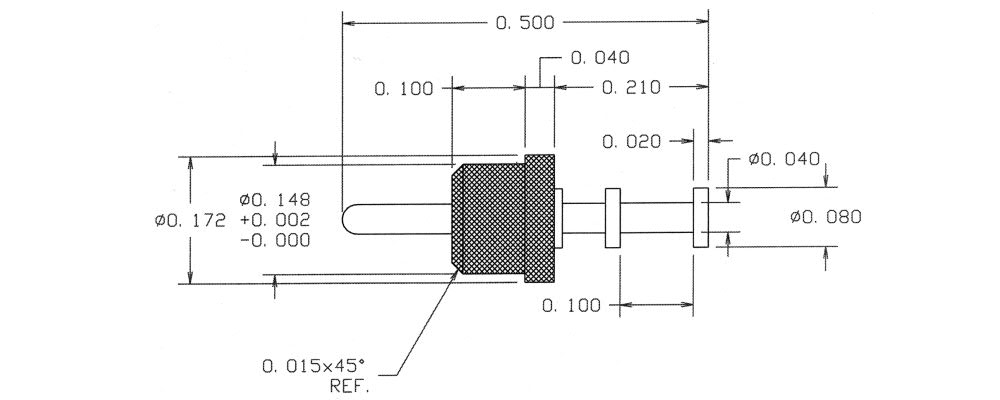

1133-01M-08813
1133-01M-08813
1133-01M-08813
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043J01 AA59126/043J01

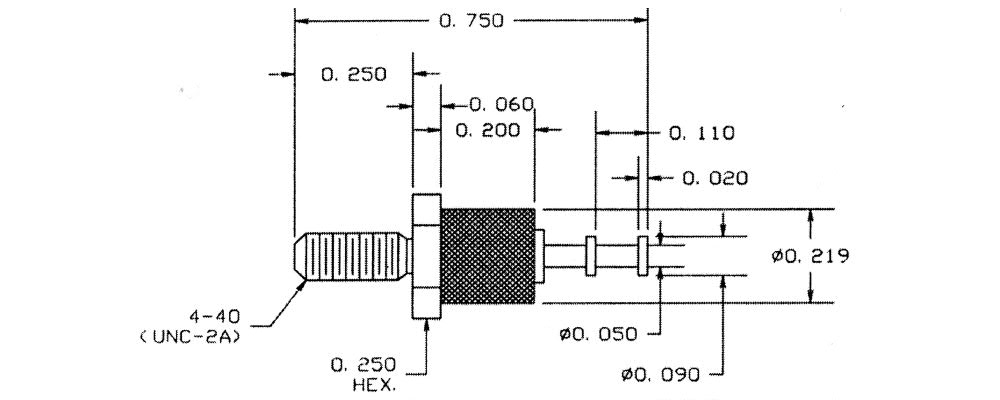

1169-37M-09511
1169-37M-09511
1169-37M-09511
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Brown M55155/091I04 AA59126/091I04
1114-23M-08814
1114-23M-08814
1114-23M-08814
0.367" - Press Fit 1/16 0.136 PTFE Yellow M55155/054J03 AA59126/054J03
1127-69M-08814Z
1127-69M-08814Z
1127-69M-08814Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Yellow M55155/184D02 AA59126/184D02
1100-28M-0513Z
1100-28M-0513Z
1100-28M-0513Z
0.350" - Press Fit 1/16 0.136 PTFE Orange M55155/083B01 AA59126/083B01
1110-05M-08811Z
1110-05M-08811Z
1110-05M-08811Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031D04 AA59126/031D04
1110-75M-08819Z
1110-75M-08819Z
1110-75M-08819Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE White M55155/039D05 AA59126/039D05
1127-01M-08812Z
1127-01M-08812Z
1127-01M-08812Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/192D01 AA59126/192D01
1127-05M-09510Z
1127-05M-09510Z
1127-05M-09510Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200C02 AA59126/200C02
1133-01M-08813Z
1133-01M-08813Z
1133-01M-08813Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Orange M55155/043D01 AA59126/043D01
1169-37M-09511Z
1169-37M-09511Z
1169-37M-09511Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Brown M55155/091C04 AA59126/091C04
1114-23M-08814Z
1114-23M-08814Z
1114-23M-08814Z
0.367" - Press Fit 1/16 0.136 PTFE Yellow M55155/054D03 AA59126/054D03
1127-69M-08815Z
1127-69M-08815Z
1127-69M-08815Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Green M55155/185D02 AA59126/185D02
