Military
Insulated
Terminals

Filter
1127-01M-0519Z
1127-01M-0519Z
1127-01M-0519Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE White M55155/199B01 AA59126/199B01
1127-05M-08817Z
1127-05M-08817Z
1127-05M-08817Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207D02 AA59126/207D02
1133-01M-08810Z
1133-01M-08810Z
1133-01M-08810Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Black M55155/040D01 AA59126/040D01
1169-37M-08818Z
1169-37M-08818Z
1169-37M-08818Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Gray M55155/098D04 AA59126/098D04
1114-23M-08811Z
1114-23M-08811Z
1114-23M-08811Z
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/051D03 AA59126/051D03
1127-69M-0519Z
1127-69M-0519Z
1127-69M-0519Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189B02 AA59126/189B02

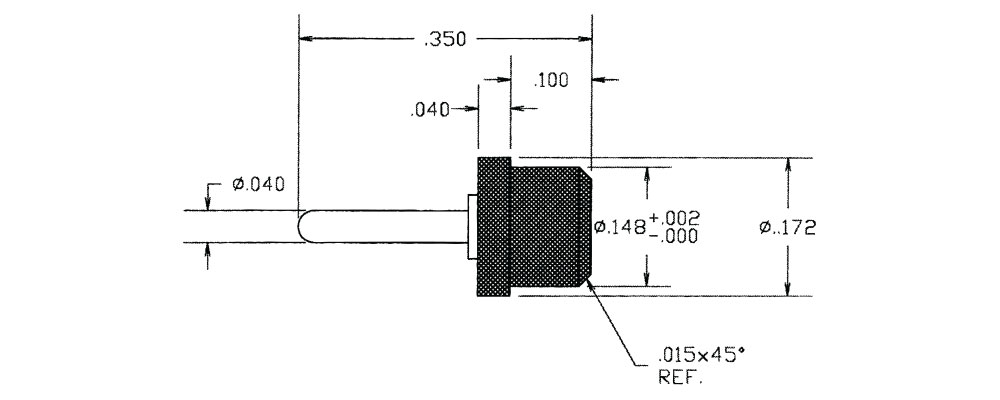

1100-28M-0511
1100-28M-0511
1100-28M-0511
0.350" - Press Fit 1/16 0.136 PTFE Brown M55155/081H01 AA59126/081H01
1110-05M-0519
1110-05M-0519
1110-05M-0519
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE White M55155/039H04 AA59126/039H04
1110-75M-08817
1110-75M-08817
1110-75M-08817
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037J05 AA59126/037J05
1127-01M-08810
1127-01M-08810
1127-01M-08810
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/190J01 AA59126/190J01
1127-05M-08818
1127-05M-08818
1127-05M-08818
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/208J02 AA59126/208J02
1133-01M-08811
1133-01M-08811
1133-01M-08811
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Brown M55155/041J01 AA59126/041J01
1169-37M-08819
1169-37M-08819
1169-37M-08819
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE White M55155/099J04 AA59126/099J04
1114-23M-08812
1114-23M-08812
1114-23M-08812
0.367" - Press Fit 1/16 0.136 PTFE Red M55155/052J03 AA59126/052J03
1127-69M-08810Z
1127-69M-08810Z
1127-69M-08810Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180D02 AA59126/180D02
1100-28M-0511Z
1100-28M-0511Z
1100-28M-0511Z
0.350" - Press Fit 1/16 0.136 PTFE Brown M55155/081B01 AA59126/081B01
1110-05M-0519Z
1110-05M-0519Z
1110-05M-0519Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE White M55155/039B04 AA59126/039B04
1110-75M-08817Z
1110-75M-08817Z
1110-75M-08817Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037D05 AA59126/037D05
1127-01M-08810Z
1127-01M-08810Z
1127-01M-08810Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/190D01 AA59126/190D01
1127-05M-08818Z
1127-05M-08818Z
1127-05M-08818Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/208D02 AA59126/208D02
