Military
Insulated
Terminals

Filter
1110-05M-08817Z
1110-05M-08817Z
1110-05M-08817Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037D04 AA59126/037D04
1110-75M-09515Z
1110-75M-09515Z
1110-75M-09515Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035C05 AA59126/035C05
1127-01M-08818Z
1127-01M-08818Z
1127-01M-08818Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/198D01 AA59126/198D01

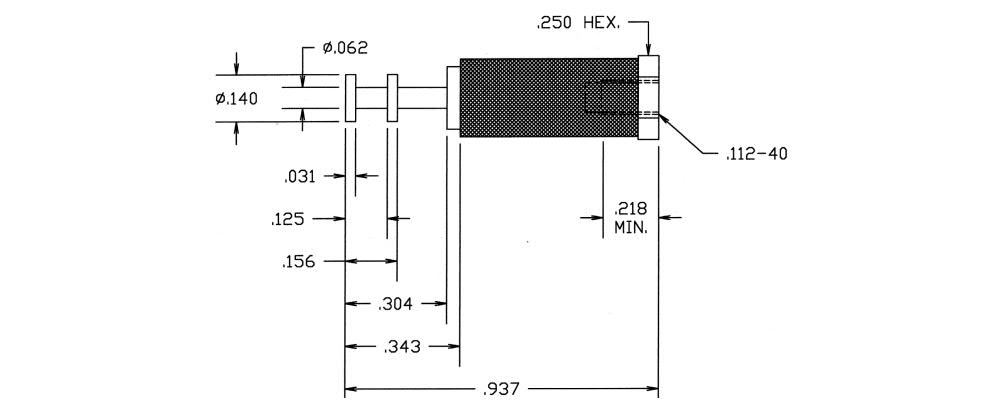

1127-05M-09516Z
1127-05M-09516Z
1127-05M-09516Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206C02 AA59126/206C02

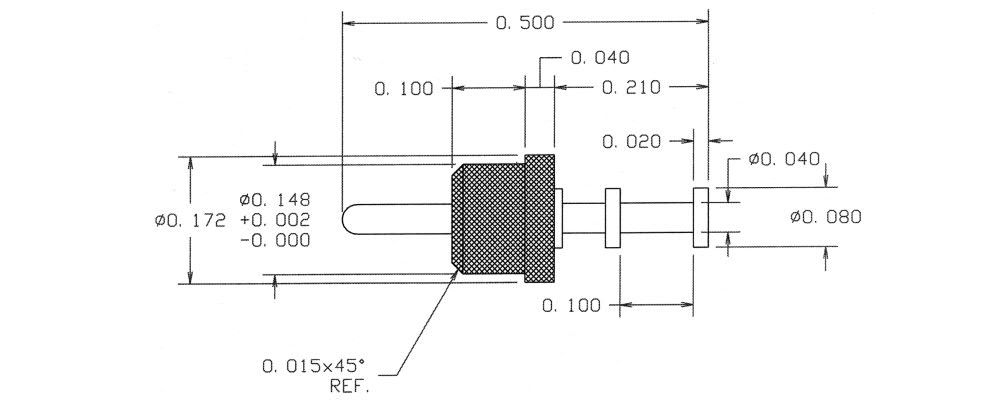

1133-01M-08819Z
1133-01M-08819Z
1133-01M-08819Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049D01 AA59126/049D01

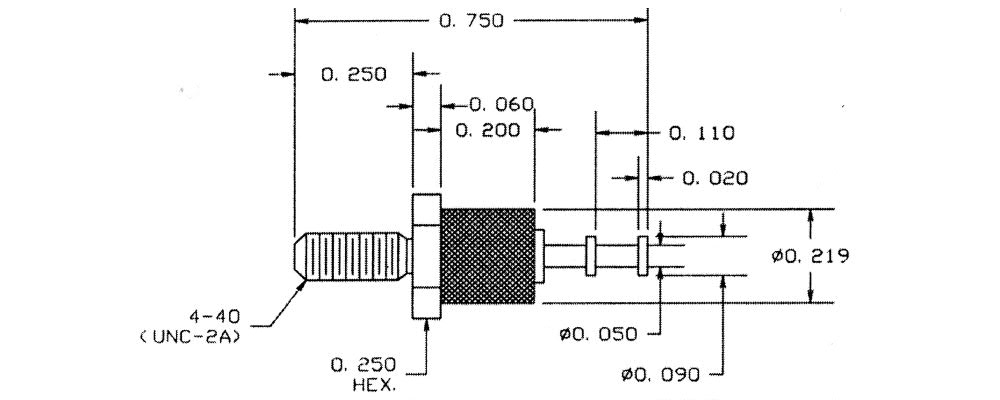

1169-37M-09517Z
1169-37M-09517Z
1169-37M-09517Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097C04 AA59126/097C04

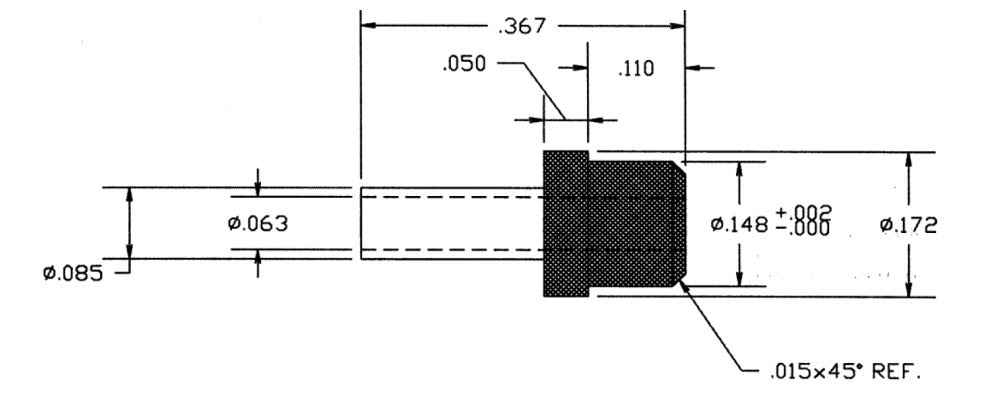

1114-23M-09510Z
1114-23M-09510Z
1114-23M-09510Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/050C03 AA59126/050C03

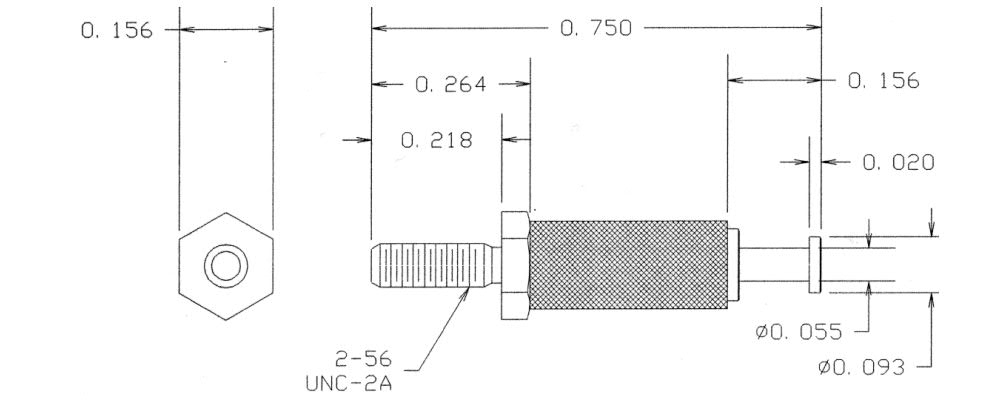

1127-69M-09517Z
1127-69M-09517Z
1127-69M-09517Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187C02 AA59126/187C02
1100-28M-08810
1100-28M-08810
1100-28M-08810
0.350" - Press Fit 1/16 0.136 PTFE Black M55155/080J01 AA59126/080J01
1110-05M-08818
1110-05M-08818
1110-05M-08818
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038J04 AA59126/038J04
1110-75M-09516
1110-75M-09516
1110-75M-09516
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036I05 AA59126/036I05
1127-01M-08819
1127-01M-08819
1127-01M-08819
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE White M55155/199J01 AA59126/199J01
1127-05M-09517
1127-05M-09517
1127-05M-09517
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/207I02 AA59126/207I02
1133-01M-09510
1133-01M-09510
1133-01M-09510
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Black M55155/040I01 AA59126/040I01
1169-37M-09518
1169-37M-09518
1169-37M-09518
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Gray M55155/098I04 AA59126/098I04
1114-23M-09511
1114-23M-09511
1114-23M-09511
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/051I03 AA59126/051I03
1127-69M-09518Z
1127-69M-09518Z
1127-69M-09518Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188C02 AA59126/188C02
1100-28M-08810Z
1100-28M-08810Z
1100-28M-08810Z
0.350" - Press Fit 1/16 0.136 PTFE Black M55155/080D01 AA59126/080D01
1110-05M-08818Z
1110-05M-08818Z
1110-05M-08818Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Gray M55155/038D04 AA59126/038D04
1110-75M-09516Z
1110-75M-09516Z
1110-75M-09516Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036C05 AA59126/036C05
