Military
Insulated
Terminals

Filter
1127-69M-09514Z
1127-69M-09514Z
1127-69M-09514Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Yellow M55155/184C02 AA59126/184C02

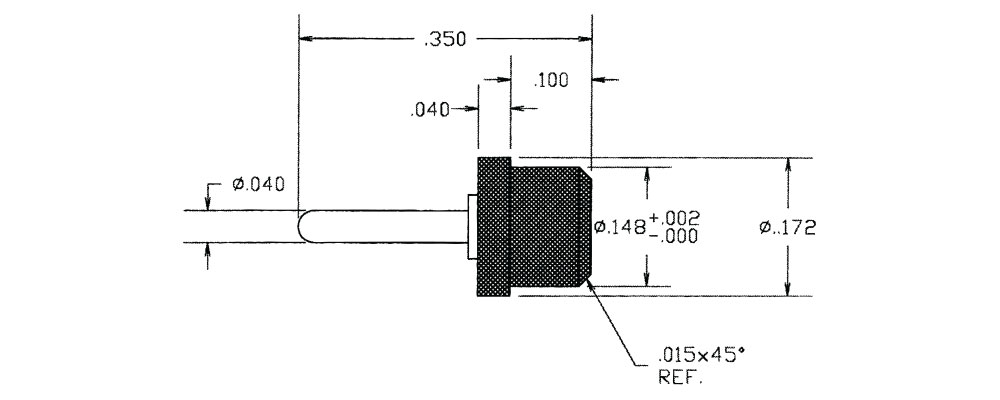

1100-28M-0518Z
1100-28M-0518Z
1100-28M-0518Z
0.350" - Press Fit 1/16 0.136 PTFE Gray M55155/088B01 AA59126/088B01
1110-05M-08816Z
1110-05M-08816Z
1110-05M-08816Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036D04 AA59126/036D04
1110-75M-09514Z
1110-75M-09514Z
1110-75M-09514Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034C05 AA59126/034C05
1127-01M-08817Z
1127-01M-08817Z
1127-01M-08817Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/197D01 AA59126/197D01
1127-05M-09515Z
1127-05M-09515Z
1127-05M-09515Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/205C02 AA59126/205C02
1133-01M-08818Z
1133-01M-08818Z
1133-01M-08818Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Gray M55155/048D01 AA59126/048D01
1169-37M-09516Z
1169-37M-09516Z
1169-37M-09516Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Blue M55155/096C04 AA59126/096C04
1114-23M-08819Z
1114-23M-08819Z
1114-23M-08819Z
0.367" - Press Fit 1/16 0.136 PTFE White M55155/059D03 AA59126/059D03
1127-69M-09515Z
1127-69M-09515Z
1127-69M-09515Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Green M55155/185C02 AA59126/185C02
1100-28M-0519
1100-28M-0519
1100-28M-0519
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089H01 AA59126/089H01
1110-05M-08817
1110-05M-08817
1110-05M-08817
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037J04 AA59126/037J04
1110-75M-09515
1110-75M-09515
1110-75M-09515
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035I05 AA59126/035I05
1127-01M-08818
1127-01M-08818
1127-01M-08818
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/198J01 AA59126/198J01
1127-05M-09516
1127-05M-09516
1127-05M-09516
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206I02 AA59126/206I02
1133-01M-08819
1133-01M-08819
1133-01M-08819
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049J01 AA59126/049J01
1169-37M-09517
1169-37M-09517
1169-37M-09517
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097I04 AA59126/097I04
1114-23M-09510
1114-23M-09510
1114-23M-09510
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/050I03 AA59126/050I03
1127-69M-09516Z
1127-69M-09516Z
1127-69M-09516Z
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186C02 AA59126/186C02
1100-28M-0519Z
1100-28M-0519Z
1100-28M-0519Z
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089B01 AA59126/089B01
