Military
Insulated
Terminals

Filter
1127-68M-0518
1127-68M-0518
1127-68M-0518
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188H01 AA59126/188H01
1169-36M-0511
1169-36M-0511
1169-36M-0511
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Brown M55155/091H03 AA59126/091H03

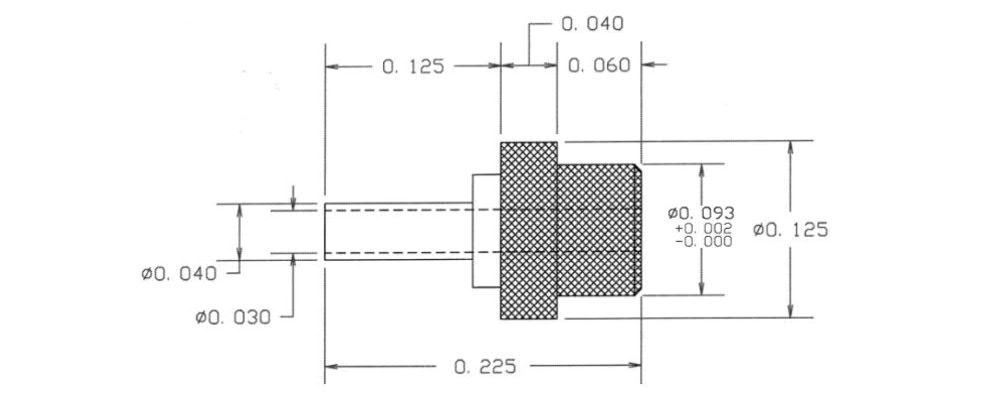

1114-04M-09514
1114-04M-09514
1114-04M-09514
0.225" - Press Fit 1/32 0.086 PTFE Yellow M55155/054I01 AA59126/054I01
1117-01M-0512
1117-01M-0512
1117-01M-0512
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Red M55155/022H01 AA59126/022H01

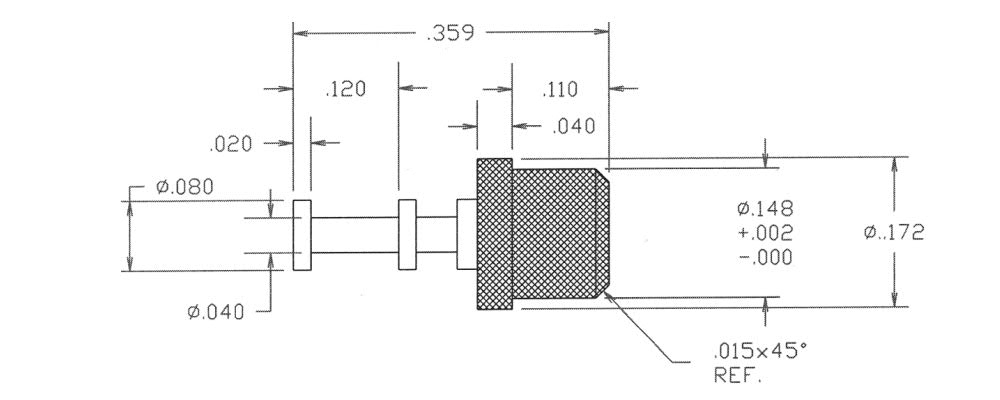

1102-14M-09511Z
1102-14M-09511Z
1102-14M-09511Z
0.359" - Press Fit 1/16 0.136 PTFE Brown M55155/071C01 AA59126/071C01

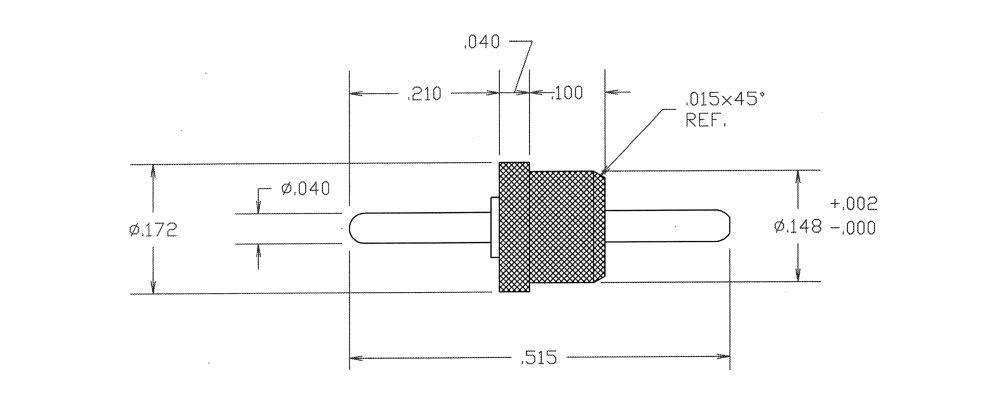

1110-21M-09519Z
1110-21M-09519Z
1110-21M-09519Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039C02 AA59126/039C02

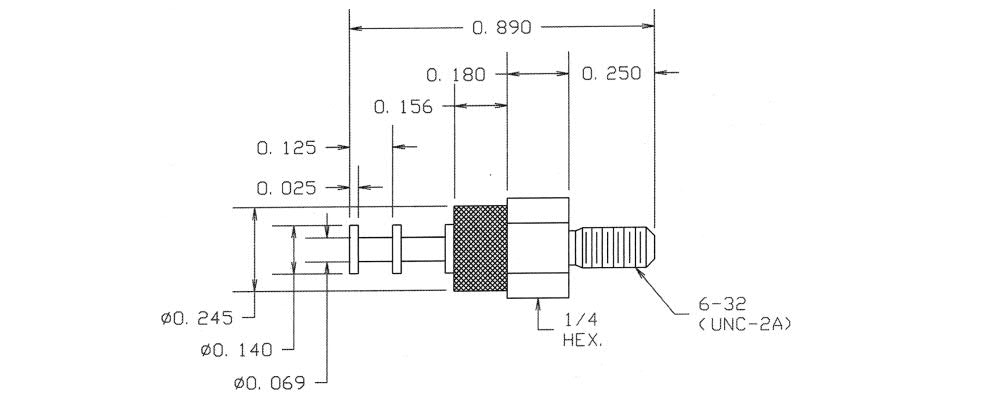

1125-45M-09512Z
1125-45M-09512Z
1125-45M-09512Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Red M55155/092C02 AA59126/092C02
1127-04M-0510Z
1127-04M-0510Z
1127-04M-0510Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200B01 AA59126/200B01
1127-68M-0518Z
1127-68M-0518Z
1127-68M-0518Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188B01 AA59126/188B01
1169-36M-0511Z
1169-36M-0511Z
1169-36M-0511Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Brown M55155/091B03 AA59126/091B03
1114-04M-09514Z
1114-04M-09514Z
1114-04M-09514Z
0.225" - Press Fit 1/32 0.086 PTFE Yellow M55155/054C01 AA59126/054C01
1117-01M-0512Z
1117-01M-0512Z
1117-01M-0512Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Red M55155/022B01 AA59126/022B01
1102-14M-09512
1102-14M-09512
1102-14M-09512
0.359" - Press Fit 1/16 0.136 PTFE Red M55155/072I01 AA59126/072I01
1110-40M-0510
1110-40M-0510
1110-40M-0510
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Black M55155/030H03 AA59126/030H03
1125-45M-09513
1125-45M-09513
1125-45M-09513
0.890" - 6-32 Nut 1/8 0.144 PTFE Orange M55155/093I02 AA59126/093I02
1127-04M-0511
1127-04M-0511
1127-04M-0511
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201H01 AA59126/201H01
1127-68M-0519
1127-68M-0519
1127-68M-0519
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189H01 AA59126/189H01
1169-36M-0512
1169-36M-0512
1169-36M-0512
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Red M55155/092H03 AA59126/092H03
1114-04M-09515
1114-04M-09515
1114-04M-09515
0.225" - Press Fit 1/32 0.086 PTFE Green M55155/055I01 AA59126/055I01
1117-01M-0513
1117-01M-0513
1117-01M-0513
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Orange M55155/023H01 AA59126/023H01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
